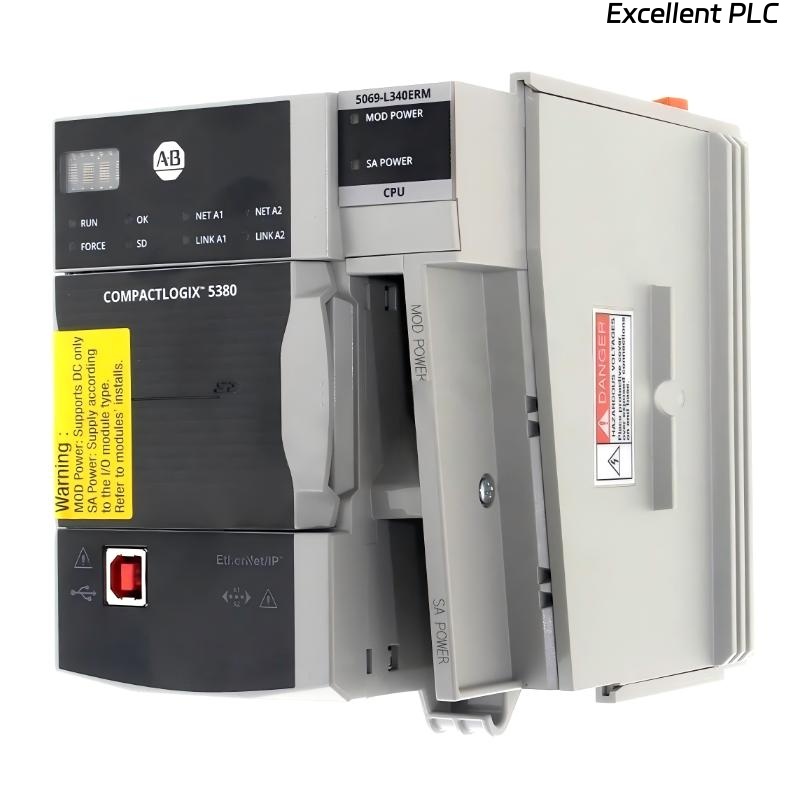

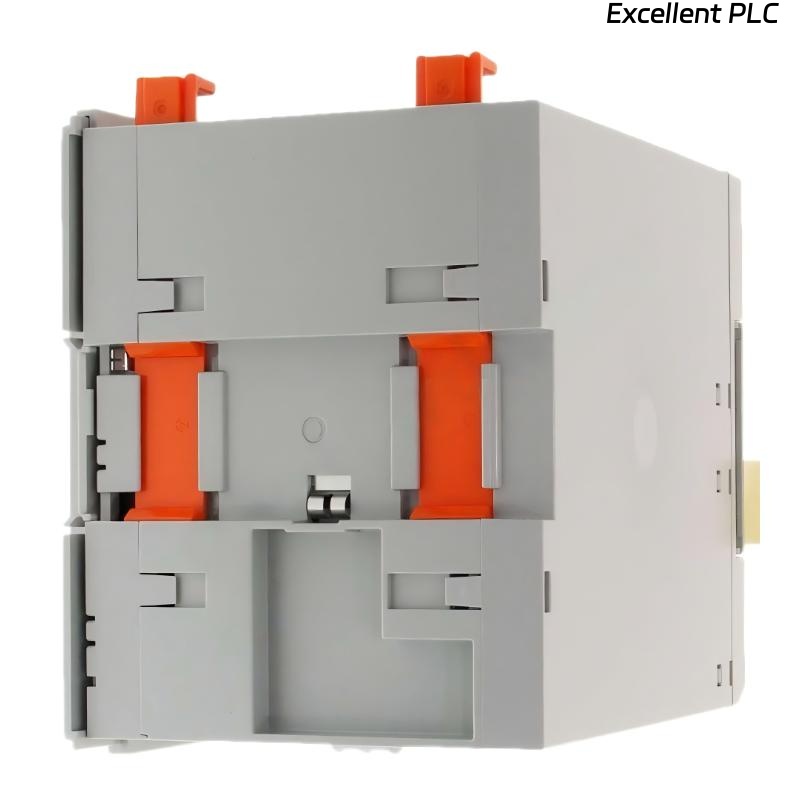

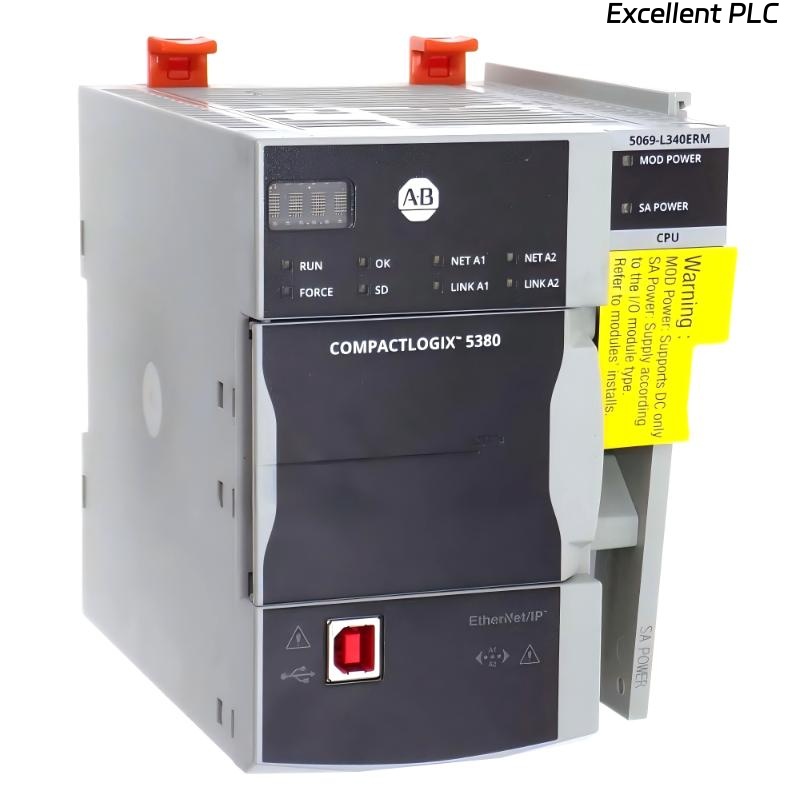

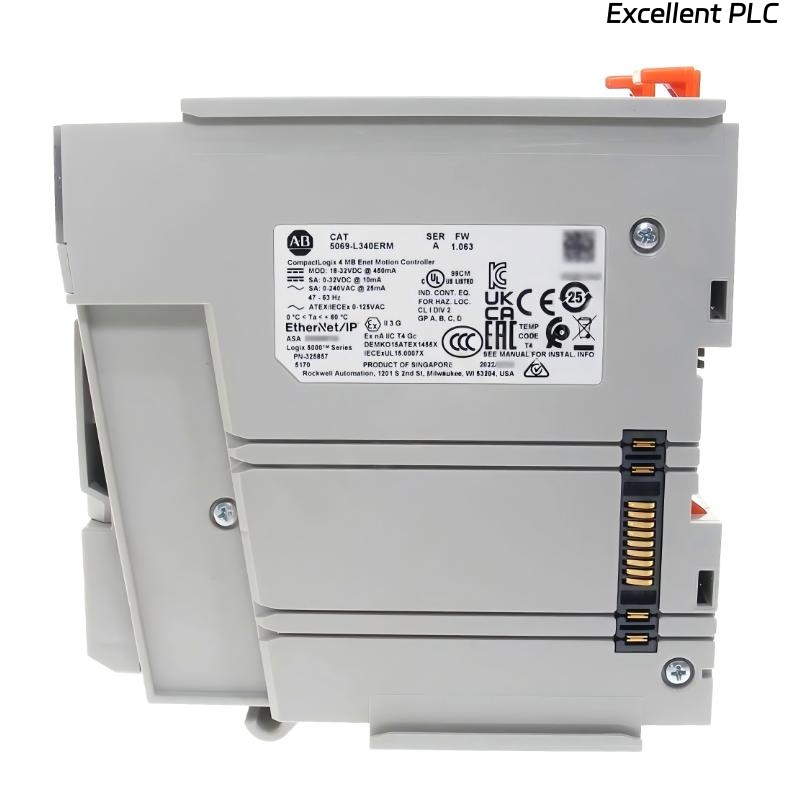

Allen Bradley 5069-L340ERM CompactLogix 5380 Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 5069-L340ERM CompactLogix 5380 Controller is a powerful motion-enabled controller designed for high-performance industrial automation systems requiring precise multi-axis control. As part of the CompactLogix 5380 family, this model integrates standard control and advanced motion capabilities into a single platform, making it ideal for complex machine applications.
With 4 MB of user memory, the controller provides sufficient capacity for sophisticated control algorithms, motion coordination, and real-time data processing. Its dual-channel EtherNet/IP communication ensures reliable, high-speed connectivity for distributed automation architectures.
Supporting up to 20 axes of integrated motion, the 5069-L340ERM is well suited for applications that demand synchronized motion control. In addition, it allows expansion with up to 31 local I/O modules and supports up to 55 EtherNet/IP nodes, offering flexibility and scalability for growing systems. The compact DIN rail mounting design ensures easy integration into control cabinets.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L340ERM |
| Series | CompactLogix 5380 |
| Controller Type | Motion Controller (Integrated Standard + Motion) |
| User Memory | 4 MB |
| Integrated Motion | Up to 20 Axes |
| Communication Ports | Dual EtherNet/IP |
| Maximum EtherNet/IP Nodes | Up to 55 Nodes |
| Local I/O Expansion | Up to 31 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Isolation | Integrated System Isolation |
| Dimensions | 143.97 x 101.66 x 136.81 mm |
| Weight | 0.768 kg |
Applications
• Multi-Axis Motion Systems such as packaging, labeling, and printing machines
• Robotics and Automated Equipment requiring precise synchronized motion control
• Material Handling Systems with coordinated conveyors and actuators
• Assembly Lines demanding high-speed and accurate positioning
• OEM Machine Building for advanced automation solutions
Advantages
• Integrated Motion Control supporting up to 20 axes, reducing the need for separate motion controllers
• High Memory Capacity (4 MB) for complex logic and motion programs
• Dual EtherNet/IP Ports for improved network reliability and topology flexibility
• Scalable System Architecture with up to 31 local I/O modules
• Strong Network Capability supporting up to 55 EtherNet/IP nodes
• Compact and Robust Design for efficient panel installation
FAQ
- What makes this controller suitable for motion applications?
It includes integrated motion control supporting up to 20 axes, enabling precise synchronization and coordination of multiple motion devices. - Which software is used for programming and motion configuration?
Programming is done using Studio 5000 Logix Designer, which provides integrated tools for motion control and system configuration. - What types of motion control are supported?
It supports coordinated motion, point-to-point control, electronic gearing, and camming functions. - How does dual EtherNet/IP improve system performance?
It allows for device-level ring (DLR) topology and better network redundancy, reducing downtime. - Can this controller handle large automation systems?
Yes, it supports up to 55 EtherNet/IP nodes and 31 local I/O modules. - Is additional hardware required for motion control?
No separate motion controller is required, but compatible drives and motors are needed. - What industries benefit most from this controller?
Industries such as packaging, automotive, food processing, and manufacturing benefit from its motion capabilities. - How is system expansion managed?
Expansion is achieved through modular I/O additions and networked EtherNet/IP devices. - What is the advantage of integrated motion over standalone systems?
It reduces system complexity, improves synchronization, and lowers overall hardware costs. - Is the controller suitable for real-time applications?
Yes, it is designed for deterministic, real-time control and motion applications.
Related Models
| Model | Description |
|---|---|
| 5069-L340ER | Standard Controller |
| 5069-L330ERM | Lower Axis Motion Controller |
| 5069-L350ERM | Higher Performance Motion Controller |
| 5069-L340ERMS2 | SIL2 Safety Motion Controller |
| 5069-L340ERMS3 | SIL3 Safety Motion Controller |
| 5069-L320ERM | Entry Motion Controller |
