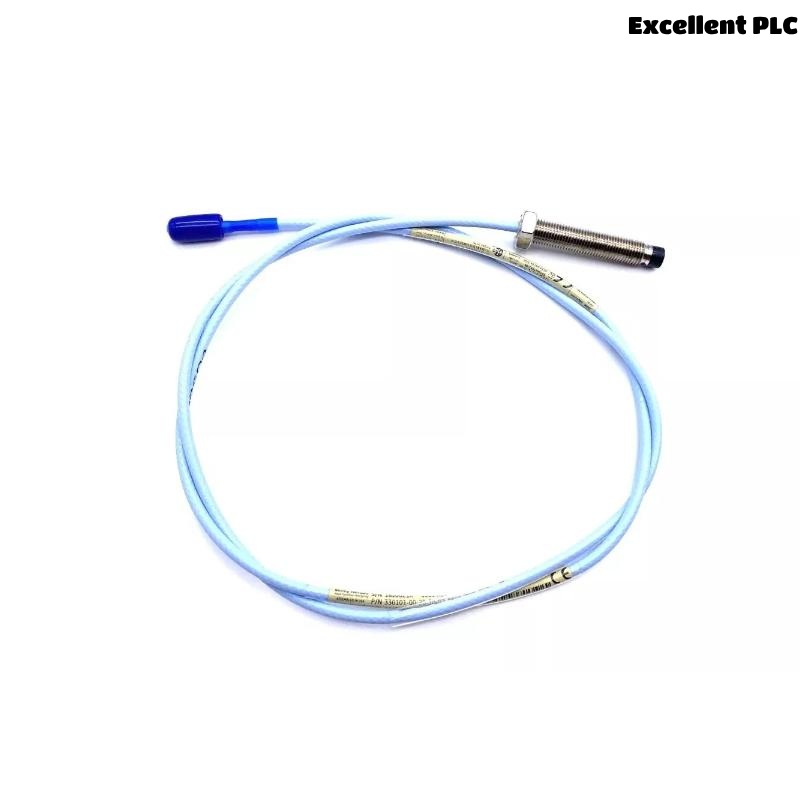

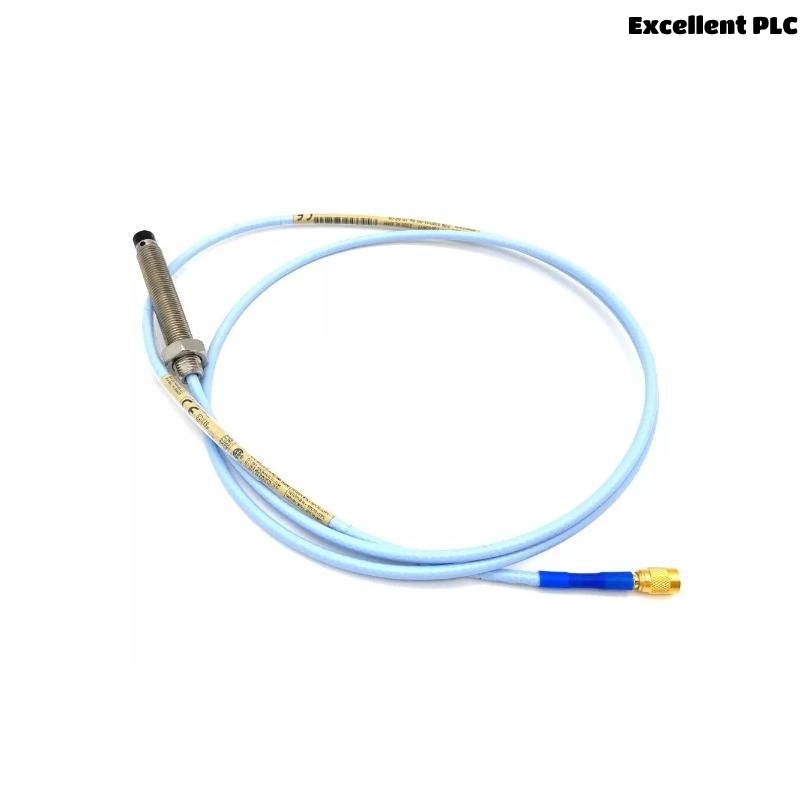

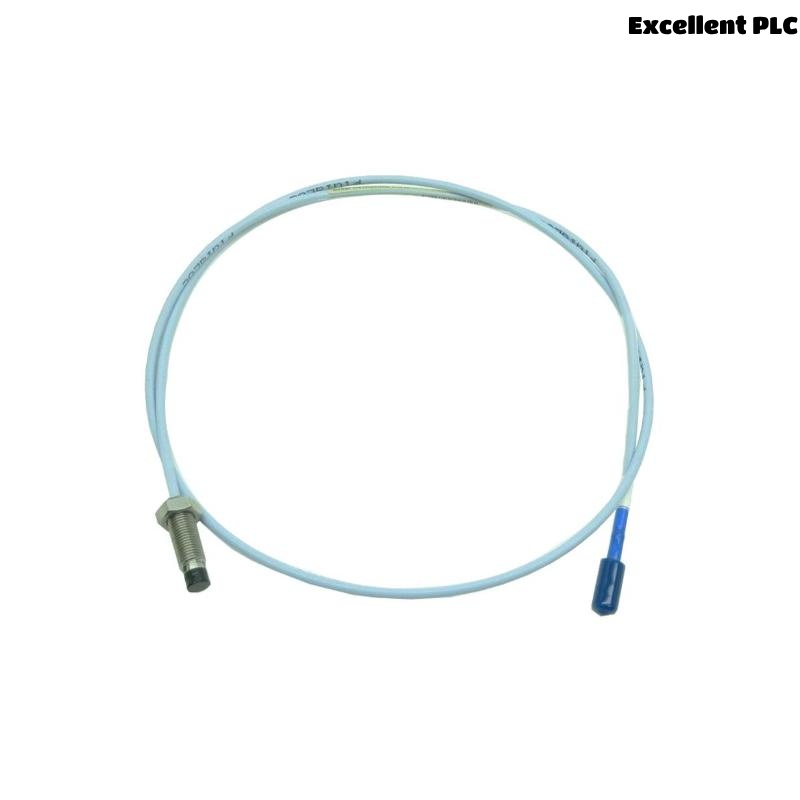

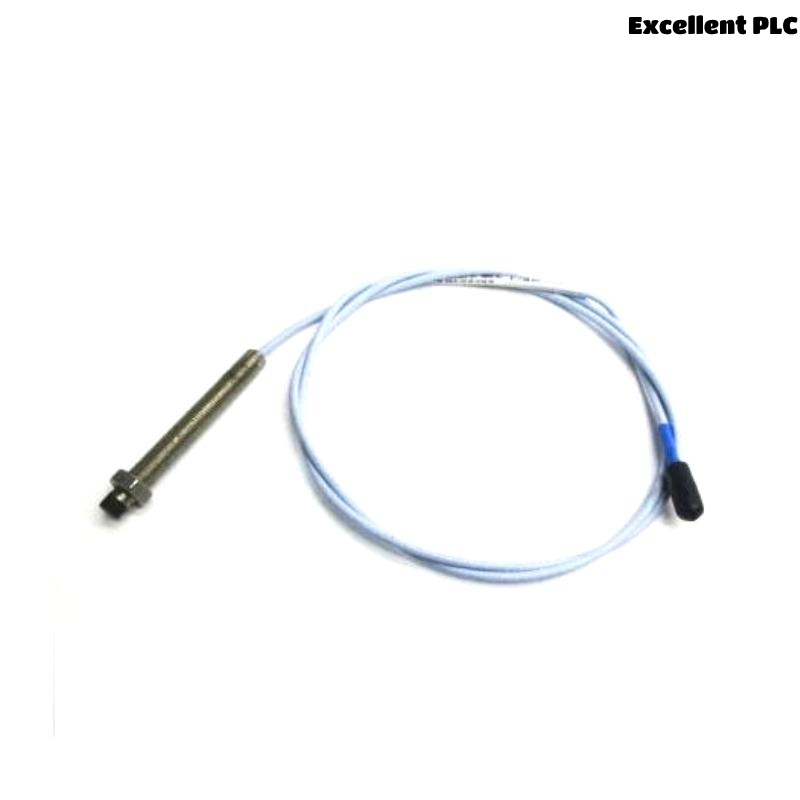

Bently Nevada 330101-00-66-10-02-CN 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Bently Nevada 330101-00-66-10-02-CN is a high-performance 3300 XL 8 mm proximity probe designed for precise static and dynamic measurements of shaft position and vibration. It operates as part of a three-part transducer system with a matching extension cable and Proximitor sensor. The system is fully compliant with API 670 standards and is widely used in industrial rotating machinery.
Applications
-
Shaft vibration monitoring on fluid-film bearing machines
-
Axial thrust position measurements
-
Keyphasor™ reference signal detection
-
Overspeed and speed monitoring
-
Rotor dynamics analysis in turbines, compressors, and pumps
Product Advantages
-
Full API 670 compliance (mechanical configuration, accuracy, linearity)
-
Interchangeable system components—probe, extension cable, sensor
-
Enhanced RFI/EMI immunity for improved signal integrity
-
Gold-plated ClickLoc connectors prevent loosening
-
Rugged design with TipLoc and CableLoc for mechanical robustness
-
Optional FluidLoc to prevent oil ingress
-
Extended temperature version supports up to +218°C
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | Non-contacting eddy current |
| Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Case Material | AISI 303 or 304 stainless steel |
| Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temp (Standard) | –52°C to +177°C |
| Operating Temp (ETR) | –52°C to +218°C (probe), –52°C to +260°C (cable) |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Scale Factor | 200 mV/mil ±5% (standard); ±6.5% (9 m system) |
| Frequency Response | 0 to 10 kHz, +0/–3 dB |
| Output Voltage Range | –1 Vdc to –17 Vdc |
| Shaft Diameter (Min) | 50.8 mm (2 in); Recommended: ≥76.2 mm (3 in) |
| Cable Type | 75Ω triaxial FEP insulated (PFA for ETR) |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
Frequently Asked Questions (FAQs)
Q1: Is this probe compatible with older 3300 series components?
Yes, it is fully backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: What is the primary use of this probe?
It is used for measuring shaft vibration and position in rotating machinery.
Q3: Can the probe be installed in hazardous areas?
Yes, it carries CSA, ATEX, and IECEx approvals for hazardous environments.
Q4: Does the probe require field calibration?
No, components are factory-matched and do not require field calibration.
Q5: What is the recommended gap setting?
Approximately 1.27 mm (50 mils), equivalent to –9 Vdc.
Q6: Can the probe withstand high temperatures?
Yes, the extended temperature range version handles up to +218°C.
Q7: Is the probe resistant to oil leaks?
Yes, the optional FluidLoc cable prevents fluid ingress along the cable.
Q8: Are special tools required for connector installation?
No, ClickLoc connectors only require finger-tight torque and click when secure.
Q9: Can the probe be mounted on small shaft diameters?
Yes, but scale factor accuracy is optimized for shafts ≥76.2 mm (3 in).
Q10: Is there any risk from electromagnetic interference?
No, it features strong RFI/EMI immunity and complies with CE requirements.
Related or Same-Series Models
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-05-02-00 | 8 mm Probe, standard cable | 0.5 m | 0.290 kg |
| 330101-00-16-10-02-00 | 8 mm Probe, standard cable | 1.6 m | 0.365 kg |
| 330101-00-20-10-02-05 | 8 mm Probe, armored, ATEX certified | 2.0 m | 0.410 kg |
| 330101-00-30-10-02-00 | 8 mm Probe, standard cable | 3.0 m | 0.440 kg |
| 330101-00-50-10-02-05 | 8 mm Probe, armored, ATEX certified | 5.0 m | 0.600 kg |
| 330101-00-90-10-02-05 | 8 mm Probe, armored, ATEX certified | 9.0 m | 0.800 kg |
Popular Bently Nevada Models
| Model Number | Description | Application Type | Weight |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.48 kg |
| 3500/22M-01-01 | Transient Data Interface Module | Data Collection | 0.75 kg |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe with connector protector | Proximity Measurement | 0.325 kg |
| 330180-91-CN | Proximitor Sensor (1 m system length) | Signal Conversion | 0.246 kg |
| 3500/15E | Power Supply Module | System Power Supply | 0.65 kg |
| 3500/05 | System Rack | Module Integration | 3.2 kg |
Frequently Asked Questions (FAQs)
Q1: Is this probe compatible with older 3300 series components?
Yes, it is fully backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: What is the primary use of this probe?
It is used for measuring shaft vibration and position in rotating machinery.
Q3: Can the probe be installed in hazardous areas?
Yes, it carries CSA, ATEX, and IECEx approvals for hazardous environments.
Q4: Does the probe require field calibration?
No, components are factory-matched and do not require field calibration.
Q5: What is the recommended gap setting?
Approximately 1.27 mm (50 mils), equivalent to –9 Vdc.
Q6: Can the probe withstand high temperatures?
Yes, the extended temperature range version handles up to +218°C.
Q7: Is the probe resistant to oil leaks?
Yes, the optional FluidLoc cable prevents fluid ingress along the cable.
Q8: Are special tools required for connector installation?
No, ClickLoc connectors only require finger-tight torque and click when secure.
Q9: Can the probe be mounted on small shaft diameters?
Yes, but scale factor accuracy is optimized for shafts ≥76.2 mm (3 in).
Q10: Is there any risk from electromagnetic interference?
No, it features strong RFI/EMI immunity and complies with CE requirements.
Related or Same-Series Models
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330101-00-08-05-02-00 | 8 mm Probe, standard cable | 0.5 m | 0.290 kg |
| 330101-00-16-10-02-00 | 8 mm Probe, standard cable | 1.6 m | 0.365 kg |
| 330101-00-20-10-02-05 | 8 mm Probe, armored, ATEX certified | 2.0 m | 0.410 kg |
| 330101-00-30-10-02-00 | 8 mm Probe, standard cable | 3.0 m | 0.440 kg |
| 330101-00-50-10-02-05 | 8 mm Probe, armored, ATEX certified | 5.0 m | 0.600 kg |
| 330101-00-90-10-02-05 | 8 mm Probe, armored, ATEX certified | 9.0 m | 0.800 kg |
Popular Bently Nevada Models
| Model Number | Description | Application Type | Weight |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | 0.48 kg |
| 3500/22M-01-01 | Transient Data Interface Module | Data Collection | 0.75 kg |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe with connector protector | Proximity Measurement | 0.325 kg |
| 330180-91-CN | Proximitor Sensor (1 m system length) | Signal Conversion | 0.246 kg |
| 3500/15E | Power Supply Module | System Power Supply | 0.65 kg |
| 3500/05 | System Rack | Module Integration | 3.2 kg |
