Product Description

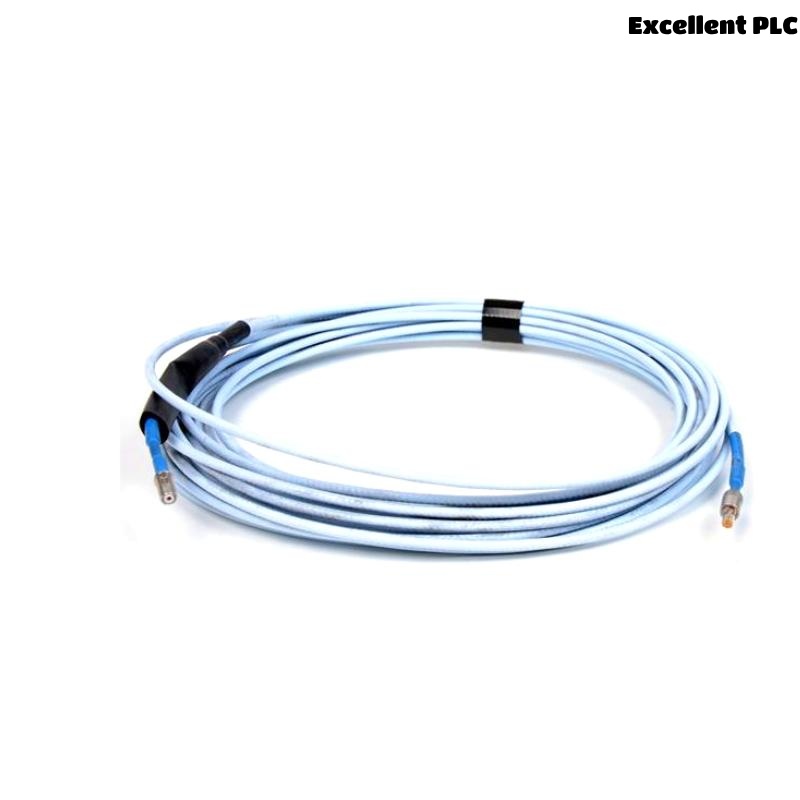

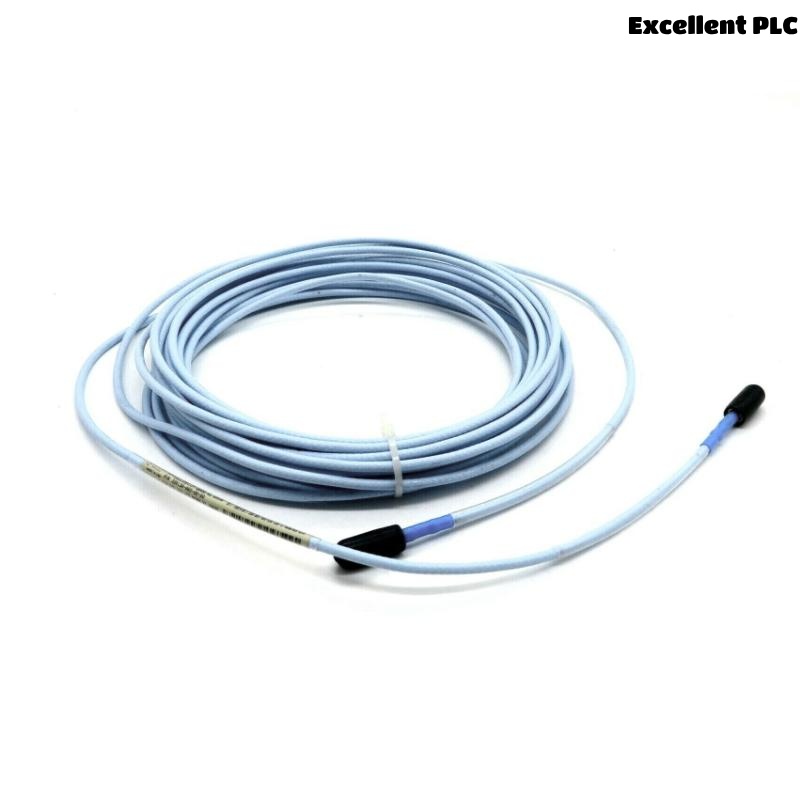

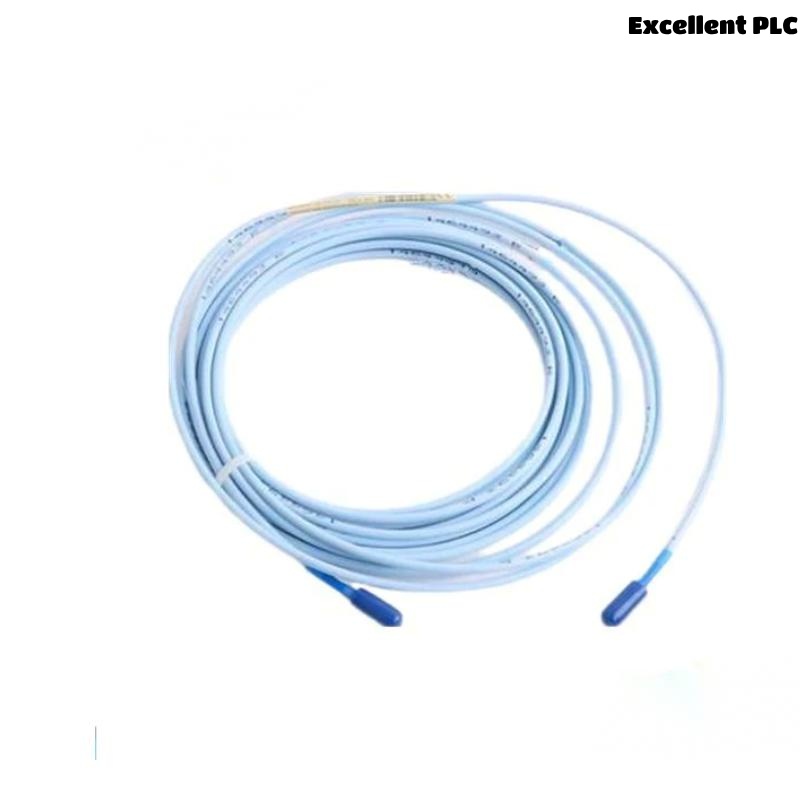

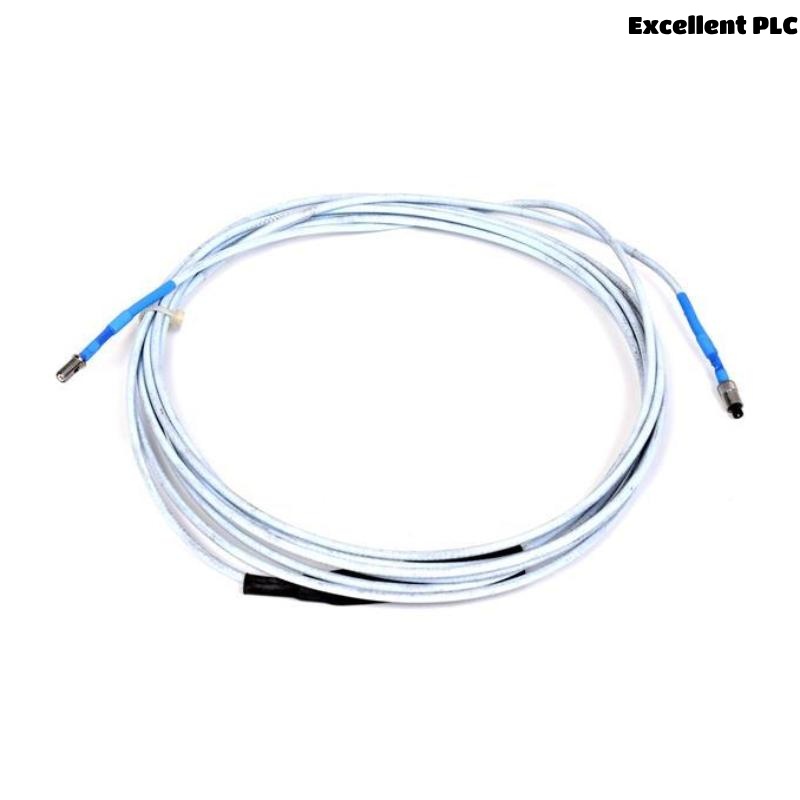

The Bently Nevada 330130-080-12-00 is a part of the 3300 XL 8 mm Proximity Transducer System. This 8.0-meter standard extension cable connects a proximity probe to a Proximitor sensor. It is designed for reliable transmission of static and dynamic vibration signals in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-080-12-00 |
| Cable Length | 8.0 meters |
| Weight | 0.272 kg |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Capacitance | 69.9 pF/m |
| DC Resistance (RCORE) | 1.76 ± 0.26 Ω |
| DC Resistance (RJACKET) | 0.53 ± 0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature ClickLoc coaxial connectors |
| Connector Torque (max) | 0.565 N·m (5 in·lbf) |
| Operating Temp (Standard) | -52°C to +177°C (-62°F to +350°F) |
| Operating Temp (ETR Option) | -52°C to +260°C (-62°F to +500°F) |
| Shielding | Gold-plated brass or beryllium copper connectors |
| Armor Option | Optional stainless steel armor available |
Product Applications
-
Fluid-film bearing vibration and position monitoring
-
Keyphasor reference signal transmission
-
Overspeed protection and shaft displacement detection
-
Integration in high-density industrial sensor networks
-
Use in turbines, compressors, motors, and pumps
Product Advantages
-
High durability: 330 N pull strength with patented CableLoc™ design
-
Easy installation: ClickLoc™ connectors require no tools and prevent loosening
-
Oil sealing available: Optional FluidLoc cable prevents fluid leakage
-
Wide compatibility: Interchangeable with 3300 and 3300 XL series
-
High-temperature readiness: ETR variant withstands up to +260°C
FAQ
Q1: What systems is this extension cable compatible with?
A1: It works with the 3300 XL 8 mm Proximity Transducer System and is interchangeable with older 3300 5 mm and 8 mm systems.
Q2: What is the significance of the “080” in the part number?
A2: “080” indicates the cable length is 8.0 meters.
Q3: Can the cable be used in high-temperature environments?
A3: Yes, the ETR version can operate up to 260°C.
Q4: Is this cable armored?
A4: The -12-00 version is standard (non-armored) with connector protector. Armored versions are available.
Q5: What is the pull strength of the cable connection?
A5: The CableLoc design provides 330 N (75 lbf) pull strength.
Q6: Does it require calibration when replaced?
A6: No, the system is designed for full interchangeability without recalibration.
Q7: Can it be installed in areas with electromagnetic interference?
A7: Yes, the system has enhanced RFI/EMI immunity.
Q8: What is the recommended bend radius for this cable?
A8: Minimum bend radius is 25.4 mm (1.0 inch).
Q9: Is this cable suitable for hazardous areas?
A9: Yes, it supports ATEX, IECEx, and other certifications depending on installation.
Q10: Are special tools required for connector installation?
A10: No, ClickLoc connectors are finger-tight and tool-free.
Related Models (Same Series or Function)
| Model Number | Description | Cable Length | Cable Type | Weight |
|---|---|---|---|---|
| 330130-070-12-00 | Standard Extension Cable with Protector | 7.0 m | FEP, non-armored | 0.238 kg |
| 330130-060-12-00 | Standard Extension Cable with Protector | 6.0 m | FEP, non-armored | 0.204 kg |
| 330130-085-12-00 | Standard Extension Cable with Protector | 8.5 m | FEP, non-armored | 0.289 kg |
| 330190-080-00-00 | ETR Extension Cable (High Temp) | 8.0 m | PFA, non-armored | 0.274 kg |
| 330190-080-01-00 | ETR Extension Cable, Armored | 8.0 m | PFA, armored | 0.824 kg |
| 330130-080-13-00 | Extension Cable, Armored, FluidLoc + Protector | 8.0 m | Armored, FluidLoc | 0.830 kg |
