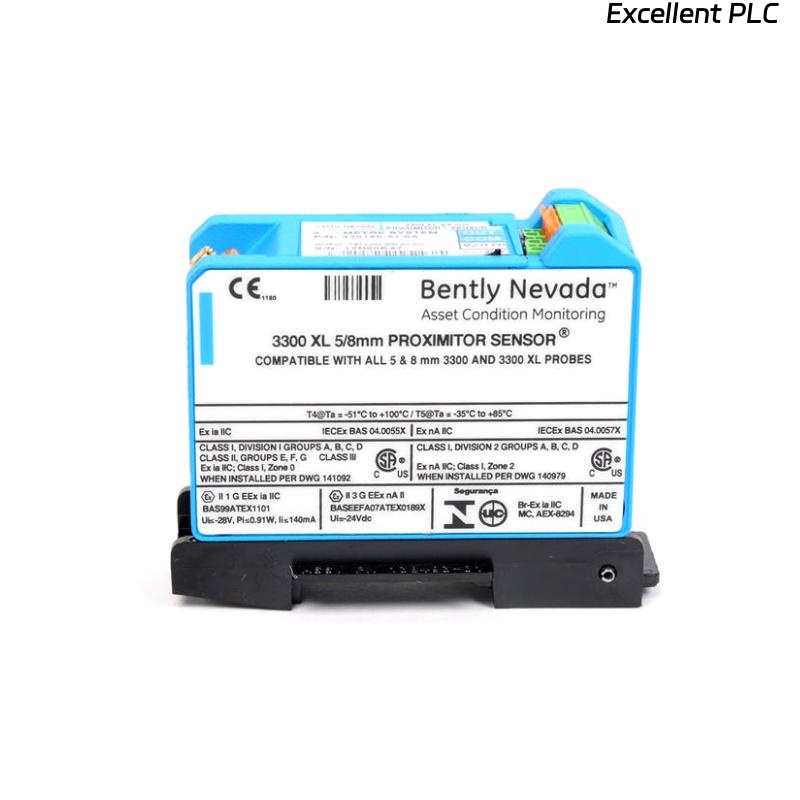

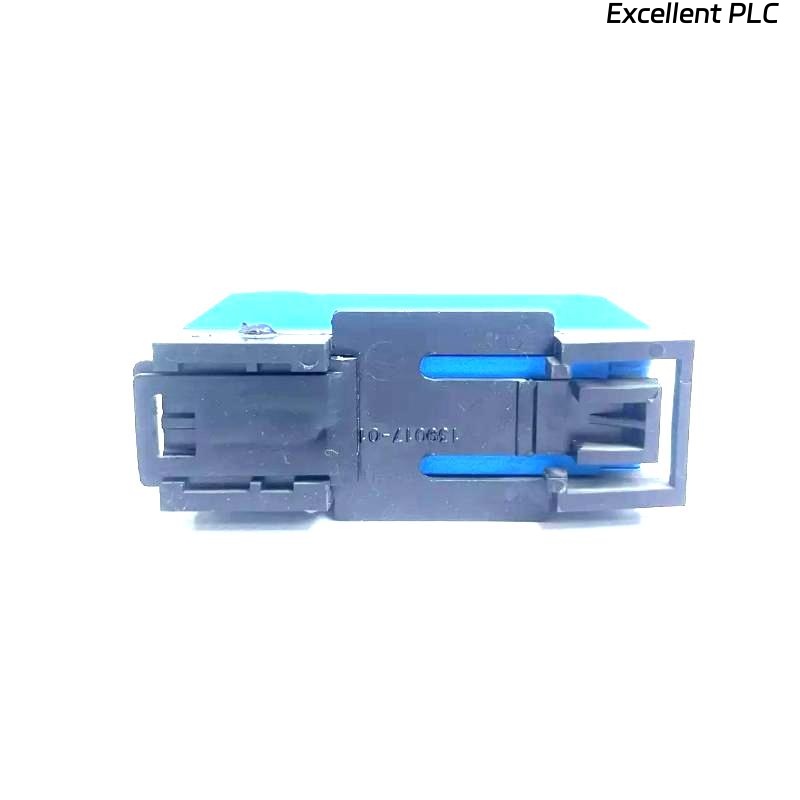

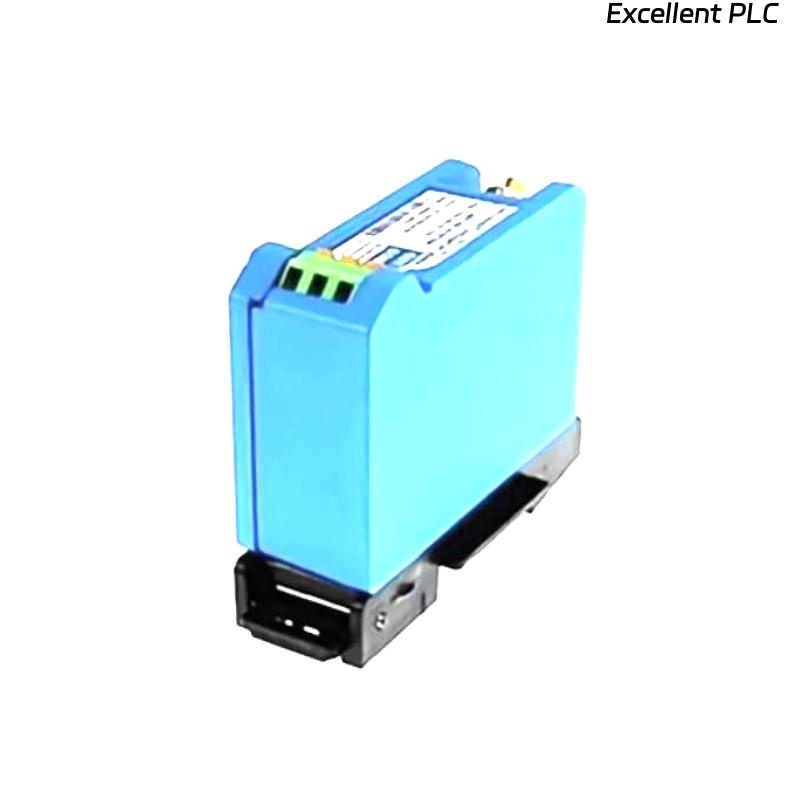

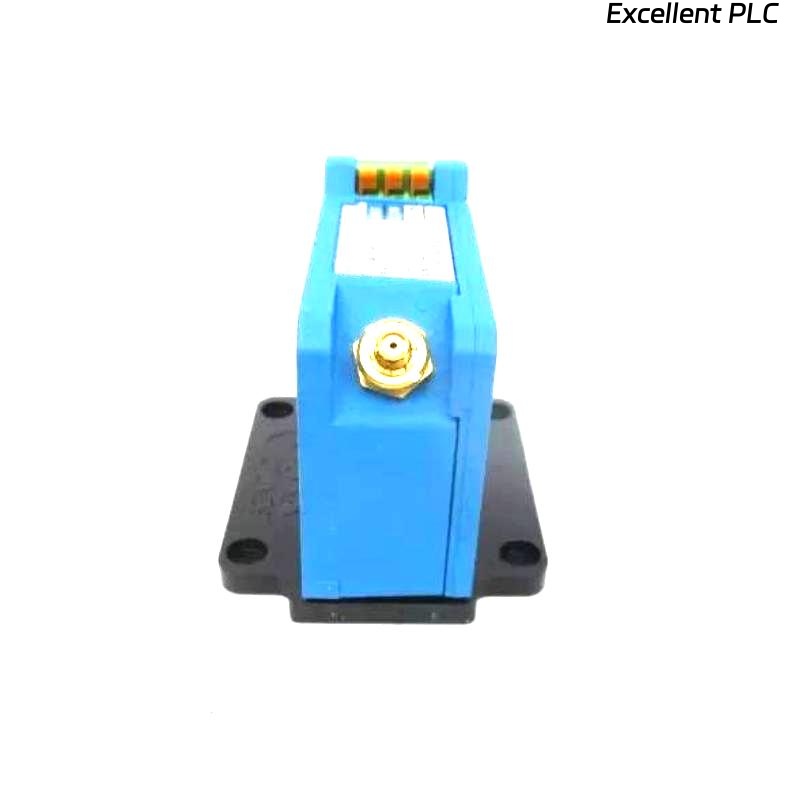

Bently Nevada 330180-X1-CN 143416-21 3300 XL Proximitor Sensor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330180-X1-CN 143416-21 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for accurate vibration and position measurement on fluid-film bearing machinery. It offers high stability, full API 670 compliance, and excellent RFI/EMI immunity for reliable performance in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
| Input | Accepts one 3300-series 5 mm or 3300 XL 8 mm probe with extension cable |
| Power Supply | -17.5 VDC to -26 VDC, 12 mA max |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 VDC (1.27 mm) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% (standard) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Operating Temp. (Sensor) | -52°C to +100°C |
| Storage Temp. (Sensor) | -52°C to +105°C |
| Humidity | ≤93% RH, per IEC 68-2-3 |
| Compliance | API 670, CE, RoHS |
| Hazardous Area Approvals | ATEX, IECEx, CSA, SIL 2/3 |
Applications
-
Vibration monitoring on turbines, compressors, and pumps
-
Shaft position and displacement measurement
-
Keyphasor reference signal generation
-
Overspeed protection systems
-
Condition monitoring for critical rotating equipment
Advantages
-
High Accuracy: Meets API 670 standards for linearity and stability
-
Rugged Design: Withstands harsh industrial conditions
-
Interchangeable Components: No calibration needed when replacing probes or cables
-
RFI/EMI Immunity: Stable operation without costly shielding
-
Flexible Mounting: DIN-rail or panel mount options
-
Extended Temperature Options: Up to 260°C with ETR components
FAQ
Q1: What is the primary use of this sensor?
A1: It measures vibration and position in rotating machinery with high precision.
Q2: Can I use it with non-XL series probes?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Does it meet API 670 requirements?
A3: Yes, the standard 8 mm system is fully compliant.
Q4: Is calibration required when replacing parts?
A4: No, all components are fully interchangeable without calibration.
Q5: What is the recommended shaft size for accurate measurement?
A5: Minimum 50.8 mm (2 in), recommended 76.2 mm (3 in).
Q6: Can it be used in hazardous areas?
A6: Yes, it has ATEX, IECEx, and CSA approvals for various hazardous zones.
Q7: What is the typical linear range?
A7: 2 mm (80 mils) from 0.25 mm to 2.3 mm.
Q8: How is the output voltage related to displacement?
A8: The standard scale factor is 200 mV/mil.
Q9: What mounting options are available?
A9: DIN-rail and panel mount configurations are available.
Q10: Can it operate in high-temperature environments?
A10: Yes, with ETR probes and cables it supports up to 260°C cable temperature.
Related Models (Same Series)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 330180-50-CN | 3300 XL Proximitor Sensor, 5 m, Panel Mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-90-CN | 3300 XL Proximitor Sensor, 9 m, Panel Mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-11-CN | 1 m, DIN Mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-51-CN | 5 m, DIN Mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-91-CN | 9 m, DIN Mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-12-CN | 1 m, No Mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
Popular Bently Nevada Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | 241 × 24 × 241 | 0.5 kg |
| 3500/22M | Transient Data Interface | 241 × 24 × 241 | 0.5 kg |
| 3500/94 | VGA Display Module | 241 × 72 × 241 | 0.6 kg |
| 330104-00-08-10-02-00 | 3300 XL 8 mm Probe | — | — |
| 330130-040-00-00 | 3300 XL Extension Cable | — | — |
| 330400 | Velomitor Sensor | 64 × 24 × 24 | 0.15 kg |
