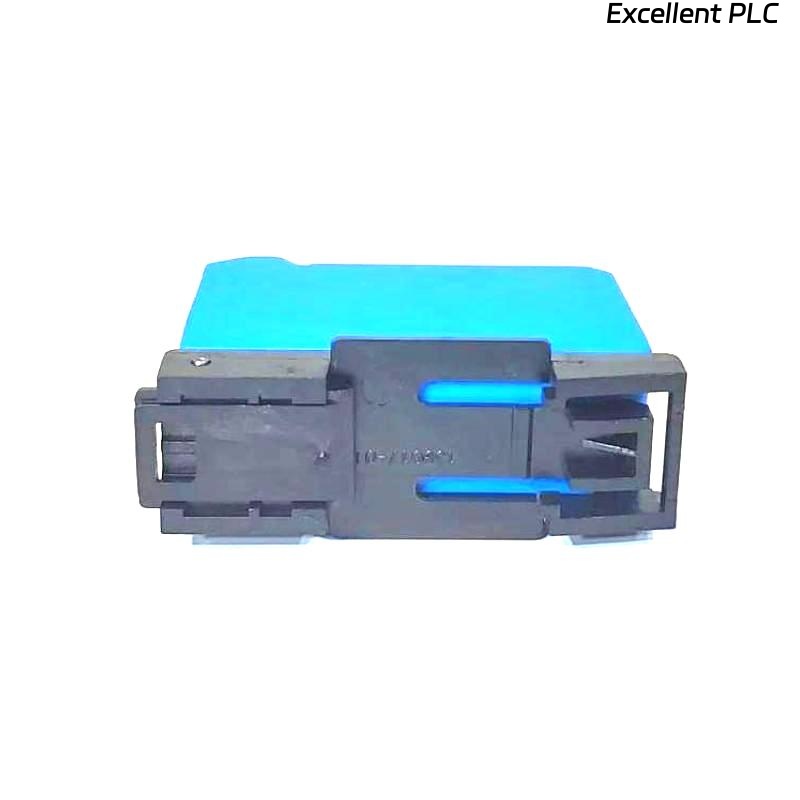

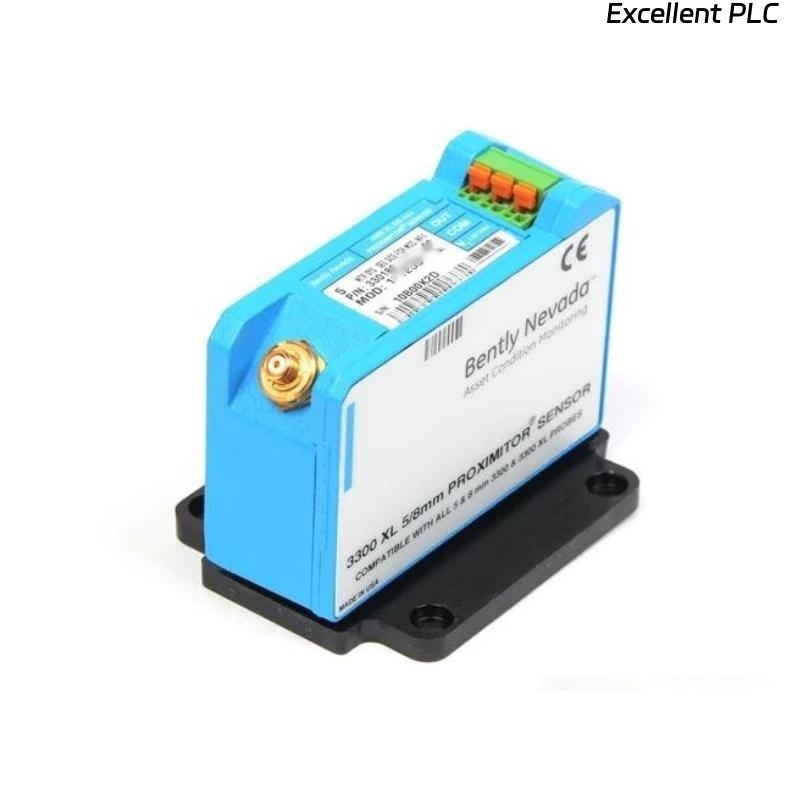

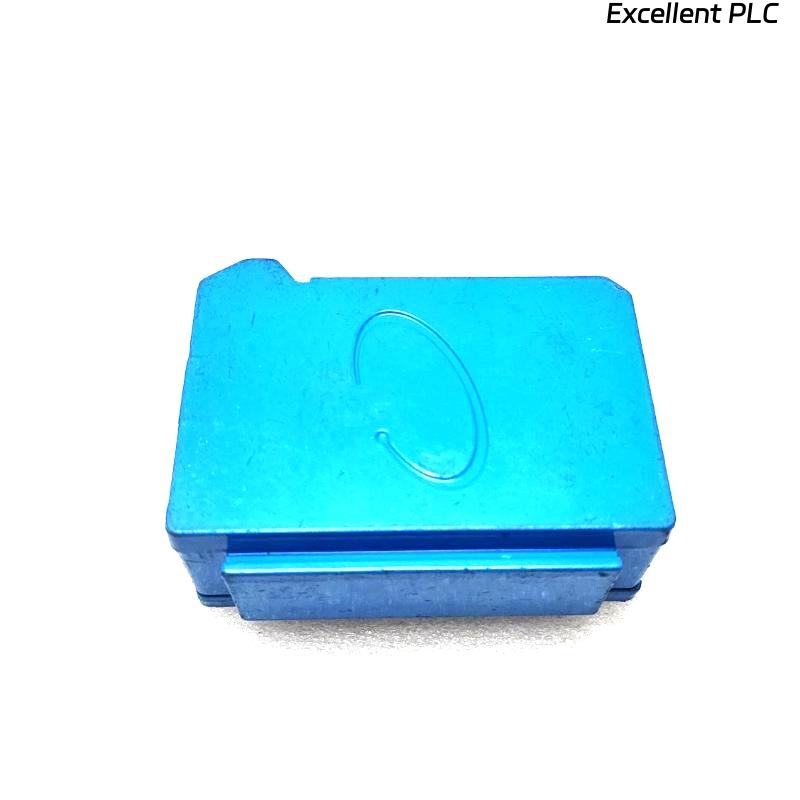

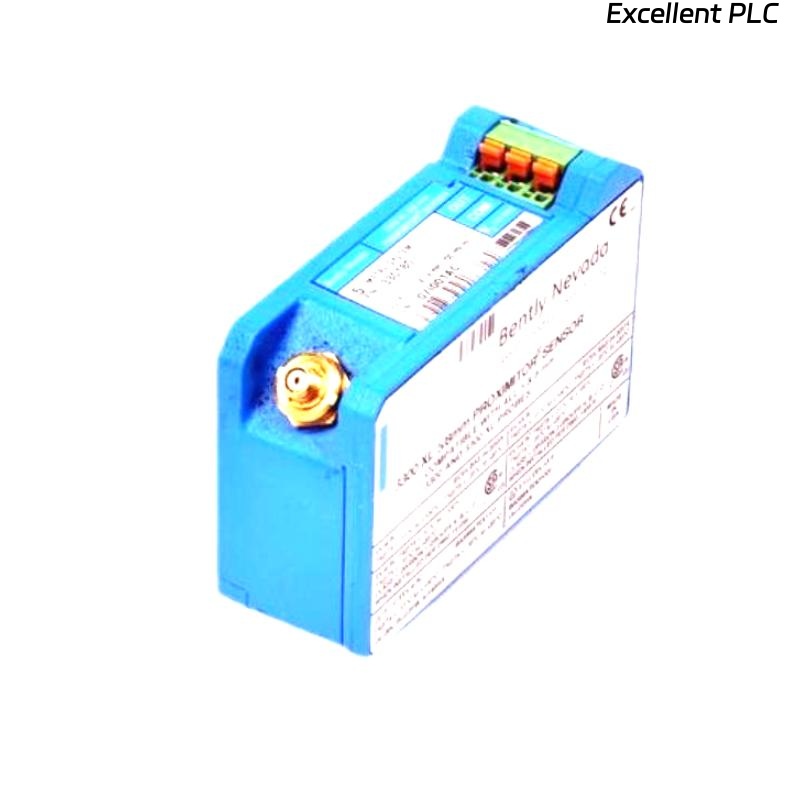

Bently Nevada 330180-X1-CN 143416-42 3300 XL Proximitor Sensor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Bently Nevada 330180-X1-CN 143416-42 3300 XL Proximitor Sensor is a high-performance component in the 3300 XL 8 mm Proximity Transducer System. It measures both static (position) and dynamic (vibration) displacement of conductive targets, mainly used on fluid-film bearing machines for vibration monitoring, position tracking, Keyphasor reference, and speed measurement.
The sensor’s compact design allows for DIN-rail or panel mounting, with enhanced RFI/EMI immunity for reliable operation in harsh environments without the need for shielded conduit. SpringLoc terminal strips allow fast, tool-free wiring. Gold-plated ClickLoc connectors ensure secure and corrosion-resistant connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
| Power Supply | -17.5 Vdc to -26 Vdc (12 mA max) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm) |
| ISF (5 m System) | 7.87 V/mm ±5% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Probe Compatibility | 3300 XL 8 mm, 3300-series 5 mm |
| Operating Temperature | -52°C to +100°C |
| Storage Temperature | -52°C to +105°C |
| Humidity | ≤93% RH (56 days, IEC 68 2 3) |
| Material | A308 aluminum housing, gold-plated brass/copper connectors |
| Hazardous Area Approval | CSA, ATEX, IECEx (varies by configuration) |
Applications
-
Vibration monitoring in turbines, compressors, and pumps
-
Axial and radial shaft position measurement
-
Keyphasor reference signal generation
-
Overspeed and tachometer measurements
-
Condition monitoring in industrial rotating machinery
-
Integration with API 670-compliant monitoring systems
Advantages
-
Interchangeability: Fully compatible with other 3300 XL 8 mm and non-XL 3300-series components.
-
High Reliability: Excellent RFI/EMI immunity for stable performance in noisy environments.
-
Easy Installation: SpringLoc terminals and ClickLoc connectors eliminate loose connections and reduce installation time.
-
Environmental Resistance: Corrosion-resistant connectors and optional FluidLoc cables for oil sealing.
-
Extended Compatibility: Supports extended temperature range probes and cables.
-
Compliance: Meets API 670 requirements and multiple hazardous area certifications.
FAQ
Q1: What is the function of the 330180-X1-CN Proximitor Sensor?
A1: It converts the signal from a proximity probe into a voltage proportional to the distance to a conductive surface, enabling position and vibration measurement.
Q2: Can it be used with both 5 mm and 8 mm probes?
A2: Yes, it is compatible with 3300 XL 8 mm probes and 3300-series 5 mm probes.
Q3: Does it require calibration for different target materials?
A3: It is factory-calibrated to AISI 4140 steel; calibration for other materials is available upon request.
Q4: What is the recommended gap for radial vibration measurements?
A4: Approximately 1.27 mm (50 mils), corresponding to -9 Vdc.
Q5: Is it suitable for hazardous area applications?
A5: Yes, it has CSA, ATEX, and IECEx certifications, depending on the configuration.
Q6: Can it be DIN-rail mounted?
A6: Yes, it supports both DIN-rail and panel mounting.
Q7: What is the operating temperature range?
A7: From -52°C to +100°C for the Proximitor Sensor.
Q8: Does it require special tools for wiring?
A8: No, SpringLoc terminal strips allow tool-free installation.
Q9: How is the environmental protection of connectors ensured?
A9: ClickLoc connectors with optional connector protectors provide corrosion resistance and secure connections.
Q10: Does it meet API 670 standards?
A10: Yes, it meets API 670 standards for mechanical configuration, accuracy, and temperature stability.
Recommended Related Models (Same Series/Function)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 330180-50-00 | 3300 XL Proximitor Sensor, 5 m, Panel Mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9 m, DIN Mount, Approved | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330180-12-00 | 3300 XL Proximitor Sensor, 1 m, No Mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330101 | 3300 XL 8 mm Probe, 3/8-24 UNF | — | — |
| 330102 | 3300 XL 8 mm Probe with Armor | — | — |
| 330130 | 3300 XL Extension Cable | — | — |
Popular Bently Nevada Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | — | — |
| 3500/22M | Transient Data Interface | — | — |
| 3500/32M | Relay Module | — | — |
| 3500/25 | Keyphasor Module | — | — |
| 3500/93 | System Rack Interface | — | — |
| 330104 | 3300 XL 8 mm Proximity Probe | — | — |
FAQ
Q1: What is the function of the 330180-X1-CN Proximitor Sensor?
A1: It converts the signal from a proximity probe into a voltage proportional to the distance to a conductive surface, enabling position and vibration measurement.
Q2: Can it be used with both 5 mm and 8 mm probes?
A2: Yes, it is compatible with 3300 XL 8 mm probes and 3300-series 5 mm probes.
Q3: Does it require calibration for different target materials?
A3: It is factory-calibrated to AISI 4140 steel; calibration for other materials is available upon request.
Q4: What is the recommended gap for radial vibration measurements?
A4: Approximately 1.27 mm (50 mils), corresponding to -9 Vdc.
Q5: Is it suitable for hazardous area applications?
A5: Yes, it has CSA, ATEX, and IECEx certifications, depending on the configuration.
Q6: Can it be DIN-rail mounted?
A6: Yes, it supports both DIN-rail and panel mounting.
Q7: What is the operating temperature range?
A7: From -52°C to +100°C for the Proximitor Sensor.
Q8: Does it require special tools for wiring?
A8: No, SpringLoc terminal strips allow tool-free installation.
Q9: How is the environmental protection of connectors ensured?
A9: ClickLoc connectors with optional connector protectors provide corrosion resistance and secure connections.
Q10: Does it meet API 670 standards?
A10: Yes, it meets API 670 standards for mechanical configuration, accuracy, and temperature stability.
Recommended Related Models (Same Series/Function)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 330180-50-00 | 3300 XL Proximitor Sensor, 5 m, Panel Mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9 m, DIN Mount, Approved | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330180-12-00 | 3300 XL Proximitor Sensor, 1 m, No Mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330101 | 3300 XL 8 mm Probe, 3/8-24 UNF | — | — |
| 330102 | 3300 XL 8 mm Probe with Armor | — | — |
| 330130 | 3300 XL Extension Cable | — | — |
Popular Bently Nevada Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | — | — |
| 3500/22M | Transient Data Interface | — | — |
| 3500/32M | Relay Module | — | — |
| 3500/25 | Keyphasor Module | — | — |
| 3500/93 | System Rack Interface | — | — |
| 330104 | 3300 XL 8 mm Proximity Probe | — | — |
