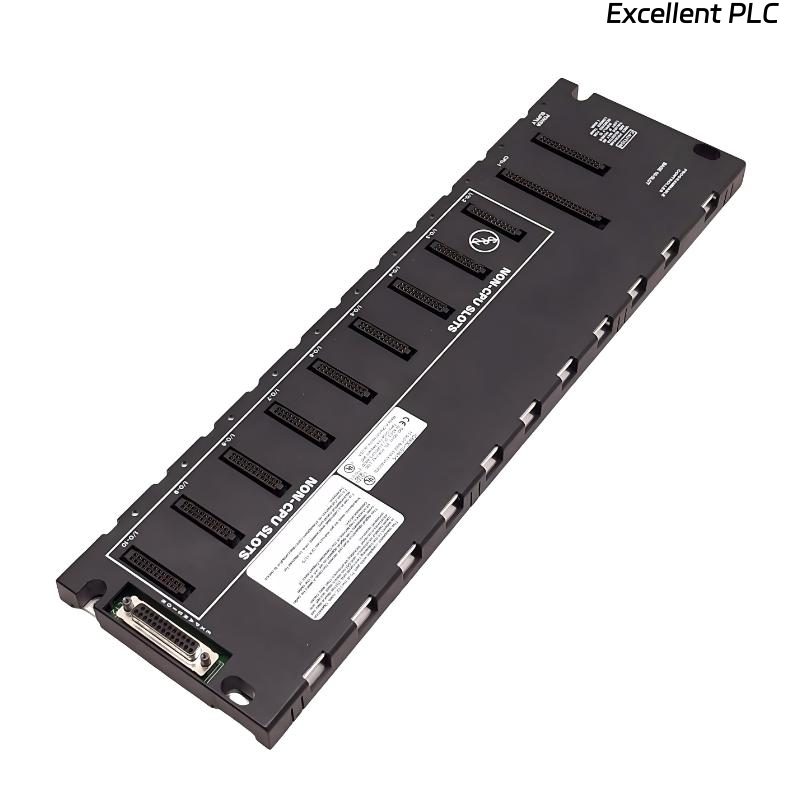

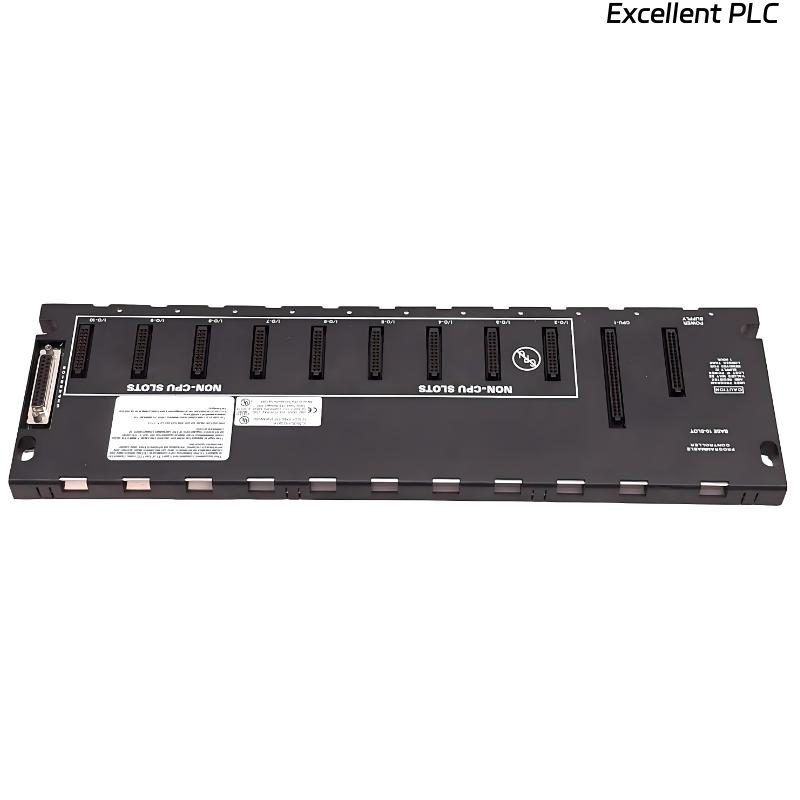

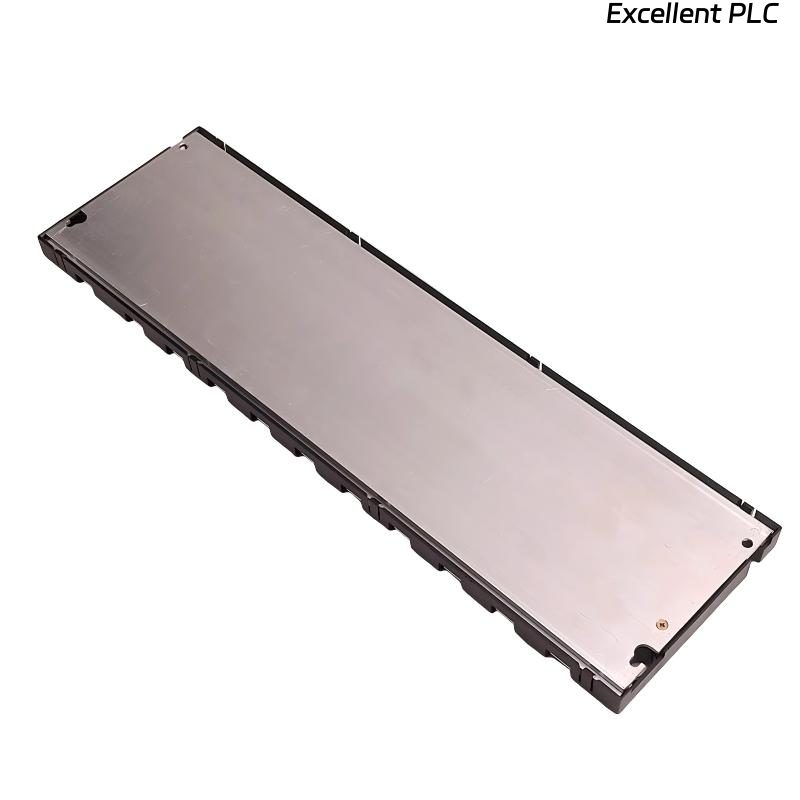

GE IC693CHS391 10 Slot Expansion Base

Product Introduction

The GE IC693CHS391 10 Slot Expansion Base is a modular rack expansion component designed for the GE Series 90-30 PLC system. It provides a flexible hardware platform for installing additional PLC modules and expanding the control system capacity according to industrial automation requirements.

The IC693CHS391 features a 10-slot rack structure, including 1 power supply slot, 1 CPU slot, and 9 I/O slots. This configuration allows users to build a complete PLC control architecture by installing the required processor, power supply, digital I/O, analog modules, communication modules, and other compatible Series 90-30 components.

The expansion base uses a 5 VDC backplane power system to provide internal power distribution and communication between installed modules. By adding expansion racks, users can increase the number of available I/O points and create larger automation systems without replacing the existing PLC platform.

With its reliable mechanical design and modular installation structure, the GE IC693CHS391 is suitable for various industrial control applications, including manufacturing automation, machine control, process monitoring, and distributed PLC systems.

Product Specifications

Applications

• GE Series 90-30 PLC Expansion Systems
The expansion base provides additional module installation space for Series 90-30 PLC systems that require increased I/O capacity.

• Industrial Automation Equipment
It is widely used in automated machinery, production lines, and factory control systems requiring flexible PLC configurations.

• Manufacturing Control Applications
The base supports applications where multiple digital, analog, and communication modules are needed for machine operation and monitoring.

• Process Control Systems
It can be used in industrial processes requiring additional field signal connections and expanded PLC control capability.

• Distributed Automation Architectures
The expansion base helps create larger PLC systems by allowing additional modules and racks to be integrated into existing control structures.

Advantages

• Flexible 10-Slot Rack Design
The IC693CHS391 provides 1 power supply slot, 1 CPU slot, and 9 I/O slots, offering flexible system configuration options.

• Improves PLC Expandability
The expansion base allows users to add more modules and increase system capacity without changing the existing controller platform.

• Reliable 5 VDC Backplane System
The integrated 5 VDC backplane supports internal communication and power distribution between installed modules.

• Modular Hardware Structure
The rack-based design simplifies module installation, replacement, and future system upgrades.

• Suitable for Industrial Environments
The robust construction makes it suitable for continuous operation in industrial automation applications.
