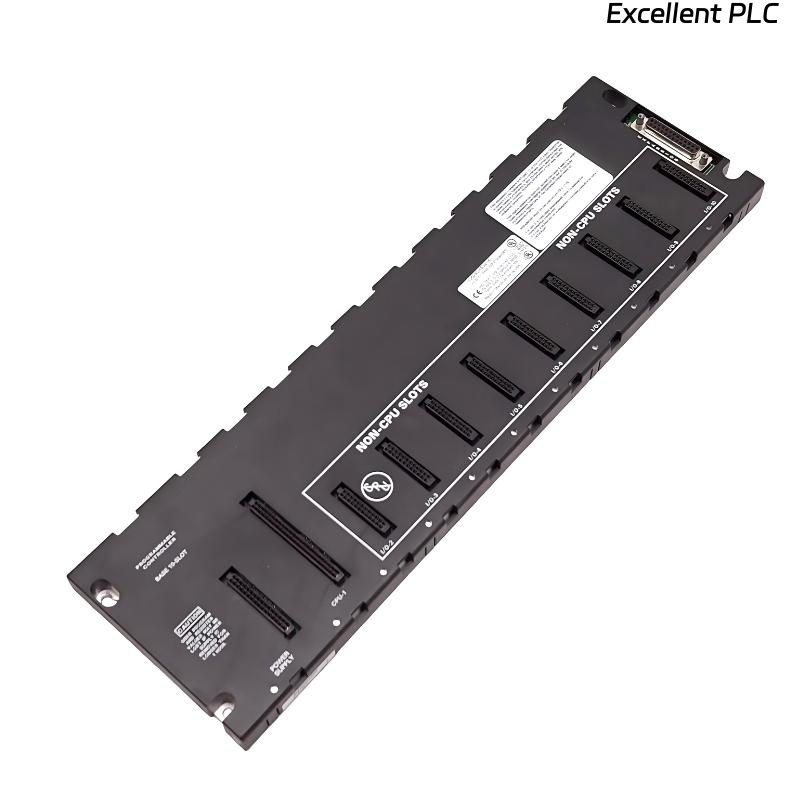

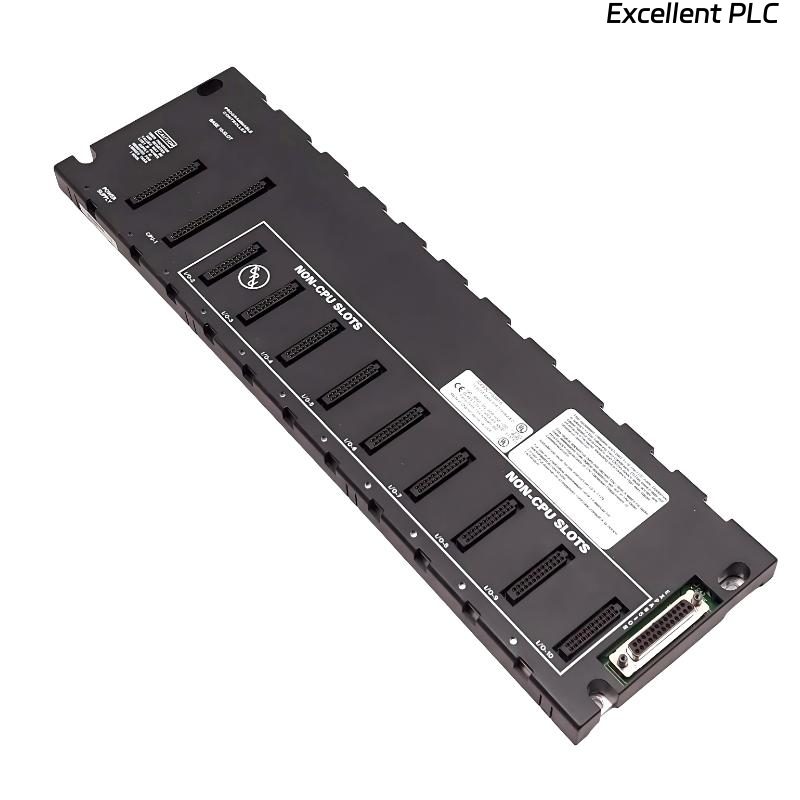

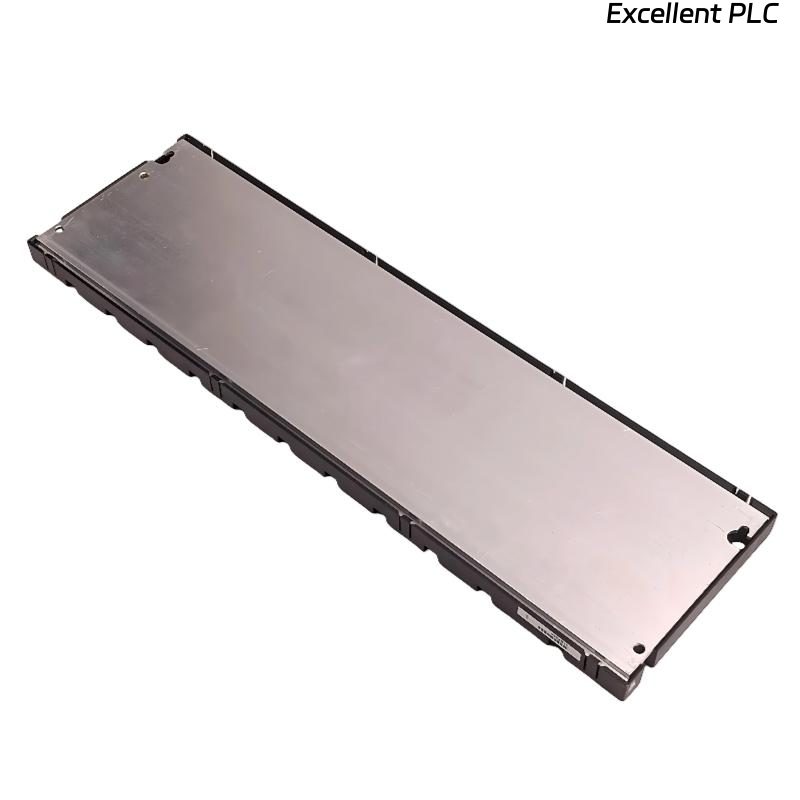

GE IC693CHS391K 10 Slot Expansion Base
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The GE IC693CHS391K 10 Slot Expansion Base is a modular rack base designed for the GE Series 90-30 PLC system. It provides a structured installation platform for PLC power supply, CPU, and I/O modules, allowing users to expand and organize automation control systems according to application requirements.
The IC693CHS391K features a 10-slot rack configuration, including 1 power supply slot, 1 CPU slot, and 9 I/O slots. This layout provides a flexible hardware structure for installing various Series 90-30 modules, including digital input modules, digital output modules, analog modules, communication modules, and other compatible PLC components.
The expansion base operates with a 5 VDC backplane power supply, providing power distribution and communication support between installed modules. Its modular rack design allows additional I/O capacity to be added to existing PLC systems, making it suitable for automation projects that require system expansion and flexible configuration.
With its reliable mechanical structure and convenient module installation design, the GE IC693CHS391K is widely used in industrial automation, machine control, process monitoring, and manufacturing systems where additional PLC rack capacity is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model Number | IC693CHS391K |
| Product Series | Series 90-30 |
| Product Type | 10 Slot Expansion Base |
| Rack Type | Expansion Base |
| Total Slots | 10 Slots |
| Power Supply Slot | 1 Slot |
| CPU Slot | 1 Slot |
| I/O Slots | 9 Slots |
| Backplane Voltage | 5 VDC |
| System Function | PLC Module Installation and Rack Expansion |
| Compatible System | GE Series 90-30 PLC |
| Application Function | I/O Expansion and Module Communication |
| Installation Type | Panel Mount Rack Installation |
| Dimensions | 443 × 130 × 142 mm |
| Weight | 0.95 kg |
Applications
• GE Series 90-30 PLC System Expansion
The expansion base provides additional rack capacity for Series 90-30 PLC systems requiring more I/O modules and control functions.
• Industrial Automation Equipment
It is used in automated production lines, machine control systems, and industrial equipment requiring flexible PLC configurations.
• Manufacturing Control Systems
The base supports PLC applications where multiple digital, analog, and communication modules are required for equipment monitoring and control.
• Process Monitoring Applications
It can be applied in process industries where additional I/O points are needed for collecting field signals and controlling devices.
• Distributed Control Architectures
The expansion rack helps build larger PLC systems by providing additional module installation space and communication capability.
Advantages
• Flexible 10-Slot Configuration
The module provides 1 power supply slot, 1 CPU slot, and 9 I/O slots, allowing users to configure a wide range of PLC applications.
• Supports System Expansion
The expansion base allows additional I/O modules to be added without replacing the existing PLC control platform.
• Reliable Backplane Communication
The integrated 5 VDC backplane system provides power distribution and communication between installed modules.
• Modular Installation Design
The rack structure makes PLC module installation, replacement, and maintenance more convenient.
• Suitable for Industrial Applications
The durable design supports long-term use in factory automation and industrial control environments.
FAQ
- What is the main function of the GE IC693CHS391K Expansion Base?
The module provides a rack platform for installing Series 90-30 PLC power supply, CPU, and I/O modules while expanding system capacity. - How many slots are available on the IC693CHS391K?
The expansion base provides a total of 10 slots, including one power supply slot, one CPU slot, and nine I/O slots. - Which PLC system is compatible with this expansion base?
The IC693CHS391K is designed for the GE Series 90-30 PLC system. - What is the purpose of the CPU slot on this base?
The CPU slot provides the installation position for the PLC processor module responsible for executing control logic. - What types of modules can be installed in the I/O slots?
The I/O slots can support compatible Series 90-30 digital input, digital output, analog, and communication modules. - What voltage does the backplane use for module communication and power distribution?
The expansion base uses a 5 VDC backplane system for communication and module power distribution. - Why would an automation system require an expansion base?
An expansion base is used when the original PLC rack does not provide enough space for additional I/O or functional modules. - What should be checked before installing this expansion base?
The PLC configuration, module compatibility, power requirements, rack connection, and installation environment should be confirmed before installation. - Can the IC693CHS391K support larger automation projects?
Yes. By providing additional module slots, it allows Series 90-30 systems to be expanded for larger control applications. - What maintenance is recommended for this expansion base?
Regular inspection of module connections, rack mounting, backplane condition, and overall PLC system operation is recommended.
Related Models
| Model | Description |
|---|---|
| GE IC693CHS391K | Series 90-30 10 Slot Expansion Base |
| GE IC693CHS392 | Series 90-30 Expansion Base |
| GE IC693CHS393 | Series 90-30 Remote Base |
| GE IC693CHS397 | Series 90-30 CPU Base |
| GE IC693CHS398 | Series 90-30 Expansion Base |
| GE IC693CHS399 | Series 90-30 Remote Base |
Popular Models
| Model | Description |
|---|---|
| GE IC693CPU364 | Series 90-30 CPU Module |
| GE IC693MDL645F | Positive/Negative Logic Input Module |
| GE IC693MDL760B | Solenoid Valve Output Module |
| GE IC693MDL753F | Positive/Negative Logic Output Module |
| GE IC693CMM321-JJ | Ethernet Interface Module |
| GE IC693PWR321 | Series 90-30 Power Supply Module |
