GE IC693MDL740G Positive/Negative Logic Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

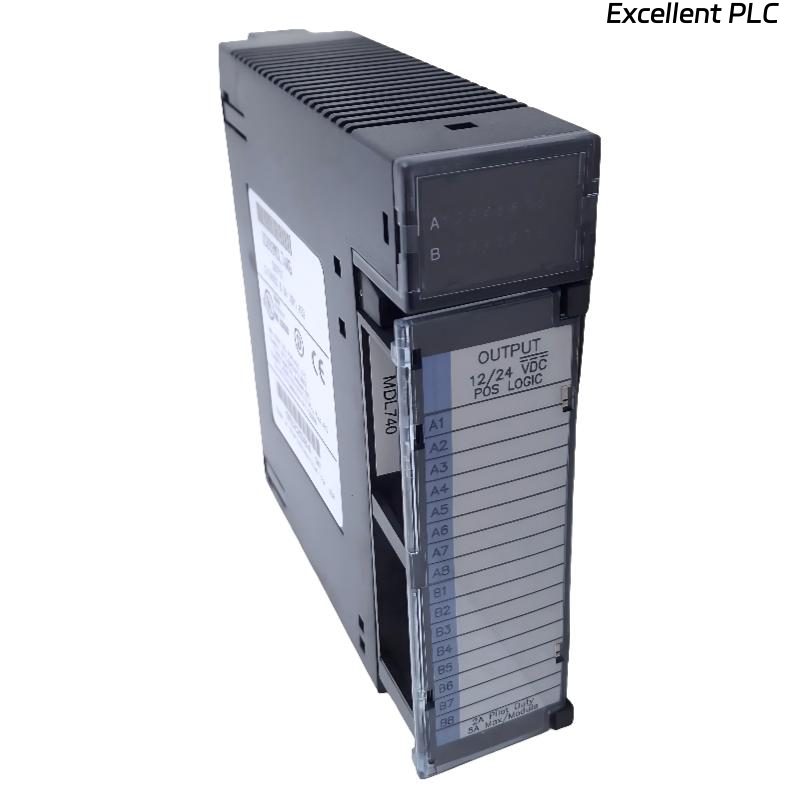

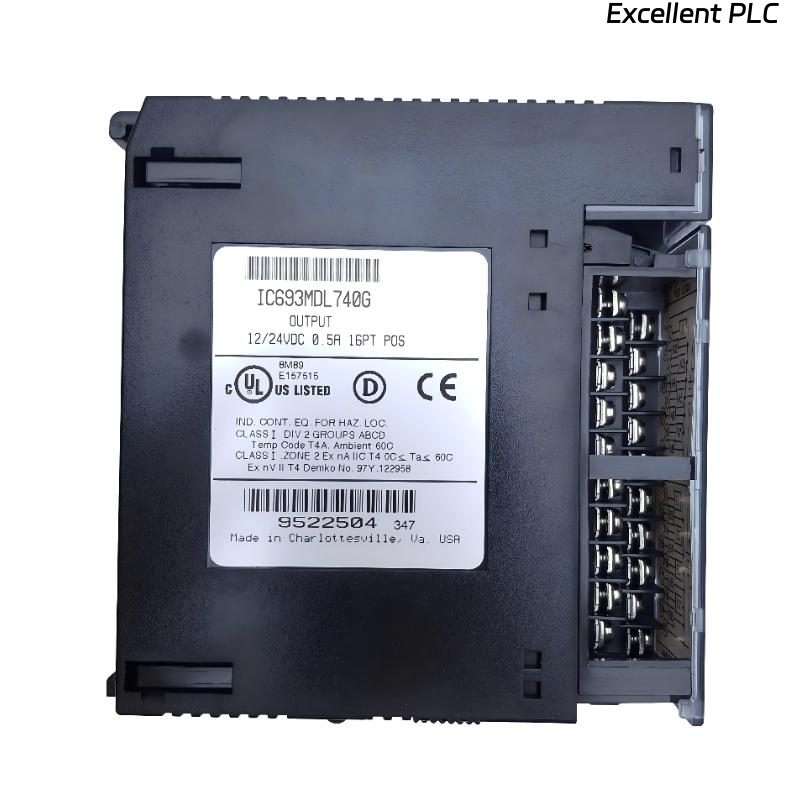

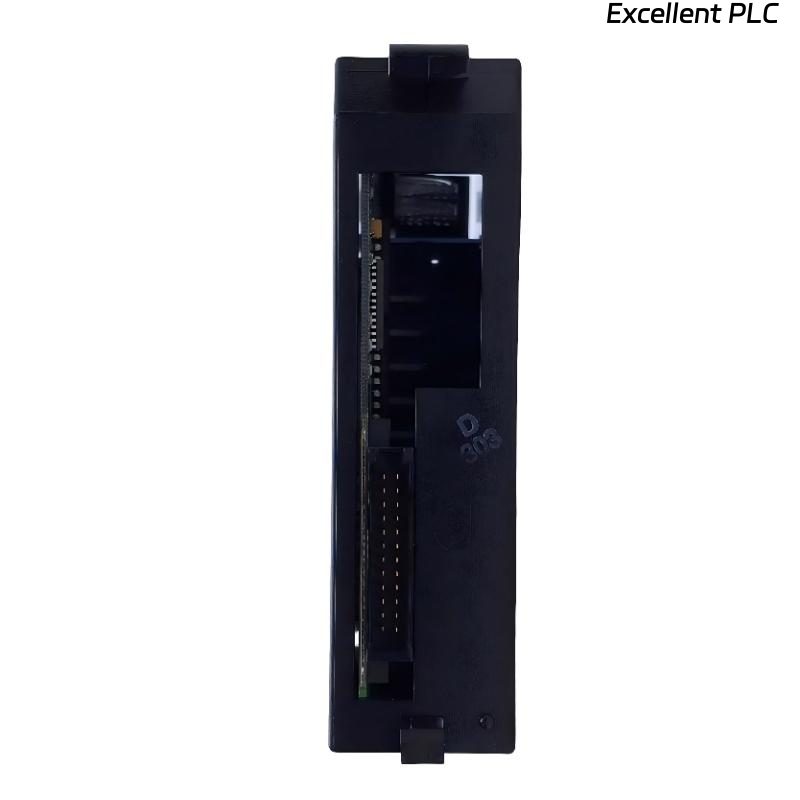

The GE IC693MDL740G Positive/Negative Logic Output Module is a digital output module designed for GE Series 90-30 PLC automation systems. It provides a reliable connection between the PLC controller and external field devices, allowing automated equipment to receive accurate switching commands for industrial control operations.
The module is designed with 16 discrete output points and supports 12/24 VDC output applications. It features a flexible output configuration with 2 groups of outputs and 2 channels per group, providing efficient signal distribution for different industrial control requirements.
The IC693MDL740G supports positive logic output operation and provides stable DC output control for devices such as relays, indicators, actuators, and other automation components. With a 0.5 AMP output capability per point and 2 AMPS per common, the module is suitable for applications requiring dependable multi-channel output control.
As part of the GE Series 90-30 PLC family, the IC693MDL740G offers convenient installation, reliable operation, and efficient system expansion. It is widely used in machine automation, manufacturing equipment, and industrial control systems where accurate digital output management is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Series | Series 90-30 |
| Model Number | IC693MDL740G |
| Product Type | Positive/Negative Logic Output Module |
| Output Type | Digital DC Output |
| Output Voltage | 12/24 VDC |
| Logic Type | Positive Logic |
| Number of Output Points | 16 Points |
| Output Group Configuration | 2 Groups of Output |
| Channel Configuration | 2 Channels Per Group |
| Output Current Rating | 0.5 Amps Per Point |
| Common Current Rating | 2 Amps Per Common |
| Signal Type | Discrete ON/OFF Output Signal |
| Compatible System | GE Series 90-30 PLC System |
| Status Indication | LED Output Status Indicators |
| Application Type | Industrial Automation Control |
| Dimensions | 150 × 55 × 100 mm |
| Weight | 0.322 kg |
Applications
• Industrial Automation Equipment
The IC693MDL740G is widely used in PLC-controlled automation systems for operating digital field devices such as relays, actuators, indicators, and control components.
• Machine Control Systems
The module provides reliable output switching for automated machinery, assembly equipment, and production machines requiring multiple DC output signals.
• Manufacturing Production Lines
It supports automated production processes by controlling different devices according to PLC program instructions and operational sequences.
• Material Handling Applications
The module can be applied in conveyor systems, sorting equipment, and automated handling machines requiring stable output control.
• Industrial Control Panel Integration
The compact modular design allows convenient installation in PLC control cabinets for system expansion and equipment upgrades.
Advantages
• Flexible Output Configuration
The module provides 16 output points with grouped channel design, allowing efficient control of multiple industrial devices.
• Reliable DC Output Performance
Supporting 12/24 VDC operation, the module provides stable output signals for automation equipment and control circuits.
• High Current Handling Capability
With 0.5 AMPS per point and 2 AMPS per common, the module supports dependable operation for various industrial loads.
• Series 90-30 Compatibility
Designed for GE Series 90-30 PLC systems, the module can be integrated into existing automation platforms.
• Convenient Diagnostics
LED output indicators provide clear status information, helping maintenance personnel quickly identify operating conditions.
FAQ
- What is the main function of the GE IC693MDL740G module?
The IC693MDL740G is a digital output module used to send control signals from a GE Series 90-30 PLC system to connected industrial devices. - What types of devices can be controlled by this output module?
The module can control industrial devices such as relays, actuators, indicator lights, solenoid devices, and other DC-operated components. - How does the module provide output control to field devices?
The PLC CPU sends programmed commands to the module, and the module activates the corresponding output channels connected to external equipment. - What is the purpose of the grouped output configuration?
The grouped output design allows organized connection and distribution of field devices within the PLC control system. - How can technicians verify output operation?
Technicians can check LED output indicators, review PLC program status, and confirm the operation of connected field devices. - What should be inspected if an output channel fails to operate?
The wiring connection, external device condition, PLC configuration, and module status indicators should be checked during troubleshooting. - Can the IC693MDL740G be installed in existing Series 90-30 systems?
Yes. The module is designed for compatible GE Series 90-30 PLC systems and can be used for expansion or replacement applications. - What applications commonly use this type of output module?
The module is commonly used in machine automation, manufacturing equipment, industrial control panels, and automated production systems. - How does the module improve PLC system performance?
It provides reliable multi-channel output control, allowing the PLC system to manage more external devices efficiently. - What maintenance checks are recommended for this output module?
Regular inspection of wiring connections, output indicators, connected devices, and PLC communication status can help maintain stable operation.
Related Models
| Model | Description |
|---|---|
| GE IC693MDL740G | Positive/Negative Logic Output Module |
| GE IC693MDL753F | Positive/Negative Logic Output Module |
| GE IC693MDL730 | Discrete Output Module |
| GE IC693MDL760B | Solenoid Valve Output Module |
| GE IC693MDL645F | Positive/Negative Logic Input Module |
| GE IC693MDL640 | 24 VDC Input Module |
Popular Models
| Model | Description |
|---|---|
| GE IC693CPU364 | Series 90-30 CPU Module |
| GE IC693PWR321 | Series 90-30 Power Supply Module |
| GE IC693ALG223 | Analog Input Module |
| GE IC693MDL645F | Positive/Negative Logic Input Module |
| GE IC693MDL740G | Positive/Negative Logic Output Module |
| GE IC693CHS391 | Series 90-30 Baseplate Module |
