GE IC693MDL753F Positive/Negative Logic Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

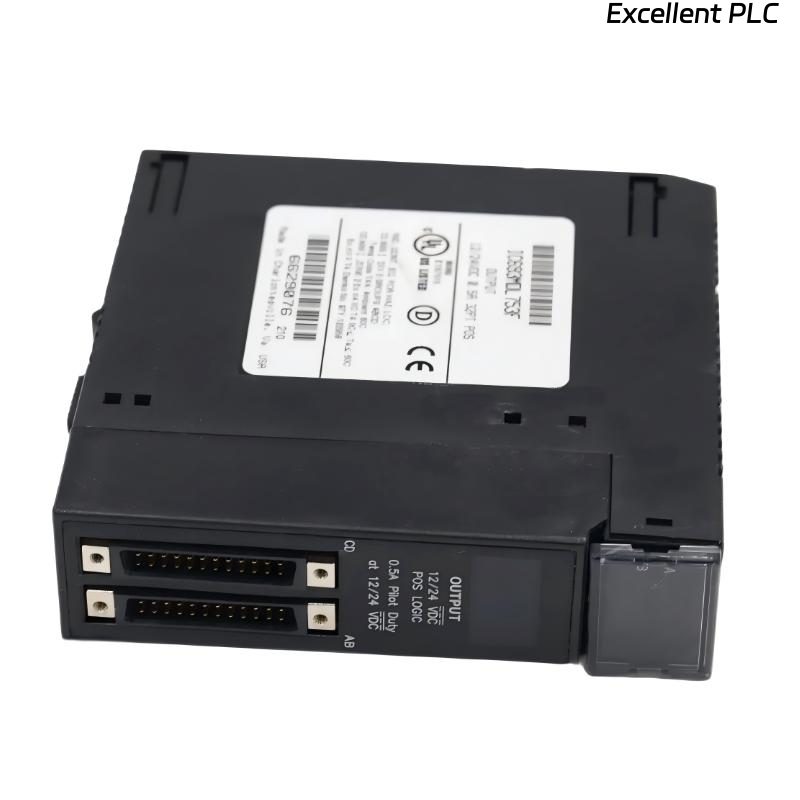

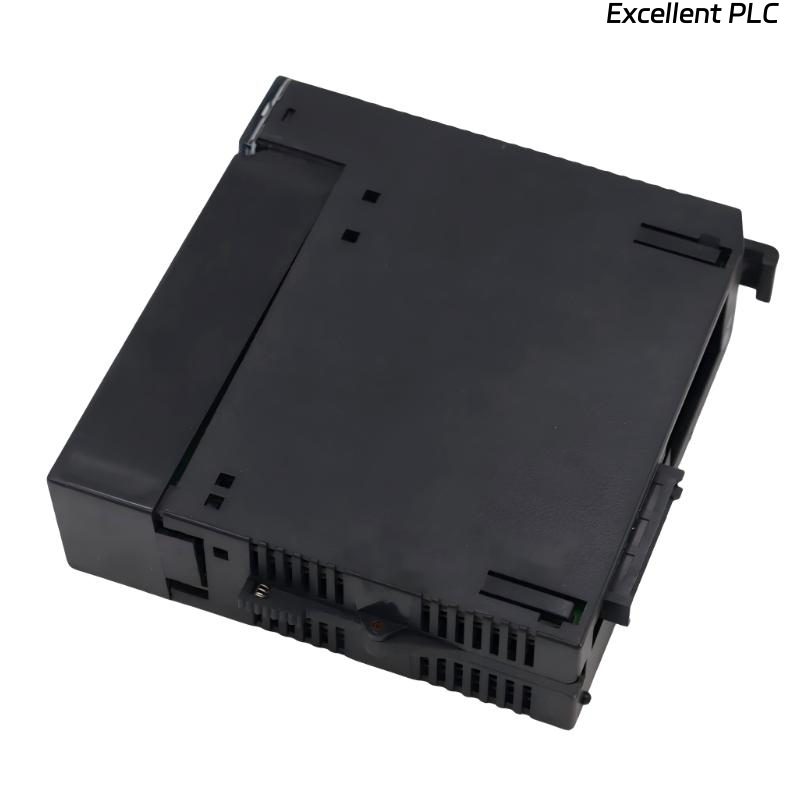

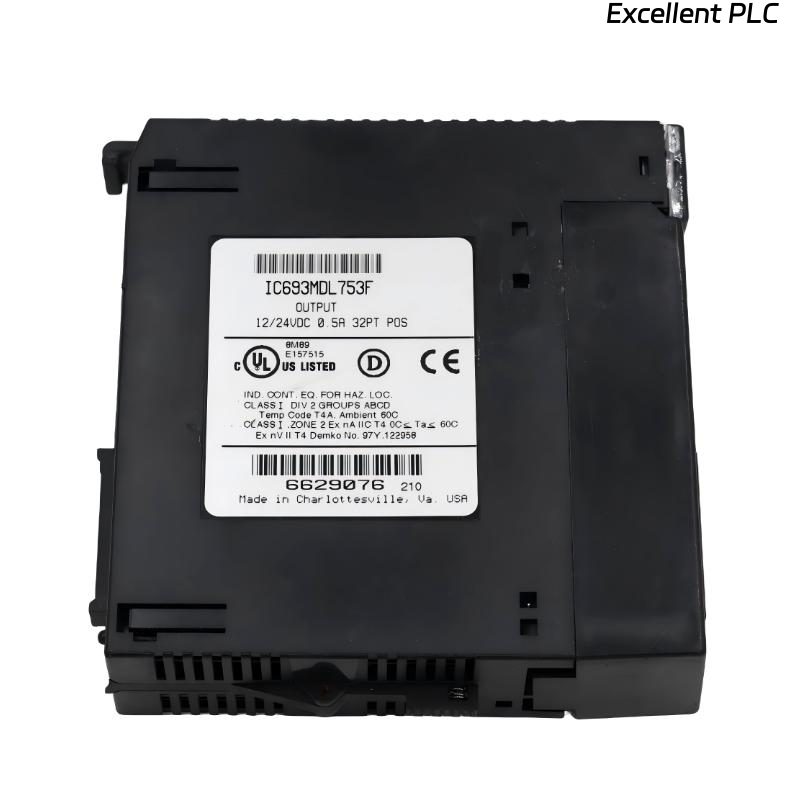

The GE IC693MDL753F Positive/Negative Logic Output Module is a digital output module designed for GE Series 90-30 PLC automation systems. It provides a reliable interface between the PLC controller and external field devices, allowing the control system to send accurate output signals for industrial equipment operation.
The module is designed with 32 discrete output points and supports 12/24 VDC positive and negative logic output applications. This flexible logic configuration allows the module to connect with various types of industrial devices and adapt to different control circuit requirements.
The IC693MDL753F receives output commands from the PLC CPU and transfers these signals to connected devices such as relays, indicators, actuators, and other automation components. It is suitable for applications requiring multiple output channels and dependable DC signal control.
With its modular Series 90-30 design, the GE IC693MDL753F supports convenient installation, efficient system expansion, and easy maintenance. It is commonly used in machine automation, manufacturing equipment, and industrial control systems where reliable multi-channel output operation is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Series | Series 90-30 |
| Model Number | IC693MDL753F |
| Product Type | Positive/Negative Logic Output Module |
| Output Type | Digital DC Output |
| Output Voltage | 12/24 VDC |
| Logic Type | Positive Logic / Negative Logic |
| Number of Output Points | 32 Points |
| Signal Type | Discrete ON/OFF Output Signal |
| Compatible System | GE Series 90-30 PLC System |
| Output Function | Industrial Device Switching Control |
| Application Type | Industrial Automation Control |
| Status Indication | LED Output Status Indicators |
| Installation Type | PLC Rack Module Installation |
| Dimensions | 150 × 55 × 100 mm |
| Weight | 0.231 kg |
Applications
• Industrial Automation Systems
The IC693MDL753F is widely used in PLC automation systems to control multiple digital field devices through reliable DC output signals.
• Machine Control Equipment
The module supports automated machinery by controlling actuators, indicators, relays, and other electrical components according to PLC programs.
• Manufacturing Production Lines
It is suitable for production equipment requiring multiple output channels for process control and equipment coordination.
• Material Handling Systems
The module can be applied in conveyor systems, sorting equipment, and automated handling machines requiring flexible output control.
• Control System Expansion Projects
The IC693MDL753F provides additional output capability for existing Series 90-30 PLC installations.
Advantages
• Flexible Logic Compatibility
The module supports positive and negative logic output configurations, allowing easier integration with different industrial control circuits.
• High Channel Density
With 32 discrete output points, the module enables efficient control of multiple external devices from a single PLC I/O module.
• Reliable DC Output Control
The module provides stable 12/24 VDC output operation, helping ensure accurate response of connected automation equipment.
• Efficient System Integration
Designed for GE Series 90-30 PLC platforms, the module can be integrated into existing automation systems.
• Convenient Maintenance
LED output indicators provide clear operating status information, helping technicians identify output conditions quickly.
FAQ
- What is the main function of the GE IC693MDL753F module?
The IC693MDL753F is a digital output module used to send control signals from a Series 90-30 PLC system to external industrial devices. - What types of devices can be controlled by this output module?
The module can control devices such as indicators, relays, actuators, and other industrial components that require DC switching signals. - How does the module support positive and negative logic output?
The module provides flexible output logic options, allowing connection with different types of industrial control circuits. - How does the IC693MDL753F communicate with the PLC controller?
The module receives output commands from the PLC CPU through the Series 90-30 rack system and transfers them to connected devices. - How can technicians check whether outputs are operating correctly?
Technicians can monitor LED indicators, verify PLC output commands, and inspect the response of connected field devices. - What should be checked if an output device does not operate?
The field wiring, connected device condition, PLC program settings, and module status indicators should be inspected during troubleshooting. - Can the IC693MDL753F be used in existing Series 90-30 systems?
Yes. The module is designed for compatible Series 90-30 PLC installations and can be used for system expansion or replacement applications. - What industries commonly use this type of output module?
It is commonly used in manufacturing, machine automation, packaging equipment, and industrial control systems. - How does this module improve PLC system flexibility?
The module provides multiple output channels and flexible logic compatibility, allowing PLC systems to control more field devices. - What maintenance checks are recommended for the IC693MDL753F?
Regular inspection of wiring connections, LED indicators, PLC communication, and connected equipment can help maintain reliable operation.
Related Models
| Model | Description |
|---|---|
| GE IC693MDL753F | Positive/Negative Logic Output Module |
| GE IC693MDL753 | 12/24 VDC Output Module |
| GE IC693MDL730 | Discrete Output Module |
| GE IC693MDL740 | Discrete Output Module |
| GE IC693MDL645F | Positive/Negative Logic Input Module |
| GE IC693MDL760B | Solenoid Valve Output Module |
Popular Models
| Model | Description |
|---|---|
| GE IC693CPU364 | Series 90-30 CPU Module |
| GE IC693PWR321 | Series 90-30 Power Supply Module |
| GE IC693ALG223 | Analog Input Module |
| GE IC693MDL645F | Positive/Negative Logic Input Module |
| GE IC693MDL753F | Positive/Negative Logic Output Module |
| GE IC693CHS391 | Series 90-30 Baseplate Module |
