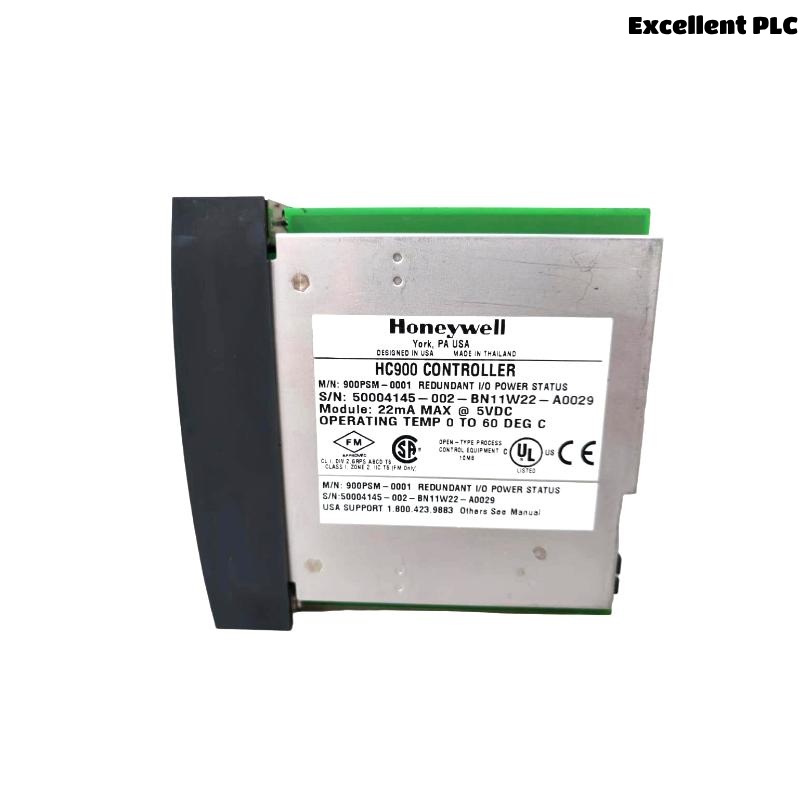

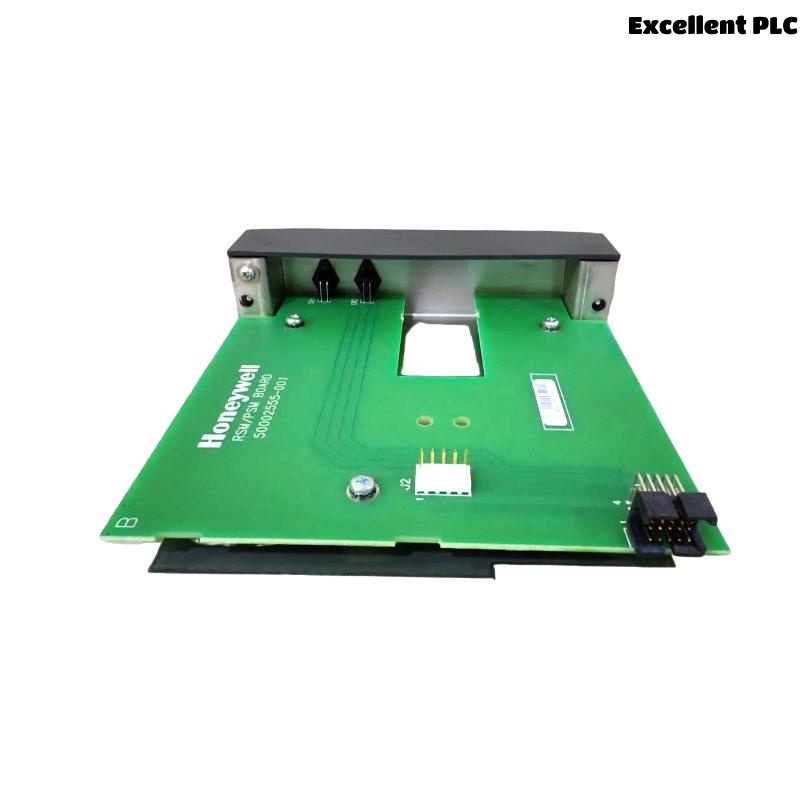

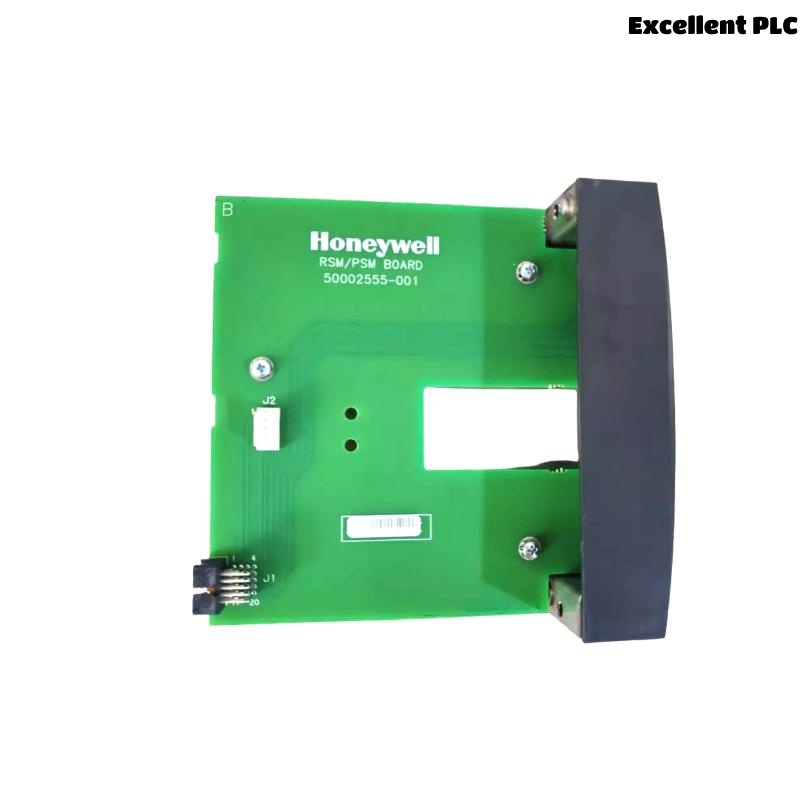

Honeywell 900PSM-0001 ControlEdge HC900 Power Status Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Overview
The Honeywell 900PSM-0001 Power Status Module is a component of the ControlEdge HC900 series, designed to monitor the presence of power supply in redundant configurations. It enables reliable diagnostics and status reporting for power modules to ensure consistent operation in critical industrial automation systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 900PSM-0001 |
| Function | Power Status Monitoring Module |
| Platform Compatibility | ControlEdge HC900 |
| Power Consumption | 0.1 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90% non-condensing |
| Mounting Type | DIN Rail (35 mm wide) |
| Certifications | CE, UL, ATEX, CSA, FM |
| Temperature Rating | T6 |
| Dimensions (H × W × D) | 137 × 35.6 × 151.7 mm |
| Weight | 0.448 kg |
Applications
-
Redundant power supply supervision in HC900 systems
-
Monitoring for power loss or abnormal supply conditions
-
Fault detection and power redundancy diagnostics
-
Industrial automation systems in harsh environments
-
Applications requiring high system availability and reliability
Advantages
-
Redundancy Monitoring: Detects power supply presence in redundant systems for higher reliability
-
Compact Design: Slim form factor for space-constrained enclosures
-
Status Indication: LED indicators offer clear module diagnostics
-
Environmental Durability: Conformal coating supports G3 harsh environments
-
Hot-Swappable: Insert/remove without system power-down
FAQs
Q1: What is the primary function of the 900PSM-0001 module?
A1: It monitors the status of redundant power supplies in HC900 systems.
Q2: Can the module be inserted or removed under power?
A2: Yes, it supports hot-swap capabilities without disrupting the system.
Q3: What is the rated power consumption of the 900PSM-0001?
A3: It consumes approximately 0.1 W.
Q4: Is this module suitable for harsh industrial environments?
A4: Yes, it has a conformal coating and is compliant with G3-level harsh environment requirements.
Q5: What certifications does this module hold?
A5: CE, UL, ATEX, CSA, and FM certifications.
Q6: What is its operating temperature range?
A6: 0°C to 60°C.
Q7: Does it provide LED diagnostics?
A7: Yes, it has module status indicators for easy diagnostics.
Q8: What systems is the module compatible with?
A8: It is designed for the Honeywell ControlEdge HC900 platform.
Q9: Is any software configuration required for installation?
A9: No, it is automatically sensed and configured upon insertion.
Q10: What is the benefit of using this in a redundant power setup?
A10: It ensures system reliability by continuously monitoring the availability of backup power.
Related Models in the Same Series
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900P01-0301 | 120/240VAC Power Supply, 60W | 137 × 72.6 × 151.7 | 0.820 kg |
| 900P24-0301 | 24VDC Power Supply, 60W | 137 × 72.6 × 151.7 | 0.792 kg |
| 900R08-0200 | 8-slot I/O Rack | 137 × 419.1 × 151.7 | 3.126 kg |
| 900C30-0460 | CPU Controller Module | 137 × 38.1 | 0.350 kg |
| 900S50-0460 | Single Port Scanner Module | 137 × 38.1 | 0.360 kg |
| 900R08R-0200 | 8-slot Redundant Rack | 137 × 530.9 × 151.7 | 4.422 kg |
Popular Honeywell Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 8C-PAOHA1 | Analog Output w/ HART, Single Ended | 100 × 25 × 120 | 0.310 kg |
| 8C-PCNT01 | C300 Controller | 100 × 25 × 120 | 0.500 kg |
| 8C-TAIX51 | Analog Input IOTA | 120 × 35 × 120 | 0.430 kg |
| 8C-PDILA1 | Digital Input Module | 100 × 25 × 120 | 0.320 kg |
| 8C-PAON01 | Analog Output Module | 100 × 25 × 120 | 0.300 kg |
| 8C-PDODA1 | Digital Output Module | 100 × 25 × 120 | 0.330 kg |
