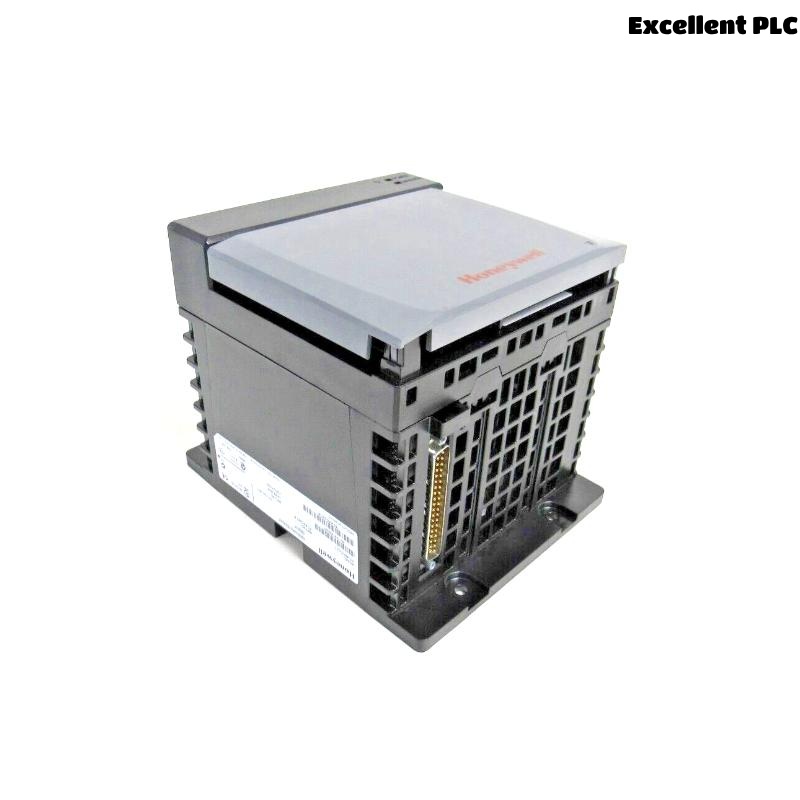

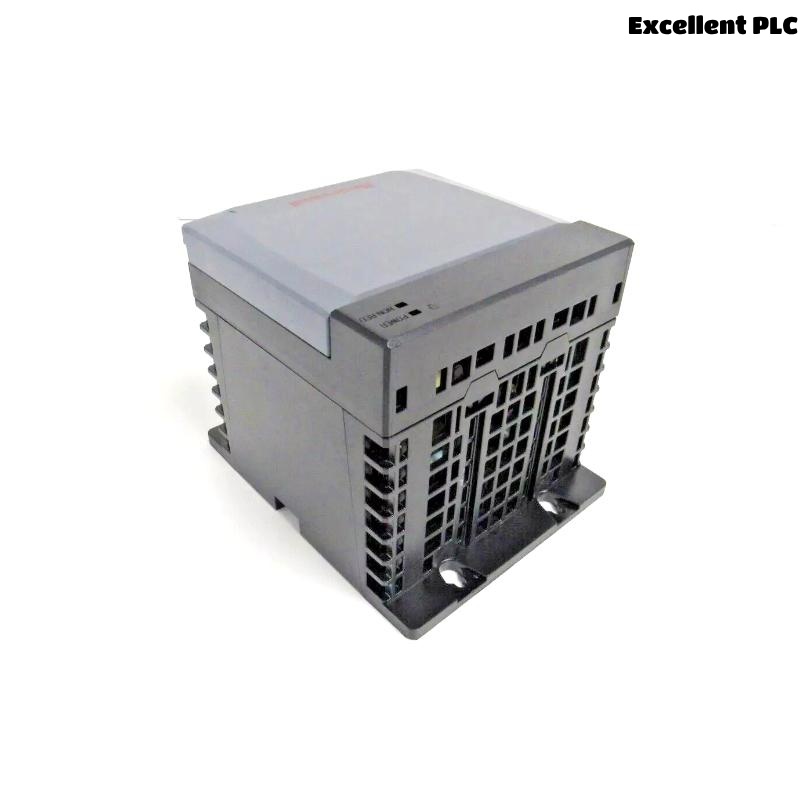

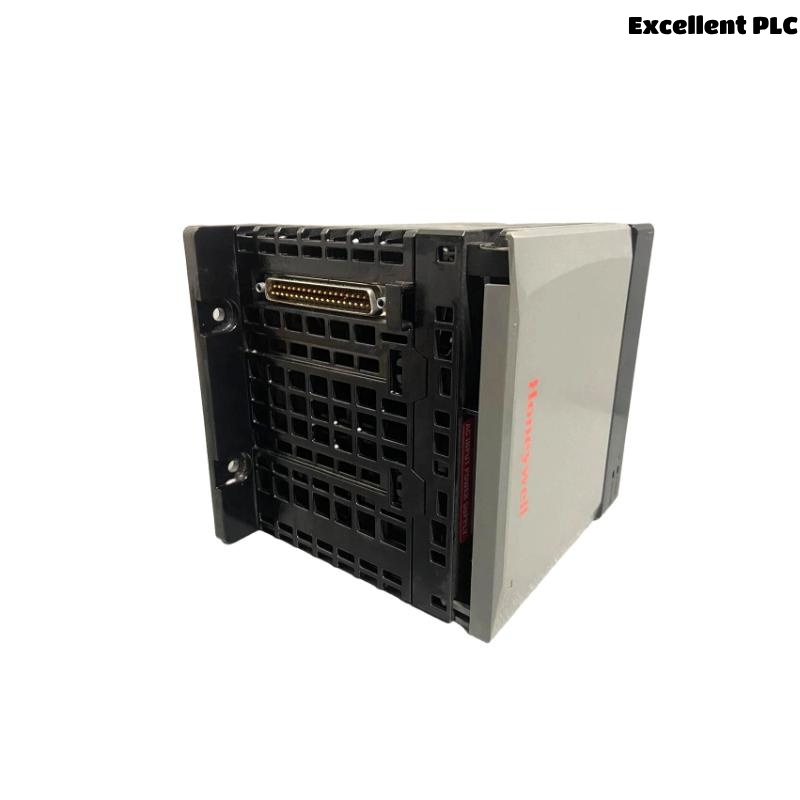

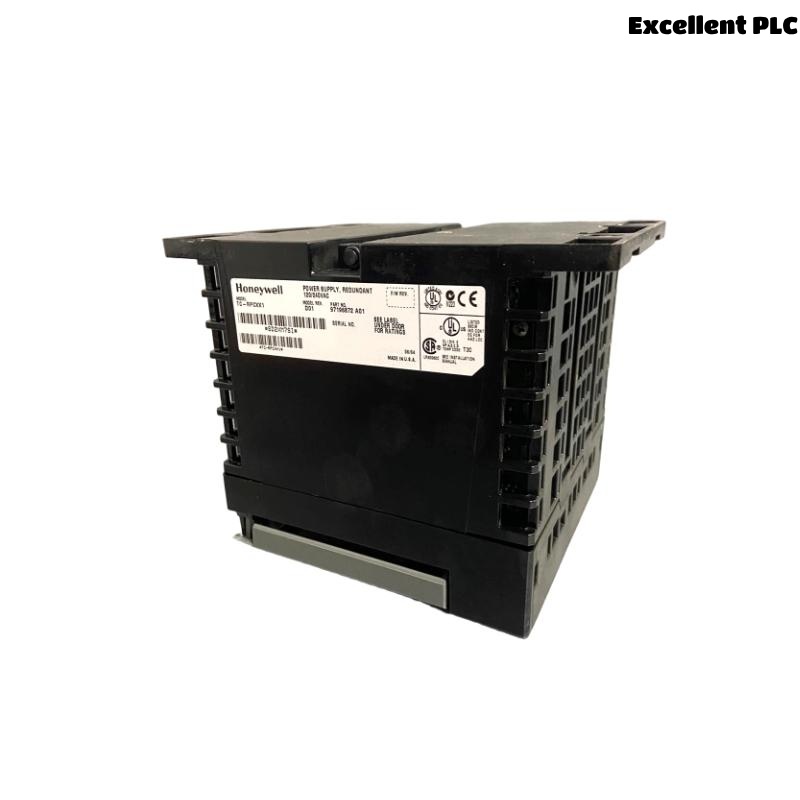

Honeywell TC-RPCXX1 Redundant Power Supply Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Honeywell TC-RPCXX1 is a redundant AC power supply module designed for Honeywell Experion Series-A chassis. It ensures uninterrupted power for critical industrial automation systems by providing redundancy and high reliability in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | TC-RPCXX1 |
| Input Voltage Range | 85–265 VAC |
| Frequency Range | 47–63 Hz |
| Input Power | 110 VA / 110 W |
| Maximum Output Power | 75 W @ 60°C |
| Backplane Output Current | 1.5 A @1.2V, 4A @3.3V, 13A @5.1V, 2.8A @24V |
| Dimensions (L×W×H) | 150 × 125 × 75 mm |
| Weight | 1.43 kg |
| Mounting | Upright, above or below chassis |
Applications
-
Redundant power source for Honeywell Series-A chassis systems
-
Industrial process control environments requiring high availability
-
Powering controllers and I/O modules in mission-critical operations
Advantages
-
Redundancy for minimal downtime
-
Wide input voltage compatibility
-
Compact and robust design
-
High reliability in industrial settings
FAQ
Q1: What is the input voltage range of TC-RPCXX1?
A1: 85–265 VAC.
Q2: Does it support redundancy?
A2: Yes, it is designed for redundant operation.
Q3: What is the maximum power output?
A3: Up to 75 W at 60°C.
Q4: What are the module dimensions?
A4: 150 × 125 × 75 mm.
Q5: How much does it weigh?
A5: Approximately 1.43 kg.
Q6: Can it operate in high-temperature environments?
A6: Yes, up to 60°C.
Q7: Is it hot-swappable?
A7: Not recommended in hazardous areas; power down before replacement.
Q8: What is the mounting orientation?
A8: Upright, above or below the chassis.
Q9: Does it support DC input?
A9: No, for DC input use TC-RPDXX1.
Q10: What systems is it compatible with?
A10: Honeywell Experion Series-A chassis systems.
Recommended Related Models
| Model | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-RPDXX1 | Redundant DC Power Supply Module | 16–32 VDC | 75 W | 150×125×75 | 1.43 kg |
| TK-RPCXX1 | Conformal-Coated Redundant AC Supply | 85–265 VAC | 75 W | 150×125×75 | 1.43 kg |
| TK-RPDXX1 | Conformal-Coated Redundant DC Supply | 16–32 VDC | 75 W | 150×125×75 | 1.43 kg |
| TC-RPSCA2 | Chassis Adapter for Redundant Supply | N/A | N/A | 34×144×150 | 0.23 kg |
| TC-FPCXX2 | Standard Non-Redundant AC Supply | 85–132 VAC | 70 W | 112×145×140 | 1.1 kg |
| TC-FPDXX2 | Standard Non-Redundant DC Supply | 19.2–32 VDC | 70 W | 112×145×140 | 1.1 kg |
Popular Honeywell Models
| Model | Description | Channels / Type | Notes |
|---|---|---|---|
| TC-IAH161 | 16-Channel Analog Input Module | Voltage & Current | High-density AI |
| TC-OAV081 | 8-Channel Analog Output Module | Current & Voltage | Versatile AO |
| TC-IXL062 | Thermocouple Input Module | 6+2 CJ channels | High-accuracy TC |
| TC-ODJ161 | 16-Channel DC Output Module | 24V DC | Isolated DO |
| TC-IDK161 | 16-Channel AC Input Module | 120V AC | Isolated DI |
| TC-ORC081 | 16-Channel Relay Output Module | NO/NC contacts | Relay DO |
FAQ
Q1: What is the input voltage range of TC-RPCXX1?
A1: 85–265 VAC.
Q2: Does it support redundancy?
A2: Yes, it is designed for redundant operation.
Q3: What is the maximum power output?
A3: Up to 75 W at 60°C.
Q4: What are the module dimensions?
A4: 150 × 125 × 75 mm.
Q5: How much does it weigh?
A5: Approximately 1.43 kg.
Q6: Can it operate in high-temperature environments?
A6: Yes, up to 60°C.
Q7: Is it hot-swappable?
A7: Not recommended in hazardous areas; power down before replacement.
Q8: What is the mounting orientation?
A8: Upright, above or below the chassis.
Q9: Does it support DC input?
A9: No, for DC input use TC-RPDXX1.
Q10: What systems is it compatible with?
A10: Honeywell Experion Series-A chassis systems.
Recommended Related Models
| Model | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-RPDXX1 | Redundant DC Power Supply Module | 16–32 VDC | 75 W | 150×125×75 | 1.43 kg |
| TK-RPCXX1 | Conformal-Coated Redundant AC Supply | 85–265 VAC | 75 W | 150×125×75 | 1.43 kg |
| TK-RPDXX1 | Conformal-Coated Redundant DC Supply | 16–32 VDC | 75 W | 150×125×75 | 1.43 kg |
| TC-RPSCA2 | Chassis Adapter for Redundant Supply | N/A | N/A | 34×144×150 | 0.23 kg |
| TC-FPCXX2 | Standard Non-Redundant AC Supply | 85–132 VAC | 70 W | 112×145×140 | 1.1 kg |
| TC-FPDXX2 | Standard Non-Redundant DC Supply | 19.2–32 VDC | 70 W | 112×145×140 | 1.1 kg |
Popular Honeywell Models
| Model | Description | Channels / Type | Notes |
|---|---|---|---|
| TC-IAH161 | 16-Channel Analog Input Module | Voltage & Current | High-density AI |
| TC-OAV081 | 8-Channel Analog Output Module | Current & Voltage | Versatile AO |
| TC-IXL062 | Thermocouple Input Module | 6+2 CJ channels | High-accuracy TC |
| TC-ODJ161 | 16-Channel DC Output Module | 24V DC | Isolated DO |
| TC-IDK161 | 16-Channel AC Input Module | 120V AC | Isolated DI |
| TC-ORC081 | 16-Channel Relay Output Module | NO/NC contacts | Relay DO |
