Honeywell TC-RPDXX1 Redundant Power Supply Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings

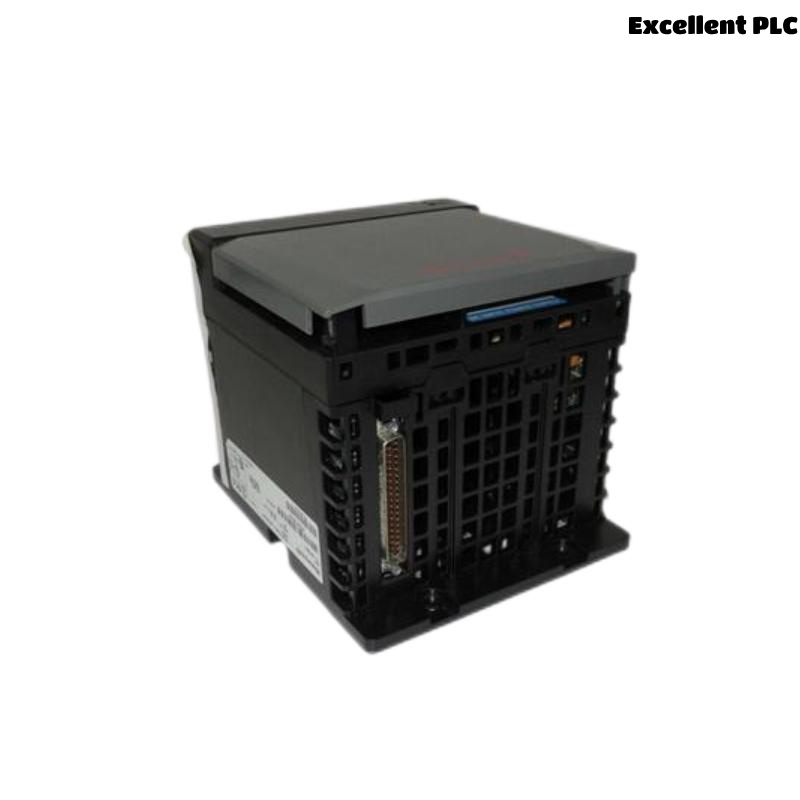

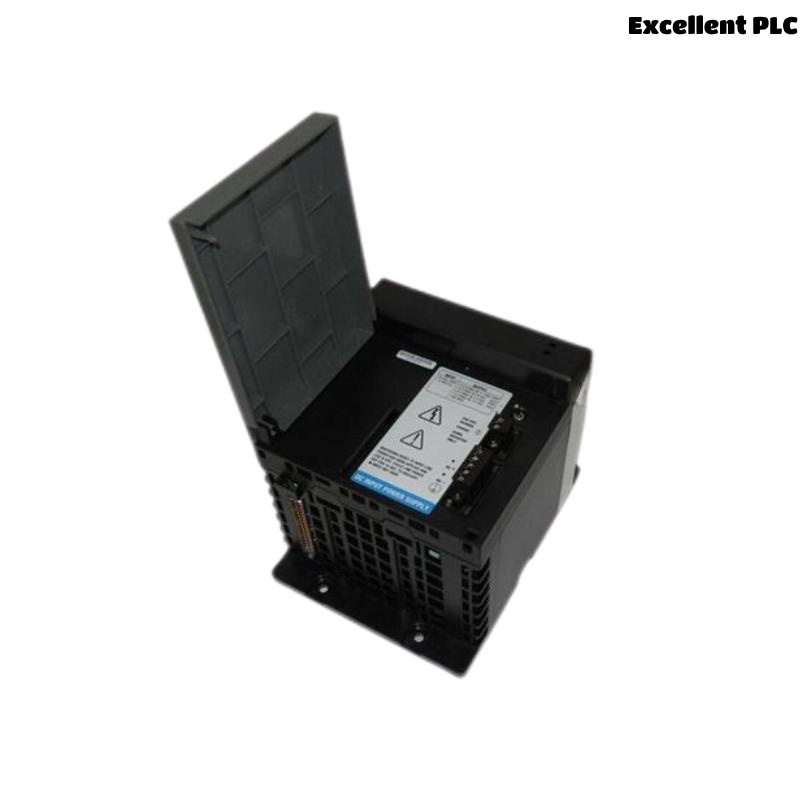

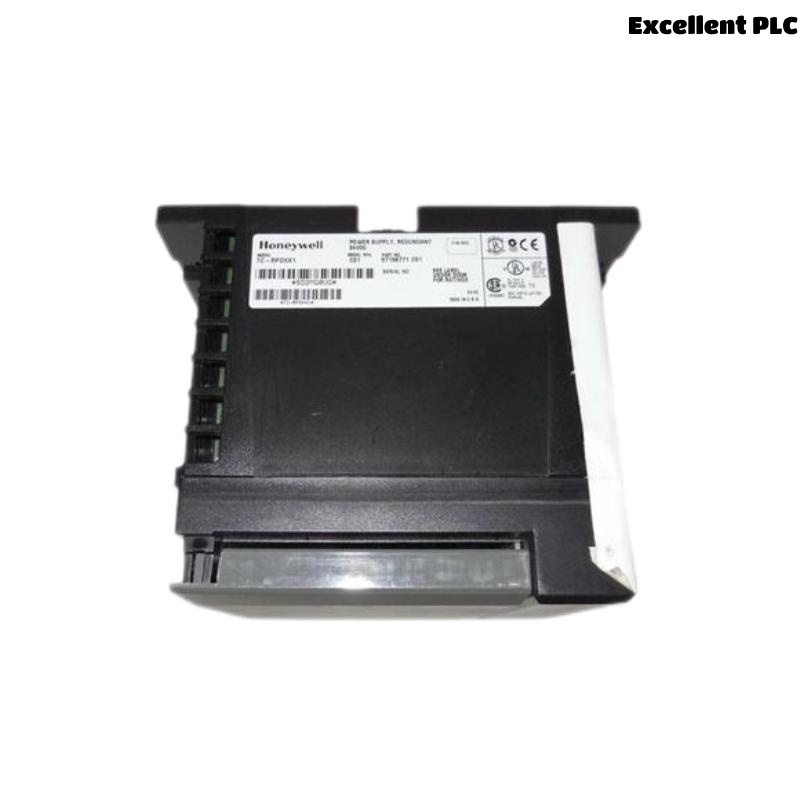

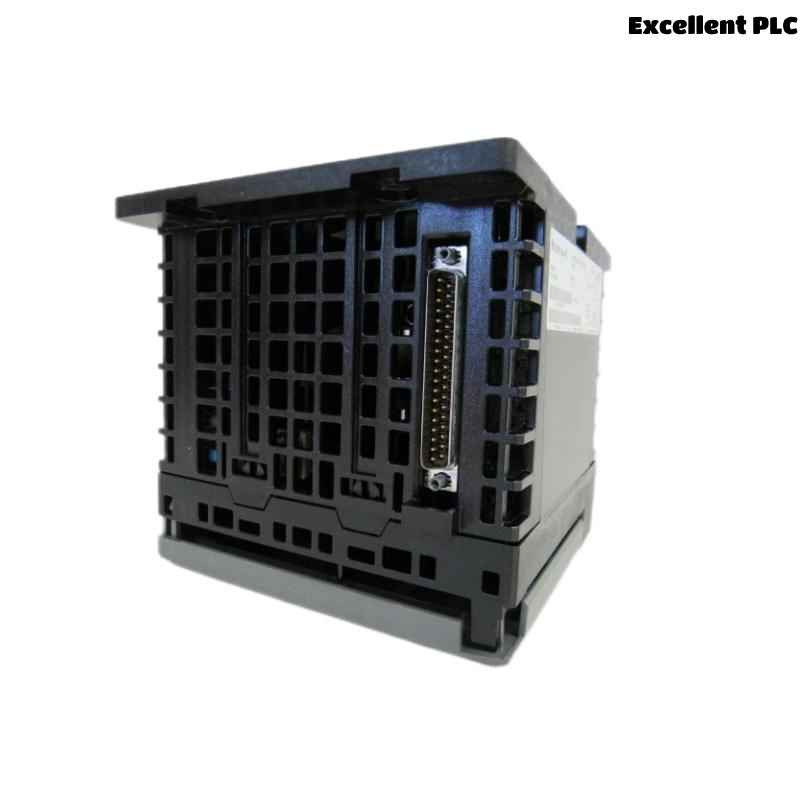

Honeywell TC-RPDXX1 Redundant Power Supply Module
The Honeywell TC-RPDXX1 is a high-reliability redundant DC power supply module designed for Experion Series-A chassis systems. It delivers stable power to critical control modules, with redundancy to ensure uninterrupted operation in case of a supply failure. Its compact design and robust construction make it ideal for process industries requiring high availability.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 16–32 VDC |
| Input Power | 110 W (estimated) |
| Maximum Inrush Current | 30 A |
| Frequency Range | DC |
| Output Power (max) | 75 W @ 60°C |
| Backplane Output Current | [email protected], [email protected], [email protected], 2.8A@24V |
| Dimensions (L×D×H) | 175 × 144 × 75 mm |
| Weight | 1.47 kg |
| Mounting | Upright above/below chassis |
| Environmental Conditions | 0–60°C operating, -40–85°C storage |
| Redundant Capability | Yes, with companion unit |
Applications
-
Powering Honeywell Experion Series-A chassis systems
-
Continuous process industries (chemical, petrochemical, power)
-
Redundant power configurations for critical control environments
-
Systems requiring high reliability and uptime
Advantages
-
Fully redundant design for increased reliability
-
Compact size, saving cabinet space
-
High output current capacity to support multiple modules
-
Hot-swappable in ordinary locations (not hazardous zones)
-
LED indication and error detection for easy diagnostics
Frequently Asked Questions
Q1: What is the input voltage range of the TC-RPDXX1?
A1: The module accepts 16–32 VDC input.
Q2: Can this module be used in redundant configurations?
A2: Yes, it is specifically designed for redundant operation when paired with another TC-RPDXX1.
Q3: What is the maximum power output of this module?
A3: It delivers up to 75 watts at 60°C.
Q4: Is it possible to hot-swap this module?
A4: Yes, but only in ordinary (non-hazardous) locations.
Q5: What is the typical operating temperature range?
A5: It operates from 0°C to 60°C.
Q6: Does it support AC input?
A6: No, the TC-RPDXX1 is a DC power supply. For AC, the TC-RPCXX1 is used.
Q7: How is it mounted in the system?
A7: It mounts upright, above or below the chassis, without occupying a chassis slot.
Q8: What is the weight of the module?
A8: The module weighs approximately 1.47 kg.
Q9: Are cables included with the module?
A9: No, a separate TC-RPSC03 power cable is required.
Q10: What are the typical application industries?
A10: Industries such as oil & gas, power generation, chemical processing, and others requiring reliable control systems.
Related Models (Same Series or Related)
| Model | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-RPCXX1 | Redundant AC Power Supply | 85–265 VAC | 75 W | 175×144×75 | 1.47 kg |
| TC-FPDXX2 | Non-redundant DC Power Supply | 19.2–32 VDC | 70 W | 112×145×140 | 1.1 kg |
| TC-FPCXX2 | Non-redundant AC Power Supply | 85–132/170–265 VAC | 70 W | 112×145×140 | 1.1 kg |
| TK-RPDXX1 | Coated Redundant DC Supply | 16–32 VDC | 75 W | 175×144×75 | 1.47 kg |
| TK-RPCXX1 | Coated Redundant AC Supply | 85–265 VAC | 75 W | 175×144×75 | 1.47 kg |
| TC-RPSCA2 | Redundant Chassis Adapter | — | — | 34×144×150 | 0.23 kg |
Popular Honeywell Models
| Model | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-PRR021 | Redundancy Module | — | — | Standard chassis | — |
| TK-PRS021 | Control Processor | — | — | Standard chassis | — |
| TC-IAH161 | 16-Channel Analog Input Module | — | — | Standard chassis | — |
| TC-ODJ161 | 16-Channel DC Output Module | — | — | Standard chassis | — |
| TC-IXL062 | 6-Channel Thermocouple Input Module | — | — | Standard chassis | — |
| TC-OAH061 | 6-Channel Analog Output Module | — | — | Standard chassis | — |
Frequently Asked Questions
Q1: What is the input voltage range of the TC-RPDXX1?
A1: The module accepts 16–32 VDC input.
Q2: Can this module be used in redundant configurations?
A2: Yes, it is specifically designed for redundant operation when paired with another TC-RPDXX1.
Q3: What is the maximum power output of this module?
A3: It delivers up to 75 watts at 60°C.
Q4: Is it possible to hot-swap this module?
A4: Yes, but only in ordinary (non-hazardous) locations.
Q5: What is the typical operating temperature range?
A5: It operates from 0°C to 60°C.
Q6: Does it support AC input?
A6: No, the TC-RPDXX1 is a DC power supply. For AC, the TC-RPCXX1 is used.
Q7: How is it mounted in the system?
A7: It mounts upright, above or below the chassis, without occupying a chassis slot.
Q8: What is the weight of the module?
A8: The module weighs approximately 1.47 kg.
Q9: Are cables included with the module?
A9: No, a separate TC-RPSC03 power cable is required.
Q10: What are the typical application industries?
A10: Industries such as oil & gas, power generation, chemical processing, and others requiring reliable control systems.
Related Models (Same Series or Related)
| Model | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-RPCXX1 | Redundant AC Power Supply | 85–265 VAC | 75 W | 175×144×75 | 1.47 kg |
| TC-FPDXX2 | Non-redundant DC Power Supply | 19.2–32 VDC | 70 W | 112×145×140 | 1.1 kg |
| TC-FPCXX2 | Non-redundant AC Power Supply | 85–132/170–265 VAC | 70 W | 112×145×140 | 1.1 kg |
| TK-RPDXX1 | Coated Redundant DC Supply | 16–32 VDC | 75 W | 175×144×75 | 1.47 kg |
| TK-RPCXX1 | Coated Redundant AC Supply | 85–265 VAC | 75 W | 175×144×75 | 1.47 kg |
| TC-RPSCA2 | Redundant Chassis Adapter | — | — | 34×144×150 | 0.23 kg |
Popular Honeywell Models
| Model | Description | Input Voltage | Output Power | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| TC-PRR021 | Redundancy Module | — | — | Standard chassis | — |
| TK-PRS021 | Control Processor | — | — | Standard chassis | — |
| TC-IAH161 | 16-Channel Analog Input Module | — | — | Standard chassis | — |
| TC-ODJ161 | 16-Channel DC Output Module | — | — | Standard chassis | — |
| TC-IXL062 | 6-Channel Thermocouple Input Module | — | — | Standard chassis | — |
| TC-OAH061 | 6-Channel Analog Output Module | — | — | Standard chassis | — |
