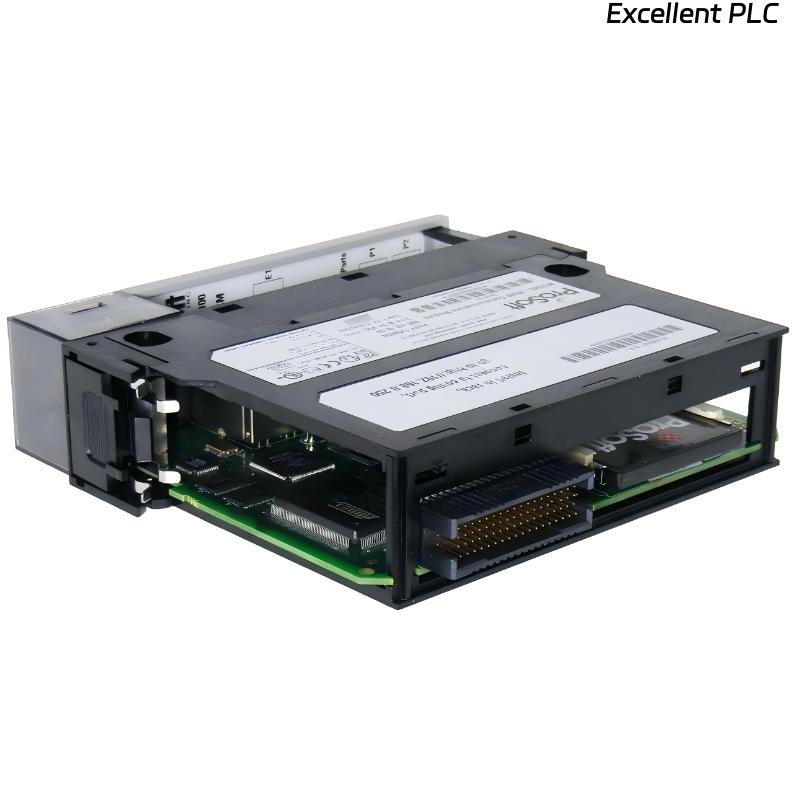

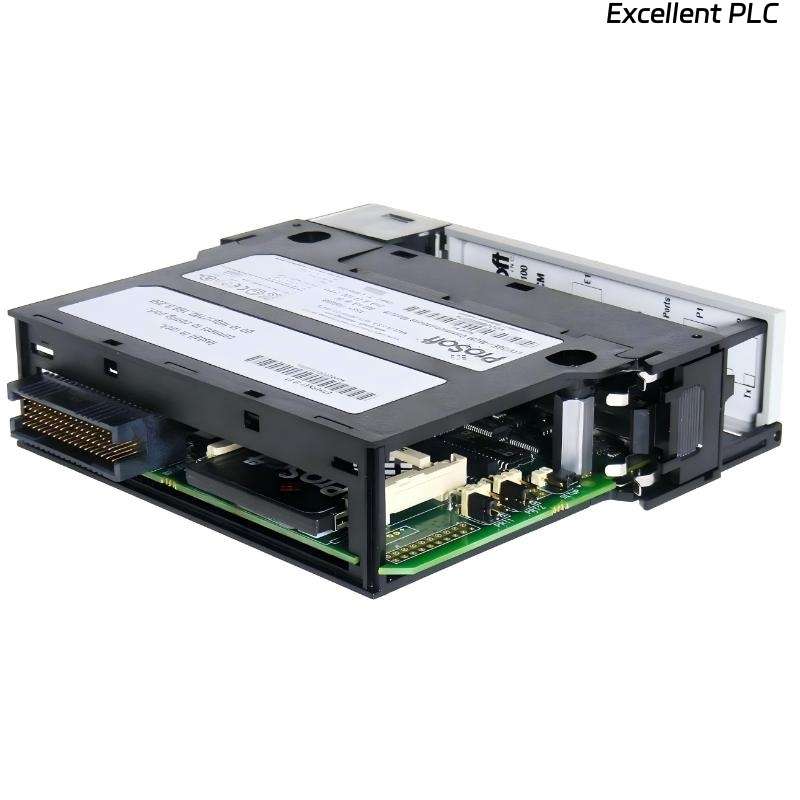

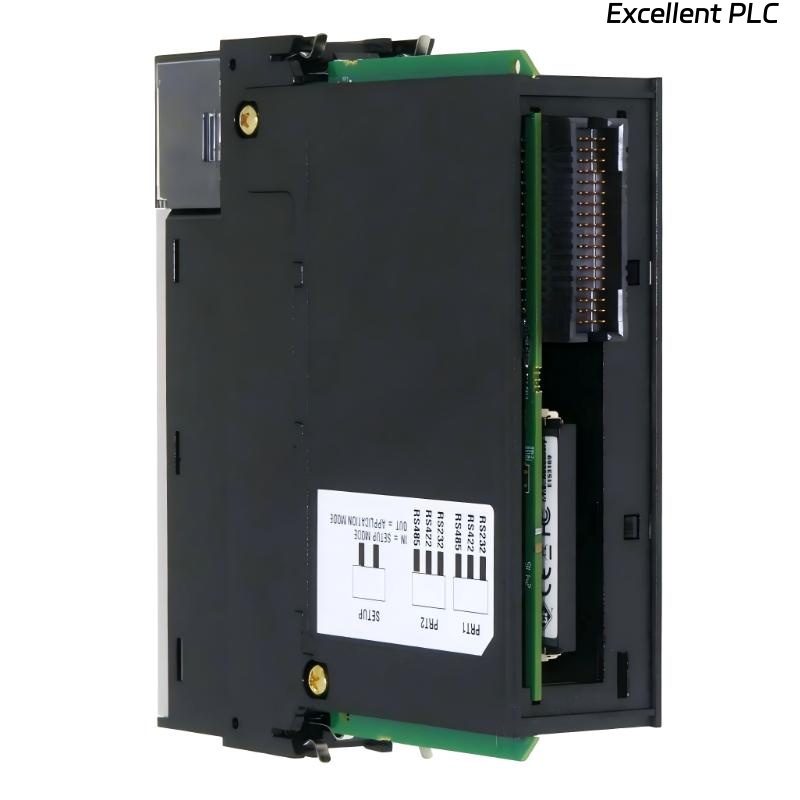

ProSoft MVI56E-MCM Modbus Master/Slave Enhanced Communication Module

Product Introduction

The ProSoft MVI56E-MCM is an enhanced Modbus Master/Slave communication module designed for direct integration with Allen-Bradley ControlLogix processors. It functions as a dedicated interface between the ControlLogix backplane and external Modbus networks, allowing seamless and reliable data exchange without requiring additional communication gateways.

Installed as a standard I/O module within the ControlLogix rack, the MVI56E-MCM enables the PLC to communicate directly with Modbus-compatible devices such as meters, drives, remote I/O systems, and instrumentation. This simplifies system design and significantly reduces integration complexity in mixed-protocol environments.

The module supports both Master and Slave modes, making it highly flexible in various control architectures. It can actively poll field devices while simultaneously responding to requests from higher-level systems, ensuring smooth data flow across different network layers.

Equipped with a dedicated configuration port and dual communication ports, the module offers convenient setup, diagnostics, and maintenance. Its enhanced processing capability ensures stable performance even in applications with high communication loads, making it suitable for demanding industrial automation systems.

---

Product Specifications

---

Applications

● ControlLogix to Modbus network integration, enabling seamless communication with Modbus RTU/ASCII devices

● Industrial automation systems, where multiple communication protocols must coexist within one architecture

● SCADA and monitoring systems, ensuring stable and continuous data acquisition from field devices

● Energy and utilities applications, integrating power meters, protection relays, and monitoring equipment

● Process industries, including oil & gas, chemical, and water treatment systems requiring reliable communication

● System upgrades and retrofits, connecting modern PLC platforms to legacy Modbus infrastructure

---

Advantages

● Dual Master/Slave capability, allowing flexible communication roles within the same module

● Direct backplane integration, eliminating the need for external protocol converters and simplifying system design

● Enhanced communication performance, supporting efficient and stable data transfer under heavy load conditions

● Multiple communication ports, enabling simultaneous connection to multiple Modbus devices

● User-friendly configuration, with a dedicated configuration port for quick setup and diagnostics

● High reliability in industrial environments, ensuring consistent operation over long periods

FAQ

1. What is the main purpose of the MVI56E-MCM module?
   The module provides a direct communication interface between ControlLogix processors and Modbus devices, enabling efficient data exchange across different industrial protocols within the same system.
2. Can the module handle both Master and Slave operations at the same time?
   Yes, it supports simultaneous Master and Slave functionality, allowing it to actively control field devices while also responding to external communication requests.
3. What Modbus communication types are supported?
   The module supports Modbus RTU and ASCII protocols, making it compatible with a wide range of industrial equipment.
4. How is data exchanged between the module and the PLC?
   Data is transferred via the ControlLogix backplane using an I/O data structure, allowing seamless integration into PLC programs.
5. What is the function of the configuration (CFG) port?
   The CFG port is used for initial setup, parameter configuration, diagnostics, and firmware updates, providing engineers with full control over module operation.
6. How many Modbus devices can be connected to the module?
   The number depends on network design and communication load, but the module is capable of managing multiple devices through its communication ports.
7. How does the module respond to communication errors or timeouts?
   It includes built-in error handling such as retry mechanisms, timeout management, and diagnostic reporting to maintain communication reliability.
8. Is the module suitable for high data traffic environments?
   Yes, the enhanced architecture allows it to process large volumes of data efficiently, making it suitable for demanding applications.
9. Does the module require an external power supply?
   No, it draws power directly from the ControlLogix backplane, eliminating the need for separate wiring.
10. Can the data mapping be customized for specific applications?
    Yes, flexible data mapping allows users to align Modbus registers with PLC memory addresses according to application requirements.
