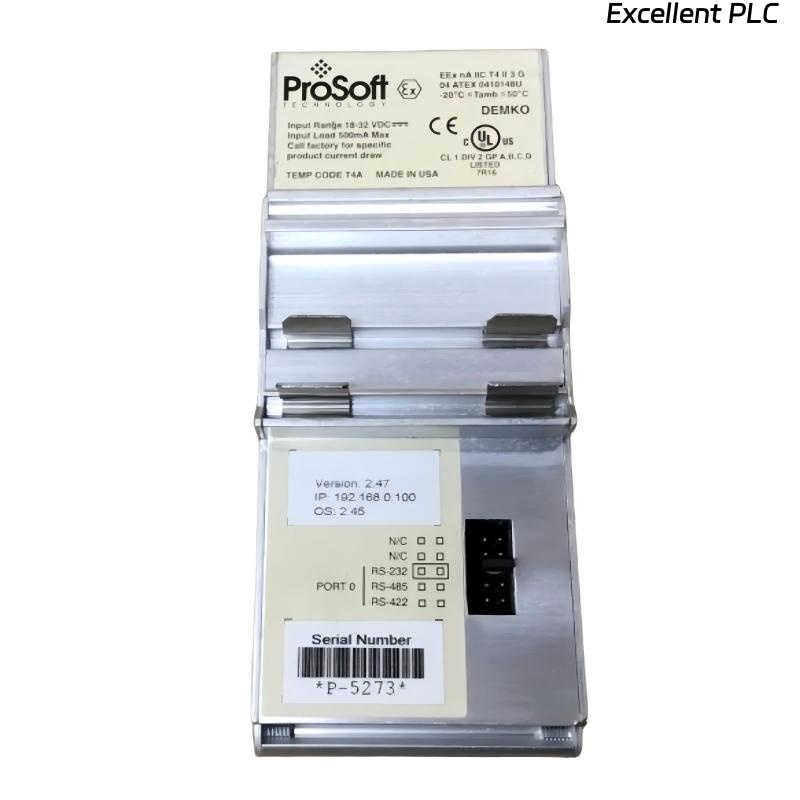

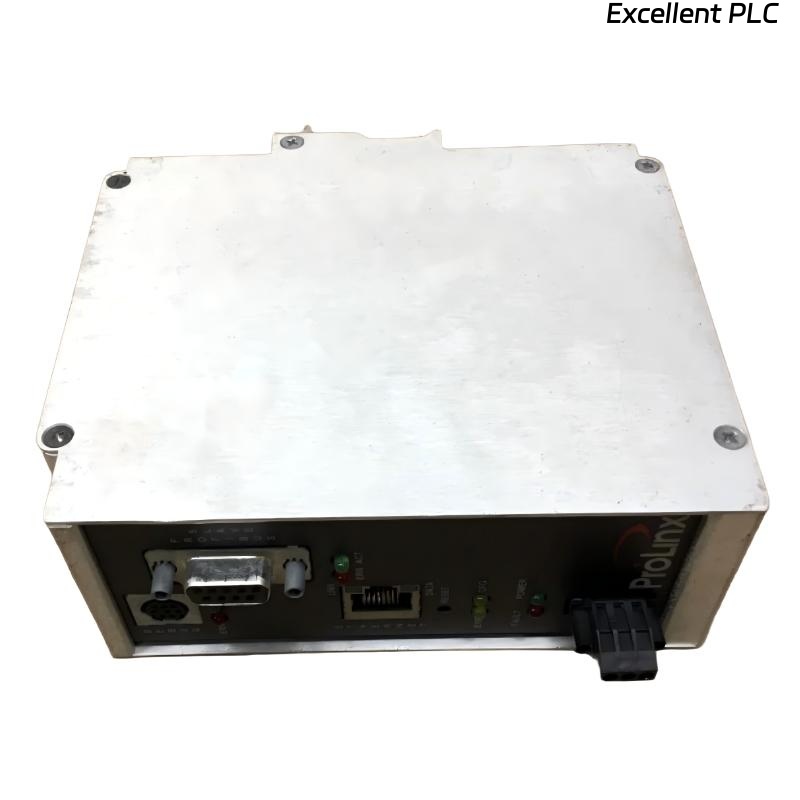

ProSoft 5301-MBP-DFCM Modbus Plus to DF1 Master/Slave
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The ProSoft 5301-MBP-DFCM is a communication gateway module designed to enable seamless data exchange between Modbus Plus networks and DF1 protocol devices. It functions as both a Master and Slave, allowing flexible integration between legacy systems and modern automation platforms.
This module is widely used in industrial environments where different communication standards must coexist. By bridging Modbus Plus and DF1 protocols, the 5301-MBP-DFCM eliminates the need for extensive system redesign, making it a practical solution for system upgrades and expansions.
Engineered for reliability, the module supports stable communication under demanding industrial conditions. Its compact form factor and DIN-rail mounting capability allow for easy installation within control cabinets, while its robust power design ensures consistent operation even with voltage fluctuations.
The 5301-MBP-DFCM is particularly suitable for applications requiring real-time data transfer between PLCs, HMIs, and distributed control systems, ensuring continuity and efficiency in industrial operations.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | 5301-MBP-DFCM |
| Manufacturer | ProSoft Technology |
| Module Type | Communication Gateway |
| Protocol Conversion | Modbus Plus ↔ DF1 |
| Communication Mode | Master/Slave |
| Power Supply (Nominal) | 24 VDC |
| Input Voltage Range | 18 to 36 VDC |
| Current Load | 500 mA max @ 24 VDC |
| Power Connection | Positive, Negative, GND terminals |
| Wiring Requirement | 2.5 mm screwdriver blade |
| Operating Temperature | –20 to 50°C |
| Storage Temperature | –40 to 85°C |
| Relative Humidity | 5 to 95% (non-condensing) |
| Mounting Type | DIN-rail |
| Dimensions | 132 × 52.5 × 114.8 mm |
| Weight | 1.5 kg |
Applications
● Protocol conversion in legacy systems, enabling communication between Modbus Plus networks and DF1-based devices without replacing existing equipment
● PLC integration projects, allowing different brands or generations of controllers to exchange data efficiently
● Industrial network upgrades, where older Modbus Plus infrastructure needs to connect with newer DF1 systems
● SCADA and HMI communication bridging, ensuring consistent data flow across different communication layers
● Process automation systems, supporting real-time data exchange between distributed devices
● Remote monitoring and diagnostics, enabling centralized access to devices using different protocols
Advantages
● Dual Master/Slave functionality, providing flexible communication roles depending on system requirements
● Reliable protocol conversion, ensuring accurate and consistent data transfer between Modbus Plus and DF1 networks
● Wide power input range, allowing stable operation even under fluctuating voltage conditions
● Industrial-grade environmental tolerance, supporting operation in harsh temperature and humidity environments
● Compact and easy installation, suitable for standard DIN-rail mounting in control panels
● Reduced integration cost, eliminating the need for extensive hardware replacement during system upgrades
FAQ
- What is the main function of the 5301-MBP-DFCM module?
The module acts as a protocol converter, enabling communication between Modbus Plus networks and DF1 devices. It ensures that data can be exchanged seamlessly between systems using different communication standards. - Can the module operate simultaneously as both Master and Slave?
Yes, it supports both Master and Slave modes, allowing it to actively request data or respond to external requests depending on system configuration. - What types of devices can be connected to this module?
It can connect PLCs, RTUs, HMIs, and other industrial devices that support either Modbus Plus or DF1 protocols. - How is data mapped between Modbus Plus and DF1?
Data mapping is configured within the module, where registers and memory areas are assigned to corresponding addresses in each protocol to ensure correct data translation. - What happens if communication is interrupted?
In case of communication failure, the module can be configured to retry connections or maintain last known values, depending on system requirements. - Is the module suitable for real-time communication?
Yes, it is designed for industrial communication tasks where timely data exchange is required, although performance depends on network configuration and load. - Does the module require external software for configuration?
Configuration is typically performed using ProSoft configuration tools, where communication parameters and data mappings are defined. - How does the module handle electrical noise in industrial environments?
The module is designed with industrial-grade shielding and filtering to maintain stable communication even in electrically noisy conditions. - Can multiple modules be used in a single system?
Yes, multiple units can be deployed to expand communication capabilities or connect multiple networks within the same system. - What type of maintenance is required for this module?
Routine maintenance is minimal, generally limited to checking wiring connections, power supply stability, and communication status during system inspections.
Related Models
| Model | Description |
|---|---|
| 5201-MNET-MCM | Modbus TCP/IP to Modbus serial gateway |
| 5304-MBP-MCM | Modbus Plus communication module |
| 5205-DFNT-MCM | DF1 to Ethernet/IP gateway |
| 5302-MBP-PDPM | Modbus Plus to Profibus DP module |
| 5204-MNET-PDPM | Modbus TCP to Profibus DP gateway |
| 3150-MCM | Multi-protocol communication module |
Popular Models
| Model | Description |
|---|---|
| MVI56-MNET | Modbus TCP/IP module for ControlLogix |
| MVI69-MCM | CompactLogix serial communication module |
| MVI56E-MNET | Enhanced Modbus TCP module |
| MVI69E-MBTCP | Modbus TCP/IP communication module |
| PLX31-EIP-MBTCP | EtherNet/IP to Modbus TCP gateway |
| ILX34-MBS485 | Modbus serial communication module |
