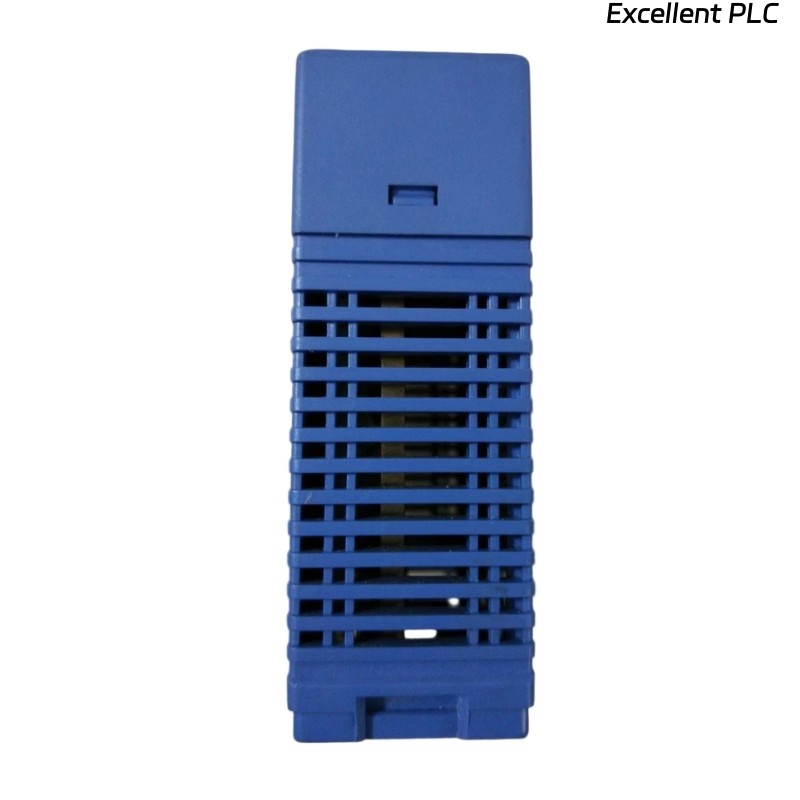

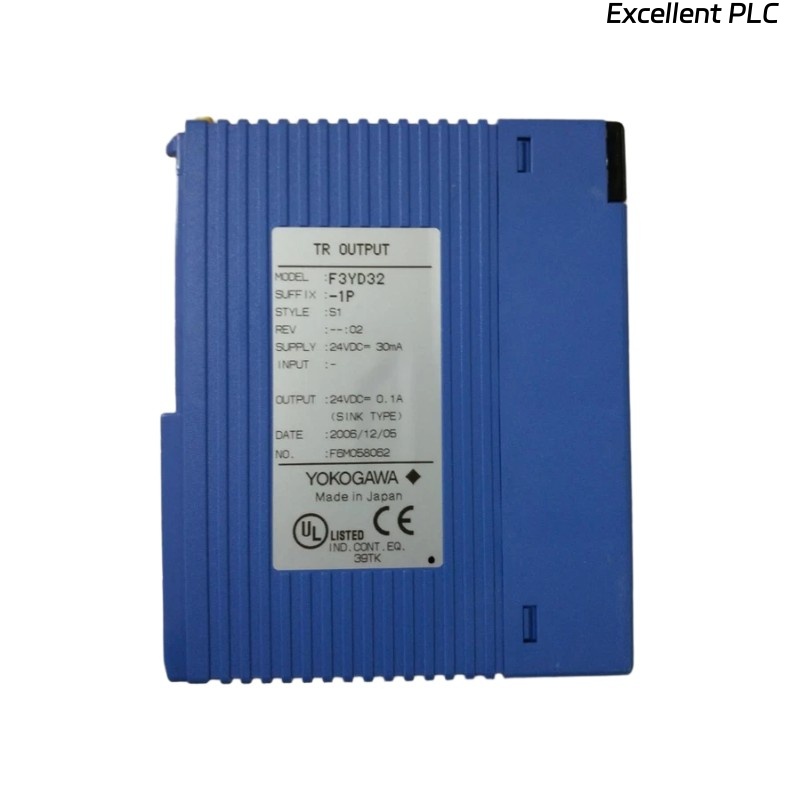

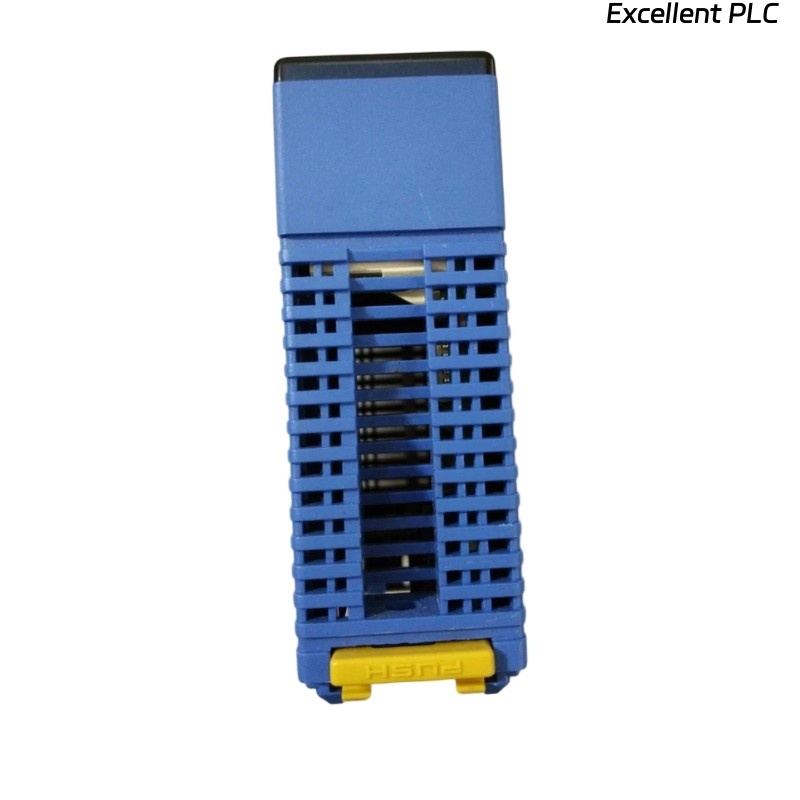

Yokogawa F3YD32-1P Transistor Output Modules
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Yokogawa F3YD32-1P is a high-performance transistor output module designed for use in Yokogawa’s FA-M3 series programmable logic controllers (PLCs). This module is built to provide reliable digital output control in demanding industrial environments. With its 32 output channels, it offers high-density I/O capabilities in a compact form factor, making it suitable for applications requiring rapid switching and precise control.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | F3YD32-1P |
| Type | Transistor Output Module |
| Number of Channels | 32 |
| Output Type | Sink/Source Transistor Outputs |
| Rated Output Voltage | 24 V DC |
| Allowable Voltage Range | 20.4 – 28.8 V DC |
| Output Current per Channel | 0.5 A (Max) |
| Total Current Capacity | 8 A (Max) |
| Response Time | 0.1 ms (typical) |
| Isolation | Photocoupler between I/O and internal circuits |
| Dimensions | 84.5 x 102 x 28.9mm |
| Weight | 0.11 kg |
| Mounting Method | DIN rail or inside FA-M3 base unit |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 75 °C |
| Relative Humidity | 5 – 95% (non-condensing) |
Product Applications
-
Manufacturing lines: For controlling actuators, solenoids, and relays.
-
Robotics systems: Precise digital outputs for motion and sequence control.
-
Energy sector: Controlling breakers, alarms, and switching devices.
-
Process automation: Providing fast-response outputs to valves, pumps, and motors.
-
Packaging machinery: Coordinating timing-sensitive control operations.
Product Advantages
-
High Channel Density: Provides 32 output channels in a compact module, optimizing panel space.
-
Fast Switching Speed: Ensures rapid response times suitable for high-speed automation tasks.
-
Robust Isolation: Photocoupler isolation ensures safe operation and prevents signal interference.
-
Flexible Voltage Range: Supports industrial-standard 24V DC operation with tolerance for variations.
-
Compact and Lightweight: Easy integration into existing systems with minimal footprint.
-
Enhanced Reliability: Designed for long-term operation in demanding industrial conditions.
FAQ
Q1: What type of outputs does the F3YD32-1P support?
A1: It supports transistor outputs, suitable for sink or source wiring configurations.
Q2: What is the maximum output current per channel?
A2: Each channel can handle up to 0.5 A, with a total current capacity of 8 A across the module.
Q3: How fast is the response time of the module?
A3: The module has a typical response time of 0.1 milliseconds.
Q4: Is isolation provided between the output channels and internal circuits?
A4: Yes, photocoupler isolation is used to ensure electrical safety and prevent signal interference.
Q5: What PLC series is the F3YD32-1P compatible with?
A5: It is fully compatible with the Yokogawa FA-M3 PLC series.
Q6: Can this module directly drive relays or solenoids?
A6: Yes, it can drive relays and solenoids, provided the load current does not exceed 0.5 A per channel.
Q7: What is the rated voltage for stable operation?
A7: The rated output voltage is 24 V DC, with an allowable range of 20.4–28.8 V DC.
Q8: What is the maximum ambient operating temperature?
A8: The module can operate in temperatures up to 55 °C.
Q9: Does the module support hot-swapping during operation?
A9: No, hot-swapping is not supported; power should be removed before replacing the module.
Q10: How is the module mounted in the control system?
A10: It can be mounted on a DIN rail or directly within an FA-M3 base unit.
