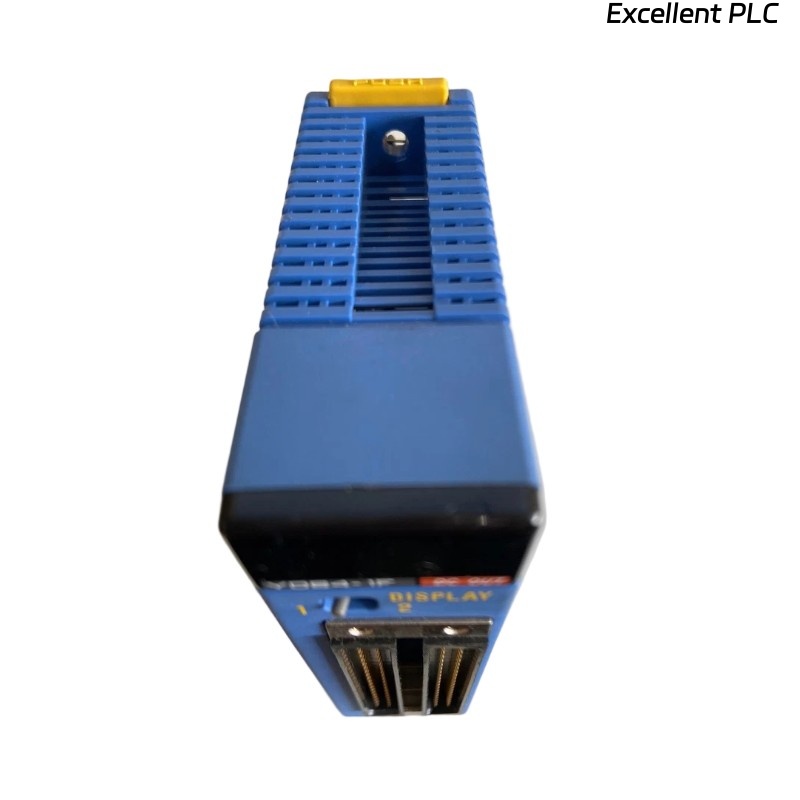

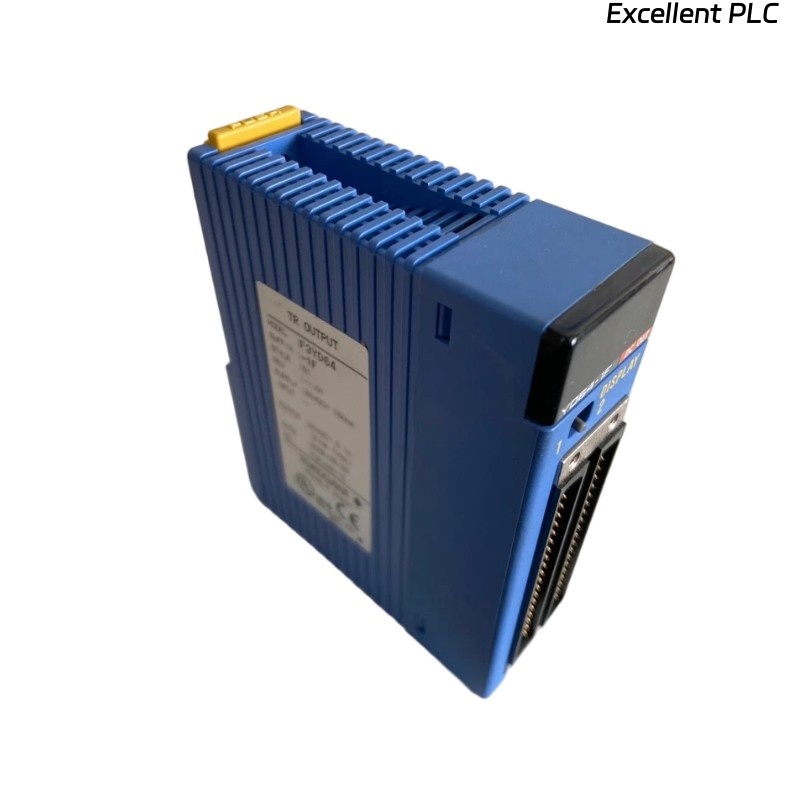

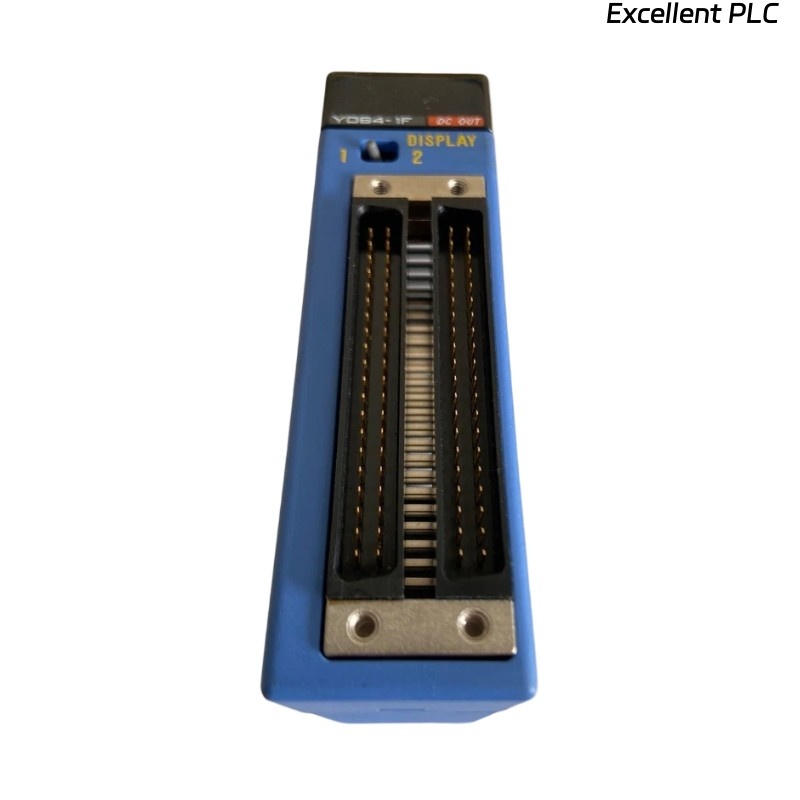

Yokogawa F3YD64-1F Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Yokogawa F3YD64-1F Output Module is a high-density output module designed for the FA-M3 series PLC systems. It provides reliable signal output capability for controlling actuators, relays, solenoids, and other field devices. Built with industrial-grade components, it is optimized for use in demanding environments where precision and stable operation are essential. The module integrates seamlessly into FA-M3 control systems, supporting flexible expansion and high-speed data exchange to meet the requirements of modern automation processes.
Product Advantages
-
High Channel Density – Offers multiple output channels in a single module, reducing cabinet space and wiring complexity.
-
Stable Signal Output – Provides consistent and precise output signals, suitable for critical industrial control.
-
Modular Scalability – Easily integrates into FA-M3 systems, allowing for flexible system expansion.
-
Rugged Design – Built for long-term reliability in harsh environments such as oil, gas, power, and manufacturing industries.
-
Low Maintenance – Designed with durable components, reducing failure rates and downtime.
-
Fast Response Time – Ensures rapid control and output updates for real-time process demands.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | F3YD64-1F Output Module |
| Output Type | Digital output module |
| Number of Output Channels | 64 channels |
| Output Voltage Range | 24V DC nominal (compatible with typical control system requirements) |
| Output Current (per channel) | Up to 0.5 A |
| Response Time | ≤ 0.5 ms |
| Isolation | Channel-to-bus and channel-to-ground isolation |
| Power Supply | Supplied through system backplane |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 10–90% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 35 mm × 100 mm × 120 mm |
| Weight | Approx. 150 g |
| Mounting | DIN rail or rack-based FA-M3 system backplane |
Product Applications
The F3YD64-1F Output Module is widely used across industries for automation and process control. Typical applications include:
-
Manufacturing Automation – Output control for conveyors, robotic arms, and assembly lines.
-
Power Generation – Output interfaces for turbine control and auxiliary systems.
-
Oil & Gas – Output module for safety systems, compressor control, and monitoring units.
-
Water Treatment Plants – Actuator and valve output control for flow and pressure management.
-
Building Automation – Control of lighting, HVAC, and safety systems.
-
Chemical and Pharmaceutical Plants – For precise process control and automation sequences.
FAQ
Q1: What type of signals does the F3YD64-1F output module support?
A1: It supports digital (ON/OFF) signals with 24V DC nominal output voltage.
Q2: Is channel-to-channel isolation provided in this module?
A2: Yes, isolation is provided between channels and between the module and system bus to enhance reliability.
Q3: What is the maximum current capacity per channel?
A3: Each channel can handle up to 0.5 A output current.
Q4: Can this module be hot-swapped during system operation?
A4: No, the module should be powered down before installation or replacement to avoid damage.
Q5: How is the module powered?
A5: The module is powered through the FA-M3 system backplane, requiring no external power wiring.
Q6: What protections are included for the output channels?
A6: Overcurrent and short-circuit protection are implemented for output safety.
Q7: Is the module suitable for high-speed output applications?
A7: Yes, with a response time of ≤ 0.5 ms, it supports real-time control tasks.
Q8: Does the module require external wiring terminals?
A8: Yes, it interfaces with terminal blocks that provide wiring access to the 64 outputs.
Q9: What is the recommended operating environment for the module?
A9: The module should operate between 0°C to 55°C with humidity between 10–90% RH non-condensing.
Q10: Is the F3YD64-1F compatible with all FA-M3 series CPUs?
A10: Yes, it is fully compatible with FA-M3 system CPUs and can be integrated into new or existing systems.
Recommended Models from the Same Series or Related
| Model Number | Description | Channels | Voltage Range | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| F3YD16-1F | Digital output module | 16 | 24V DC | 35 × 100 × 120 | 140 g |
| F3YD32-1F | Digital output module | 32 | 24V DC | 35 × 100 × 120 | 145 g |
| F3YD64-1F | High-density digital output module | 64 | 24V DC | 35 × 100 × 120 | 150 g |
| F3YC32-1F | Digital input module | 32 | 24V DC | 35 × 100 × 120 | 145 g |
| F3YC64-1F | High-density digital input module | 64 | 24V DC | 35 × 100 × 120 | 150 g |
| F3AD08-6B | Analog input module | 8 | ±10V / 4–20mA | 35 × 100 × 120 | 160 g |
Popular Models from the Same Brand
| Model Number | Description | Channels | Voltage / Signal Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| F3YD64-1F | Digital output module, 64 channels | 64 | 24V DC | 35 × 100 × 120 | 150 g |
| F3YC64-1F | Digital input module, 64 channels | 64 | 24V DC | 35 × 100 × 120 | 150 g |
| F3AD08-6B | Analog input module | 8 | ±10V / 4–20mA | 35 × 100 × 120 | 160 g |
| F3DA08-6B | Analog output module | 8 | ±10V / 4–20mA | 35 × 100 × 120 | 160 g |
| F3PU20-0S | Power supply module | — | 24V DC input | 50 × 120 × 130 | 300 g |
| F3PU05-0S | Power supply module | — | 5V DC output | 50 × 120 × 130 | 280 g |
| F3ET10-0N | Ethernet communication module | — | TCP/IP, Ethernet/IP | 35 × 100 × 120 | 170 g |
| F3RS17-5T | Redundant system processor module | — | System control | 50 × 120 × 130 | 350 g |
