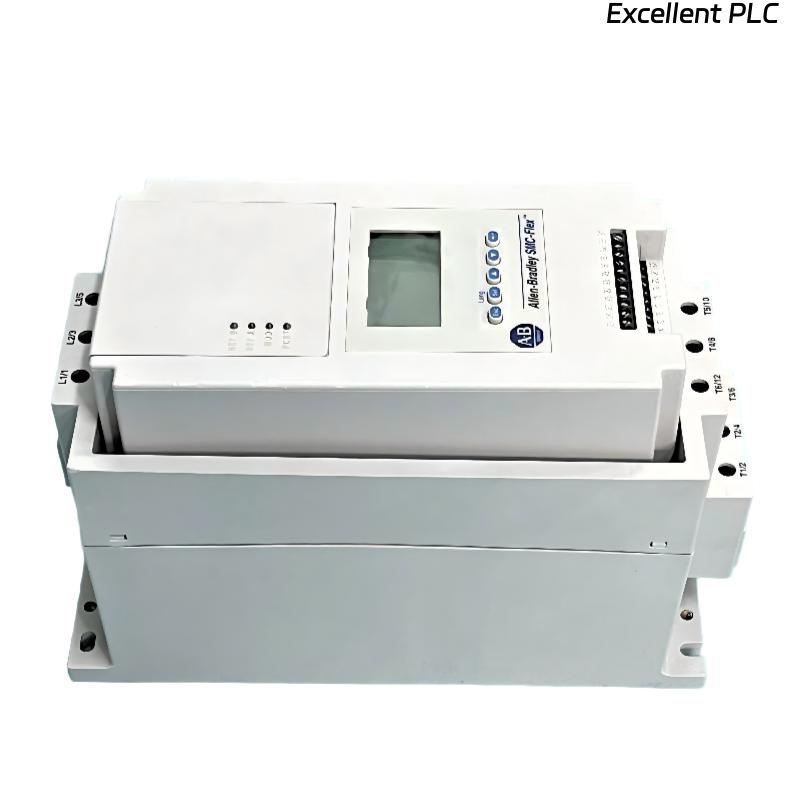

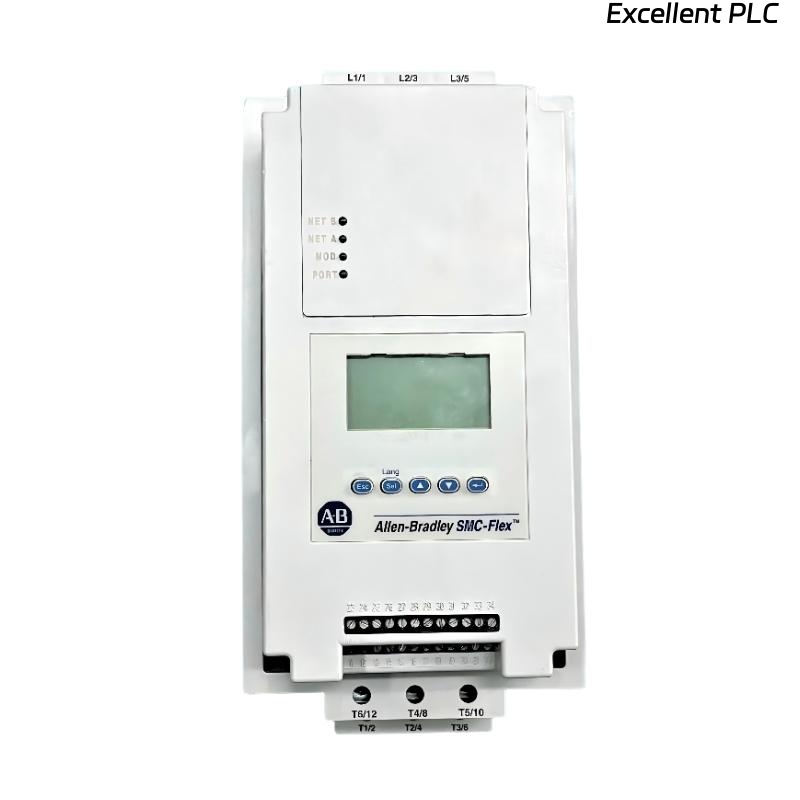

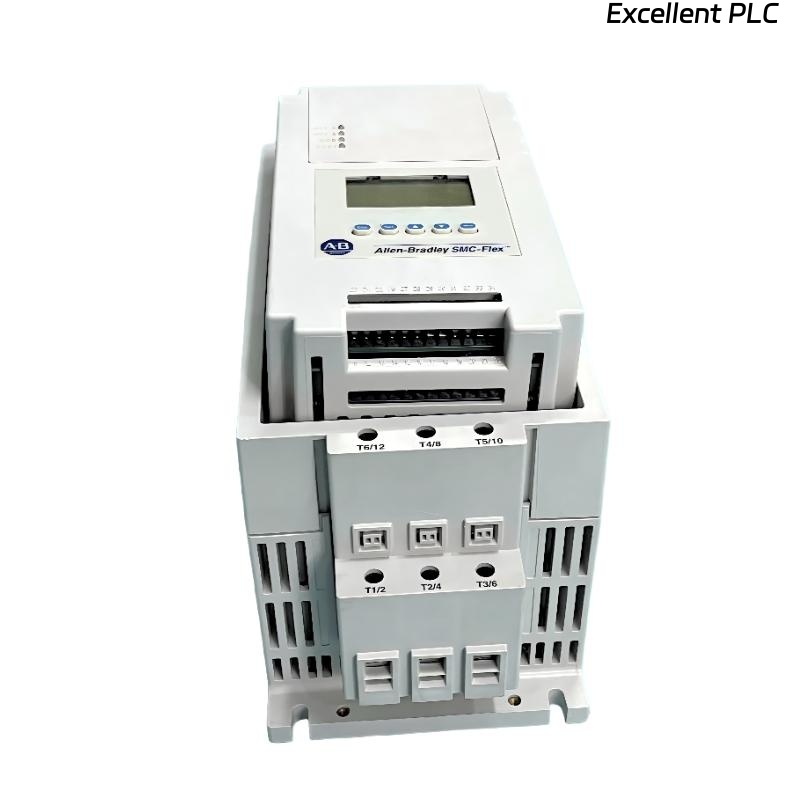

Allen Bradley 150-F85NBDB SMC Flex Smart Motor Controller
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 150-F85NBDB SMC Flex Smart Motor Controller is a versatile, compact, and intelligent motor control solution designed for medium-duty industrial applications. It provides precise motor protection, diagnostics, and communication capabilities while maintaining a small footprint suitable for panel mounting or DIN-rail installation.
The controller is ideal for scenarios requiring reliable single-direction motor operation, energy efficiency, and integration with automated systems. Its modular design allows for easy replacement and scalable deployment across single or multiple motor setups.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 150-F85NBDB |
| Product Type | SMC Flex Smart Motor Controller |
| Function | Single direction |
| Rated Operational Voltage (Ue) | 200–480 V AC |
| Rated Power (Three-Phase Motor, Inline, 400 V) | 45 kW |
| Rated Power (Three-Phase Motor, Inside Delta, 400 V) | 75 kW |
| Rated Operational Current | 85 A |
| Integrated Motor Overload Protection | Yes |
| Release Class | Adjustable |
| Internal Bypass | Yes |
| Voltage Type for Actuating | AC |
| Rated Control Supply Voltage Us at AC 50 Hz | 100–240 V |
| Rated Control Supply Voltage Us at AC 60 Hz | 100–240 V |
| Output Contacts | 3-pole, normally open |
| Communication Protocol | Ethernet/IP, optional DeviceNet |
| Protection Features | Overload, short-circuit, phase loss, phase imbalance |
| Environmental Rating | IP20 / NEMA Type 1 |
| Operating Temperature | -20 °C to 60 °C |
| Dimensions (H x W x D) | 321 x 150 x 203 mm |
| Weight | 5.7 kg |
| Mounting Type | Panel-mounted or DIN-rail adaptable |
Applications
The SMC Flex Smart Motor Controller is suitable for various industrial applications:
-
Pumps and Fans: Controlled and protected operation of inline or delta-connected three-phase motors.
-
Conveyors and Material Handling: Reliable single-direction motor control for packaging, automotive, and manufacturing lines.
-
Mixers and Agitators: Accurate overload and phase protection in chemical, food, and pharmaceutical processes.
-
Industrial Automation: Seamless integration with PLCs for real-time monitoring and predictive maintenance.
-
Energy Management: Optimized motor starting reduces inrush current and overall energy consumption.
Advantages
-
Compact and Modular Design: Allows flexible panel integration while preserving service accessibility.
-
Advanced Motor Protection: Monitors overload, short-circuit, phase loss, and imbalance to safeguard motors.
-
Adjustable Overload and Release Class: Provides configurable motor protection according to application needs.
-
Internal Bypass: Ensures smoother switching and reduces wear on main contacts.
-
Single-Direction Operation: Simplifies control logic for applications where reverse motion is not required.
-
Network Integration: Supports Ethernet/IP and DeviceNet for industrial automation and remote monitoring.
-
Energy and Maintenance Efficiency: Reduces inrush current, allows predictive diagnostics, and minimizes downtime.
FAQ
-
Can the SMC Flex handle motors above 75 kW?
No, the maximum rated power is 75 kW (inside delta, 400 V). Higher-rated motors require a larger SMC Flex unit. -
What overload protection is included?
Electronically adjustable thermal overload relays provide protection against sustained overloads. -
Does it support single-direction operation only?
Yes, the controller is designed for single-direction motor control. -
What is the range of operating voltage?
Rated operational voltage is 200–480 V AC. -
Can the control supply voltage be adjusted?
Yes, it supports 100–240 V AC at both 50 Hz and 60 Hz. -
Does it include an internal bypass?
Yes, internal bypass reduces wear on main contacts during switching. -
Is phase loss and imbalance detection included?
Yes, the controller monitors phase loss, phase imbalance, and short-circuit events. -
Can multiple controllers be networked for coordinated control?
Yes, Ethernet/IP and DeviceNet protocols enable multi-unit coordination. -
Does it support PLC integration for monitoring and diagnostics?
Yes, real-time diagnostics and communication outputs allow seamless PLC integration. -
Is replacement or maintenance possible without full panel rewiring?
Yes, the modular design allows quick replacement with minimal wiring changes.
Recommended Related or Same-Series Models
| Model | Rated Current | Motor Power | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 150-F60NBDB | 60 A | 30 kW | Single direction | 280 x 150 x 180 | 4.8 |
| 150-F75NBDB | 75 A | 37 kW | Single direction | 300 x 150 x 190 | 5.3 |
| 150-F100NBDB | 100 A | 45 kW | Single direction | 340 x 160 x 210 | 6.2 |
| 150-F85NBDP | 85 A | 37 kW | Single direction | 321 x 150 x 203 | 5.7 |
| 150-F60NBDP | 60 A | 30 kW | Single direction | 280 x 150 x 180 | 4.8 |
| 150-F75NBDP | 75 A | 37 kW | Single direction | 300 x 150 x 190 | 5.3 |
Popular Allen Bradley SMC Flex Models
| Model | Rated Current | Motor Power | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 150-F50NBDB | 50 A | 22 kW | Single direction | 260 x 140 x 170 | 4.1 |
| 150-F60NBDB | 60 A | 30 kW | Single direction | 280 x 150 x 180 | 4.8 |
| 150-F85NBDB | 85 A | 37 kW | Single direction | 321 x 150 x 203 | 5.7 |
| 150-F100NBDB | 100 A | 45 kW | Single direction | 340 x 160 x 210 | 6.2 |
| 150-F120NBDB | 120 A | 55 kW | Single direction | 360 x 180 x 220 | 7.0 |
| 150-F150NBDB | 150 A | 75 kW | Single direction | 400 x 200 x 240 | 8.5 |
