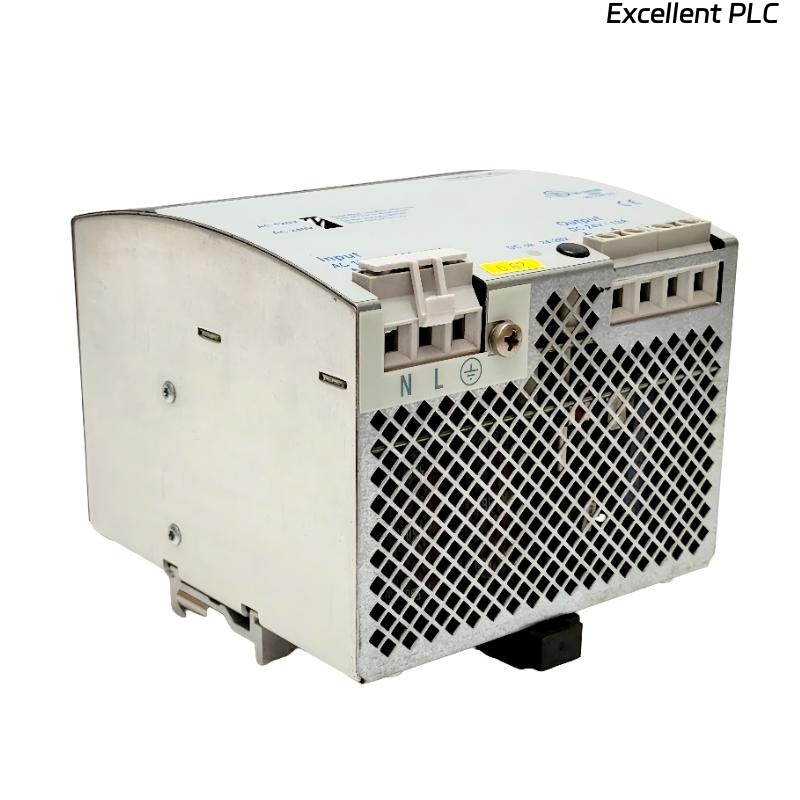

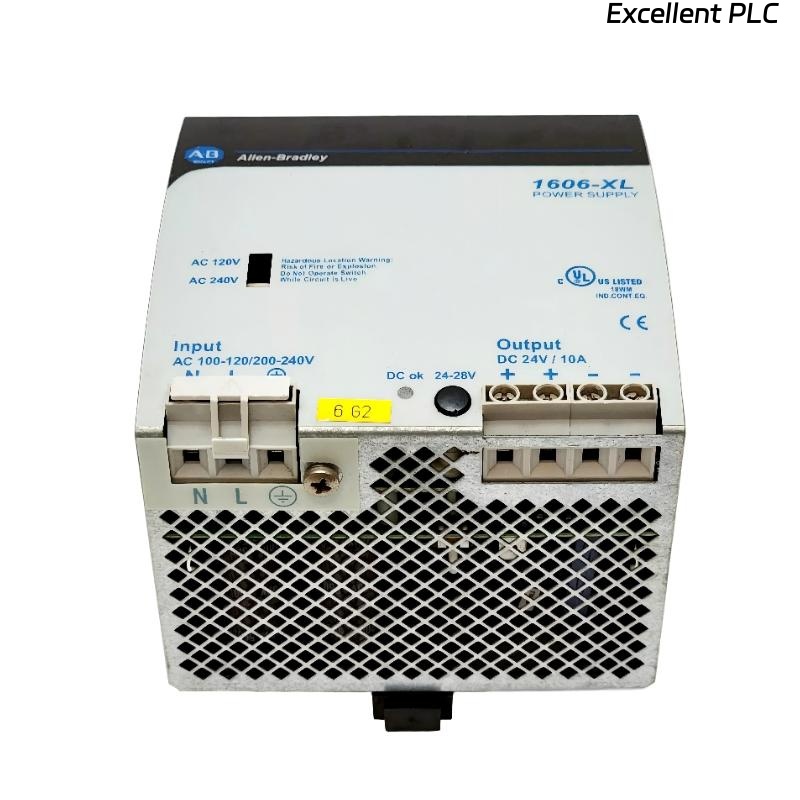

Allen Bradley 1606-XL240E Power Supply
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1606-XL240E Power Supply Module is a compact industrial power supply designed to provide reliable 24–28 V DC output for automation and control systems. Although discontinued by the manufacturer, it remains widely used in existing installations for PLCs, sensors, and control devices.
Part of the 1606-XL series, the 1606-XL240E features a wide input voltage range, DIN-rail mountability, and robust protection features, ensuring stable operation in demanding industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1606-XL240E |
| Series | 1606-XL |
| Product Type | Power Supply Module |
| Input Voltage | 100–240 V AC |
| Rated Output Power | 240 W |
| Output Voltage | 24–28 V DC |
| Output Current | 10 A |
| Voltage Type | DC |
| Efficiency | Typ. 89% |
| Protection Features | Overload, short-circuit, overvoltage |
| Mounting Type | DIN-rail |
| Operating Temperature | 0–70 °C (derating above 60 °C) |
| Storage Temperature | -40–85 °C |
| Dimensions (H x W x D) | 120 x 124 x 102 mm |
| Weight | 0.98 kg |
| Status | Discontinued by Manufacturer |
| Certifications | UL, CE, CSA |
Applications
-
Industrial Automation: Powers PLCs, sensors, and actuators reliably in control panels.
-
Control Panels: Suitable for installations requiring 24–28 V DC output.
-
Machine Tools: Supplies stable power to machinery and automation devices.
-
Process Control Systems: Maintains steady voltage for continuous operation in chemical, food, or pharmaceutical plants.
-
Building Automation: Powers HVAC, security, and monitoring systems requiring regulated DC voltage.
Advantages
-

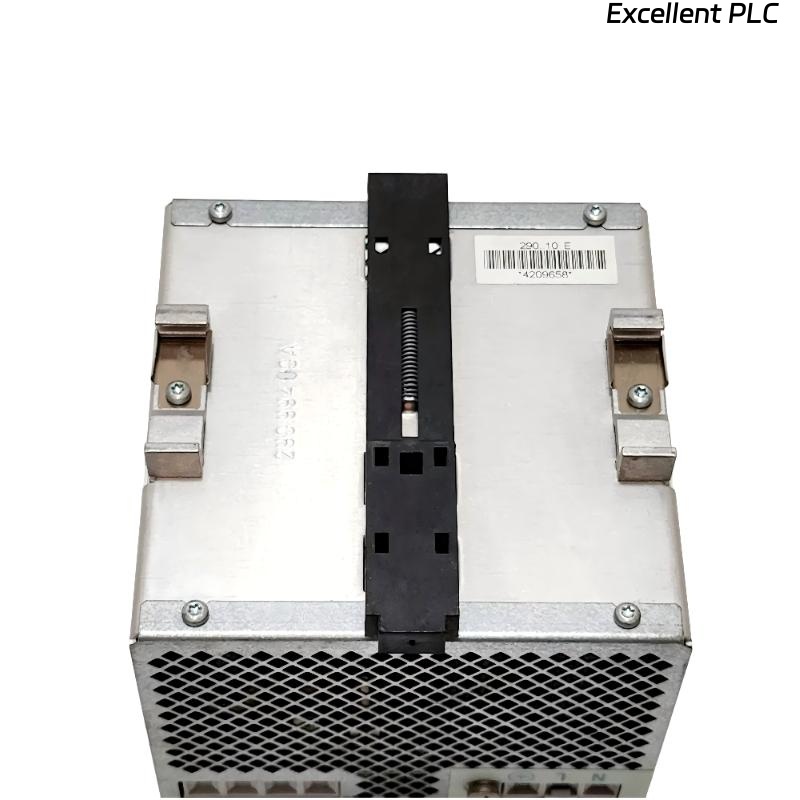

Compact DIN-Rail Mountable Design: Saves panel space and simplifies installation.
-
Wide Input Voltage Range: 100–240 V AC operation for global industrial compatibility.
-
Reliable DC Output: Provides stable 24–28 V DC with 10 A current for various loads.
-
High Efficiency: Typ. 89% efficiency reduces heat and energy losses.
-
Protection Features: Built-in overload, short-circuit, and overvoltage protection.
-
Robust Industrial Certifications: UL, CE, and CSA compliant.
-
Legacy Support: Continues to support existing installations despite being discontinued.
FAQ
-
What is the rated output current of the 1606-XL240E?
The rated output current is 10 A at 24–28 V DC, capable of powering multiple PLCs and sensors in standard control panels. -
What input voltage range does it support?
It supports AC input from 100–240 V, compatible with a wide variety of industrial power systems. -
Is the module still suitable for existing systems?
Yes, although discontinued, it remains fully compatible with existing 1606-XL installations. -
What is the efficiency of the power supply?
Typical efficiency is 89%, which helps minimize energy losses and heat generation. -
Does it include protection against overload or short circuits?
Yes, it features built-in overload, short-circuit, and overvoltage protection. -
Can it operate at high temperatures?
Yes, the module operates up to 70 °C, with thermal derating above 60 °C to ensure safe operation. -
What is the ripple/noise specification?
Output ripple and noise are within acceptable industrial limits to ensure stable operation of sensitive electronics. -
Is DIN-rail mounting supported?
Yes, standard DIN-rail mounting allows quick installation and replacement in control panels. -
Which industrial certifications does it have?
UL, CE, and CSA approved for industrial safety and regulatory compliance. -
Can it be used in redundant power configurations?
Yes, it can be integrated into systems with multiple power supplies for improved reliability.
Recommended Related / Same-Series Models
| Model | Output Voltage | Output Power | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1606-XL60E | 24 V DC | 60 W | 2.5 A | 64 x 99 x 102 | 0.45 |
| 1606-XL120D | 24 V DC | 120 W | 5 A | 64 x 124 x 102 | 0.62 |
| 1606-XL240DR | 24 V DC | 240 W | 10 A | 120 x 124 x 102 | 0.98 |
| 1606-XL480E | 24 V DC | 480 W | 20 A | 64 x 315 x 102 | 2.0 |
| 1606-XL120E | 24 V DC | 120 W | 5 A | 64 x 124 x 102 | 0.62 |
| 1606-XL480D | 24 V DC | 480 W | 20 A | 64 x 315 x 102 | 2.0 |
Popular Allen Bradley 1606-XL Series Models
| Model | Output Voltage | Output Power | Output Current | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1606-XL60E | 24 V DC | 60 W | 2.5 A | 64 x 99 x 102 | 0.45 |
| 1606-XL120D | 24 V DC | 120 W | 5 A | 64 x 124 x 102 | 0.62 |
| 1606-XL240E | 24–28 V DC | 240 W | 10 A | 120 x 124 x 102 | 0.98 |
| 1606-XL240DR | 24 V DC | 240 W | 10 A | 120 x 124 x 102 | 0.98 |
| 1606-XL480E | 24 V DC | 480 W | 20 A | 64 x 315 x 102 | 2.0 |
| 1606-XL480D | 24 V DC | 480 W | 20 A | 64 x 315 x 102 | 2.0 |
