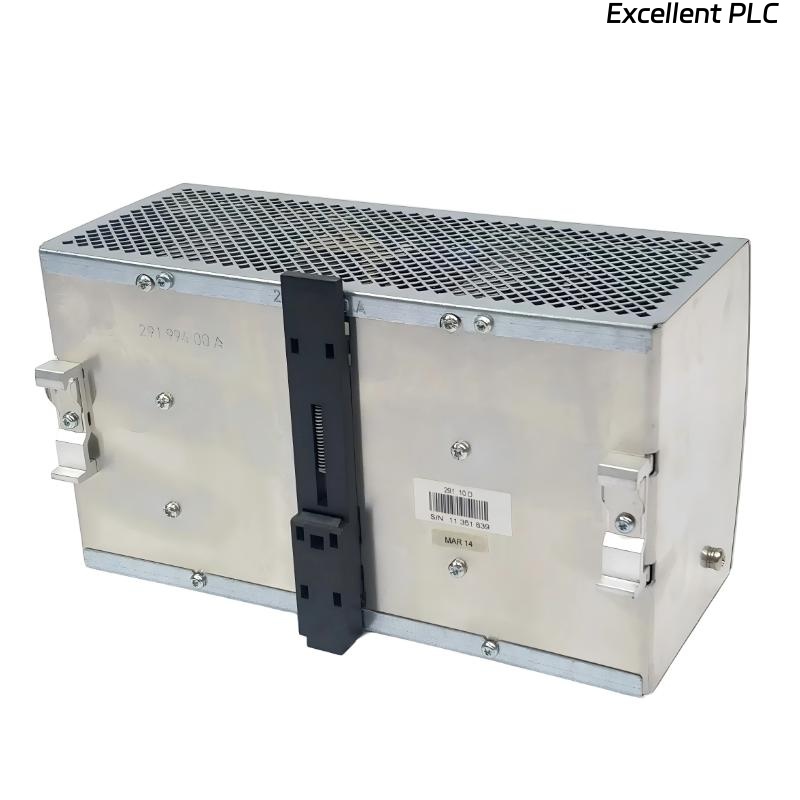

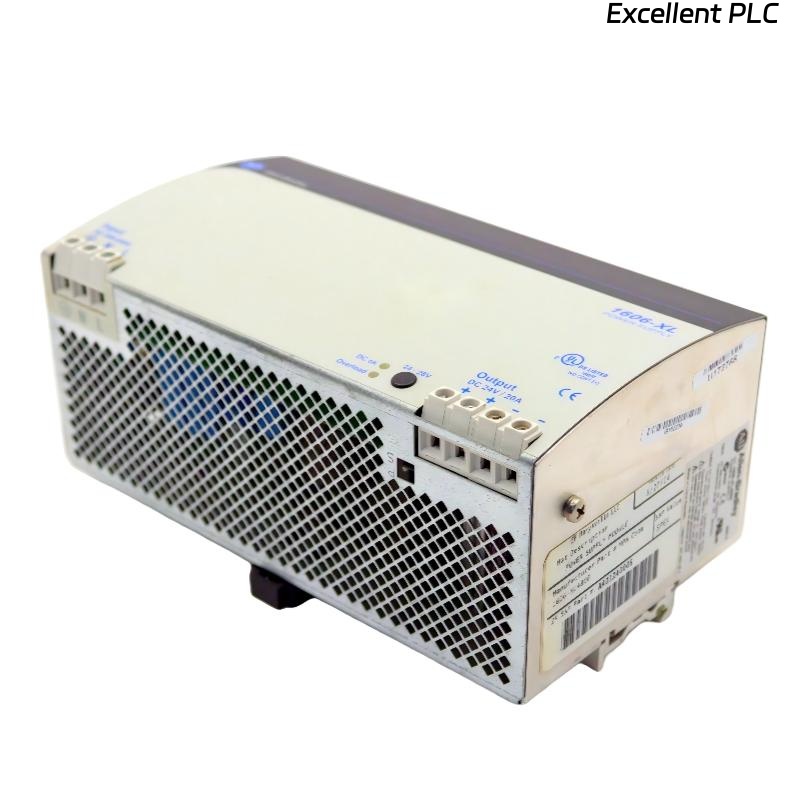

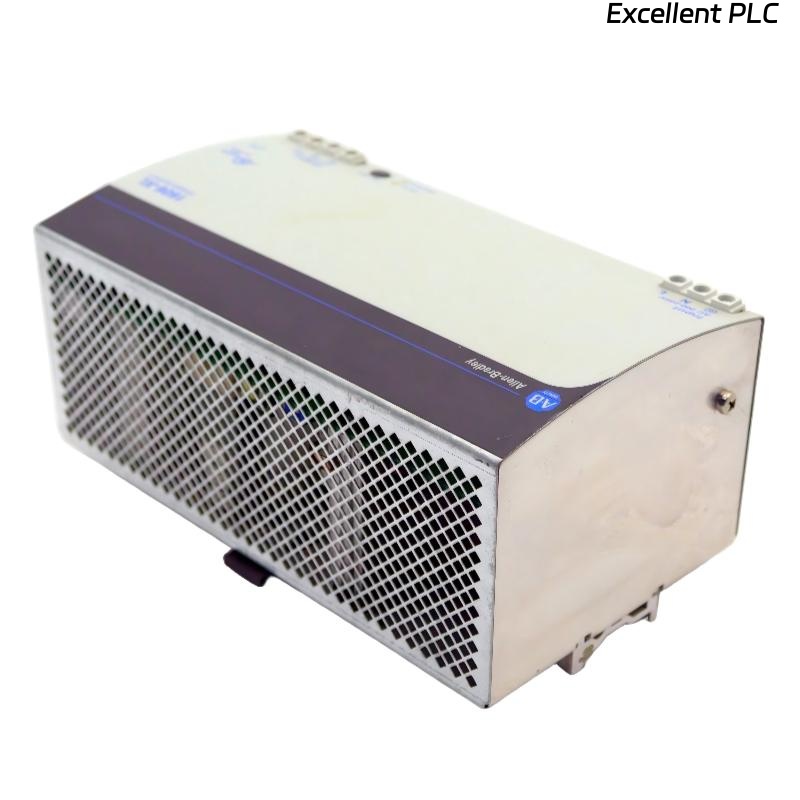

Allen Bradley 1606-XL480E Power Supply
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1606-XL480E Power Supply is an industrial-grade, high-performance power supply unit designed to provide reliable DC power for automation and control systems. Part of the 1606-XL Series, it delivers stable output voltage with high efficiency and low ripple, ensuring safe and uninterrupted operation of connected devices.
This power supply is suitable for a wide range of industrial applications, including factory automation, process control, and machinery control cabinets. Its compact and rugged design allows installation in standard industrial enclosures, while the wide input voltage range provides flexibility for global deployment.
The 1606-XL480E is ideal for systems requiring reliable 24–28 V DC power, high efficiency, and protection features that enhance the longevity and safety of industrial control equipment.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1606-XL480E |
| Series | 1606-XL Series |
| Input Voltage | 100–240 V AC |
| Output Power | 480 W |
| Output Voltage | 24–28 V DC |
| Output Current | Up to 20 A |
| Efficiency | Up to 90% |
| Ripple and Noise | ≤ 100 mV peak-to-peak |
| Operating Temperature Range | -25°C to +70°C |
| Cooling | Convection / Fan-assisted optional |
| Protections | Overvoltage, overcurrent, short-circuit |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions | 220 × 124 × 102 mm |
| Weight | 1.8 kg |
Applications
The Allen-Bradley 1606-XL480E is suitable for a variety of industrial applications:
-
Factory Automation: Provides stable DC power for PLCs, sensors, actuators, and control modules.
-
Process Control: Powers control units and instrumentation in chemical, water, and energy plants.
-
Machinery Control Cabinets: Supplies reliable power for motors, drives, and other industrial equipment.
-
Robotics Systems: Ensures continuous power for robotic controllers and peripheral devices.
-
Transportation and Material Handling: Powers control systems for conveyor belts, automated vehicles, and safety devices.
-
Energy Management: Supplies DC power for monitoring and control units in energy distribution systems.
Advantages
The 1606-XL480E offers multiple advantages for industrial environments:
-
High Reliability: Delivers stable 24–28 V DC output under varying input conditions.
-
Wide Input Range: 100–240 V AC allows deployment in diverse industrial regions.
-
High Efficiency: Up to 90% efficiency reduces heat generation and energy costs.
-
Robust Protection: Includes overvoltage, overcurrent, and short-circuit protection for safe operation.
-
Compact Design: Fits into standard control cabinets with limited space.
-
Flexible Mounting: Supports DIN rail and panel mounting.
-
Low Ripple and Noise: Ensures clean power for sensitive control and automation equipment.
-
FAQ
-
What is the output voltage range of the 1606-XL480E?
It provides a regulated DC output between 24 V and 28 V, ensuring safe and stable operation of connected devices. -
What is the maximum output current?
The unit can deliver up to 20 A, allowing it to power multiple devices in industrial control systems. -
What protections are included in the power supply?
It includes overvoltage, overcurrent, and short-circuit protections to prevent damage to both the supply and connected equipment. -
What is the efficiency of the module?
The 1606-XL480E achieves up to 90% efficiency, minimizing energy losses and heat generation. -
Can it operate in high-temperature environments?
Yes, it is rated for operation from -25°C to +70°C, suitable for industrial cabinets and harsh environments. -
How is the module cooled?
Cooling is primarily convection-based, with optional fan assistance for higher ambient temperatures or higher load conditions. -
Is the output voltage adjustable?
Yes, the output voltage can be fine-tuned within the 24–28 V range to meet specific system requirements. -
What is the ripple and noise specification?
The output ripple and noise are ≤ 100 mV peak-to-peak, ensuring clean power for sensitive electronic devices. -
Can multiple units be used in parallel?
Yes, multiple 1606-XL Series units can be connected in parallel for higher current requirements or redundancy in critical applications. -
What mounting options are available?
The unit supports both DIN rail and panel mounting for flexible installation in control cabinets.
Related Models
| Model Number | Description / Key Feature |
|---|---|
| 1606-XL240E | 240 W output power, 24–28 V DC |
| 1606-XL960E | 960 W output power, 24–28 V DC |
| 1606-XL480ER | Redundant 480 W power supply |
| 1606-XL320E | 320 W output, compact design |
| 1606-XL240ER | Redundant 240 W power supply |
| 1606-XL960ER | Redundant 960 W power supply |
Popular Models
| Model Number | Description / Key Feature |
|---|---|
| 1606-XL120E | 120 W output, standard XL series |
| 1606-XL480E-2 | 480 W output, dual output variant |
| 1606-XL960E-2 | 960 W output, high capacity |
| 1606-XL320E-2 | 320 W output, compact variant |
| 1606-XL240E-2 | 240 W output, energy efficient |
| 1606-XL480ER | Redundant power supply, 480 W |
