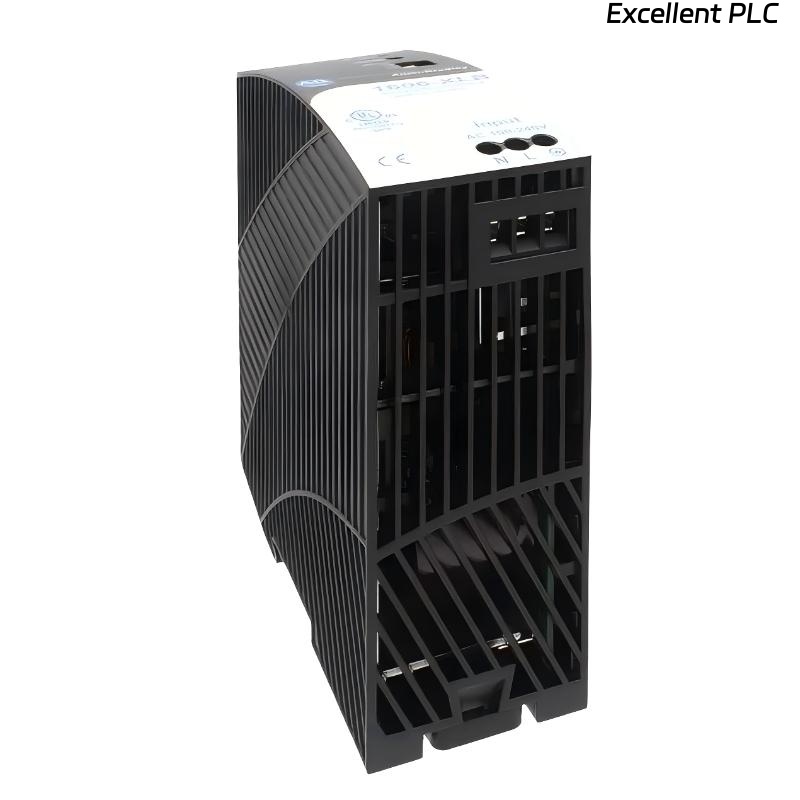

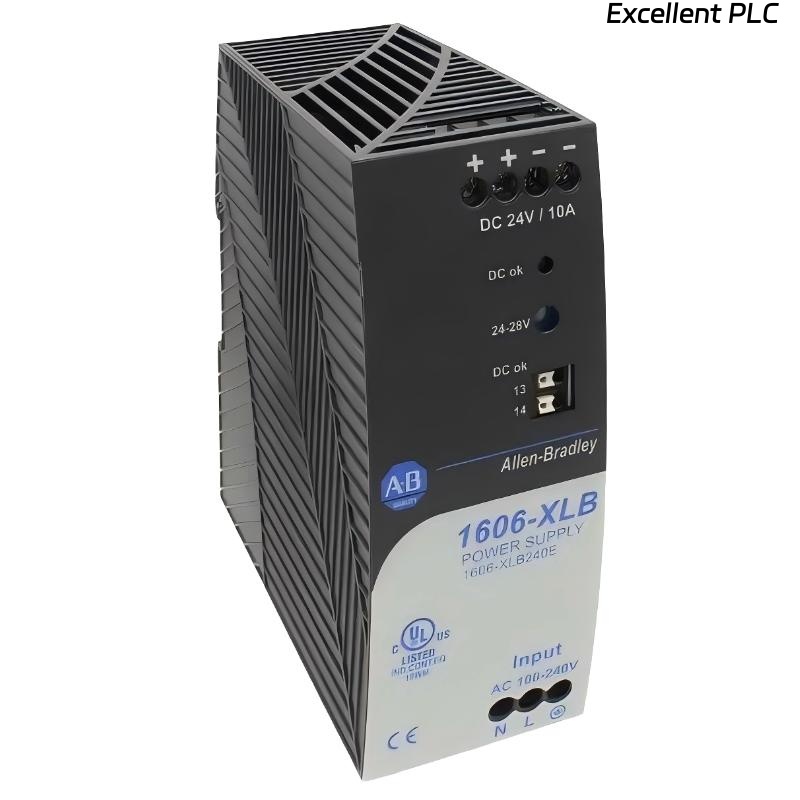

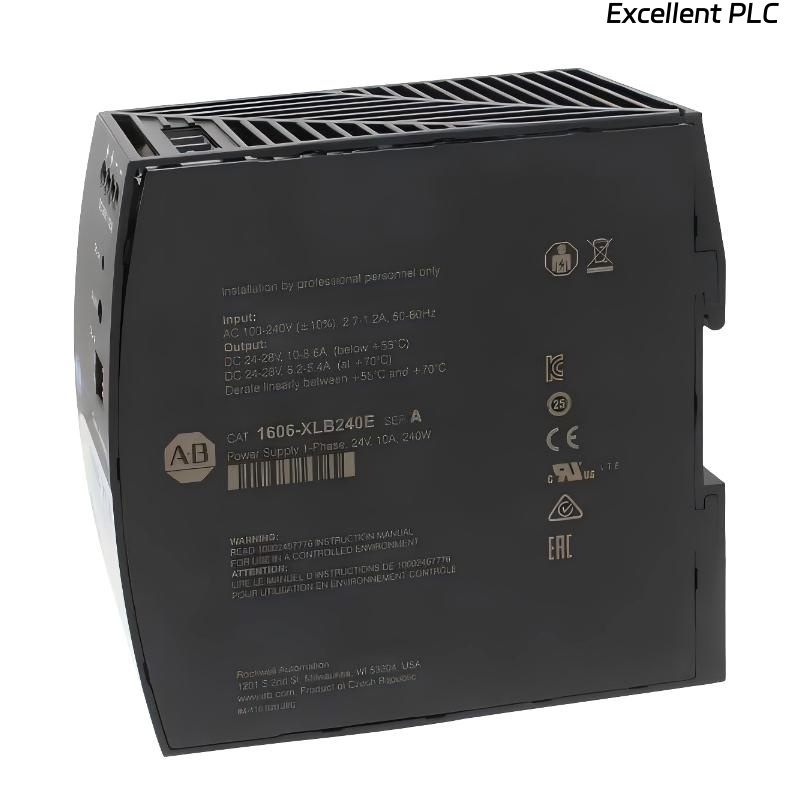

Allen Bradley 1606-XLB240E Power Supply
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1606-XLB240E power supply belongs to the 1606-XLB series and is designed as a compact, single-phase DIN rail-mounted solution for industrial power conversion. It provides a stable and adjustable 24–28 V DC output from a wide AC input range, making it suitable for a variety of automation and control applications.
This model emphasizes reliability and efficiency, with a high conversion efficiency of up to 95.2%, reducing energy losses and heat generation. Its robust electrical design ensures stable operation under varying load and input conditions, while the compact mechanical footprint supports installation in space-constrained control panels.
The unit is widely used in modern industrial systems where continuous and stable DC power is critical for maintaining operational consistency and minimizing downtime.
Product Specifications
| Parameter | Value |
|---|---|
| Series | 1606-XLB |
| Input Voltage | 90–264 V AC |
| Frequency | 50–60 Hz |
| Output Voltage | 24–28 V DC |
| Output Current | 10 A |
| Rated Power | 240 W |
| Efficiency | 95.2 % |
| Dimensions | 124 × 49 × 124 mm |
| Weight | 0.54 kg |
Applications
● Industrial automation systems
Used to supply stable DC power for PLCs, I/O modules, and communication devices in automated production lines.
● Control cabinets and panels
Ideal for DIN rail installations, supporting compact layouts and efficient wiring in electrical cabinets.
● Process control environments
Provides reliable power to sensors, transmitters, and control units, ensuring continuous process stability.
● OEM machinery and equipment
Suitable for integration into custom-built machines, offering consistent performance across varying operating conditions.
● Energy and infrastructure systems
Used in auxiliary control circuits requiring high-efficiency DC conversion from AC supply networks.
Advantages
● High conversion efficiency
With up to 95.2% efficiency, the unit minimizes heat generation and reduces energy consumption in long-term operation.
● Wide input voltage compatibility
Supports 90–264 V AC, allowing global deployment without the need for voltage selection.
● Stable and adjustable output
Provides 24–28 V DC output, ensuring compatibility with various industrial loads and system requirements.
● Compact and space-saving design
Optimized dimensions enable installation in tight control panels, improving overall cabinet utilization.
● Reliable startup performance
Controlled inrush current (max. 26 A) reduces stress on upstream components and enhances system stability.
● Consistent output under load variations
Maintains stable voltage even during dynamic load changes, ensuring uninterrupted system operation.
FAQ
- Is this power supply suitable for continuous operation?
Yes, it is designed for continuous duty under rated load conditions, provided proper installation and ventilation are ensured. - Can the output voltage be adjusted?
The output voltage can be adjusted within the 24–28 V DC range to match different load requirements. - How stable is the output under load changes?
The unit maintains a regulated output, ensuring minimal fluctuation even when the load varies within the rated limits. - Does it support operation in unstable power environments?
Yes, the wide input range allows it to operate reliably even with moderate input voltage fluctuations. - What type of loads is it designed for?
It is mainly intended for industrial control loads such as PLCs, sensors, relays, and communication modules. - Is additional protection required in the system?
External protection devices such as circuit breakers are recommended for overall system safety. - Can it be used in parallel configurations?
Parallel use is possible with proper external measures, although it is not primarily designed for load sharing. - How does efficiency impact system performance?
Higher efficiency reduces heat generation and improves long-term operational stability. - Is the output isolated from the input?
Yes, the design includes electrical isolation to ensure safe and stable operation in control systems. - What installation method is recommended?
DIN rail mounting is recommended for secure and convenient installation in control cabinets.
Related Models
| Model | Output Power | Output Voltage |
|---|---|---|
| 1606-XLB120E | 120 W | 24–28 V DC |
| 1606-XLB480E | 480 W | 24–28 V DC |
| 1606-XLB96E | 96 W | 24 V DC |
| 1606-XLE240E | 240 W | 24–28 V DC |
| 1606-XL240E | 240 W | 24 V DC |
| 1606-XLS240E | 240 W | 24 V DC |
Popular Models
| Model | Series | Output Power |
|---|---|---|
| 1606-XLS480E | XLS | 480 W |
| 1606-XLE240E | XLE | 240 W |
| 1606-XL120E | XL | 120 W |
| 1606-XLS960E | XLS | 960 W |
| 1606-XL480E | XL | 480 W |
| 1606-XLE120E | XLE | 120 W |
