Product Introduction

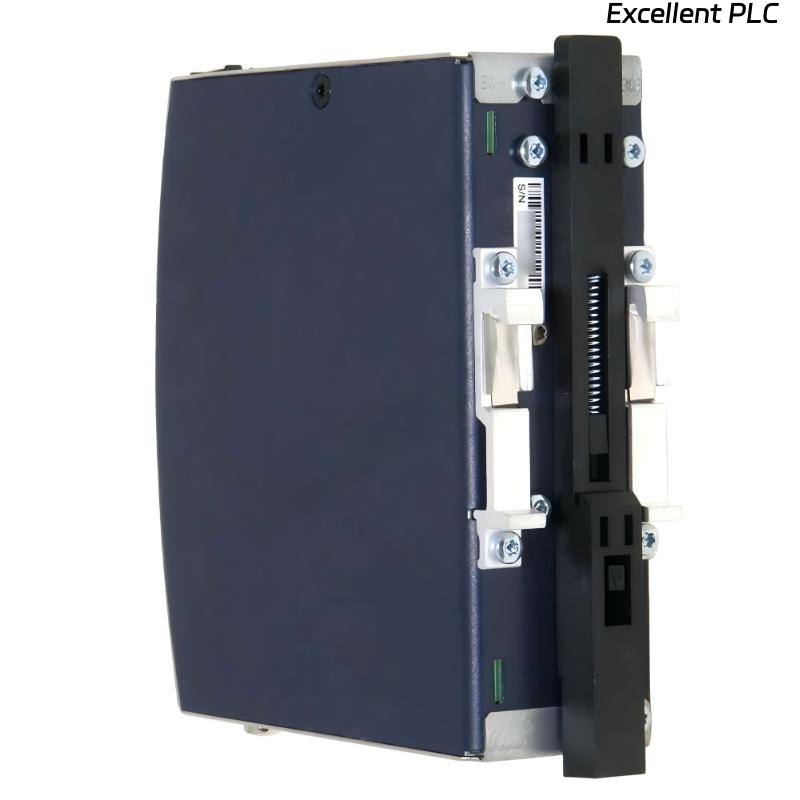

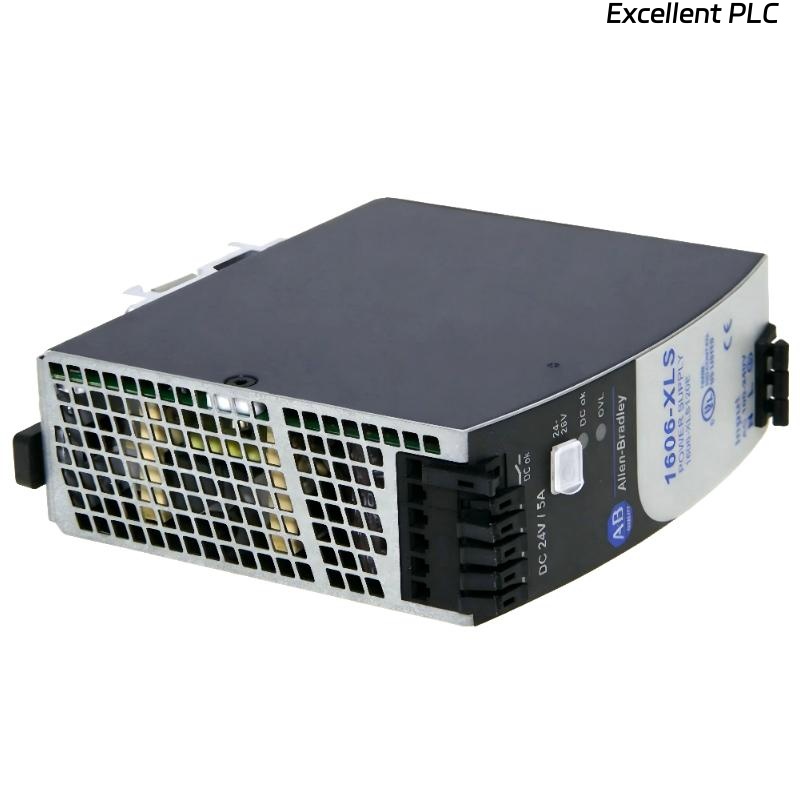

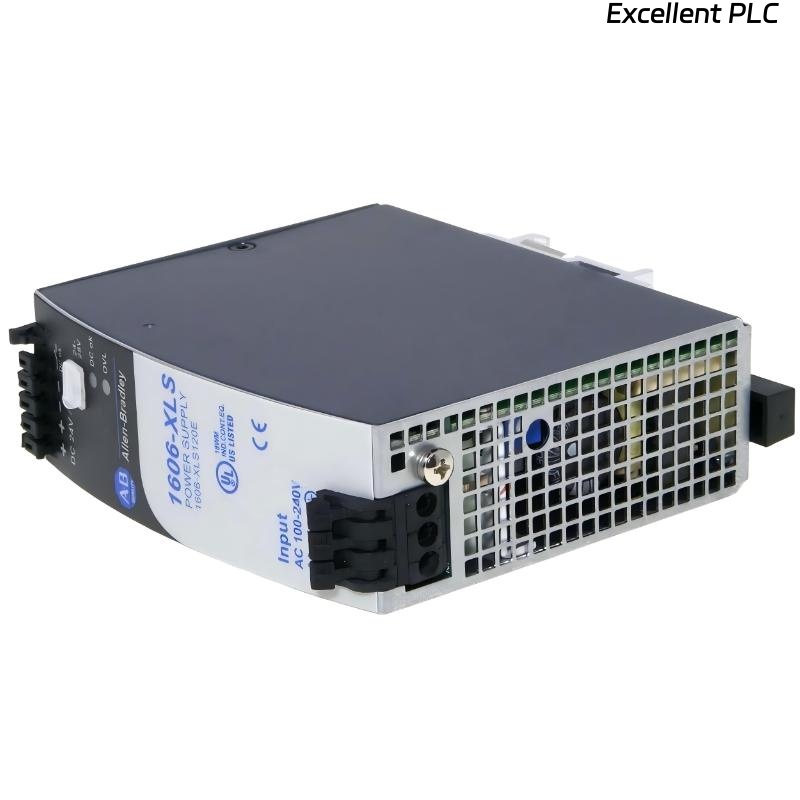

The Allen-Bradley 1606-XLS120E/A is a performance-grade switched mode power supply from the 1606-XLS series, designed for industrial automation systems that require high reliability and stable DC power delivery. It provides a regulated 24–28 V DC output with a rated power of 120 W, making it suitable for a wide range of control and process applications.
This model supports a wide 100–240 V AC input range and is engineered for stable operation in demanding environments. As part of the XLS performance series, it offers improved dynamic response, high efficiency, and enhanced system stability under load variations. The unit also supports ATEX compliance, making it suitable for use in potentially explosive atmospheres when installed according to certified system requirements.
Its compact DIN rail design allows easy integration into control cabinets, while its robust electrical structure ensures consistent operation in industrial environments where reliability is critical.
Product Specifications
| Parameter | Value |
|---|---|
| Series | 1606-XLS |
| Version | Series A |
| Type | Performance Switched Mode Power Supply |
| Input Voltage | 100–240 V AC |
| Frequency | 50–60 Hz |
| Output Voltage | 24–28 V DC |
| Rated Output Power | 120 W |
| Output Current (Typical) | Up to 5 A |
| Efficiency | High efficiency (industrial grade) |
| Protection Features | Overload / Short Circuit / Thermal Protection |
| Certification | ATEX compliant (system dependent) |
| Mounting Type | DIN Rail |
| Module Type | Standard Module |
| Dimensions | 124 × 40 × 117 mm |
| Weight | 0.62 kg |
Applications
● Industrial automation systems
Provides stable and reliable DC power for PLCs, I/O modules, and control electronics in automated production lines.
● Process control environments
Ensures consistent operation of sensors, transmitters, and control instruments in continuous process systems.
● Machine building and OEM equipment
Suitable for high-performance machinery requiring stable voltage under dynamic load conditions.
● Energy and infrastructure systems
Used in auxiliary control circuits within power distribution and infrastructure automation systems.
● Hazardous area applications (ATEX systems)
Can be integrated into certified ATEX system architectures where explosion-risk compliance is required.
Advantages
● High-performance power regulation
Provides stable voltage output even under fluctuating load conditions, improving system reliability.
● Wide input voltage compatibility
Supports 100–240 V AC, enabling global deployment without configuration changes.
● Industrial-grade protection design
Includes overload, short circuit, and thermal protection for safe operation.
● ATEX capability support
Suitable for integration into explosion-risk certified environments (system dependent).
● Compact DIN rail design
Allows easy installation and efficient use of control cabinet space.
● High efficiency operation
Reduces energy loss and heat generation, improving long-term system stability.
