Product Introduction

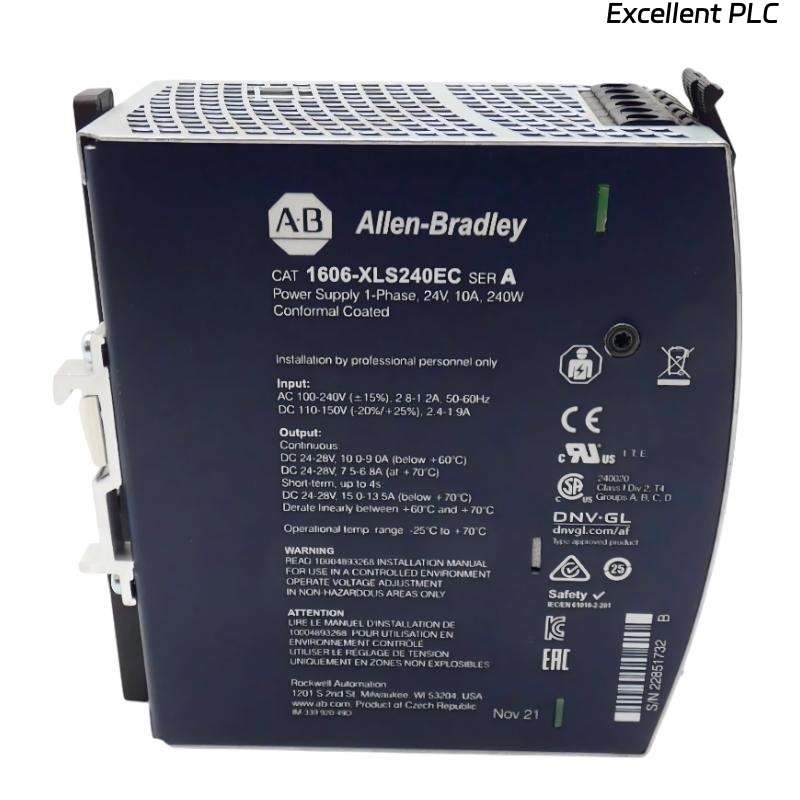

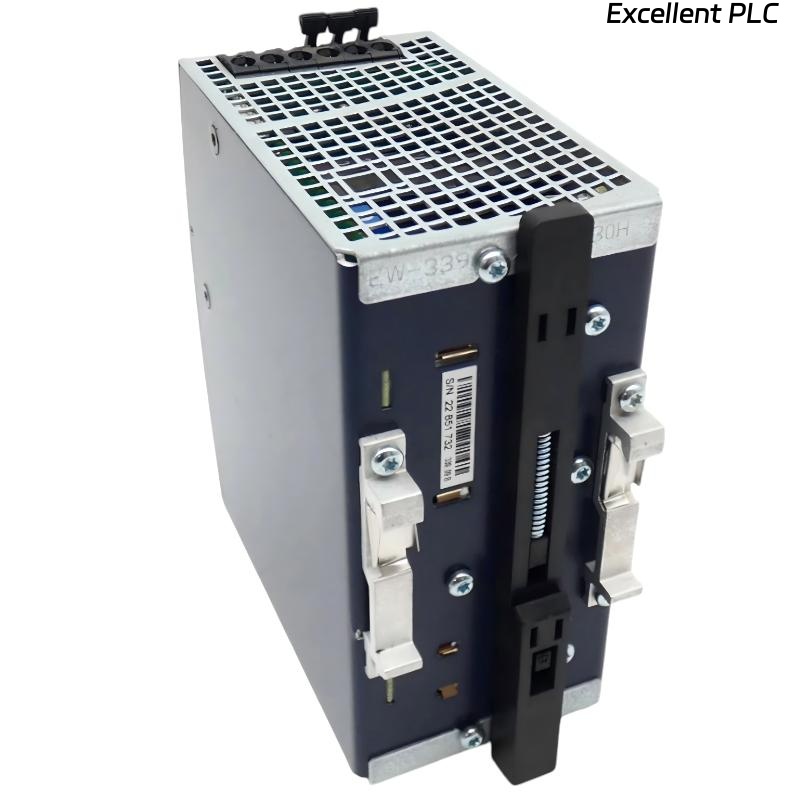

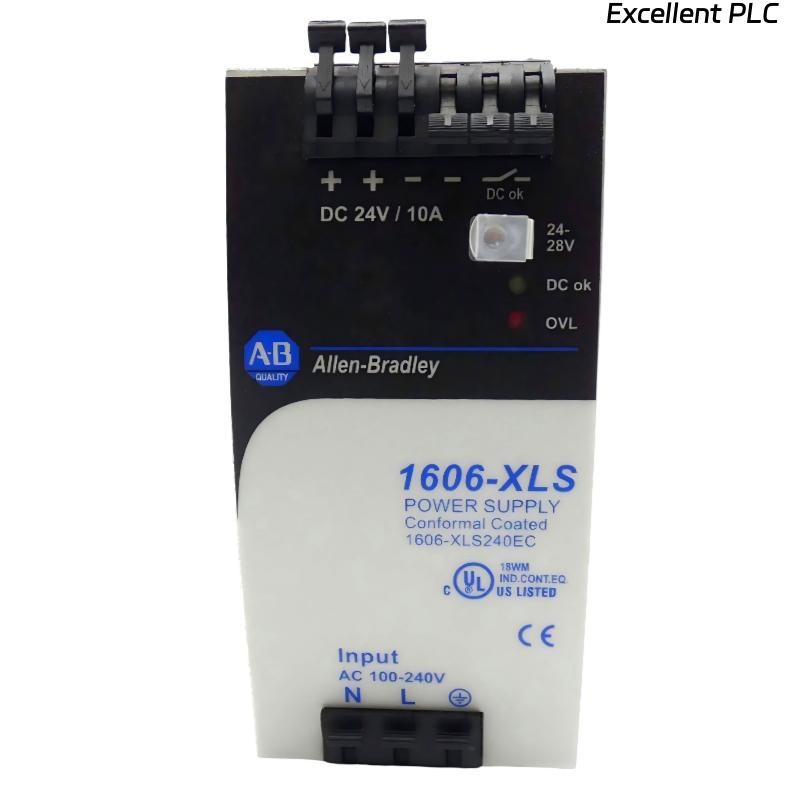

The Allen-Bradley 1606-XLS240EC is a high-performance switched mode power supply from the 1606-XLS series, designed to deliver stable and efficient 24–28 V DC power for industrial automation and control systems. With a rated output of 240 W, it is suitable for medium to high-load applications where consistent voltage stability and operational reliability are required.
This model supports a wide input voltage range of 100–240 V AC, enabling flexible deployment across different global power networks. As part of the XLS performance series, it provides strong dynamic response, high efficiency, and stable output regulation under varying load conditions.
The “EC” version features conformal coating, which enhances protection against humidity, dust, and airborne contaminants. This makes it particularly suitable for industrial environments with moderate exposure to harsh conditions. Its DIN rail mounting design ensures easy integration into control cabinets, while its robust electrical architecture supports long-term stable operation.
Product Specifications
| Parameter | Value |
|---|---|
| Series | 1606-XLS |
| Type | Performance Switched Mode Power Supply |
| Version | Conformal Coated (EC) |
| Input Voltage | 100–240 V AC |
| Frequency | 50–60 Hz |
| Output Voltage | 24–28 V DC |
| Rated Output Power | 240 W |
| Output Current (Typical) | Up to 10 A |
| Efficiency | High efficiency industrial design |
| Protection Features | Overload / Short Circuit / Thermal Protection |
| Coating Type | Conformal coating for environmental protection |
| Mounting Type | DIN Rail |
| Module Type | Standard Module |
| Dimensions | 124 × 60 × 117 mm |
| Weight | 0.90 kg |
Applications
● Industrial automation systems
Provides stable DC power for PLCs, I/O modules, and control electronics in automated production lines.
● Process control environments
Ensures reliable operation of sensors, transmitters, and instrumentation systems in continuous processes.
● Machine building and OEM equipment
Suitable for industrial machinery requiring stable voltage under dynamic load conditions.
● Energy and infrastructure systems
Used in control cabinets and auxiliary power systems requiring reliable DC conversion.
● Harsh environment industrial systems
Conformal coating improves suitability for dusty or humidity-prone environments.
Advantages
● Conformal coating protection
Enhanced resistance to moisture, dust, and airborne contaminants, improving long-term reliability.
● High efficiency operation
Reduces energy loss and heat generation, supporting stable long-term performance.
● Wide input voltage range
Supports 100–240 V AC, enabling global deployment without modification.
● Stable output regulation
Maintains consistent 24–28 V DC output under varying load conditions.
● Industrial-grade protection functions
Includes overload, short circuit, and thermal protection for safe operation.
● DIN rail compact design
Allows easy and secure installation in standard control cabinets.
