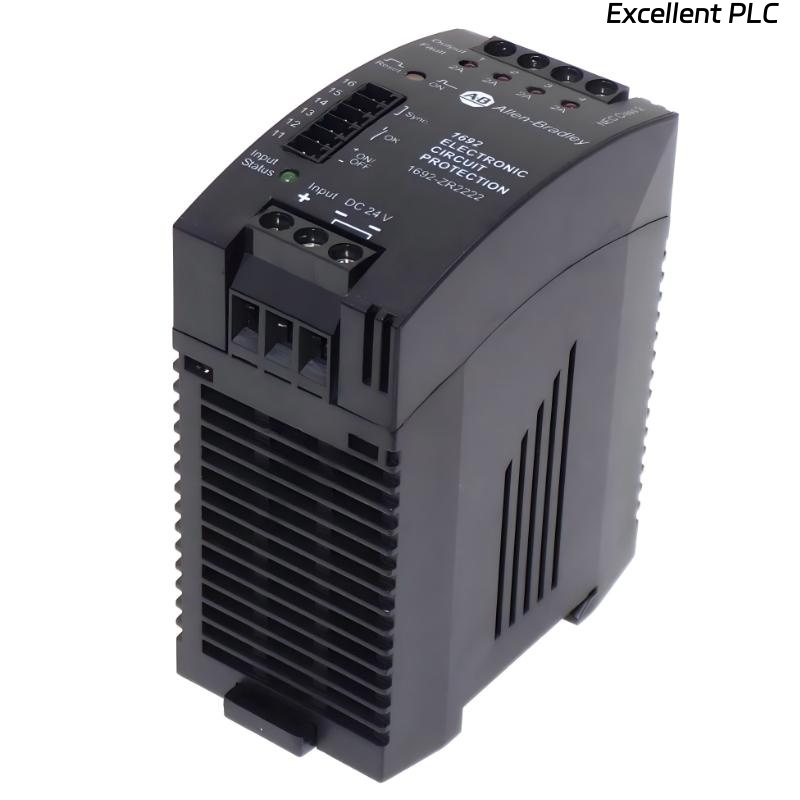

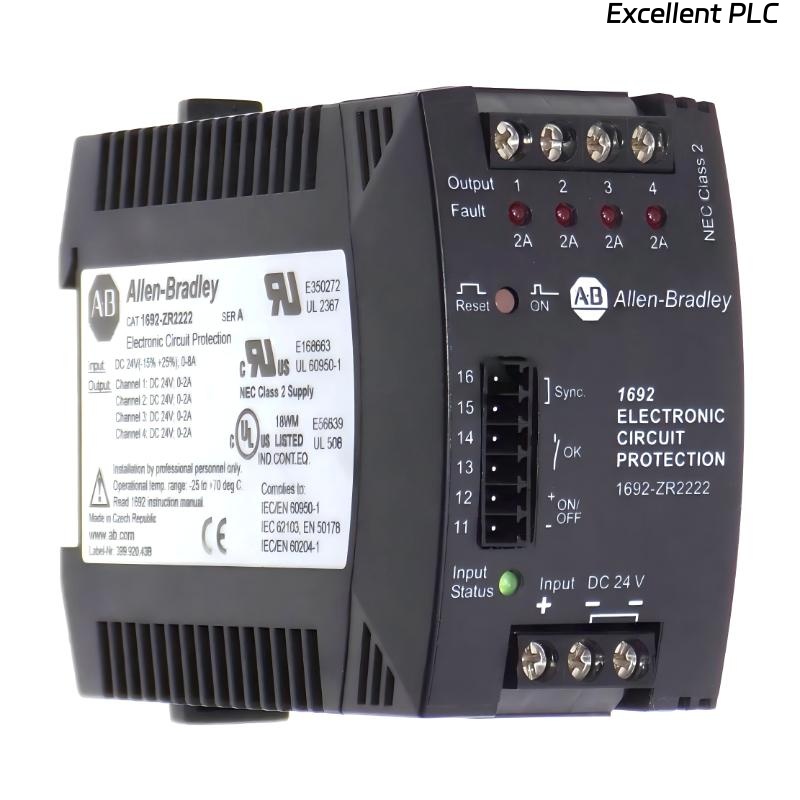

Allen Bradley 1692-ZR2222 Electronic Circuit Protection Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1692-ZR2222 Electronic Circuit Protection Module is a compact and intelligent protection device designed to safeguard 24V DC control circuits in industrial automation systems. Developed by Allen-Bradley, this module provides electronic circuit protection for multiple channels, replacing traditional fuses and circuit breakers with faster, more precise protection technology.
Featuring four independently protected 2A channels, the 1692-ZR2222 ensures reliable operation by detecting overloads and short circuits and disconnecting only the affected circuit. This selective protection minimizes downtime and improves system availability in critical control applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1692-ZR2222 |
| Product Type | Electronic Circuit Protection Module |
| Function | Module-level circuit protection |
| Input Voltage | 24 V DC |
| Number of Circuits | 4 Channels |
| Output Current per Channel | 2 A |
| Total Configuration | 4 × 2 A circuits |
| Protection Type | Electronic overload and short-circuit protection |
| Class Rating | Class 2 |
| Mounting Type | DIN Rail |
| Application Level | Control circuit protection |
| Dimensions | 104 x 45 x 75 mm |
| Weight | 0.12 kg |
Applications
• 24V DC control systems requiring reliable circuit protection
• PLC and I/O systems in industrial automation panels
• Machine building applications where selective circuit protection is critical
• Process control systems needing reduced downtime and fault isolation
• Distributed control panels with multiple protected output channels
Advantages
• Selective protection per channel prevents total system shutdown
• Electronic protection technology offers faster response than traditional fuses
• Compact design saves space in control cabinets
• Four independent 2A outputs increase flexibility in circuit design
• Improved system uptime through quick fault isolation
• DIN rail mounting ensures easy installation and integration
FAQ
- What is the main purpose of the 1692-ZR2222 module?
It provides electronic protection for four independent 24V DC circuits, preventing damage from overloads and short circuits. - How many circuits can this module protect?
It protects four separate circuits, each rated at 2A. - What does Class 2 rating mean?
Class 2 indicates compliance with safety standards for limited power circuits, reducing fire and shock risks. - Can it replace traditional fuses?
Yes, it is designed to replace fuses with faster and more precise electronic protection. - What happens during an overload condition?
Only the affected channel is disconnected, while the remaining circuits continue operating. - Is it suitable for industrial environments?
Yes, it is designed for continuous use in industrial automation systems. - How is the module installed?

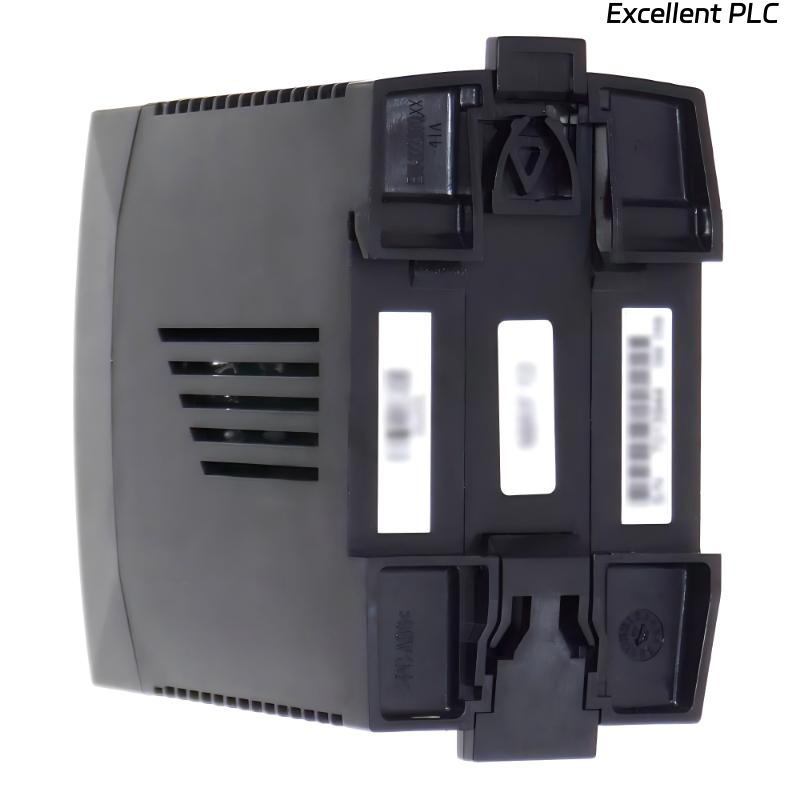

It is mounted on a DIN rail inside a control cabinet. - Does it support diagnostics or status indication?
Typically, LED indicators are provided to show channel status and fault conditions. - What type of systems commonly use this module?
It is widely used in PLC systems, machine automation, and process control panels. - What is the benefit of electronic protection over mechanical breakers?
Electronic protection reacts faster, provides better selectivity, and reduces maintenance requirements.
Related Models
| Model | Channels | Current per Channel | Description |
|---|---|---|---|
| 1692-ZR1212 | 2 | 2 A | Dual-channel protection module |
| 1692-ZR1616 | 2 | 6 A | Higher current dual-channel module |
| 1692-ZR2224 | 4 | 4 A | Higher current four-channel module |
| 1692-ZR2312 | 4 | Mixed | Mixed current channel module |
| 1692-OB8 | 8 | Varies | Output module with protection features |
| 1692-AIFM8 | 8 | Analog | Analog interface module |
Popular Models
| Model | Channels | Voltage | Description |
|---|---|---|---|
| 1692-ZR1212 | 2 | 24 V DC | Compact protection module |
| 1692-ZR2222 | 4 | 24 V DC | Standard 4-channel module |
| 1692-ZR1616 | 2 | 24 V DC | High-current version |
| 1692-ZR2224 | 4 | 24 V DC | Enhanced current capacity |
| 1692-ZR2312 | 4 | 24 V DC | Flexible channel configuration |
| 1692-ZRSeries | Multiple | 24 V DC | Full protection module family |
