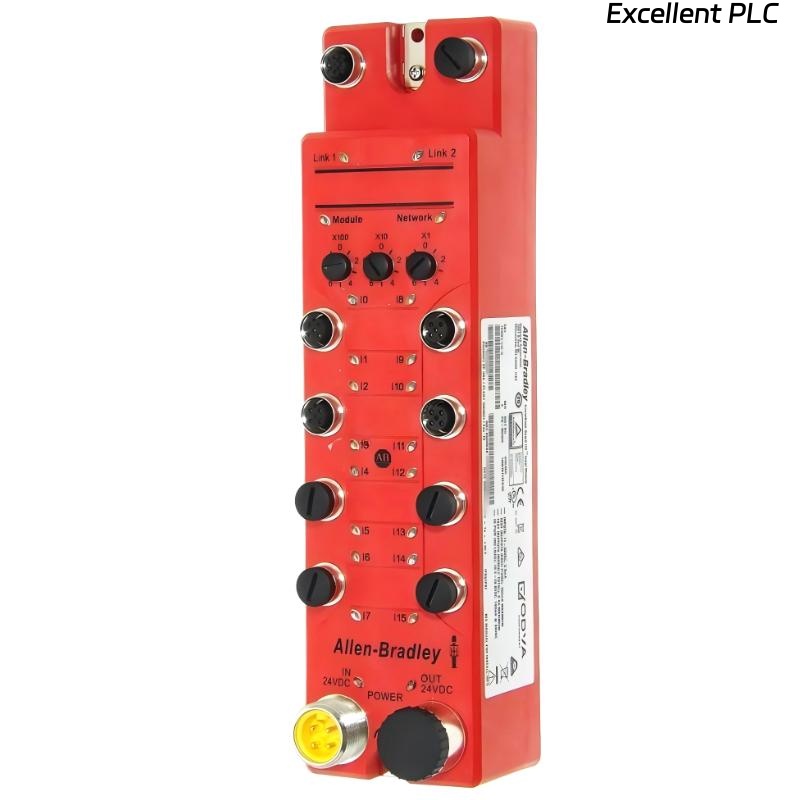

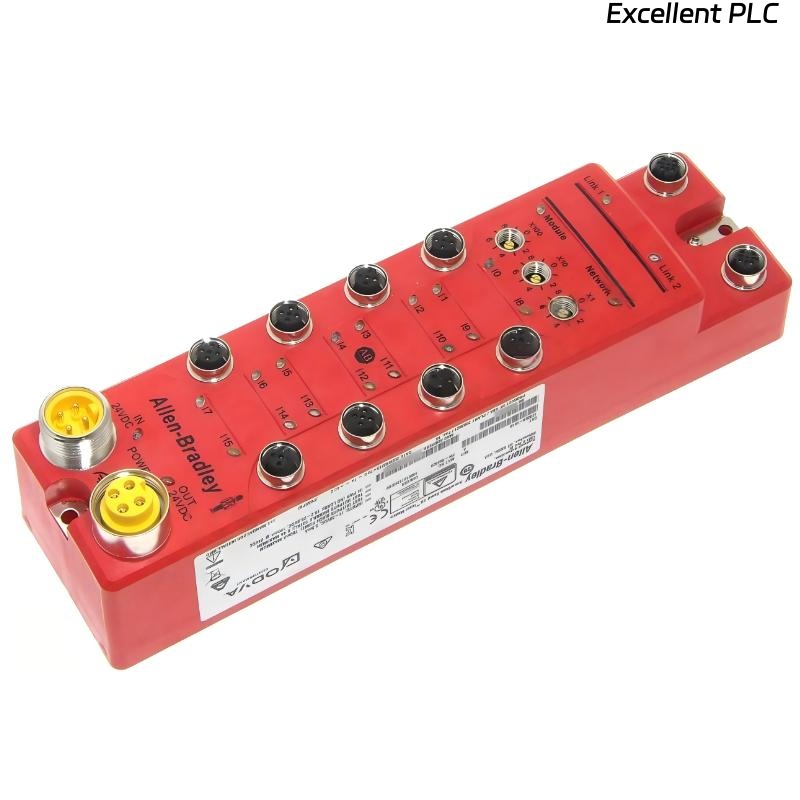

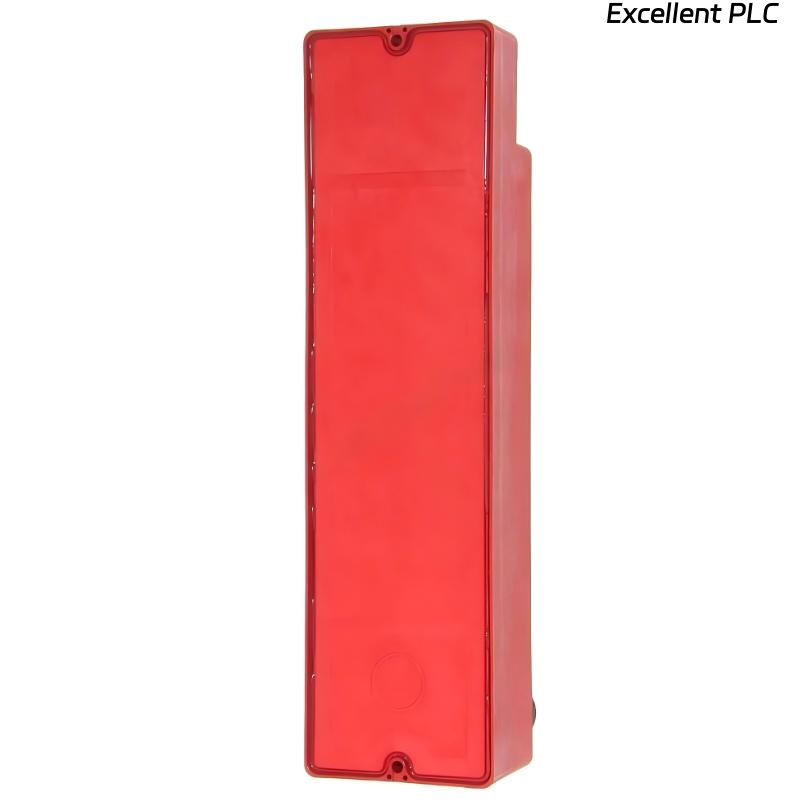

Allen Bradley 1732ES-IB16 ArmorBlock Guard I/O Safety Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1732ES-IB16 ArmorBlock Guard I/O Safety Input Module is a high-integrity safety input module designed for use in distributed safety systems directly on the machine. Manufactured by Allen-Bradley, it belongs to the ArmorBlock Guard I/O series, providing robust and reliable safety signal acquisition in harsh industrial environments.
This module features 16 sinking safety inputs along with 16 integrated test outputs, enabling advanced diagnostics and monitoring of safety devices such as emergency stop buttons, safety light curtains, and interlock switches. With built-in EtherNet/IP (CIP Safety) communication, it ensures safe and deterministic data exchange with safety controllers. Its IP67-rated housing and M12 connectors allow direct on-machine installation, eliminating the need for protective enclosures and reducing wiring complexity.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1732ES-IB16 |
| Product Type | Safety Input Module (Guard I/O) |
| Communication Protocol | EtherNet/IP (CIP Safety) |
| Number of Inputs | 16 Sinking Safety Inputs |
| Test Outputs | 16 Channels |
| Rated Voltage | 24 V DC |
| Connector Type | M12 DC Micro Connectors |
| Protection Rating | IP67 |
| Mounting Type | On-machine / Screw mounted |
| Application Level | Distributed safety I/O |
| Safety Function | Monitoring of safety devices |
| Dimensions | 259 x 69 x 70 mm |
| Weight | 0.786 kg |
Applications
• Machine safety systems including emergency stop circuits
• Safety light curtains and interlock switches monitoring
• Packaging and assembly machinery requiring safety compliance
• Material handling and robotic systems with distributed safety I/O
• Harsh industrial environments requiring IP67 on-machine installation
Advantages
• 16 safety inputs + 16 test outputs for advanced safety diagnostics
• CIP Safety over EtherNet/IP ensures secure and reliable communication
• IP67 rugged design allows installation directly on machinery
• Reduced wiring complexity with distributed safety architecture
• M12 connectors provide fast, secure, and vibration-resistant connections
• Improved system safety and uptime through real-time monitoring
FAQ
- What is the primary function of the 1732ES-IB16 module?
It is designed to monitor safety devices and transmit their status to a safety controller using CIP Safety over EtherNet/IP. - How many safety inputs does the module provide?
It provides 16 independent sinking safety input channels for connecting safety devices. - What are test outputs used for?
Test outputs are used to detect wiring faults such as short circuits and cross faults, improving diagnostic coverage. - Is this module suitable for harsh environments?
Yes, with an IP67 rating, it can be installed directly on machines without additional protection. - What communication protocol does it use?
It uses EtherNet/IP with CIP Safety for safe and reliable communication. - What types of safety devices can be connected?
Emergency stop buttons, safety switches, light curtains, and interlock devices are commonly used. - What does “sinking input” mean in this context?
It means the module receives current from sourcing safety devices, which is common in industrial safety circuits. - Can it reduce control cabinet requirements?
Yes, its on-machine design reduces the need for centralized safety wiring and cabinet space. - How is the module installed?
It is screw-mounted directly onto equipment and connected via M12 connectors. - Does it support safety standards?
Yes, it is designed to meet industrial safety requirements and works within certified safety systems.
Related Models
| Model | Type | Channels | Description |
|---|---|---|---|
| 1732ES-OB8 | Safety Output | 8 | Safety output module |
| 1732ES-IB8 | Safety Input | 8 | Compact safety input module |
| 1732ES-IB16DT | Safety Input | 16 | Dual-channel diagnostic module |
| 1732ES-IB12XOBV4 | Safety Combo | Mixed | Input/output safety module |
| 1732E-IB16M12 | Digital Input | 16 | Standard input module |
| 1732ES-ARMORBLOCK | Safety I/O | — | Guard I/O platform |
Popular Models
| Model | Type | Channels | Description |
|---|---|---|---|
| 1732ES-IB16 | Safety Input | 16 | Standard safety input module |
| 1732ES-IB8 | Safety Input | 8 | Compact safety module |
| 1732ES-OB8 | Safety Output | 8 | Safety output module |
| 1732ES-IB16DT | Safety Input | 16 | Diagnostic version |
| 1732ES-IB12XOBV4 | Safety Combo | Mixed | Hybrid safety module |
| 1732E-IB16M12 | Digital Input | 16 | Standard I/O module |
