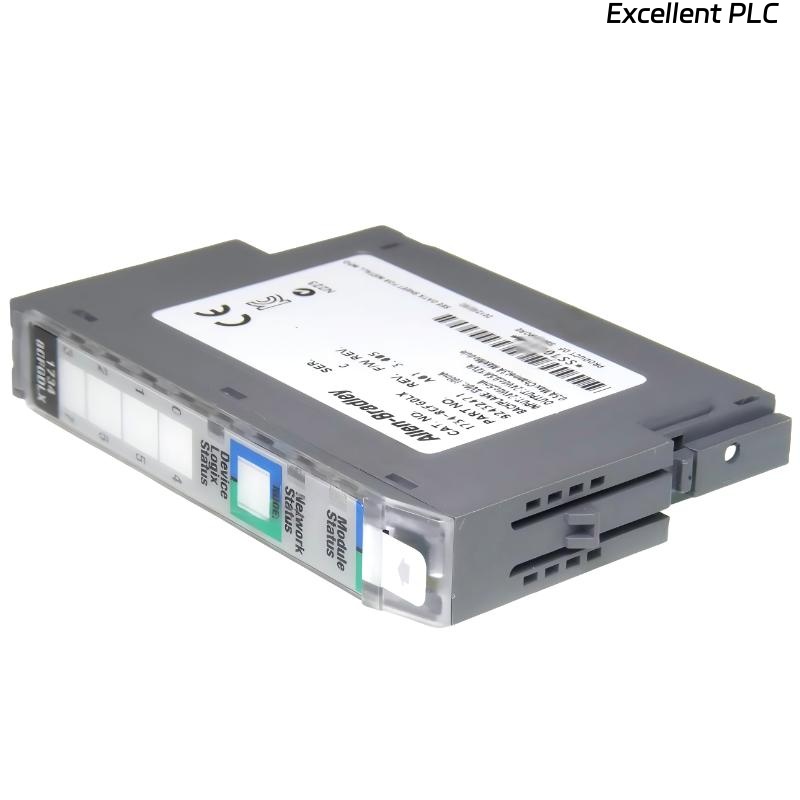

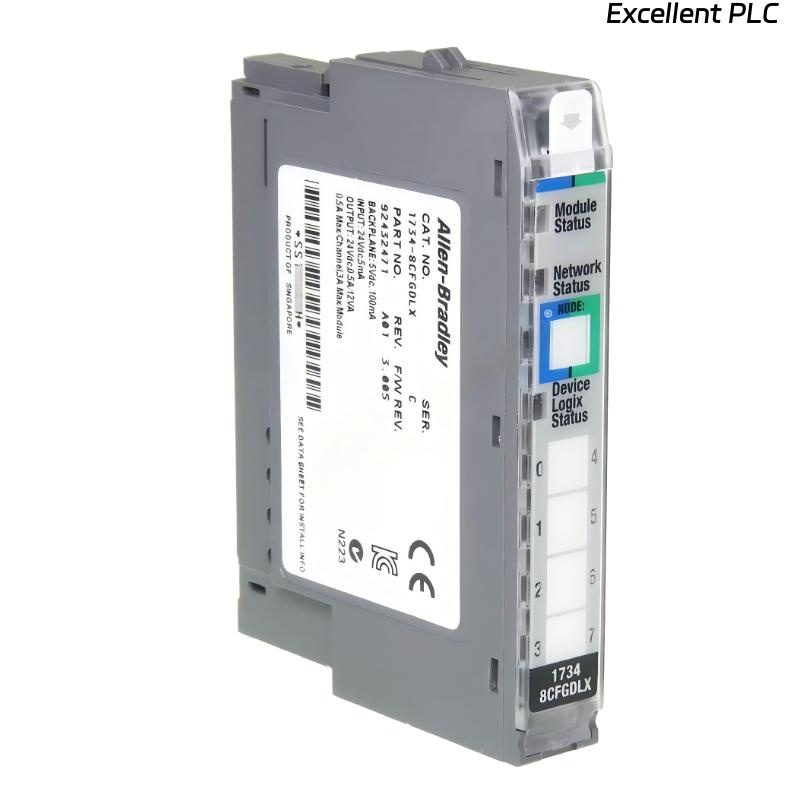

Allen Bradley 1734-8CFGDLX Combination I/O Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1734-8CFGDLX Combination I/O Module is a flexible and compact Point I/O module that integrates digital inputs and outputs in a fully configurable format.
This module allows users to configure each of its 8 channels as either a digital input or digital output, providing maximum flexibility for industrial automation applications. The 1734-8CFGDLX supports both sinking and sourcing input/output types, accommodating a wide range of 24V DC devices while maintaining compatibility with Allen-Bradley Point I/O systems.
Engineered for harsh industrial environments, this module ensures stable and reliable operation, with a wide operating temperature range, high humidity tolerance, and robust electrical protection. Its compact size allows for space-efficient installation in control cabinets or Point I/O racks. This versatility makes it ideal for system expansions, retrofit applications, or mixed digital I/O requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Point I/O (Bul. 1734) |
| Component Type | Fieldbus I/O Digital In/Out Module |
| Model | 1734-8CFGDLX |
| Digital Input Type | 24V DC, Sinking/Sourcing |
| Digital Input Range | 11 … 28.8 V DC |
| Digital Output Type | 24V DC, Sinking/Sourcing |
| Digital Output Range | 10 … 28.8 V DC |
| Quantity, Total Configurable I/O | 8 channels |
| Type, Configurable I/O | Digital Input / Digital Output |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| Dimensions | 56 × 12 × 75.5 mm |
| Weight | 0.034 kg |
Applications
• Flexible industrial automation, supporting systems with varying input/output requirements
• Process control, combining sensor input and actuator output in a single module
• Machine automation, enabling configurable digital control for production machinery
• System expansion, allowing easy addition of configurable I/O channels without adding multiple dedicated modules
• Point I/O network integration, maintaining compatibility with existing Allen-Bradley Point I/O architecture
• Compact control panels, where space-efficient configurable I/O is critical
Advantages
• Fully configurable channels, each of the 8 channels can be assigned as digital input or output
• Sinking and sourcing support, compatible with a wide variety of 24V DC devices
• Compact and modular design, conserving space in Point I/O racks or cabinets
• Robust industrial reliability, operating under wide temperature and humidity ranges
• Seamless Point I/O integration, simplifying system expansion and reducing wiring complexity
• Versatile application, ideal for mixed digital input/output requirements in one module
• Minimal maintenance, operates reliably without routine servicing
FAQ
1. What is the primary function of the 1734-8CFGDLX module?
It provides 8 fully configurable digital I/O channels for Point I/O systems, allowing each channel to operate as an input or output depending on system requirements.
2. Can each channel be independently configured as input or output?
Yes, each channel can be set individually, offering flexibility for mixed input/output applications without adding separate modules.
3. What voltage range does the module support for inputs and outputs?
Inputs operate from 11–28.8 V DC and outputs from 10–28.8 V DC, ensuring compatibility with most industrial 24V DC devices.
4. What types of I/O are supported on this module?
Both sinking and sourcing types are supported, allowing connection to a wide variety of sensors, switches, and actuators.
5. What is the operating temperature range for this module?
The module operates reliably between -20 °C and 55 °C, making it suitable for standard industrial environments.
6. Can the module operate in high humidity or harsh environmental conditions?
Yes, it supports up to 95% relative humidity and is built to withstand typical factory conditions without performance degradation.
7. Is the module compatible with Allen-Bradley Point I/O systems?
Yes, it integrates seamlessly with other Point I/O modules and communicates over standard Point I/O networks.
8. How many configurable I/O channels does the module have, and what flexibility does this provide?
It has 8 channels that can be configured as inputs or outputs, reducing the need for multiple dedicated modules and saving rack space.
9. Can this module handle mixed-signal applications, combining inputs and outputs simultaneously?
Yes, the module allows simultaneous digital input reading and output control on the same channels, supporting flexible control logic.
10. Does the module require routine maintenance or calibration to ensure proper operation?
No, it is designed for minimal maintenance, requiring only occasional inspection of wiring and connections.
| Model | Type | Description |
|---|---|---|
| 1734-8CFGDLX | Combination I/O Module | Fully configurable 8-channel digital I/O |
| 1734-OX2 | Relay Output Module | Two-channel relay output module |
| 1734-I2 | Digital Input Module | Two-channel standard digital input |
| 1734-OF2 | Solid-State Output Module | High-speed digital output module |
| 1734-IA | Analog Input Module | Analog signal acquisition module |
| 1734-4IOL | IO-Link Combination Module | Digital input and IO-Link integration module |
Popular Models
| Model | Type | Typical Application |
|---|---|---|
| 1734-OX2 | Relay Output Module | Control of relays and actuators |
| 1734-I2 | Digital Input Module | Discrete input acquisition |
| 1734-OF2 | Solid-State Output Module | Fast digital output control |
| 1734-IA | Analog Input Module | Analog process signal acquisition |
| 1734-AENTR | Ethernet Adapter | Network interface for Point I/O |
| 1734-4IOL | IO-Link Combination Module | Digital input and smart sensor integration |
