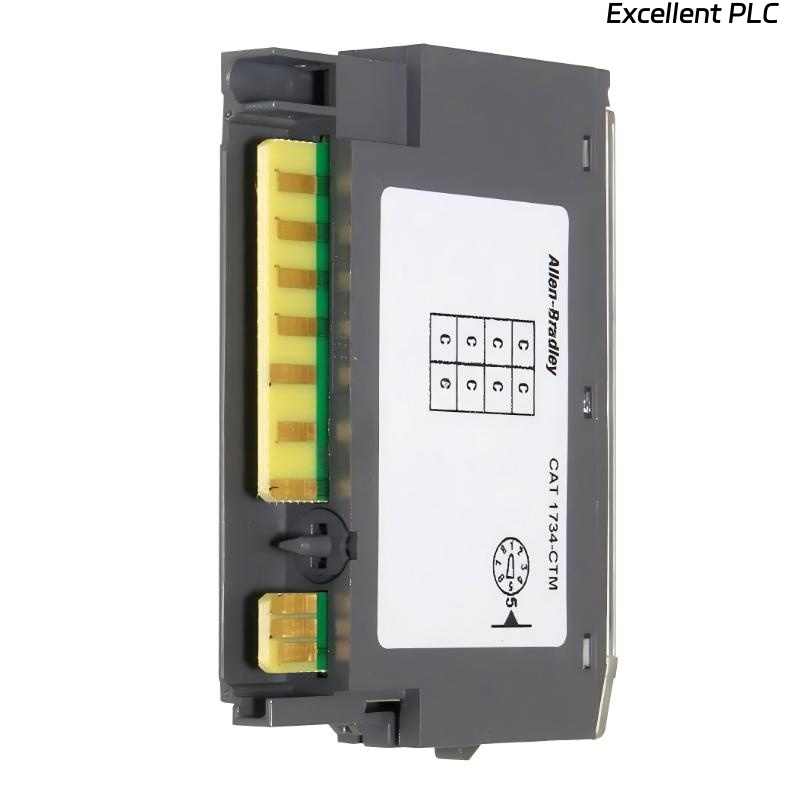

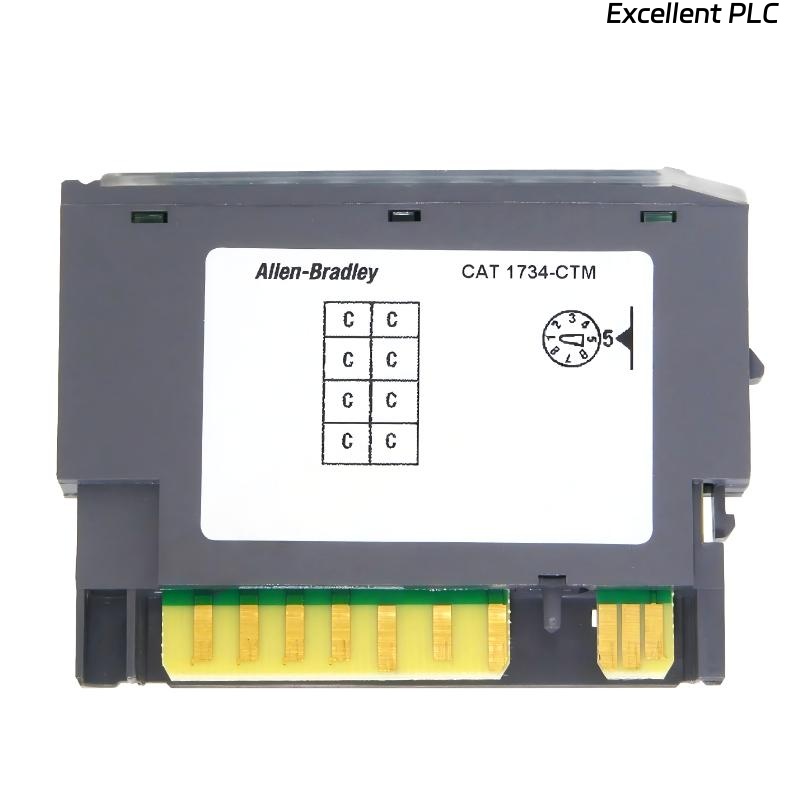

Allen Bradley 1734-CTM Common Terminal Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1734-CTM Common Terminal Module (CTM) is a specialty module designed to provide a centralized connection point for multiple Point I/O modules within a 1734 system. It simplifies wiring, reduces installation complexity, and improves system organization in control cabinets.
Part of the 1734 Point I/O series, the CTM allows efficient distribution of power and signals to connected modules while maintaining industrial reliability. Its compact design is suitable for tight control cabinet layouts and provides stable operation under a wide range of environmental conditions.
The 1734-CTM is particularly useful in systems with multiple I/O points where organized and centralized wiring enhances maintenance efficiency and reduces potential wiring errors.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1734-CTM |
| Product Series | Point I/O |
| Component Type | Fieldbus I/O |
| Module Type | Specialty Module |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| I/O Type | Point I/O (Bul. 1734) |
| Function | Common terminal module for centralized wiring |
| Dimensions | 56.6 × 12.1 × 77.5 mm |
| Weight | 0.031 kg |
Applications
• Distributed control systems, providing centralized wiring for multiple Point I/O modules
• Control cabinet organization, reducing cable complexity and simplifying installation
• Industrial automation networks, ensuring stable signal and power distribution
• Process and discrete manufacturing, supporting modular and scalable I/O configurations
• Maintenance and system upgrades, simplifying troubleshooting and module replacement
Advantages
• Centralized wiring, reducing installation complexity and potential wiring errors
• Compact and space-efficient design, ideal for tight control cabinet layouts
• Simplifies system maintenance, allowing easy module replacement and troubleshooting
• Industrial-grade reliability, capable of operation in standard temperature and humidity ranges
• Seamless integration with Allen-Bradley 1734 Point I/O modules, ensuring compatibility
• Supports continuous operation, providing stable power and signal distribution
FAQ
1. What is the primary function of the 1734-CTM?
It provides a centralized terminal for wiring multiple Point I/O modules in the 1734 system.
2. Can it operate in harsh industrial conditions?
Yes, it supports temperatures from -20 °C to 55 °C and 95% relative humidity.
3. Does the CTM provide power to connected modules?
Yes, it allows distribution of power and signal connections to multiple modules.
4. Is this module required for Point I/O operation?
No, it is optional, but recommended for organized wiring and easier maintenance.
5. How does it simplify system maintenance?
By centralizing connections, it reduces wiring complexity and makes module replacement faster.
6. Can multiple CTM modules be used in a single system?
Yes, they can be used to support larger or more complex I/O configurations.
7. Does the module require configuration?
No configuration is required; it is a passive wiring interface.
8. Can it be installed in tight spaces?
Yes, its compact form factor is designed for dense control cabinet layouts.
9. Is it compatible with all 1734 Point I/O modules?
Yes, it is fully compatible with the 1734 Point I/O series.
10. Does it improve signal integrity?
Indirectly, by providing organized and secure connections, it helps maintain consistent signal routing.
Related Models
| Model | Description |
|---|---|
| 1734-CTM2 | Common terminal module for extended configurations |
| 1734-CTML | Low-profile CTM for tight spaces |
| 1734-CTMX | CTM with enhanced terminal labeling |
| 1734-CTM-H | High-humidity resistant CTM module |
| 1734-CTM-R | Redundant CTM for critical systems |
| 1734-CTM-Compact | Compact version for minimal cabinet space |
Popular Models
| Model | Application Focus |
|---|---|
| 1734-AENT | EtherNet/IP adapter for Point I/O series |
| 1734-AENTK | Compact EtherNet/IP adapter |
| 1734-APB | Profibus DP adapter for Point I/O |
| 1734-ARM | Address Reserve Module |
| 1734-IB8 | Digital input module |
| 1734-OB8 | Digital output module |
