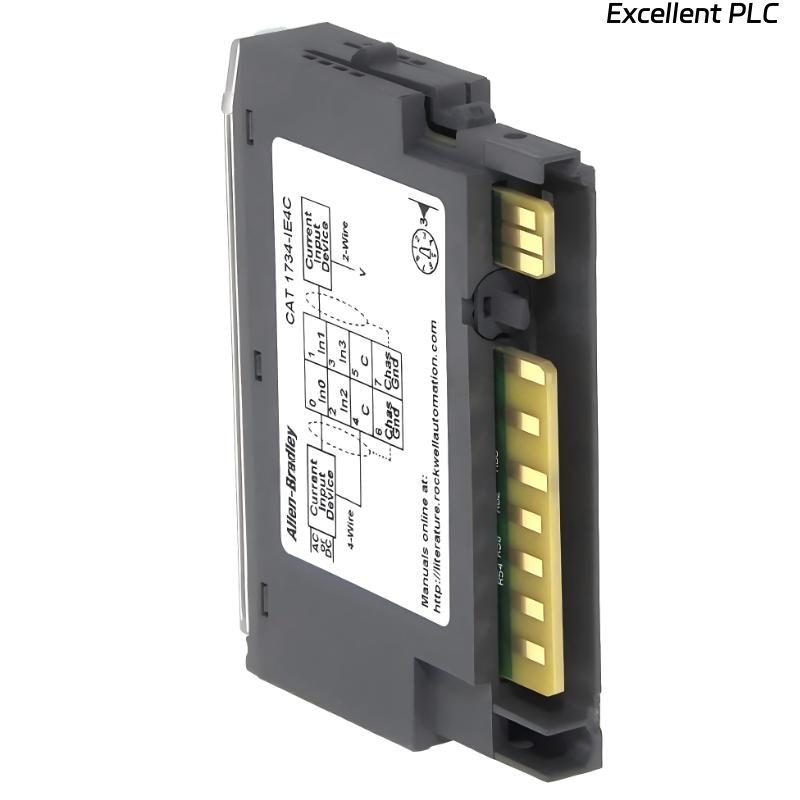

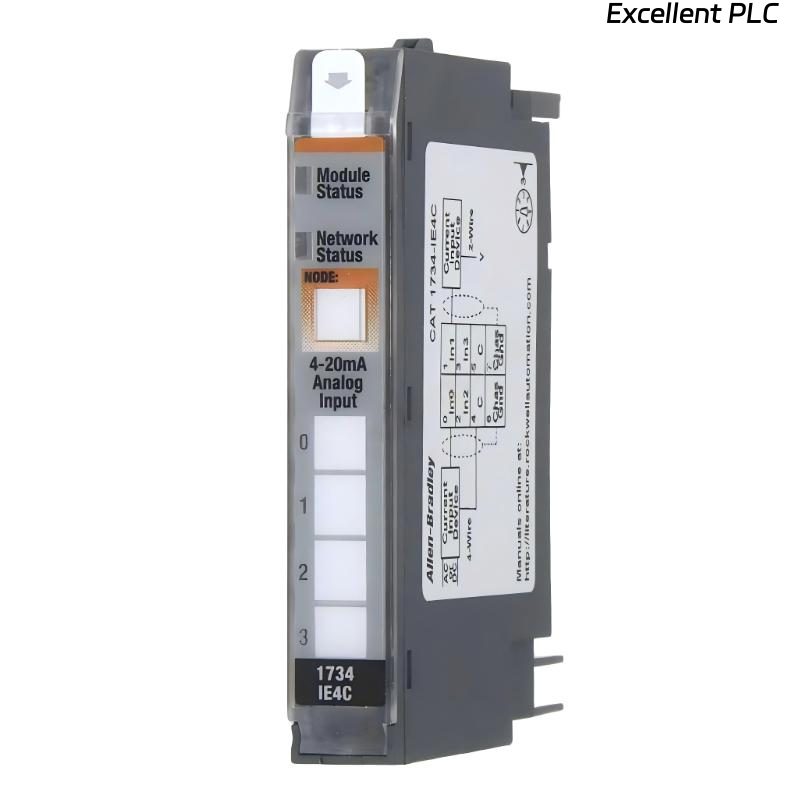

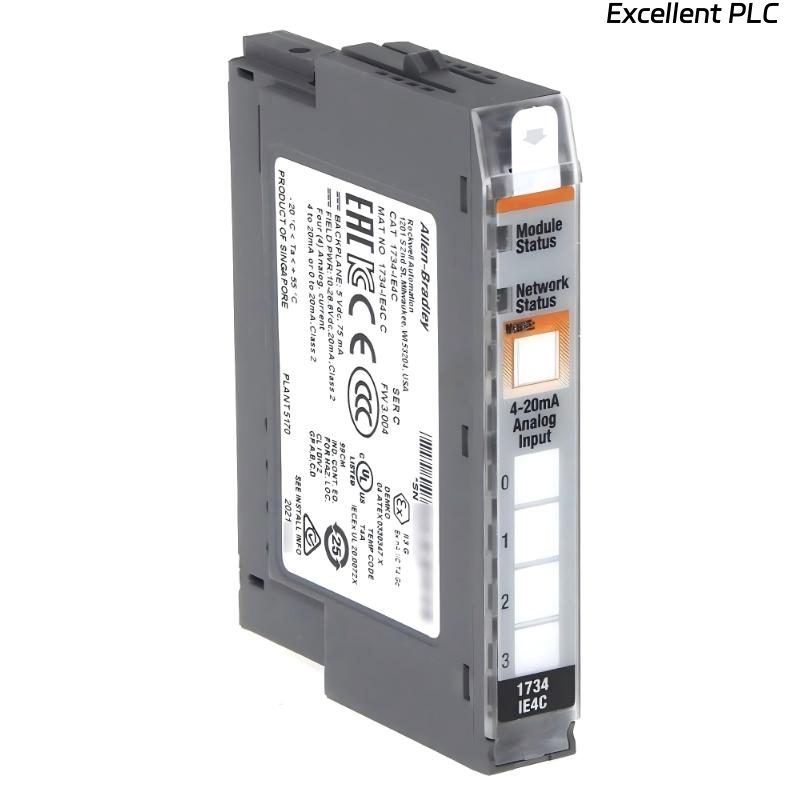

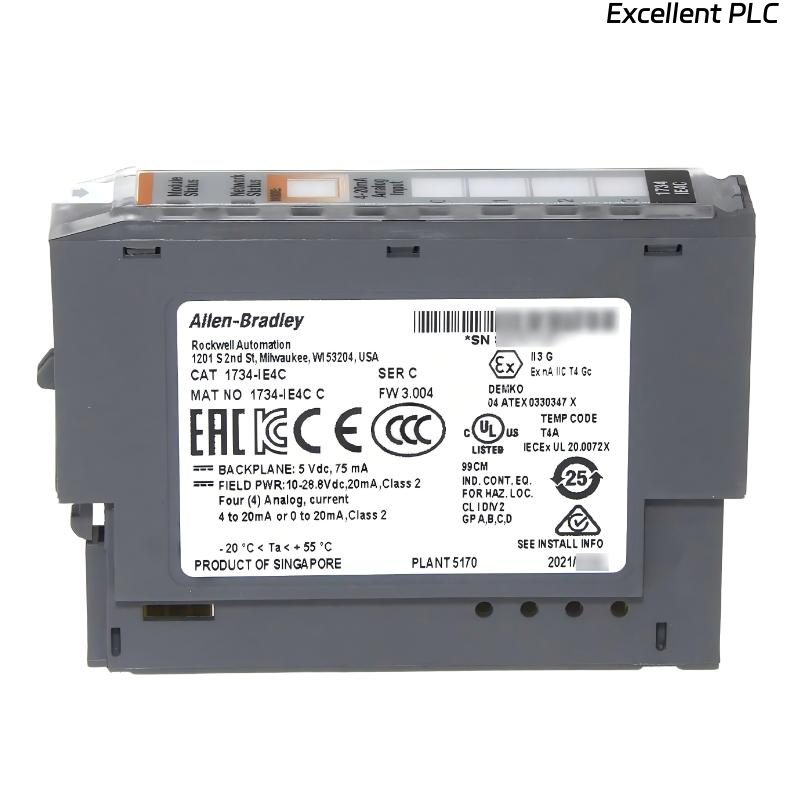

Allen Bradley 1734-IE4C Point I/O 4 Channel High Density Current Input Module

Product Introduction

The Allen-Bradley 1734-IE4C POINT I/O Analog Input Module is a compact, high-density current input module designed for precise analog signal acquisition in distributed control systems. It provides four single-ended current input channels, making it suitable for applications requiring reliable monitoring of process signals such as flow, pressure, and level.

This module supports both 4–20 mA and 0–20 mA input ranges, offering flexibility for integration with a wide variety of industrial sensors and transmitters. With 16-bit resolution, it ensures accurate signal conversion and high measurement precision, which is essential for process control and monitoring applications.

Designed for use within the POINT I/O platform, the 1734-IE4C enables modular and scalable system configurations. Its compact size allows high channel density within limited panel space, while factory calibration ensures consistent performance without additional setup.

---

Product Specifications

---

Applications

• Process control systems – monitors current signals from transmitters such as pressure, flow, and level sensors

• Manufacturing automation – enables precise analog signal acquisition for control loops

• Water and wastewater treatment – collects sensor data for process monitoring and regulation

• Oil and gas systems – supports reliable current input measurement in harsh environments

• Distributed I/O systems – integrates seamlessly with POINT I/O architecture

---

Advantages

• High-density 4-channel design saves panel space while increasing I/O capacity

• 16-bit resolution ensures accurate and stable analog signal measurement

• Supports standard current ranges (4–20 mA, 0–20 mA) for broad compatibility

• Factory calibration eliminates the need for manual adjustment

• Fault protection up to 28.8 V DC improves reliability and protects the module

• Low power consumption enhances system efficiency

FAQ

1. What is the main function of the 1734-IE4C module?
   It is used to acquire and convert analog current signals from field devices into digital data for control systems.
2. How many input channels does this module have?
   It provides 4 single-ended current input channels.
3. What input ranges are supported?
   It supports both 4–20 mA and 0–20 mA current signals.
4. What does 16-bit resolution mean in this module?
   It means the module can provide high-precision signal conversion, allowing accurate measurement of process variables.
5. Is this module isolated?
   No, it is a non-isolated input module.
6. What protection does the module provide?
   It includes fault protection up to 28.8 V DC to prevent damage from overvoltage conditions.
7. Does it require calibration before use?
   No, it is factory calibrated and ready for installation.
8. What systems is it compatible with?
   It is designed for use with Allen-Bradley POINT I/O systems.
9. What industries commonly use this module?
   It is widely used in process industries such as water treatment, oil and gas, and manufacturing.
10. Why choose this module for analog input applications?
    Because it combines compact size, high accuracy, and reliable performance for efficient signal acquisition.
