Allen Bradley 1734-MB Mounting Base
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

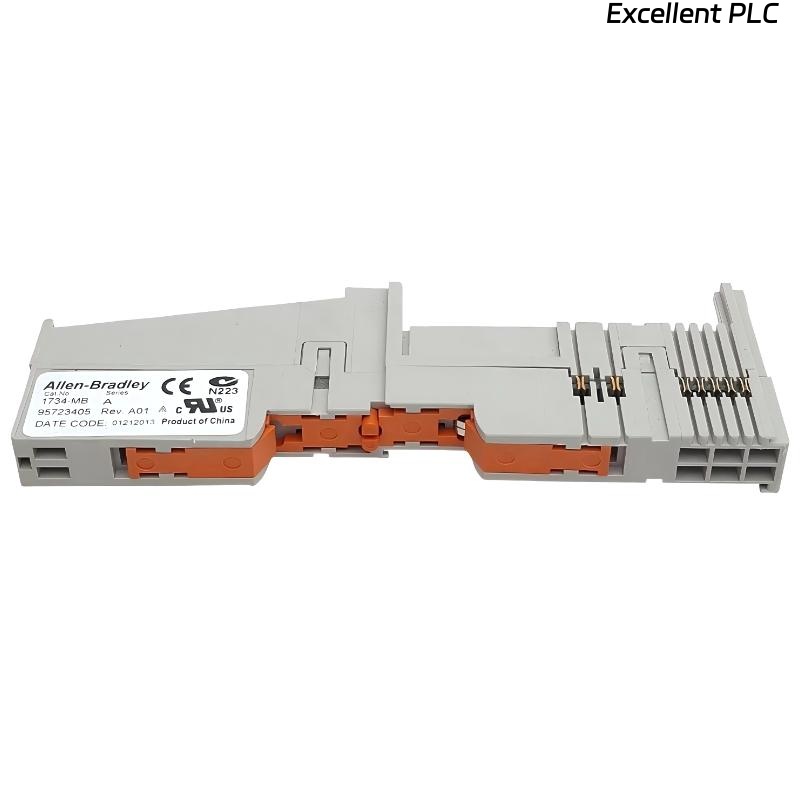

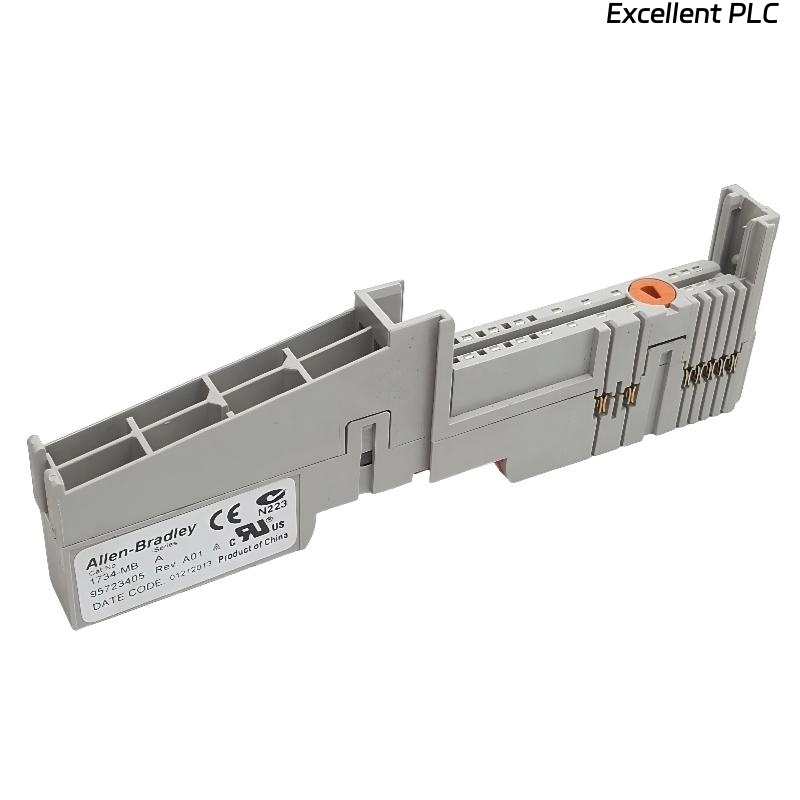

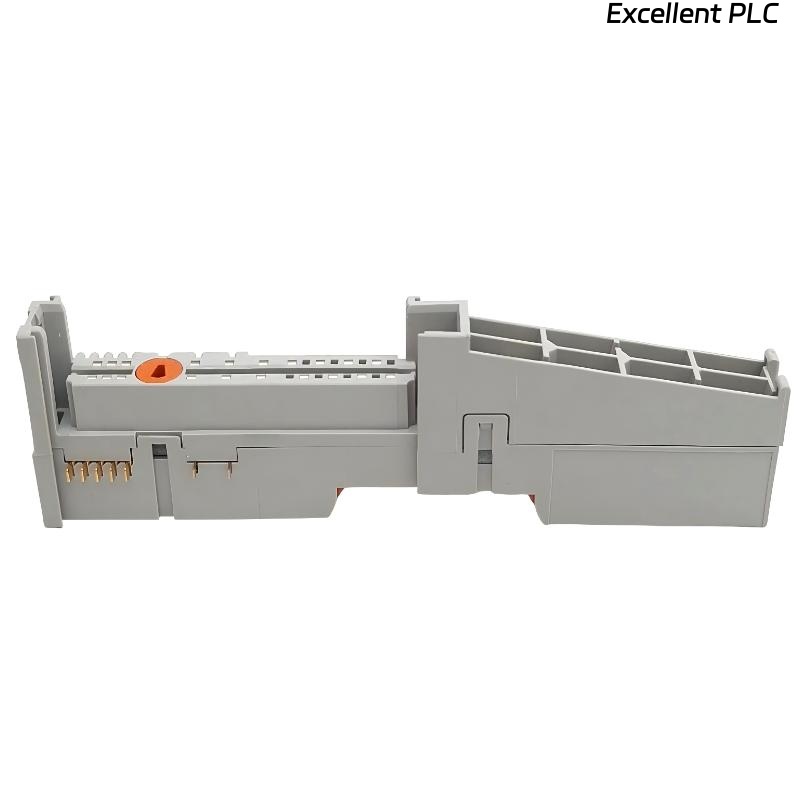

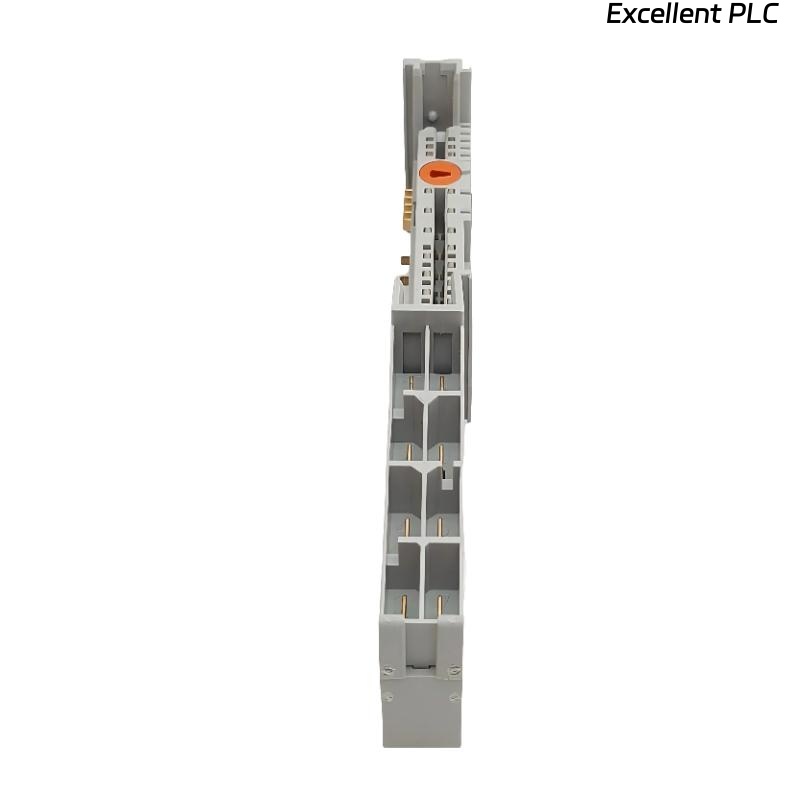

The Allen Bradley 1734-MB Mounting Base is a DIN rail mountable base designed for Point I/O modules. It provides a reliable interconnection between the Point Bus backplane and the field power bus, enabling secure and modular deployment of Point I/O modules in industrial automation systems.
This mounting base features an inbuilt removable terminal block for simplified wiring and maintenance. Although discontinued by the manufacturer, it remains compatible with legacy Point I/O installations, offering a robust platform for system expansion and module integration.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1734-MB |
| Type | Mounting Base |
| Function | Provides interconnection between Point Bus backplane and field power-bus |
| Mounting Type | DIN Rail Mount |
| Module Compatibility | Point I/O Modules |
| Terminal Block | Inbuilt removable terminal block |
| Material | Industrial-grade plastic and metal |
| Weight | 0.05 kg |
| Dimensions | 160 x 12 x 65 mm |
Applications
• Point I/O Systems: Provides a stable platform for connecting Point I/O modules to the backplane.
• DIN Rail Mounting: Enables compact installation in control panels or racks.
• Field Power Distribution: Facilitates reliable connection between modules and the field power bus.
• Modular Expansion: Allows flexible addition of I/O modules to existing Point I/O systems.
• Industrial Automation: Supports distributed control system setups with secure electrical connections.
• Maintenance and Upgrades: Removable terminal blocks simplify wiring, maintenance, and module replacement.
Advantages
• Reliable Connectivity: Ensures secure connection between modules, backplane, and field power bus.
• Flexible Mounting: DIN rail compatibility allows easy installation in panels or racks.
• Simplified Wiring: Removable terminal blocks enable easier wiring and maintenance.
• Modular Design: Supports easy addition or replacement of Point I/O modules.
• Compact Form Factor: Compatible with standard Point I/O module dimensions for efficient installation.
• Industrial Durability: Built from robust materials suitable for industrial environments.
FAQ
-
What is the primary function of the 1734-MB mounting base?
It provides interconnection between the Point Bus backplane and the field power bus for Point I/O modules. -
How is the mounting base installed?
The base is DIN rail mountable, allowing easy and secure installation in control panels or racks. -
Does it support all Point I/O modules?
Yes, it is compatible with legacy Point I/O modules designed for the Point Bus system. -
What type of terminal block does it use?
It includes an inbuilt removable terminal block to simplify wiring and maintenance. -
Can it be used in modular system expansion?
Yes, it allows flexible addition or replacement of Point I/O modules without rewiring the entire system. -
Is it suitable for harsh industrial environments?
Yes, it is constructed from industrial-grade plastic and metal, ensuring reliable performance. -
Is this product still available from the manufacturer?
No, it has been discontinued, but it remains compatible with existing Point I/O installations. -
Can it distribute field power to multiple modules?
Yes, the base connects the field power bus to the mounted modules efficiently. -
Does it help simplify system maintenance?
Yes, the removable terminal block allows easy wiring changes and module replacement. -
Is the base compatible with DIN rail standards?
Yes, it supports standard DIN rail mounting for modular control panel installation.
Related Models
| Model Number | Type | Function / Feature |
|---|---|---|
| 1734-MB1 | Mounting Base | Mounting base for Point I/O modules, removable terminal block |
| 1734-MB2 | Mounting Base | DIN rail mount for Point I/O expansion |
| 1734-IB4 | Digital Input Module | 4-point digital input module |
| 1734-IV4 | Digital Input Module | 4-point digital input module |
| 1734-IV8 | Digital Input Module | 8-point digital input module |
| 1734-IT2I | Thermocouple Input | 2-channel thermocouple input module |
Popular Models
| Model Number | Type | Function / Feature |
|---|---|---|
| 1734-IV4 | Digital Input Module | 4-point digital input module |
| 1734-IV8 | Digital Input Module | 8-point digital input module |
| 1734-IB8 | Digital Input Module | 8 discrete input points |
| 1734-IT2I | Thermocouple Input | 2-channel temperature measurement |
| 1734-IR2K | RTD Input Module | 2 RTD input points with conformal coating |
| 1734-IF4 | Analog Input Module | 4 isolated analog input channels |
