Product Introduction

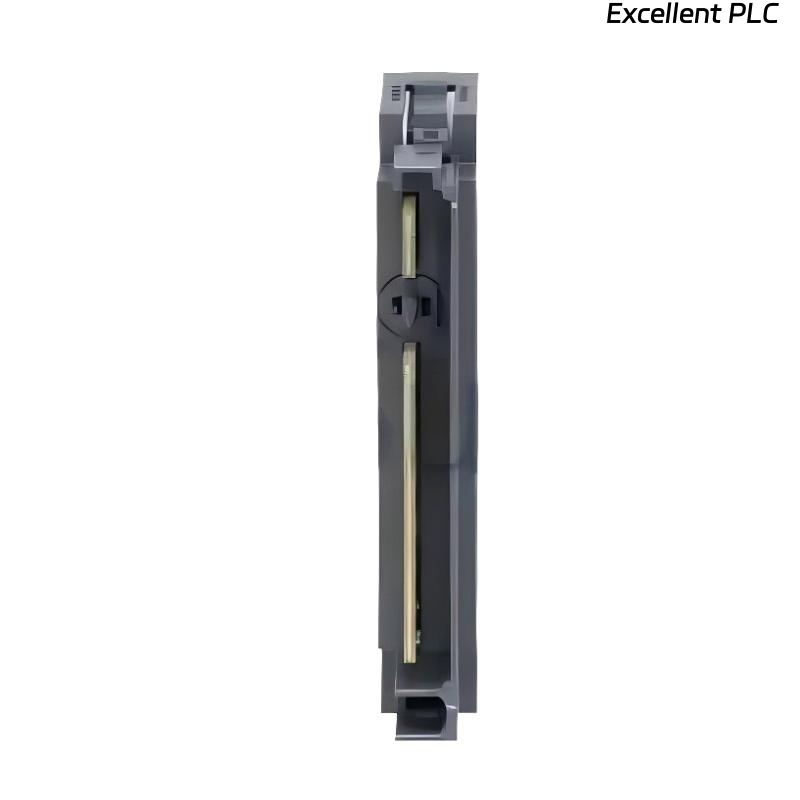

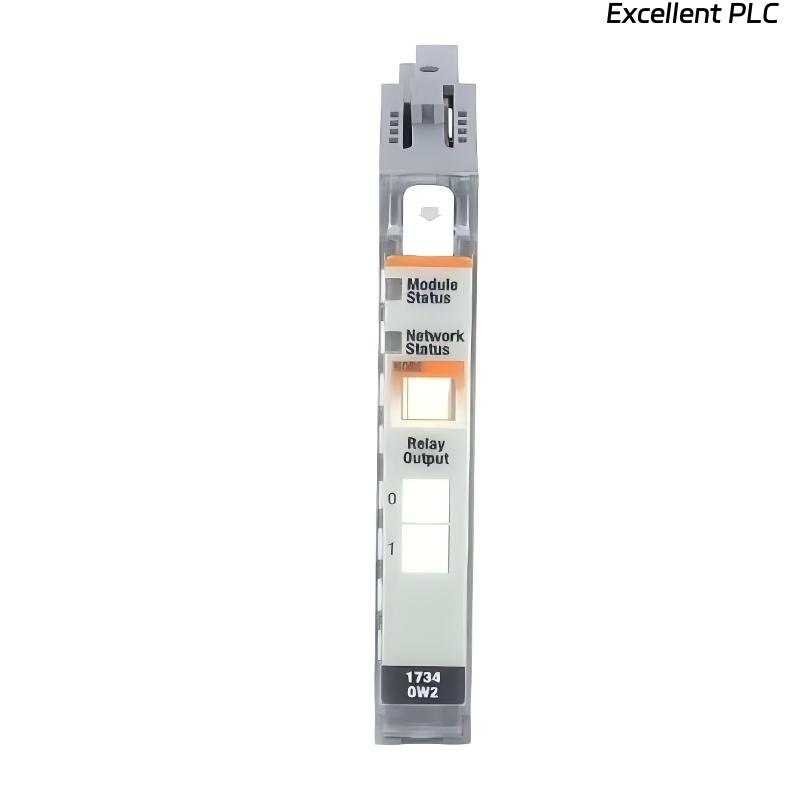

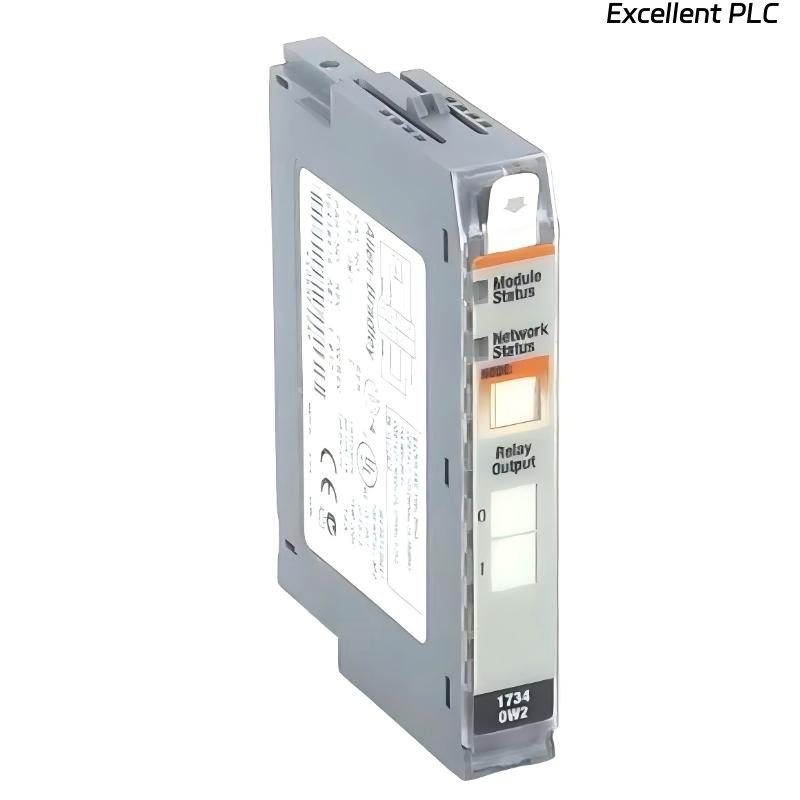

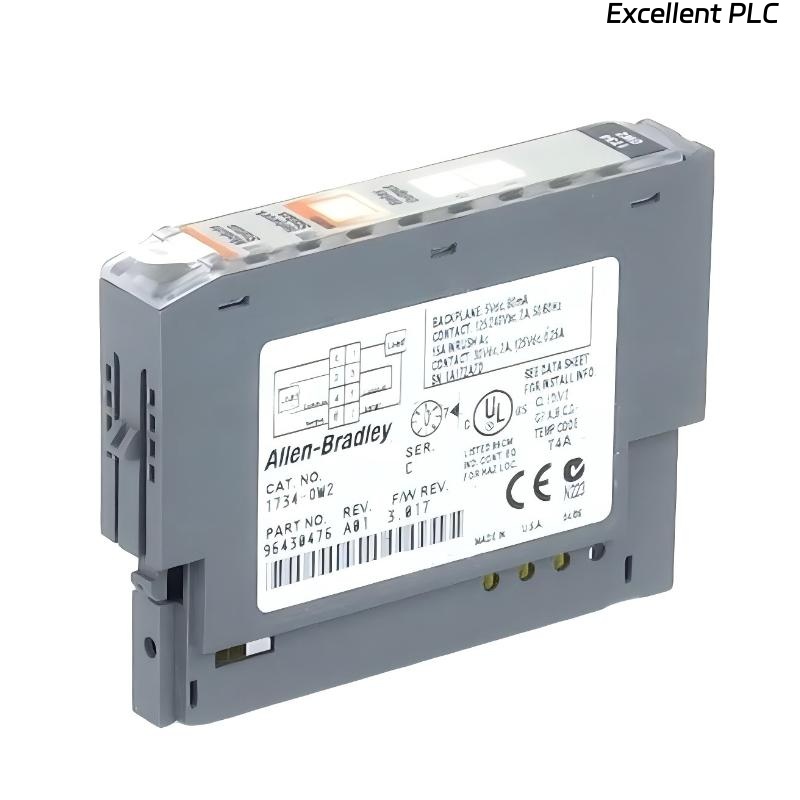

The Allen-Bradley 1734-OW2 Relay Output Module is a 2-channel relay output module designed for Point I/O fieldbus systems. It provides normally open (NO) relay outputs capable of switching a wide range of AC or DC loads, making it ideal for controlling motors, solenoids, and industrial devices requiring high current isolation.
Its compact design ensures easy integration into dense control panels while maintaining reliable and safe operation in industrial automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Point I/O (Bul. 1734) |
| Component Type | Digital Output Module |
| Number of Digital Outputs | 2 |
| Digital Output Type | NO Relay type |
| Digital Output Range | 5–240 V DC |
| Rated Current per Digital Output, Max | 2 A |
| Rated Current per Module, Max | 4 A |
| Power Supply | 24V DC |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| Dimensions | 56.6 × 12.1 × 77.5 mm |
| Weight | 0.039 kg |
Applications
• Industrial Automation: Provides relay outputs for machine control and process automation.
• Actuator and Motor Control: Switches motors, solenoids, and other industrial devices requiring relay isolation.
• Fieldbus I/O Integration: Compatible with Point I/O networks for distributed control applications.
• Process and Equipment Control: Allows safe activation and deactivation of high-current loads.
• Diagnostics Support: Outputs can be monitored through the I/O network for troubleshooting.
Advantages
• High Current Capacity: Each output can handle up to 2 A, with 4 A total per module.
• Compact Design: Fits easily into control panels without occupying excessive space.
• Reliable Operation: Industrial-grade relays ensure safe and stable switching.
• Wide Voltage Range: Supports loads from 5 V DC to 240 V DC.
• Independent Channels: Each relay output operates independently for flexible control.
• Environmental Resistance: Operates in wide temperature and humidity ranges.
