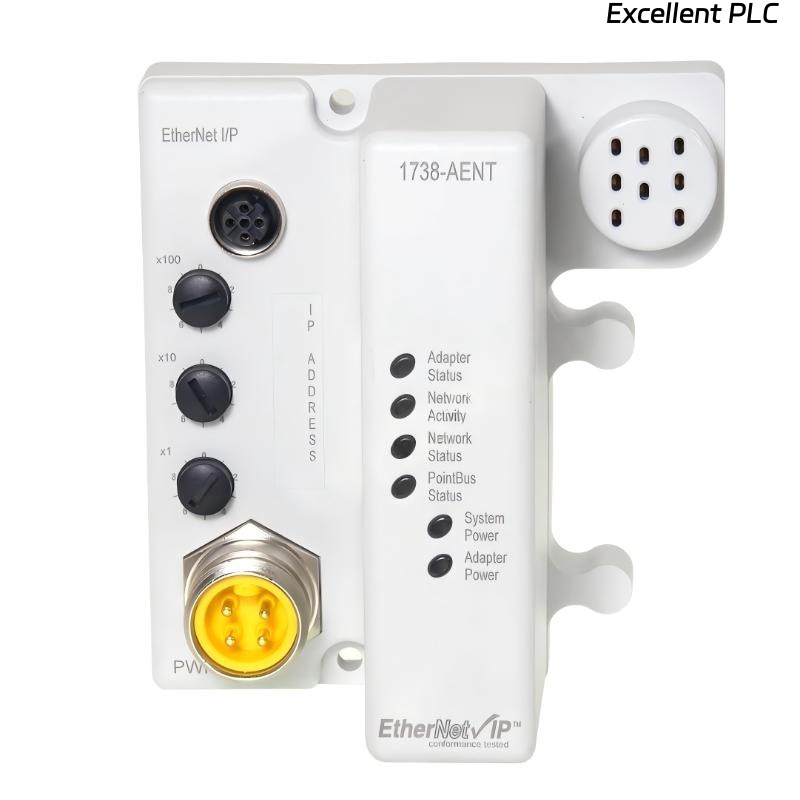

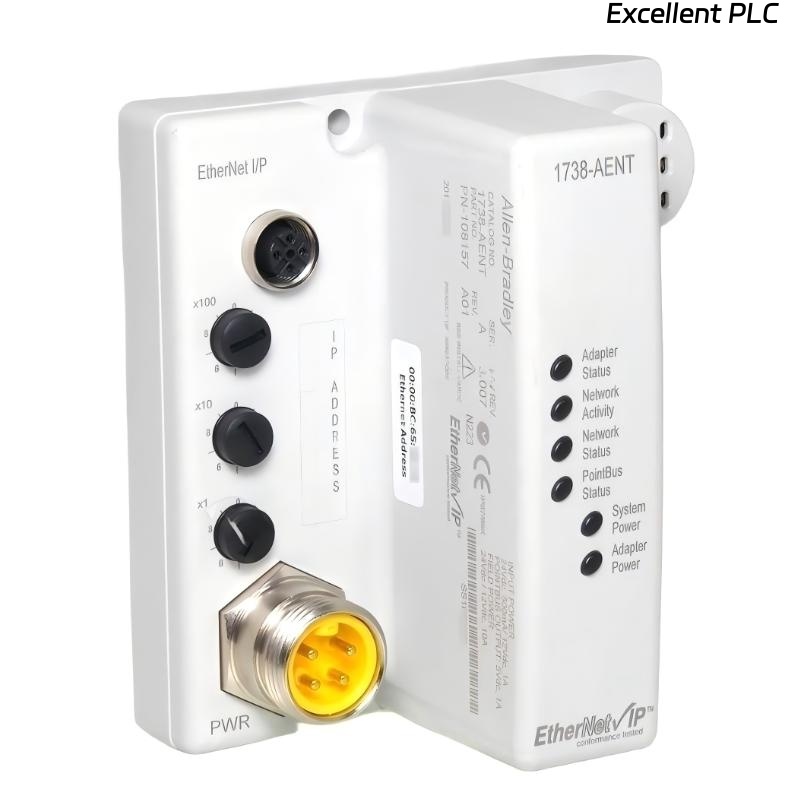

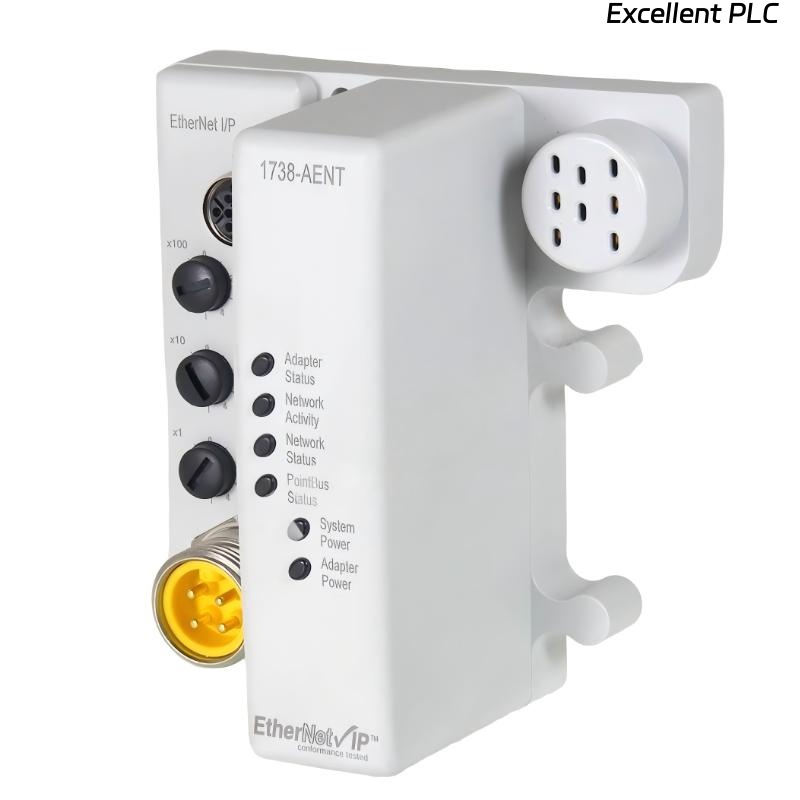

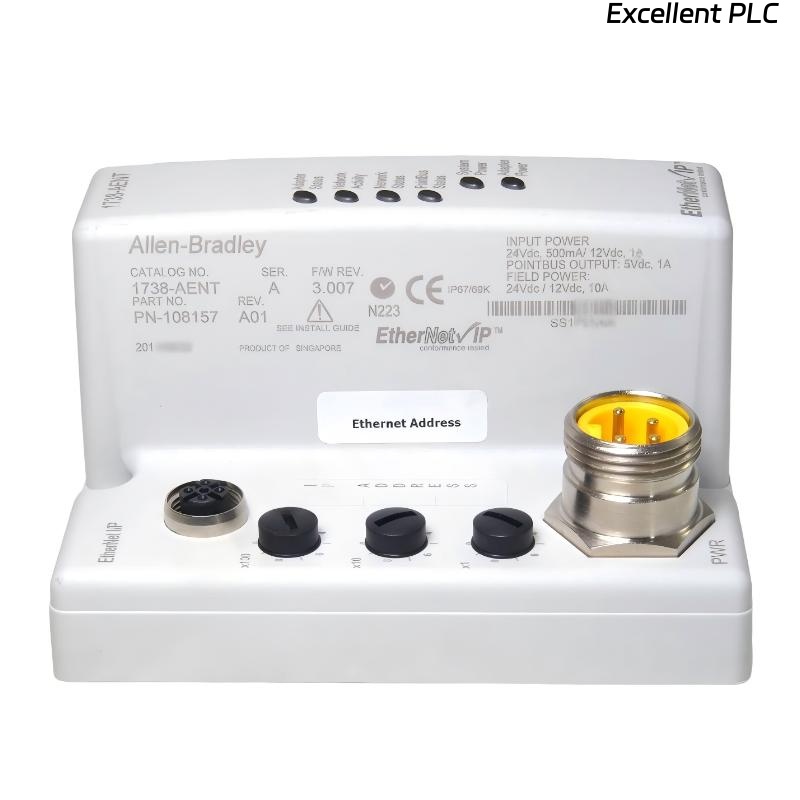

Allen Bradley 1738-AENT ArmorPoint EtherNet/IP Adapter
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1738-AENT EtherNet/IP Adapter is a dedicated ArmorPoint I/O communication adapter designed to enable high-performance Ethernet-based connectivity between distributed field-level I/O devices and Rockwell Automation control systems. As a core component of the ArmorPoint I/O platform, it allows decentralized I/O stations to communicate efficiently over EtherNet/IP networks.
The adapter is engineered for direct installation at the machine level, supporting harsh industrial environments where traditional control cabinet mounting is impractical. Its robust mechanical design and high ingress protection ratings ensure reliable operation in applications exposed to dust, moisture, vibration, and wash-down conditions.
By serving as an EtherNet/IP network interface, the 1738-AENT enables deterministic cyclic data exchange between field devices and controllers. This architecture improves system responsiveness, simplifies wiring structures, and enhances overall diagnostic capability, making it suitable for modern distributed automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | ArmorPoint (Bulletin 1738) |
| Component Type | Fieldbus I/O Communications Module |
| Communication Interface | EtherNet/IP |
| On-Board Communication Ports | Ethernet/IP Port |
| Communication Port Speed (Min.) | 10 Mbit/s |
| Communication Port Speed (Max.) | 100 Mbit/s |
| Supported Communication Protocols | EtherNet/IP, EtherNet/OCPP |
| Power Supply | 24 V DC |
| Ingress Protection Rating | IP65 / IP66 / IP67 / IP69K |
| Operating Temperature (Min.) | –20 °C |
| Operating Temperature (Max.) | 60 °C |
| Storage Temperature (Min.) | –40 °C |
| Storage Temperature (Max.) | 85 °C |
| Relative Humidity (Max.) | 95 % RH (non-condensing) |
| Dimensions | 112 × 72 × 65 mm |
| Weight | 0.36 kg |
Applications
• Distributed machine-level I/O systems where field devices are installed directly on production equipment
• Packaging and bottling lines requiring compact I/O solutions with fast Ethernet communication
• Material handling systems such as conveyors, sorters, and automated storage solutions
• Automotive and discrete manufacturing environments demanding rugged, wash-down-rated components
• Process automation skids where decentralized I/O improves wiring efficiency and fault isolation
Advantages
• Rugged industrial design suitable for harsh environments with high ingress protection ratings
• Direct EtherNet/IP integration, enabling seamless communication with Rockwell Automation controllers
• Reduced wiring complexity by locating I/O close to sensors and actuators
• Scalable I/O architecture, allowing flexible expansion of ArmorPoint I/O modules
• Stable real-time data exchange, supporting deterministic control performance
• Simplified diagnostics and maintenance, improving system uptime and troubleshooting efficiency
FAQ
-
How does the 1738-AENT integrate with a ControlLogix or CompactLogix system?
The adapter operates as an EtherNet/IP node and exchanges cyclic I/O data with the controller through standard EtherNet/IP connections, allowing the ArmorPoint I/O rack to appear as a remote I/O assembly. -
What role does the 1738-AENT play in an ArmorPoint I/O system?
It functions as the communication interface that links all attached ArmorPoint I/O modules to the Ethernet network and the controller. -
Does the adapter support real-time control data exchange?
Yes, it supports deterministic cyclic data transfer suitable for real-time industrial automation applications. -
Can multiple ArmorPoint I/O modules be connected to a single 1738-AENT?
Yes, the adapter is designed to support multiple ArmorPoint I/O modules in a single distributed I/O assembly. -
Is the 1738-AENT suitable for wash-down or outdoor environments?
Its high ingress protection ratings make it suitable for demanding environments, including wash-down areas. -
What Ethernet speeds are supported by the adapter?
The module supports standard industrial Ethernet speeds ranging from 10 Mbit/s to 100 Mbit/s. -
How is the module powered in a field installation?
It operates using a standard 24 V DC industrial power supply. -
Does the adapter provide network diagnostics?
Yes, it supports network status monitoring and diagnostics through EtherNet/IP, aiding fault detection and system maintenance. -
Can the 1738-AENT be used in a ring or linear Ethernet topology?
It is typically used in standard linear EtherNet/IP topologies, depending on network design and switches used. -
What type of industrial networks is the adapter best suited for?
It is optimized for EtherNet/IP-based industrial automation networks requiring distributed I/O solutions.
Related Models
| Model | Description | Key Function |
|---|---|---|
| 1738-AENTR | EtherNet/IP adapter with device-level ring support | Network redundancy |
| 1738-IB8M12 | ArmorPoint digital input module | Discrete signal acquisition |
| 1738-OB8M12 | ArmorPoint digital output module | Discrete signal control |
| 1738-IE2CM12 | Analog input module | Analog signal measurement |
| 1738-OE2CM12 | Analog output module | Analog signal control |
| 1738-RTDM12 | RTD input module | Temperature measurement |
Popular Models
| Model | Description | Key Function |
|---|---|---|
| 1756-EN2T | ControlLogix EtherNet/IP module | High-performance Ethernet communications |
| 1769-AENTR | CompactLogix EtherNet/IP adapter | Distributed I/O connectivity |
| 1734-AENT | POINT I/O EtherNet/IP adapter | Remote I/O communications |
| 1732E-IB16M12 | ArmorBlock digital input module | Machine-level I/O |
| 1732E-OB16M12 | ArmorBlock digital output module | Machine-level output control |
| 1783-US8T | Stratix unmanaged Ethernet switch | Industrial Ethernet networking |
