Allen Bradley 1738-OB16EM12 ArmorPoint Digital Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

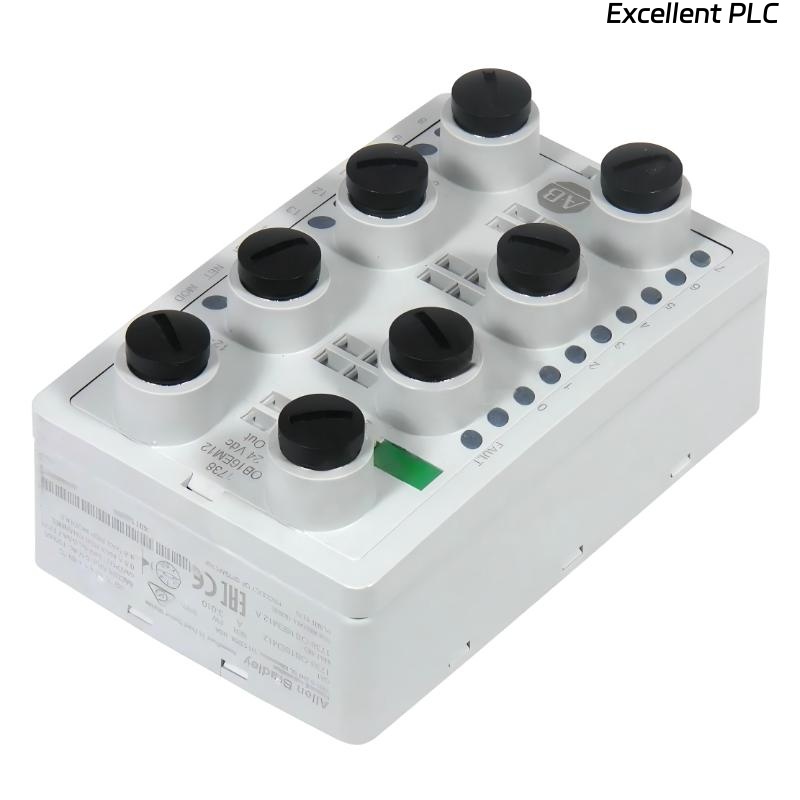

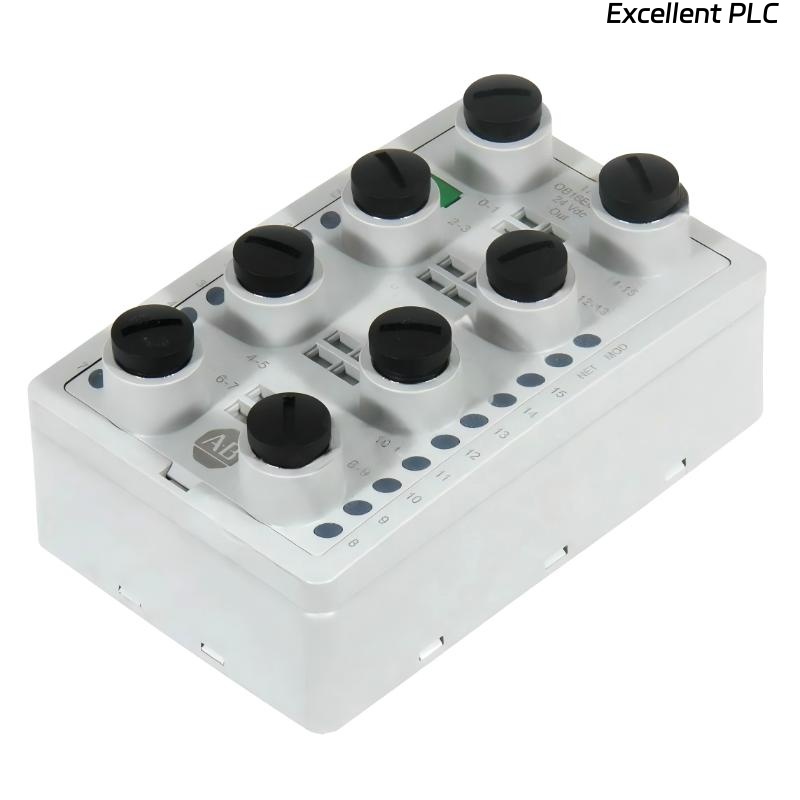

The Allen Bradley 1738-OB16EM12 ArmorPoint Digital Output Module is a high-density digital output module developed for the ArmorPoint I/O platform by Rockwell Automation. It provides 16 digital output channels and is designed for direct on-machine installation in demanding industrial environments.
Unlike traditional cabinet-mounted I/O, this module is built with a sealed housing that allows it to operate reliably in exposed conditions such as dust, moisture, and vibration. It eliminates the need for protective enclosures, significantly reducing installation complexity and system cost in distributed automation architectures.
The 1738-OB16EM12 is engineered to deliver stable 24 VDC output signals to field devices such as actuators, solenoids, and indicators. With its compact design and M12 connectivity, it enables efficient wiring, fast deployment, and reliable long-term operation in modern industrial systems.
Product Specifications
| Parameter | Value |
|---|---|
| Module Type | ArmorPoint Digital Output Module |
| Number of Outputs | 16 Outputs |
| Output Voltage | 24 VDC |
| Current Rating | 3 A |
| POINTBus Current | 75 mA |
| Signal Type | Digital Output |
| Connection Type | M12 Connectors |
| Protection Rating | IP67 / Industrial Sealed Design |
| Design Type | On-machine Mount, Sealed |
| Isolation | Electrical isolation supported |
| Mounting Type | Direct Machine Mount / DIN Rail Compatible |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 120 x 42 x 72 mm |
| Weight | 0.29 kg |
Applications
● Used in on-machine control applications, driving actuators, solenoids, and relays directly
● Suitable for distributed automation systems, reducing wiring between control cabinets and field devices
● Applied in packaging and assembly lines, where multiple outputs are required in a compact space
● Ideal for material handling systems, enabling real-time control of motors and indicators
● Common in automotive production environments, supporting decentralized control architecture
● Used in harsh industrial environments, where sealed modules ensure stable operation
Advantages
● Provides 16 high-density digital outputs, reducing the number of modules required
● Supports 3 A current rating, suitable for a wide range of industrial loads
● Enables on-machine installation, eliminating the need for control cabinets
● Uses M12 connectors, simplifying wiring and improving connection reliability
● Designed with sealed industrial construction, ensuring durability in harsh environments
● Enhances system flexibility through distributed I/O architecture
FAQ
- What types of devices can be controlled by this module?
It is typically used to control actuators, solenoid valves, relays, and indicator lights in industrial systems. - What does the 3 A current rating indicate?
It defines the maximum load current that the outputs can handle, ensuring safe and reliable operation within specified limits. - Can the module be installed directly on machinery?
Yes, it is designed for on-machine mounting without requiring additional protective enclosures. - What is the benefit of having 16 outputs in one module?
It increases output density, reducing system size and simplifying wiring in distributed setups. - How does the module connect to field devices?
It uses M12 connectors, allowing quick and secure connections with minimal wiring effort. - Is it suitable for harsh environments?
Yes, its sealed construction ensures reliable operation in environments with dust, moisture, and vibration. - Does it require external power supply?
Yes, a 24 VDC supply is required to power the outputs and connected devices. - How does it integrate into a control system?
It connects through an ArmorPoint network adapter, which communicates with the controller over EtherNet/IP. - What happens if an output channel is overloaded?
Overloading may cause the channel to shut down or degrade performance, depending on system protection design. - What is the main advantage of distributed output modules?
They reduce wiring complexity and allow control functions to be placed closer to field devices, improving efficiency.
Related Models
| Model | Description | Outputs | Protection |
|---|---|---|---|
| 1738-OB8EM12 | Digital Output Module | 8 Outputs | IP67 |
| 1738-IB16DM12 | Digital Input Module | 16 Inputs | IP69K |
| 1738-IE2VM12 | Analog Input Module | 2 Channels | IP69K |
| 1738-OE2CM12 | Analog Output Module | 2 Channels | IP67 |
| 1738-AENTR | EtherNet/IP Adapter | N/A | IP69K |
| 1738-ARM | Bus Extension Module | N/A | Industrial Grade |
Popular Models
| Model | Description | Voltage | Key Feature |
|---|---|---|---|
| 1734-AENTR | Ethernet Adapter | 24 VDC | Dual Port Communication |
| 1734-PDN | DeviceNet Module | 24 VDC | Network Interface |
| 1734-IB8 | Digital Input Module | 24 VDC | Standard I/O |
| 1734-OB8 | Digital Output Module | 24 VDC | Reliable Control |
| 1734-IE2C | Analog Input Module | 24 VDC | High Accuracy |
| 1734-EP24DC | Expansion Power Supply | 24 VDC | Power Distribution |
