Allen Bradley 1746-A7 7 Slot Rack
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

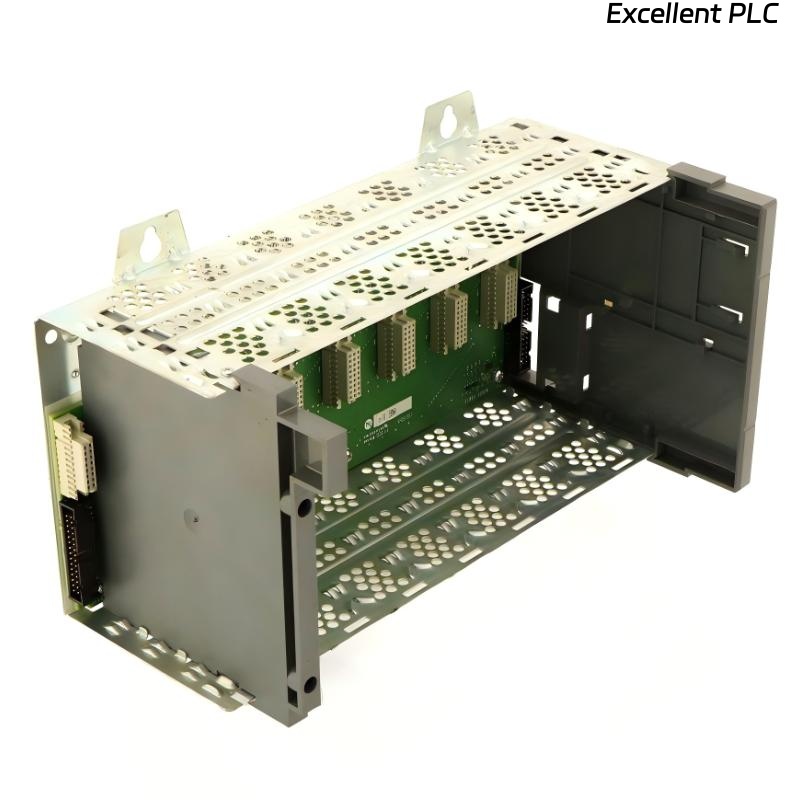

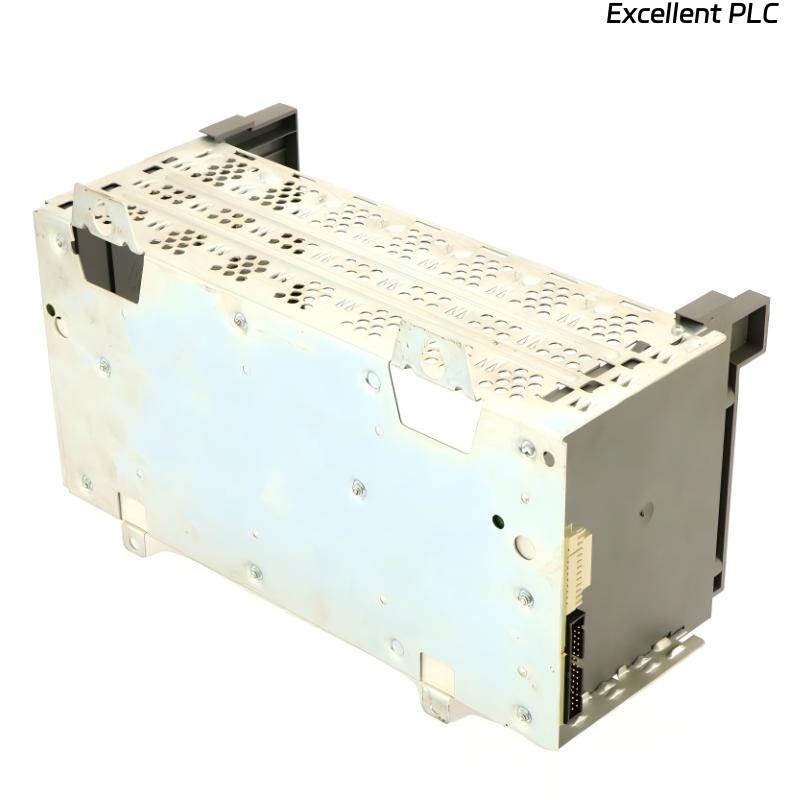

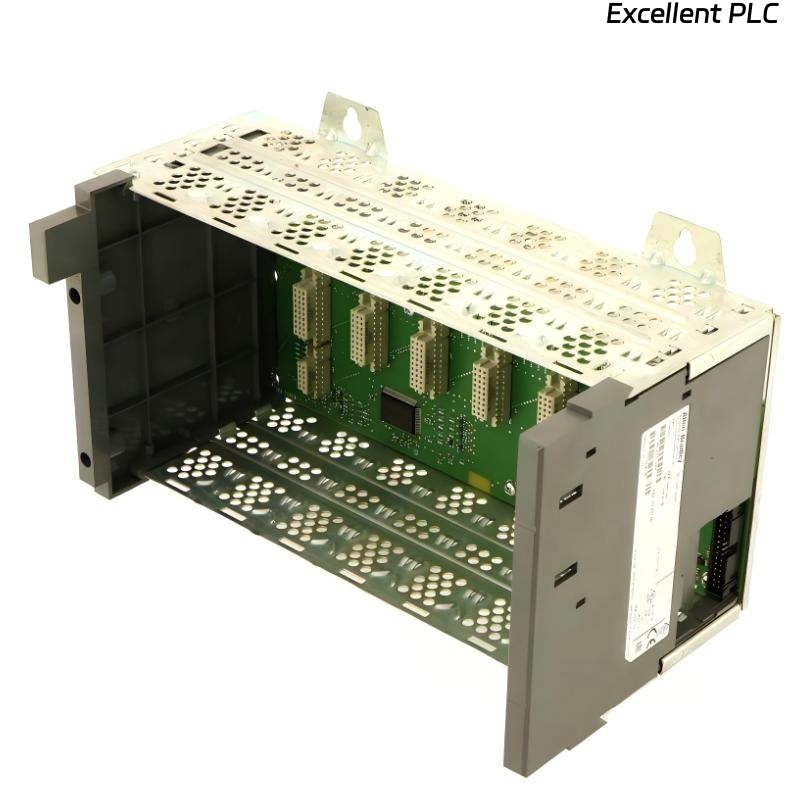

The Allen Bradley 1746-A7 7 Slot Rack is a compact modular chassis designed for the SLC 500 PLC platform (Bulletin 1746 / 1747). It provides a stable mechanical structure and an integrated electrical backplane for mounting processors, power supplies, and I/O modules within a single coordinated system.
This chassis is engineered for applications where space efficiency and system clarity are essential. By offering seven module slots in a rigid enclosure, the 1746-A7 supports reliable signal routing and power distribution while maintaining a clean and organized control cabinet layout.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | PLC Chassis |
| Product Series | SLC 500 (Bulletin 1746 / 1747) |
| Component Type | PLC & I/O |
| Model Number | 1746-A7 |
| Number of Slots | 7 |
| Backplane Function | Power and data distribution |
| Module Compatibility | SLC 500 processors, power supplies, and I/O |
| Operating Temperature (Min) | 0 °C |
| Operating Temperature (Max) | 60 °C |
| Storage Temperature (Min) | -40 °C |
| Storage Temperature (Max) | 85 °C |
| Maximum Relative Humidity | 95% RH (non-condensing) |
| Mounting Orientation | Panel-mounted |
| Dimensions | 282 × 171 × 145 mm |
| Weight | 1.1 kg |
Applications
• Compact PLC system assemblies for SLC 500 controllers
• Industrial control cabinets with limited installation space
• Machine-level automation systems requiring moderate I/O capacity
• Process control panels with centralized control architecture
• Standalone automation units integrating processor and I/O modules
• Factory automation environments demanding reliable backplane communication
Advantages
• Seven-slot configuration, balancing expansion capability and compact size
• Integrated backplane architecture, ensuring stable power and data transmission
• Rigid mechanical construction, suitable for long-term industrial installation
• Standardized slot alignment, simplifying system layout and wiring
• Wide environmental tolerance, supporting demanding operating conditions
• Full SLC 500 compatibility, enabling flexible system configuration
FAQ
-
What is the primary role of the 1746-A7 chassis in an SLC 500 system?
It provides mechanical support and a shared backplane for processors, power supplies, and I/O modules. -
How does the backplane contribute to system operation?
The backplane distributes power and enables communication between all installed modules. -
Why is a 7-slot chassis suitable for compact automation systems?
It offers sufficient module capacity while minimizing cabinet footprint. -
How are modules secured within the chassis?
Modules slide into fixed slots and mate directly with the backplane connectors. -
What factors influence chassis placement inside a control cabinet?
Thermal conditions, airflow, wiring access, and system expansion needs. -
How does the chassis support reliable system communication?
Consistent electrical connections and controlled signal paths ensure stable data transfer. -
What role does ventilation play in chassis performance?
Proper airflow helps maintain operating temperatures within specified limits. -
How does the chassis support future system expansion?
Available slots allow additional modules to be added as requirements grow. -
Why is a dedicated PLC chassis preferred over custom mounting solutions?
It ensures predictable electrical behavior and standardized mechanical alignment. -
How does the chassis integrate with other SLC 500 components?
It is designed to work seamlessly with compatible processors, power supplies, and I/O modules.
Related Models
| Model | Description |
|---|---|
| 1746-A4 | 4-Slot SLC 500 Chassis |
| 1746-A10 | 10-Slot SLC 500 Chassis |
| 1746-A13 | 13-Slot SLC 500 Chassis |
| 1746-P4 | SLC 500 Power Supply |
| 1746-IB16 | Digital Input Module |
| 1746-OB16 | Digital Output Module |
Popular Models
| Model | Description |
|---|---|
| 1746-A7 | 7-Slot SLC 500 Chassis |
| 1746-A13 | 13-Slot SLC 500 Chassis |
| 1746-IA16 | AC Digital Input Module |
| 1746-IB32 | High-Density DC Input Module |
| 1746-OB16 | DC Digital Output Module |
| 1747-L553 | SLC 500 Processor |
