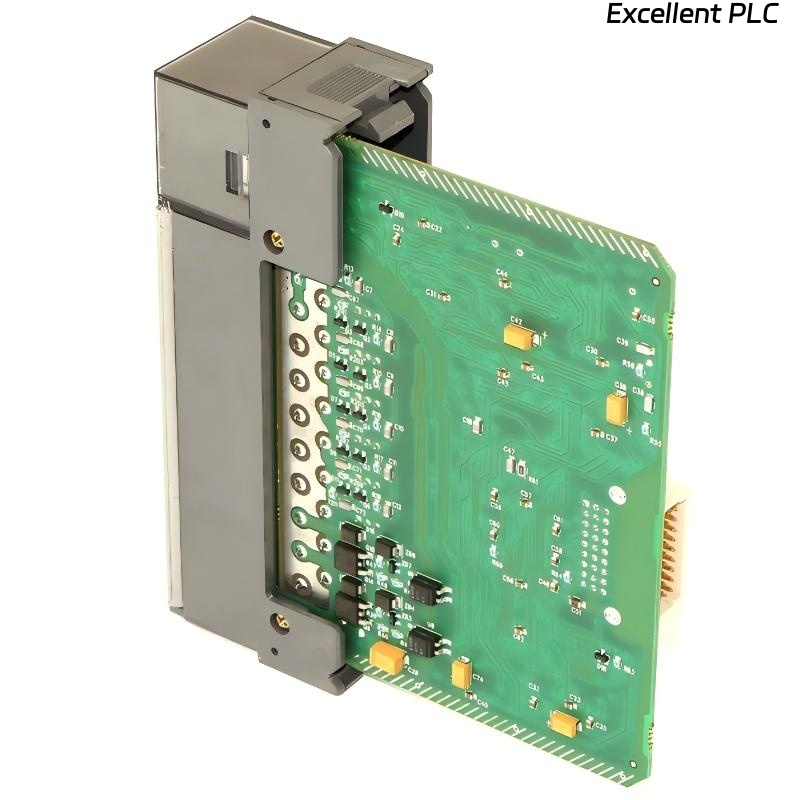

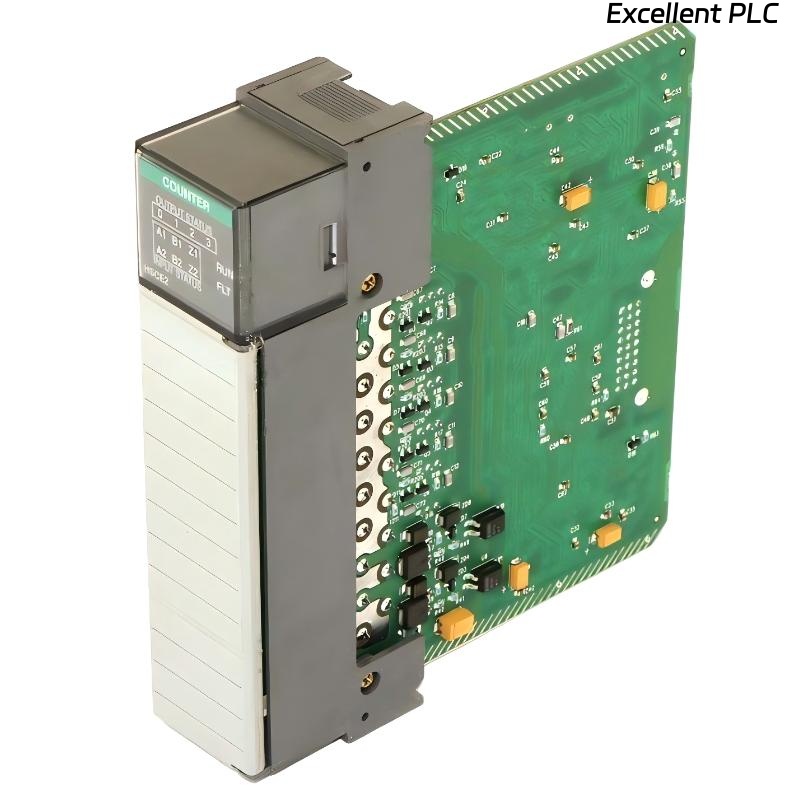

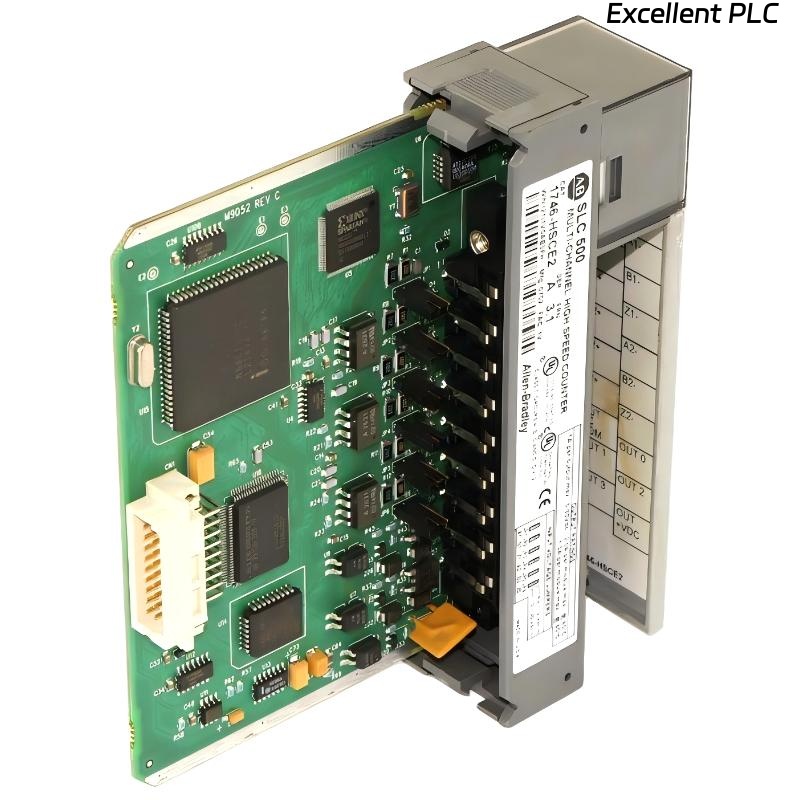

Allen Bradley 1746-HSCE2/A SLC 500 Multi-Channel High Speed Counter Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1746-HSCE2/A SLC 500 Multi-Channel High Speed Counter Module is a high-performance multi-channel counter module developed for the SLC 500 platform by Rockwell Automation. As a Series A module, it is specifically designed for applications requiring simultaneous high-speed signal processing across multiple channels.
Unlike single-channel counter modules, the 1746-HSCE2/A supports up to 4 single-ended inputs or 2 differential quadrature inputs, making it ideal for complex motion control and encoder feedback applications. It can process signals from various voltage levels (5V, 12V, and 24V DC), ensuring compatibility with a wide range of industrial sensors and encoders.
With a fast module update time of up to 1.5 ms and integrated output channels, this module enables precise real-time control and monitoring. It is widely used in applications where accurate position tracking, speed measurement, and multi-axis coordination are required.
Product Specifications
| Parameter | Value |
|---|---|
| Module Type | SLC 500 Multi-Channel High Speed Counter Module (Series A) |
| Input Configuration | 4 Single-ended or 2 Differential Quadrature |
| Input Voltage | 5V DC / 12V DC / 24V DC |
| Number of Outputs | 4 Outputs |
| Output Type | Sourcing |
| Output Voltage | 5V DC / 12V DC / 24V DC |
| Maximum Input Frequency | Up to 50 kHz (Typical) |
| Module Update Time | 1.5 ms (Max) |
| Counting Modes | Up/Down, Quadrature, Pulse/Direction |
| Signal Type | High-speed Pulse Input |
| Backplane Current | Approx. 0.170 A @ 5V |
| Isolation | Electrical Isolation Supported |
| Status Indicators | LED Indicators per Channel |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | SLC 500 Chassis |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.222 kg |
Applications
● Used for multi-axis motion control systems, handling multiple encoder signals simultaneously
● Suitable for high-speed production lines, requiring precise position and speed monitoring
● Applied in packaging and labeling machines, ensuring accurate indexing and synchronization
● Common in conveyor and material handling systems, tracking movement across multiple points
● Ideal for quadrature encoder applications, providing accurate direction and position feedback
● Used in automated machinery, where fast and reliable pulse counting is essential
Advantages
● Supports multi-channel input processing, improving system efficiency and integration
● Flexible input configuration with single-ended and differential quadrature options
● Fast 1.5 ms update time, enabling real-time response in dynamic applications
● Compatible with multiple voltage levels, simplifying integration with different devices
● Provides 4 output channels for control actions based on counting results
● Designed for robust industrial environments, ensuring stable and reliable operation
FAQ
- What is the main difference between HSCE and HSCE2 modules?
The HSCE2 supports multiple channels and quadrature inputs, making it suitable for more complex applications compared to single-channel HSCE modules. - What types of encoders can be connected?
Both single-ended and differential quadrature encoders can be connected, depending on the wiring configuration. - How many signals can be processed simultaneously?
Up to 4 single-ended signals or 2 quadrature encoder signals can be processed at the same time. - What is the benefit of differential inputs?
Differential inputs provide better noise immunity, especially in electrically noisy industrial environments. - Is the module suitable for high-speed applications?
Yes, it is designed for high-speed counting and can handle frequencies typically up to 50 kHz. - What are the outputs used for?
Outputs can trigger actions such as alarms, control signals, or synchronization events based on count values. - How fast does the module update data?
The module has a maximum update time of 1.5 ms, allowing fast system response. - Can it be used for position tracking?
Yes, it is commonly used for position and direction tracking in motion control systems. - Does it improve system performance compared to standard input modules?
Yes, it is specifically designed for high-speed signals, which standard input modules cannot reliably handle. - What is the advantage of using a multi-channel counter module?
It reduces the number of modules required and allows centralized processing of multiple high-speed signals.
Related Models
| Model | Description | Channels | Frequency |
|---|---|---|---|
| 1746-HSCE | High Speed Counter Module | 1 Channel | 50 kHz |
| 1746-HSTP1 | Stepper Control Module | 1 Axis | Motion Control |
| 1746-IB16 | Digital Input Module | 16 Inputs | Standard |
| 1746-OB16 | Digital Output Module | 16 Outputs | Standard |
| 1746-NI4 | Analog Input Module | 4 Channels | Analog |
| 1746-ITB16 | Temperature Module | 16 Channels | Sensor Input |
Popular Models
| Model | Description | Voltage | Key Feature |
|---|---|---|---|
| 1734-AENTR | POINT I/O Ethernet Adapter | 24 VDC | Dual Port |
| 1734-VHSC24 | High Speed Counter | 24 VDC | Compact High-Speed |
| 1756-HSC | ControlLogix Counter Module | 24 VDC | High Precision |
| 1769-HSC | CompactLogix Counter Module | 24 VDC | Integrated Motion |
| 1734-OB8 | Digital Output Module | 24 VDC | Reliable Control |
| 1734-IB8 | Digital Input Module | 24 VDC | Compact Design |
