Allen Bradley 1746-IN16 SLC 500 Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

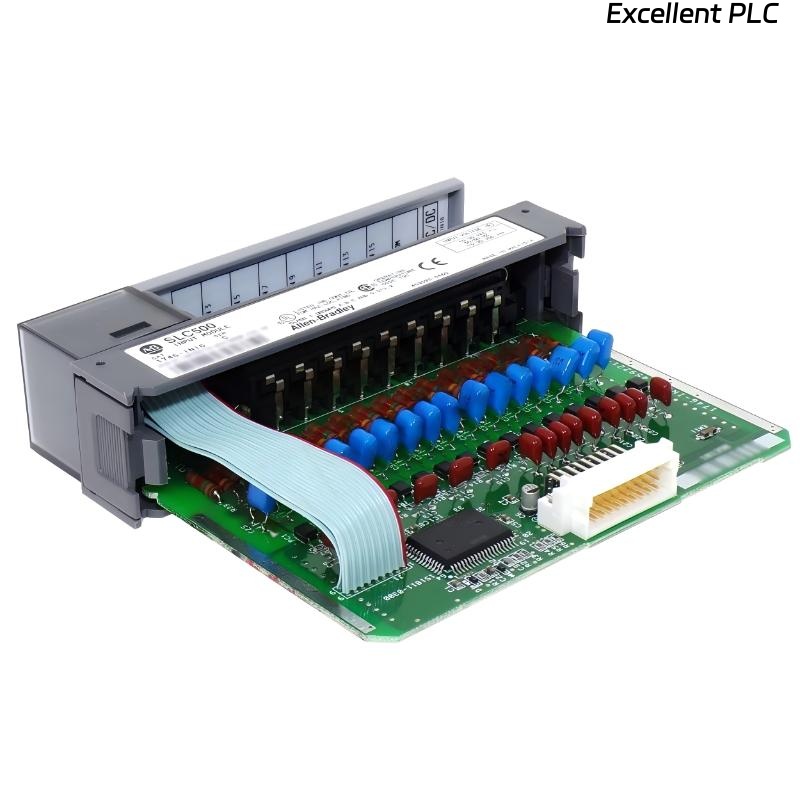

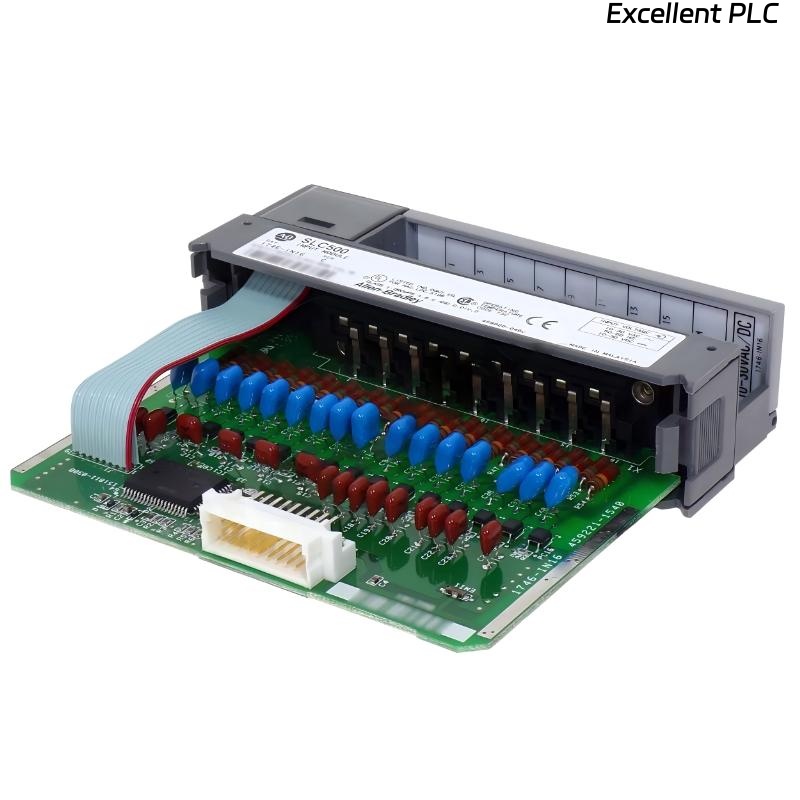

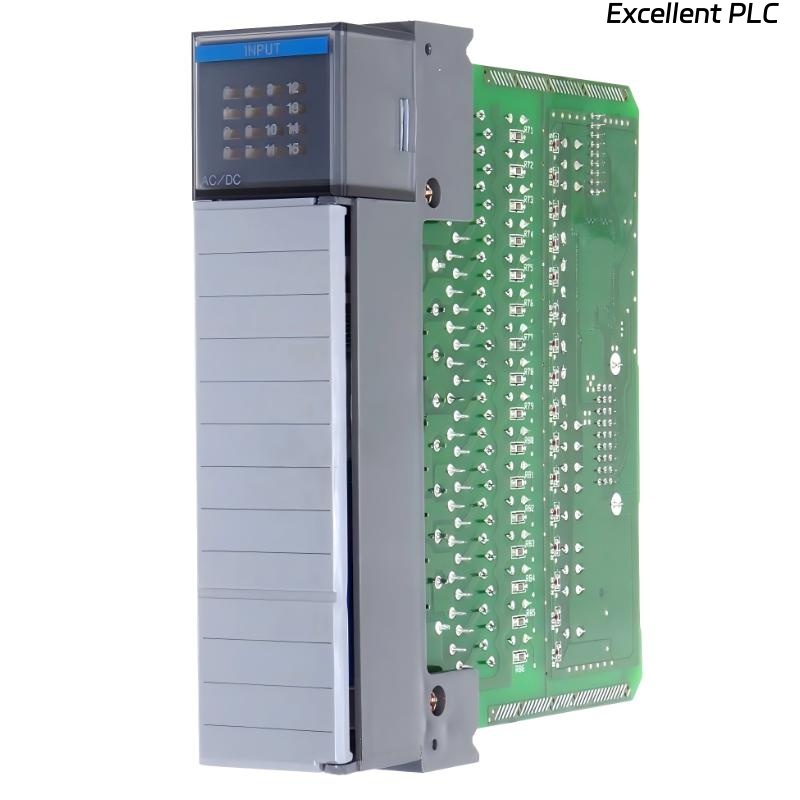

The Allen Bradley 1746-IN16 SLC 500 Digital Input Module is a reliable 16-channel digital input module designed for use within the SLC 500 control system family by Rockwell Automation. It is engineered to monitor field signals from various AC/DC input devices and transmit accurate status information to the programmable controller.
This module supports both 24V AC and DC input signals, making it highly adaptable in mixed-signal environments. With 16 input points grouped per common, it simplifies wiring while maintaining signal integrity. The design ensures stable signal acquisition even in electrically noisy industrial settings, which is critical for maintaining control system reliability.
Widely deployed in legacy and ongoing automation systems, the 1746-IN16 remains a practical choice for maintaining and expanding existing SLC 500 installations where proven stability and compatibility are essential.
Product Specifications
| Parameter | Value |
|---|---|
| Module Type | SLC 500 Digital Input Module |
| Input Type | Digital AC/DC |
| Number of Inputs | 16 Points |
| Input Voltage Range | 24 V AC/DC |
| Frequency Range | 50/60 Hz |
| Points per Common | 16 |
| Input Current (Typical) | ~8 mA @ 24V |
| Signal Delay (On/Off) | Typical 8–12 ms |
| Backplane Current | Approx. 0.085 A @ 5V |
| Isolation | Electrical Isolation Between Field and Backplane |
| Wiring Configuration | Shared Common |
| Status Indicators | Individual LED per Channel |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5–95% non-condensing |
| Mounting | Chassis-based (SLC 500 Rack) |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.27 kg |
Applications
● Used for monitoring field input signals such as push buttons, limit switches, and sensors
● Suitable for industrial control panels requiring stable AC/DC signal acquisition
● Applied in manufacturing automation systems, especially legacy SLC 500 platforms
● Common in material handling systems, detecting position and status signals
● Ideal for process control environments, where reliable discrete input feedback is required
● Used in retrofit and maintenance projects, extending the life of existing SLC systems
Advantages
● Supports both AC and DC input signals, increasing application flexibility
● Provides 16 input channels per module, improving system density
● Designed for stable operation in noisy environments, ensuring signal accuracy
● Integrated LED indicators per channel for quick diagnostics and troubleshooting
● Compatible with existing SLC 500 systems, reducing upgrade complexity
● Proven reliability with long-term deployment in industrial automation systems
FAQ
- Can this module accept both AC and DC signals at the same time?
Yes, the module is designed to handle both AC and DC inputs, but typically within the same voltage range and proper wiring configuration. - What types of input devices are supported?
It supports push buttons, proximity sensors, limit switches, and other dry contact or voltage-based input devices. - How are the inputs grouped electrically?
All 16 inputs share a common reference, simplifying wiring but requiring proper grouping considerations. - Does the module provide input filtering?
Yes, it includes internal filtering to reduce noise and prevent false triggering in industrial environments. - How can input status be verified during operation?
Each input channel has an LED indicator that shows real-time status for easy diagnostics. - Is it suitable for high-speed signal detection?
It is designed for standard industrial signals; for high-speed applications, specialized modules are recommended. - What is the typical response time for input signals?
The module has a typical delay of several milliseconds, suitable for most control applications. - Can it be used in new automation systems?
It is mainly used in existing SLC 500 systems, as newer platforms have replaced this series. - How does it handle electrical noise?
The module includes isolation and filtering features to ensure stable signal acquisition in noisy environments. - What is the main benefit of using this module in legacy systems?
It ensures seamless compatibility and reliable operation without requiring major system redesign.
Related Models
| Model | Description | Channels | Voltage |
|---|---|---|---|
| 1746-IB16 | DC Digital Input Module | 16 Inputs | 24 VDC |
| 1746-IA16 | AC Digital Input Module | 16 Inputs | 120 VAC |
| 1746-OB16 | Digital Output Module | 16 Outputs | 24 VDC |
| 1746-OW16 | Relay Output Module | 16 Outputs | AC/DC |
| 1746-NI4 | Analog Input Module | 4 Inputs | Analog |
| 1746-ITB16 | Thermocouple Module | 16 Channels | Temperature |
Popular Models
| Model | Description | Voltage | Key Feature |
|---|---|---|---|
| 1734-IB8 | POINT I/O Input Module | 24 VDC | Compact Design |
| 1734-OB8 | POINT I/O Output Module | 24 VDC | Reliable Output |
| 1734-AENTR | Ethernet Adapter | 24 VDC | Dual Port |
| 1756-IB16 | ControlLogix Input Module | 24 VDC | High Performance |
| 1756-OB16E | ControlLogix Output Module | 24 VDC | Diagnostic Features |
| 1769-IF4 | CompactLogix Analog Input | 24 VDC | High Accuracy |
