Allen Bradley 1746-IV32 Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction

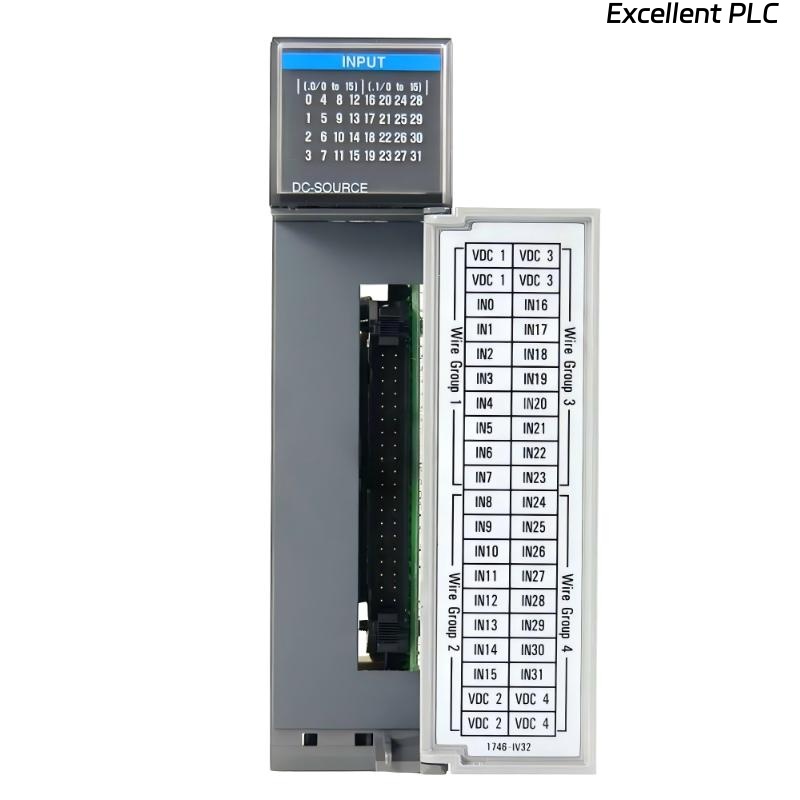

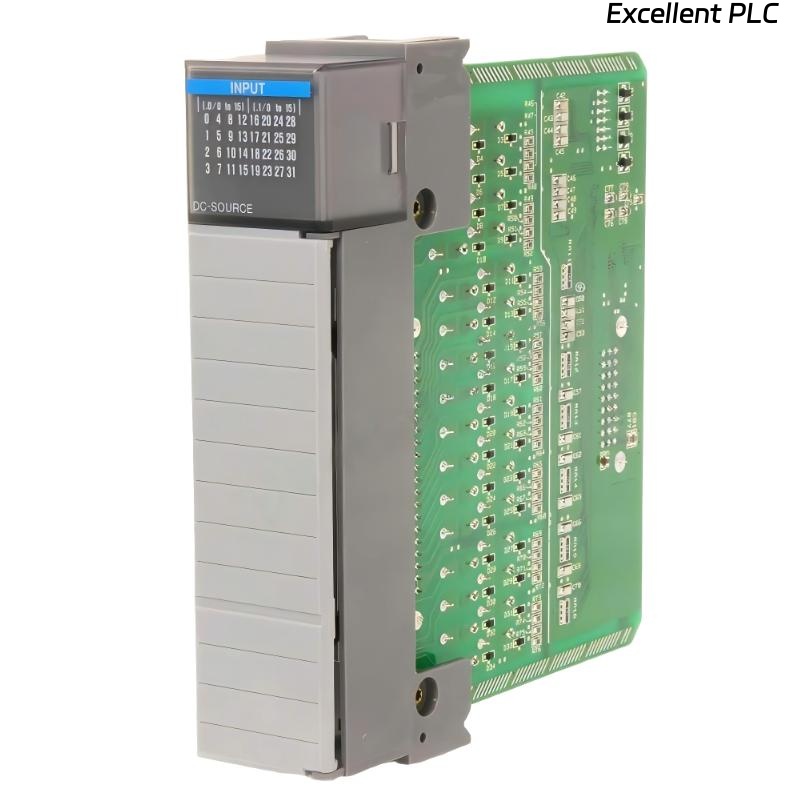

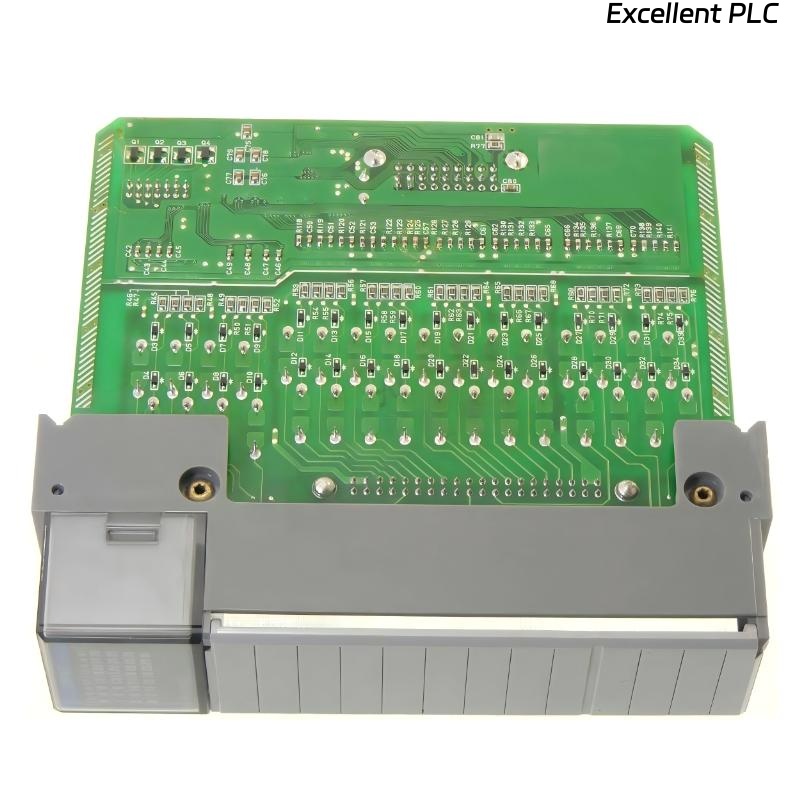

The Allen Bradley 1746-IV32 Digital Input Module is a high-density industrial input module designed for the SLC 500 automation platform. It provides 32 sinking DC input points operating at 24 VDC, enabling efficient monitoring of a large number of field devices within a single module.
With 8 input points per common, the IV32 module simplifies wiring design while maintaining reliable signal reference and noise immunity. This structure makes it especially suitable for large-scale automation systems where high input density and organized wiring are required.
Designed for stable industrial performance, the 1746-IV32 ensures accurate input detection, reliable backplane communication, and seamless integration into existing SLC 500 racks. Its robust design supports continuous operation in demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Digital Input Module |
| Model Number | 1746-IV32 |
| Manufacturer | Allen Bradley |
| Series | SLC 500 |
| Number of Inputs | 32 |
| Input Configuration | Sinking DC inputs |
| Input Voltage | 24 VDC |
| Points per Common | 8 |
| Signal Type | Discrete DC |
| Backplane Interface | SLC 500 I/O backplane |
| Isolation | Electrical isolation between field inputs and PLC backplane |
| Operating Environment | Industrial control cabinets and automation panels |
| Mounting Method | SLC 500 rack mount |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.136 kg |
Applications
• High-density digital input monitoring for large automation systems
• Integration with SLC 500 PLC systems requiring expanded input capacity
• Manufacturing lines and process automation with multiple DC sensors
• Material handling and conveyor systems using distributed input signals
• Industrial control panels where efficient wiring and space utilization are required
Advantages
• 32 input points in a single module, reducing rack space usage
• 8 points per common design, simplifying wiring and grounding
• Reliable sinking DC input detection, suitable for standard 24 VDC devices
• Electrical isolation, protecting PLC backplane from electrical noise
• Seamless SLC 500 compatibility, enabling easy system expansion
• Industrial-grade reliability, supporting continuous-duty operation
FAQ
-
How many digital inputs does the 1746-IV32 provide?
It provides 32 discrete sinking DC input points for high-density input monitoring applications. -
What input voltage is supported by this module?
The module operates at 24 VDC, which is standard for industrial DC input devices. -
What does “8 points per common” mean?
Each group of 8 inputs shares a common reference, simplifying wiring and improving organization within control panels. -
Is the 1746-IV32 compatible with SLC 500 systems?
Yes, it is fully compatible with SLC 500 racks and communicates directly through the PLC backplane. -
Does the module provide electrical isolation?
Yes, electrical isolation protects the PLC and improves resistance to electrical noise and transients. -
Can it be used for large-scale automation systems?
Yes, its high input density makes it ideal for systems with many sensors and field devices. -
What types of devices can be connected to this module?
It supports sinking DC devices such as proximity sensors, limit switches, and pushbuttons. -
Is the module suitable for continuous industrial operation?
Yes, it is designed for reliable continuous-duty use in industrial environments. -
Can multiple IV32 modules be installed in one system?
Yes, multiple modules can be added to expand digital input capacity as required. -
Does this module help reduce control cabinet wiring complexity?
Yes, the grouped common design and high point count significantly reduce wiring complexity and cabinet congestion.
Related Models
| Model | Series | Inputs | Notes |
|---|---|---|---|
| 1746-IV16 | SLC 500 | 16 | Medium-density sinking DC input |
| 1746-ITB16 | SLC 500 | 16 | Fast-response sinking DC input |
| 1746-IB16 | SLC 500 | 16 | DC sourcing input module |
| 1746-IV8 | SLC 500 | 8 | Low point count sinking DC input |
| 1746-IA16 | SLC 500 | 16 | AC digital input module |
| 1746-IM16 | SLC 500 | 16 | General-purpose digital input |
Popular Models
| Model | Product Type | Typical Application |
|---|---|---|
| 1746-IV32 | Digital Input Module | High-density 32-point DC input systems |
| 1746-IV16 | Digital Input Module | Standard 16-point DC input monitoring |
| 1746-ITB16 | Digital Input Module | Fast-response DC input applications |
| 1746-IB16 | Digital Input Module | DC sourcing input systems |
| 1746-IA16 | Digital Input Module | AC input monitoring |
| 1746-IV8 | Digital Input Module | Compact DC input applications |
