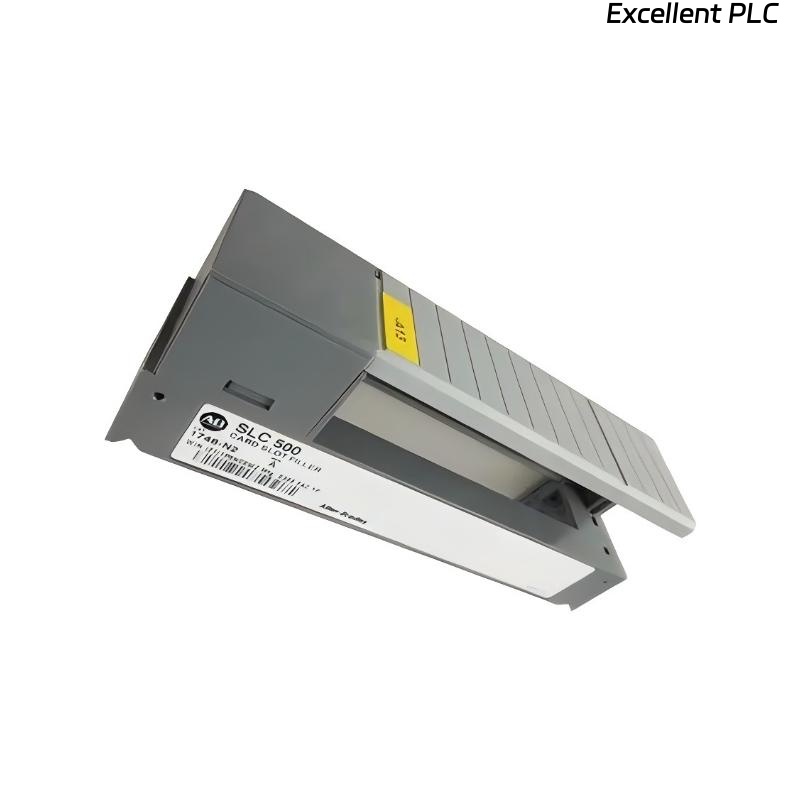

Allen Bradley 1746-N2 Slot Filler Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Overview
The Allen Bradley 1746-N2 is a slot filler module designed for the SLC 500 platform. Its primary function is straightforward but essential: it occupies empty chassis positions to maintain proper airflow, protect the backplane connectors, and ensure electrical integrity inside the control cabinet.
From a practical installer’s perspective, using 1746-N2 prevents dust entry, accidental contact, and exposure of unused backplane terminals—issues that can lead to intermittent failures or long-term degradation. Although passive in function, it is a critical component for maintaining a healthy SLC system.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 1746-N2 |
| Module Type | Slot Filler / Blank Module |
| Platform Compatibility | Allen Bradley SLC 500 |
| Function | Protects unused chassis slots and backplane connectors |
| Backplane Connection | Passive (no electrical circuitry) |
| Material | Molded industrial-grade enclosure with SLC locking tabs |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to +85°C |
| Dimensions (H × W × D) | ≈ 140 mm × 35 mm × 150 mm |
| Weight | ≈ 0.20 kg |
Applications
-
Protecting exposed slots in partially populated SLC 500 chassis
-
Maintaining proper airflow for heat-sensitive CPU and I/O modules
-
Preventing debris or contamination from entering unused positions
-
Providing mechanical stability inside control panels with vibration
-
Ensuring long-term reliability of older SLC installations during staged upgrades
Advantages
-
Prevents contamination: Shields backplane contacts from dust and moisture.
-
Supports thermal management: Helps maintain correct airflow paths inside the chassis.
-
Improves mechanical safety: Reduces risk of accidental insertion or physical damage.
-
Easy installation: Snaps into place like any standard SLC module.
-
Long-term reliability: Passive design with no components to fail.
Technical FAQs
-
Does the 1746-N2 contain any electronic circuitry?
– No, it is completely passive. -
Can it be installed in any slot of the SLC chassis?
– Yes, it fits any standard 1746 chassis slot. -
Is it required for unused positions?
– Recommended but not mandatory; helps protect the backplane. -
Does it affect airflow inside the cabinet?
– Yes, it helps maintain proper airflow distribution. -
Can it be used during system operation?
– Yes, installing or removing requires power-off due to backplane exposure. -
Does it add backplane load?
– None; purely mechanical. -
Is it compatible with all SLC chassis sizes?
– Yes: 1746-A4 / A7 / A10 / A13. -
Can it be used as a placeholder for future module expansion?
– Yes, ideal for staged installation plans. -
Does it require grounding?
– No special grounding required. -
Is it affected by vibration?
– Designed with locking tabs for secure retention in industrial environments.
Recommended Related Models
| Model Number | Description |
|---|---|
| 1746-A4 | 4-slot SLC chassis |
| 1746-A7 | 7-slot SLC chassis |
| 1746-A10 | 10-slot SLC chassis |
| 1746-A13 | 13-slot SLC chassis |
| 1746-P2 | Compatible SLC power supply |
Popular Allen Bradley Models
| Model Number | Description |
|---|---|
| 1746-N2 | Slot filler module |
| 1746-L542 | SLC 5/04 processor |
| 1746-NI8 | Analog input module |
| 1746-OW16 | Relay output module |
| 1746-IB32 | 32-point DC input module |
