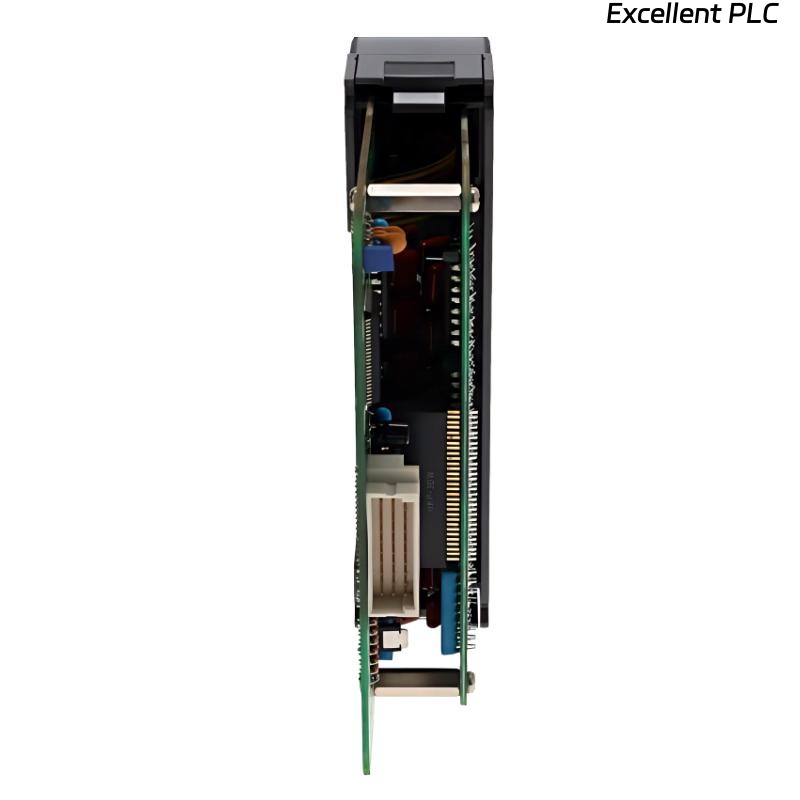

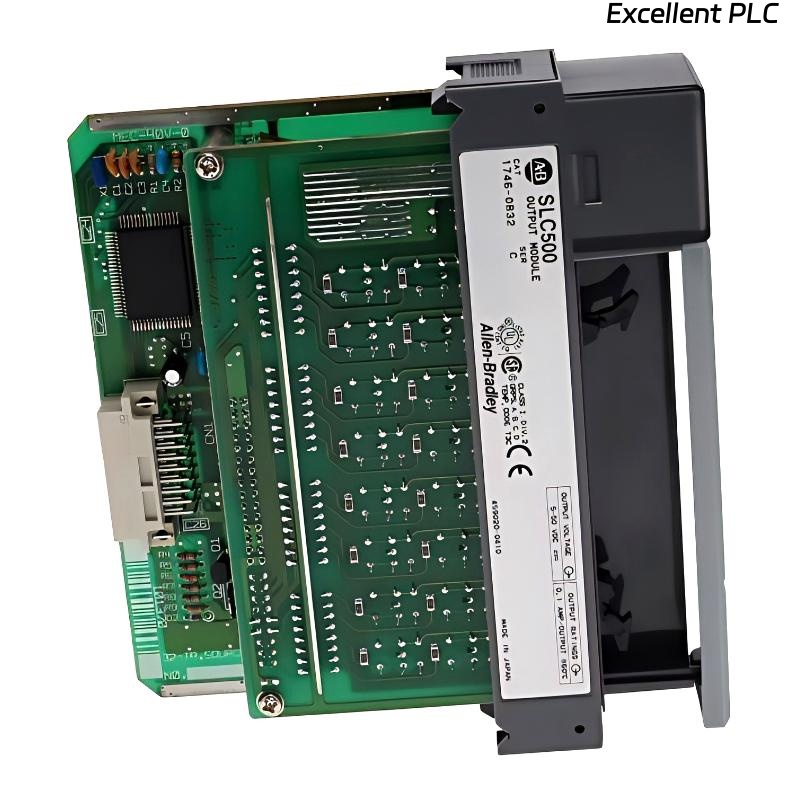

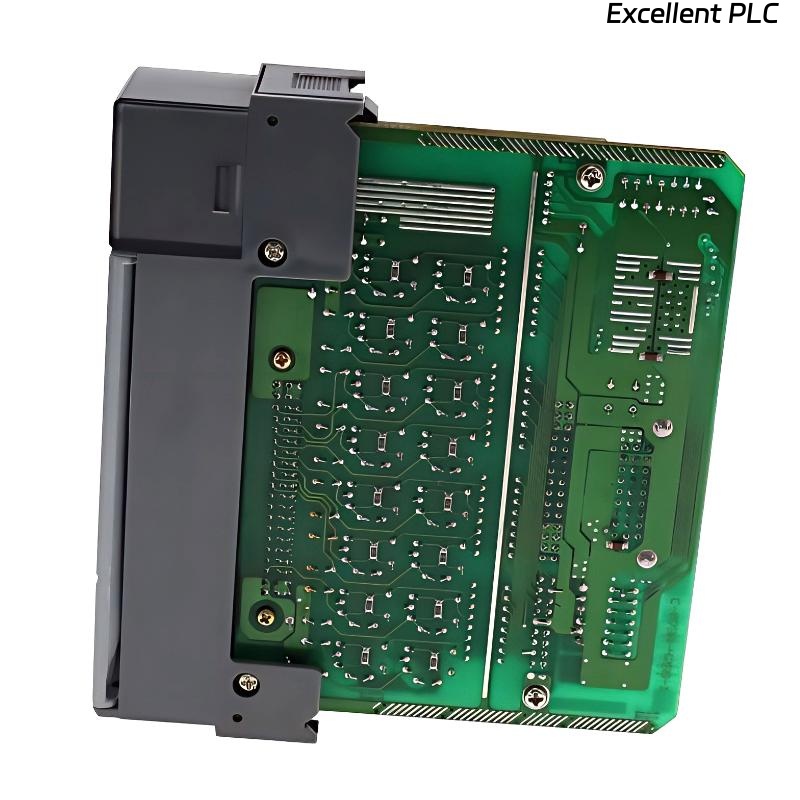

Allen Bradley 1746-OB32/D SLC 500 Digital DC Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1746-OB32/D is a high-density DC digital output module designed for the SLC 500 programmable controller system. As a Series D version, it provides enhanced stability and compatibility within modernized SLC 500 installations while maintaining full backward compatibility with existing systems.
This module offers 32 transistor-based sourcing output channels, allowing efficient control of multiple DC field devices from a single module. It operates within a 5–50V DC output range, making it suitable for a wide variety of industrial applications including control of relays, solenoids, indicator lamps, and low-power actuators.
The 1746-OB32/D is built with a solid-state output structure, ensuring fast switching performance and reduced mechanical wear. Its compact, high-density design helps optimize cabinet space while maintaining reliable operation in demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | SLC 500 |
| Module Type | DC Digital Output Module |
| Catalog Number | 1746-OB32/D |
| Series Version | Series D |
| Module Classification | High-Density Output Module |
| Number of Channels | 32 Outputs |
| Output Type | Transistor Sourcing (PNP) |
| Output Voltage Range | 5–50V DC |
| Output Current (per channel) | Approx. 0.5 A (typical) |
| Total Module Current | Limited by thermal characteristics |
| Output Configuration | Solid-state transistor outputs |
| Switching Speed | High-speed |
| Isolation | Group isolation (backplane to field) |
| Backplane Current Consumption | Approx. 0.270 A |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Installation | SLC 500 Chassis |
| Wiring Category | Category 1 |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.23 kg |
Applications
● High-Density Automation Systems
Designed for systems requiring a large number of DC outputs within limited panel space.
● Industrial Machine Control
Controls actuators, relays, and indicator devices in automated equipment and machinery.
● Packaging and Assembly Lines
Supports fast and reliable switching in high-speed production environments.
● Material Handling Systems
Used to control conveyors, sorting equipment, and positioning devices.
● Distributed Control Panels
Ideal for centralized control of multiple output devices in complex systems.
Advantages
● 32-Channel High-Density Design
Maximizes output capacity while minimizing required rack space.
● Fast Transistor Switching
Enables rapid response for time-critical control applications.
● Wide DC Voltage Compatibility
Supports 5–50V DC, making it adaptable to various field devices.
● Improved Series D Reliability
Enhanced design provides better stability and performance consistency.
● Solid-State Durability
Eliminates mechanical wear, ensuring long-term reliable operation.
● Efficient System Integration
Fully compatible with SLC 500 architecture for easy deployment.
FAQ
- What type of output configuration does the 1746-OB32/D use?
The module uses transistor-based sourcing (PNP) outputs, supplying voltage to the load when the output is activated. - What distinguishes Series D from earlier versions?
Series D modules generally include internal design improvements for better electrical stability, noise resistance, and compatibility with updated system requirements. - Can this module drive inductive loads directly?
Yes, but it is recommended to use external suppression devices such as flyback diodes to protect the outputs from voltage spikes. - Is individual channel isolation provided?
No, outputs are grouped. Isolation is provided between the field side and the backplane rather than between individual channels. - What happens if an output is overloaded?
Excessive current can cause overheating and potential damage to the output transistor, so loads must be properly rated. - Is the module suitable for high-speed switching?
Yes, the solid-state transistor design supports fast switching, making it suitable for dynamic control applications. - Can it be used with AC loads?
No, this module is strictly designed for DC outputs. Using AC loads may result in malfunction or equipment damage. - What wiring practices are recommended?
Proper grounding, separation from high-voltage wiring, and the use of suitable wire gauges are essential for reliable operation. - Does the module include short-circuit protection?
Basic internal protection exists, but external protection measures are recommended for critical systems. - How does the module perform in continuous operation environments?
It is designed for continuous industrial use, provided operating conditions remain within specified electrical and environmental limits.
Related Models
| Model | Description |
|---|---|
| 1746-OB32 | 32-Channel DC Output Module (Series A/B) |
| 1746-OB16 | 16-Channel DC Output Module |
| 1746-OB8 | 8-Channel DC Output Module |
| 1746-OW16 | 16-Channel Relay Output Module |
| 1746-OA8 | 8-Channel AC Output Module |
| 1746-IB32 | 32-Channel DC Input Module |
