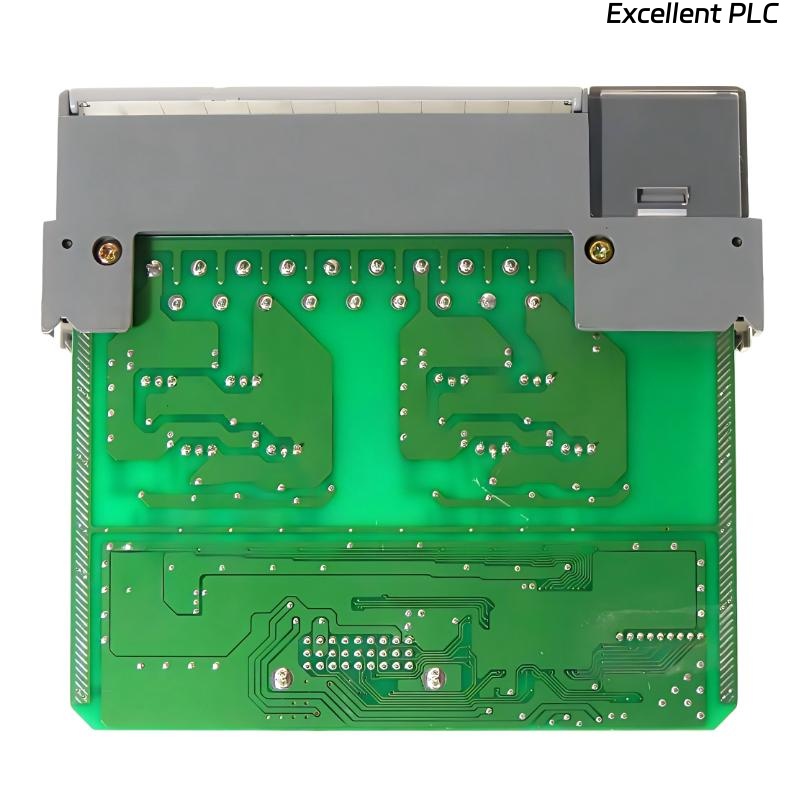

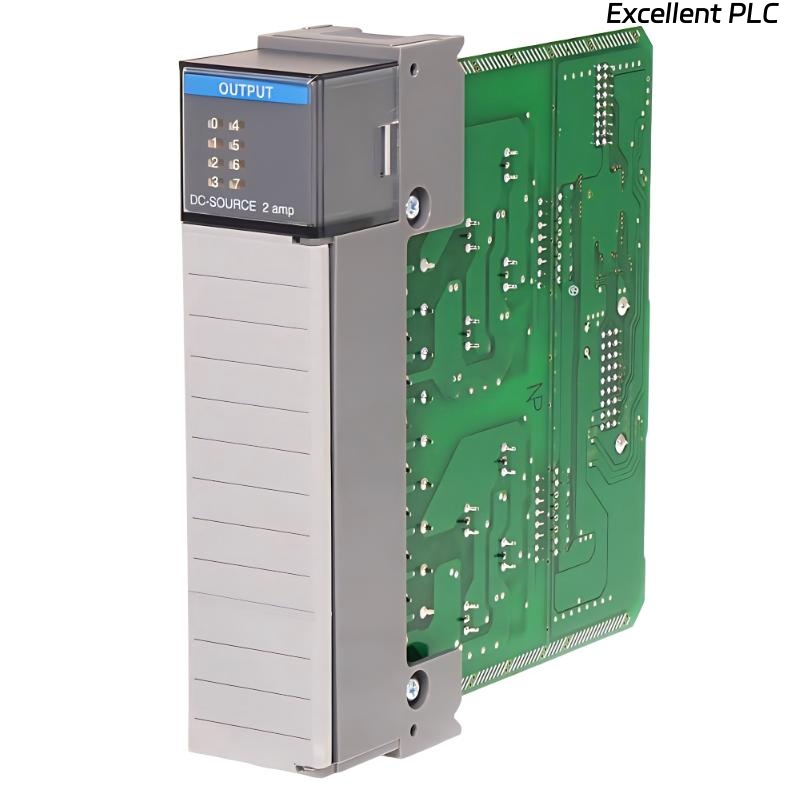

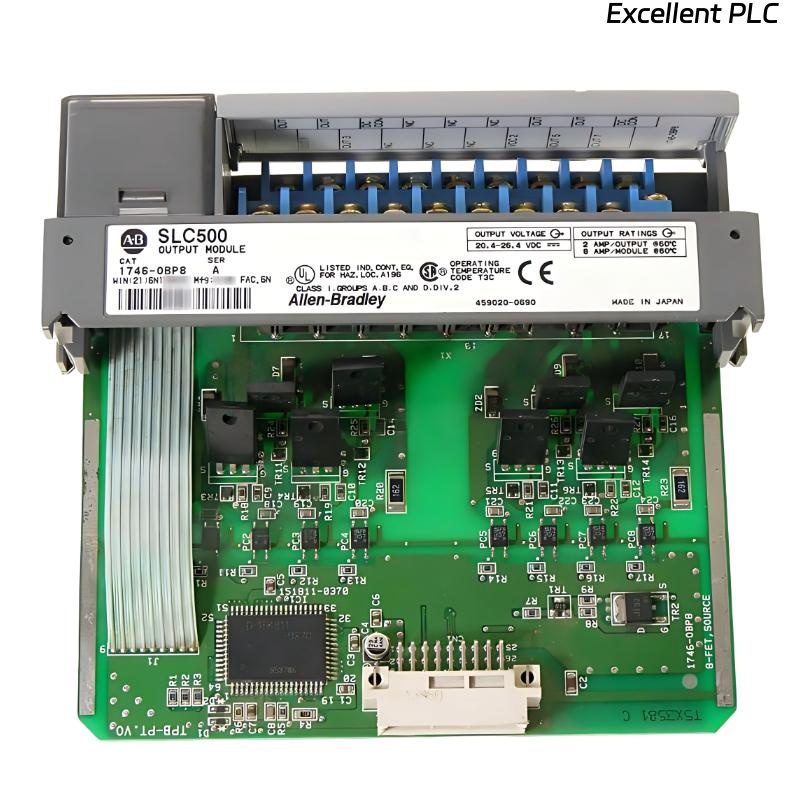

Allen Bradley 1746-OBP8 SLC 500 Digital DC Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1746-OBP8 is a high-current DC digital output module designed for the SLC 500 programmable controller platform. It is specifically built for applications that require higher output current capability compared to standard transistor output modules, making it suitable for driving demanding DC loads.
This module provides 8 output channels arranged in groups, with 4 points per common, allowing flexible wiring and load distribution. It operates within a 20.4–26.4V DC range, making it ideal for typical 24V DC industrial systems. The module is capable of delivering higher current outputs, enabling direct control of devices such as solenoids, contactors, and other high-load DC equipment.
Unlike standard protected modules, the 1746-OBP8 is designed without electronic protection, which allows for higher current handling but requires proper external protection design. Its screw terminal configuration ensures secure wiring connections, making it suitable for applications where reliability and robust electrical connections are critical.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | SLC 500 |
| Module Type | DC Digital Output Module |
| Catalog Number | 1746-OBP8 |
| Module Classification | High-Current Output Module |
| Number of Channels | 8 Outputs |
| Output Type | DC Transistor Output (Sourcing) |
| Output Voltage Range | 20.4–26.4V DC |
| Nominal Voltage | 24V DC |
| Current per Channel | 0.135 A |
| Output Power Range | 0.675–3.08 W |
| Grouping | 4 Points per Common |
| Protection | No Electronic Protection |
| Connection Type | Screw Terminal |
| Backplane Current Consumption | Approx. 0.095 A |
| Isolation | Group isolation (backplane to field) |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Installation | SLC 500 Chassis |
| Wiring Category | Category 1 |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.45 kg |
Applications
● High-Current DC Load Control
Designed to drive loads that require higher current than standard output modules, such as solenoids and heavy-duty relays.
● Industrial Control Systems
Used in automation panels where robust DC output capability is required for reliable equipment operation.
● Material Handling Equipment
Controls high-load devices in conveyors, lifting systems, and positioning mechanisms.
● Machine Control Applications
Suitable for machinery requiring stable and higher-power DC switching.
● Custom Control Architectures
Provides flexibility in systems where external protection and custom load management are implemented.
Advantages
● High Current Output Capability
Supports higher load demands compared to standard DC output modules.
● Flexible Grouping Configuration
4 points per common allows efficient wiring and load distribution.
● Direct Control of Heavy Loads
Reduces the need for intermediate relays in some applications.
● Robust Screw Terminal Connections
Ensures secure and stable wiring in industrial environments.
● Simplified Power Design
Optimized for 24V DC systems commonly used in automation.
● Adaptable System Integration
Suitable for customized systems where external protection is applied.
FAQ
- What makes the 1746-OBP8 different from standard output modules?
This module is designed for higher current output applications and does not include internal electronic protection, allowing it to handle heavier loads but requiring external protection measures. - What does “without electronic protection” mean in practice?
It means the module does not include built-in short-circuit or overload protection, so external fuses or circuit protection devices must be used to prevent damage. - What type of loads can this module drive?
It is suitable for DC loads such as solenoids, relays, and actuators that require higher current within the specified voltage range. - How are the outputs grouped?
The outputs are arranged with 4 points per common, which allows grouping of loads and simplifies wiring configurations. - Is this module suitable for inductive loads?
Yes, but external suppression devices such as flyback diodes are strongly recommended to protect against voltage spikes. - What happens if external protection is not used?
Without proper protection, overloads or short circuits can damage the module’s output components, leading to failure. - Can this module be used with AC loads?
No, it is specifically designed for DC output applications and should not be used with AC loads. - What wiring method is used for this module?
It uses screw terminal connections, which provide secure and reliable wiring suitable for industrial environments. - Is the module compatible with all SLC 500 systems?
Yes, it is designed for integration into standard SLC 500 chassis and works with compatible processors. - How should load distribution be managed?
Loads should be evenly distributed across output groups to avoid overheating and ensure stable operation within current limits.
Related Models
| Model | Description |
|---|---|
| 1746-OB8 | 8-Channel DC Output Module |
| 1746-OB16 | 16-Channel DC Output Module |
| 1746-OB32 | 32-Channel DC Output Module |
| 1746-OW8 | 8-Channel Relay Output Module |
| 1746-OA8 | 8-Channel AC Output Module |
| 1746-IB8 | 8-Channel DC Input Module |
Popular Models
| Model | Description |
|---|---|
| 1747-L541 | SLC 5/04 Processor |
| 1747-L552 | SLC 5/05 Ethernet Processor |
| 1746-NI16V | 16-Channel Analog Input Module |
| 1746-NO8I | 8-Channel Analog Output Module |
| 1746-IA16 | 16-Channel AC Input Module |
| 1746-P2 | Power Supply Module |
