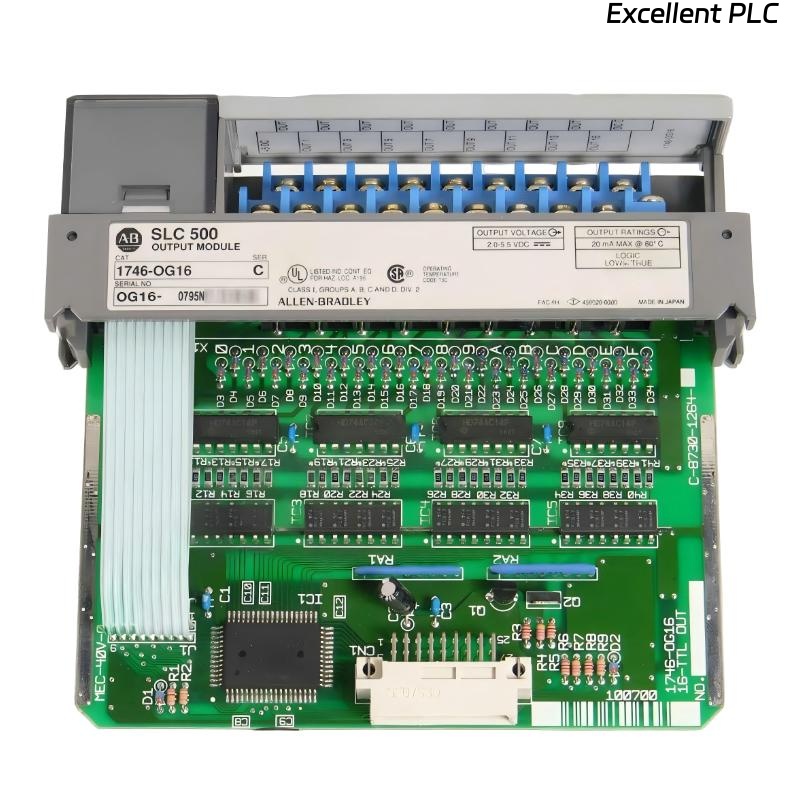

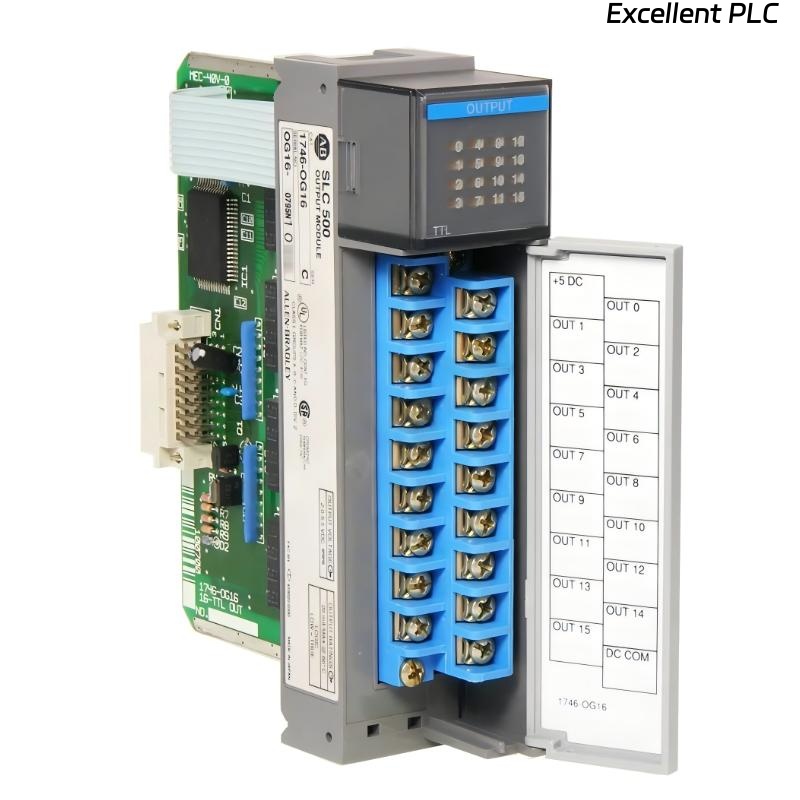

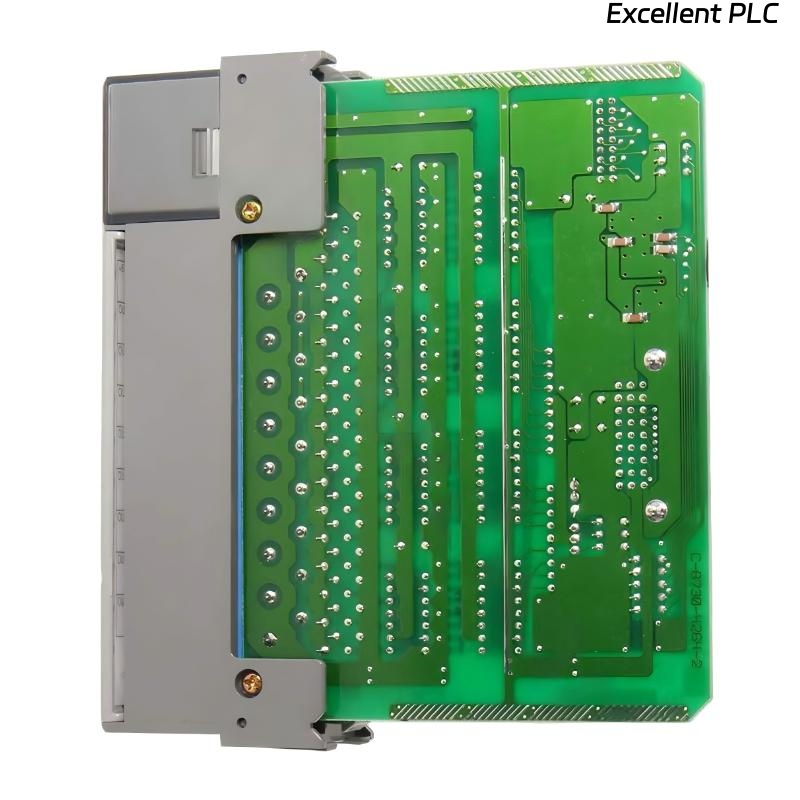

Allen Bradley 1746-OG16 Digital Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1746-OG16 Digital Output Module is a low-voltage digital output module designed for the SLC 500 PLC platform. It provides 16 discrete output points, enabling precise control of logic-level devices and electronic interfaces in industrial automation systems.
This module is optimized for low-current DC output applications, making it suitable for driving electronic inputs, interface circuits, and signal conditioning devices. With its open-style chassis design, the 1746-OG16 integrates directly into SLC 500 racks, ensuring reliable electrical connection and stable system operation.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Digital Output Module |
| Series | SLC 500 |
| Model Number | 1746-OG16 |
| Signal Type | Digital |
| Number of Points | 16 |
| Output Voltage Range | 4.5–5.5 VDC |
| Output Current per Point | 20 mA |
| Output Technology | Solid-state |
| Output Configuration | Individual point control |
| Chassis Type | Open Style Chassis |
| Mounting Method | SLC 500 backplane |
| Isolation | Logic-to-backplane isolation |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.231 kg |
Applications
• Logic-level digital output control for electronic devices and interfaces
• PLC-based automation systems requiring low-voltage DC outputs
• Control panels with high point-density requirements
• Machine automation using Allen Bradley SLC 500 controllers
• Signal interfacing between PLCs and external electronic circuits
• Industrial environments requiring stable and repeatable digital switching
Advantages
• 16-point high-density output design, reducing rack space requirements
• Low-voltage DC operation, ideal for sensitive electronic devices
• Solid-state switching, providing fast response and long-term reliability
• Open-style chassis compatibility, ensuring seamless integration with SLC 500 systems
• Independent point control, allowing flexible and precise output management
• Industrial-grade construction, supporting continuous operation in demanding environments
FAQ
-
What type of output does the 1746-OG16 provide?
It provides low-voltage DC digital outputs suitable for logic-level and electronic loads. -
How are the 16 output points controlled?
Each point is independently controlled by the SLC 500 processor through the backplane. -
What kind of loads are appropriate for this module?
Low-current electronic loads such as control inputs, interface circuits, and signal modules. -
Why is a low-voltage output module used instead of standard DC outputs?
Low-voltage outputs are required for devices that cannot tolerate higher DC voltage levels. -
Does the module use solid-state or mechanical switching?
It uses solid-state switching for fast, reliable, and wear-free operation. -
How does the module maintain output signal stability?
Internal isolation and solid-state components ensure consistent output behavior. -
Can all output points operate at the same time?
Yes, all 16 points can operate simultaneously within electrical specifications. -
How is electrical isolation implemented in this module?
Isolation is provided between the logic circuitry and the backplane to protect the PLC system. -
What role does the open-style chassis play in installation?
It allows secure mechanical mounting and reliable electrical connection within SLC 500 racks. -
Why is this module suitable for high-density control applications?
Its 16-point design delivers multiple outputs in a compact form factor, optimizing rack usage.
Related Models
| Model | Description |
|---|---|
| 1746-OG8 | Low-Voltage Digital Output Module |
| 1746-OB16 | DC Digital Output Module, 16 Points |
| 1746-OC16 | Relay Output Module |
| 1746-IB16 | Digital Input Module |
| 1746-IB32 | High-Density Digital Input Module |
| 1746-NI8 | Analog Input Module |
Popular Models
| Model | Description |
|---|---|
| 1746-OG16 | Low-Voltage Digital Output Module |
| 1746-OB8 | DC Digital Output Module |
| 1746-IB16 | Digital Input Module |
| 1746-NO4I | Analog Output Module |
| 1746-A7 | SLC 500 Chassis |
| 1747-L553 | SLC 500 Processor |
