Product Introduction

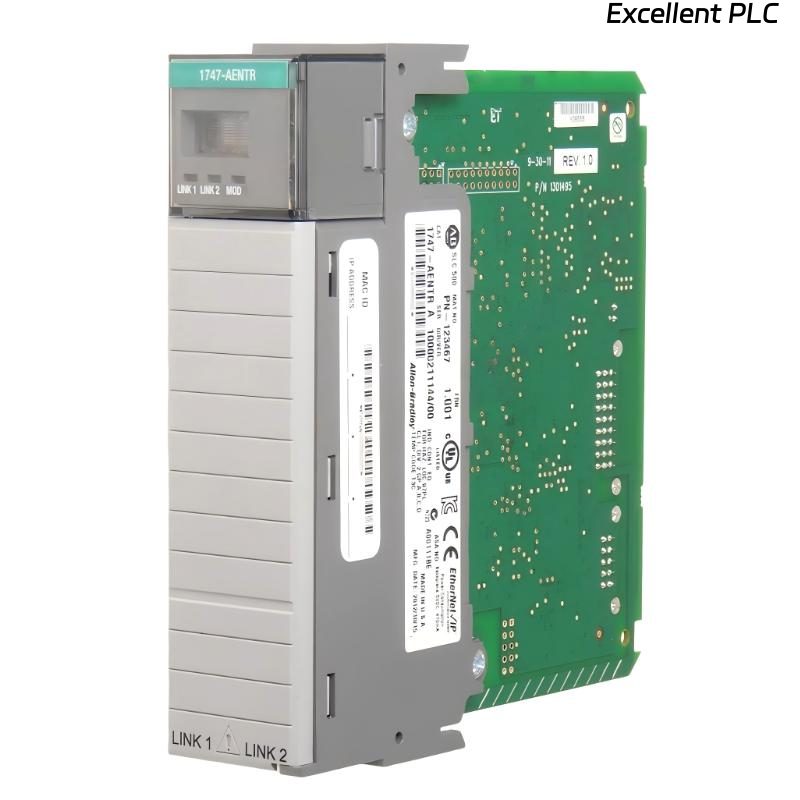

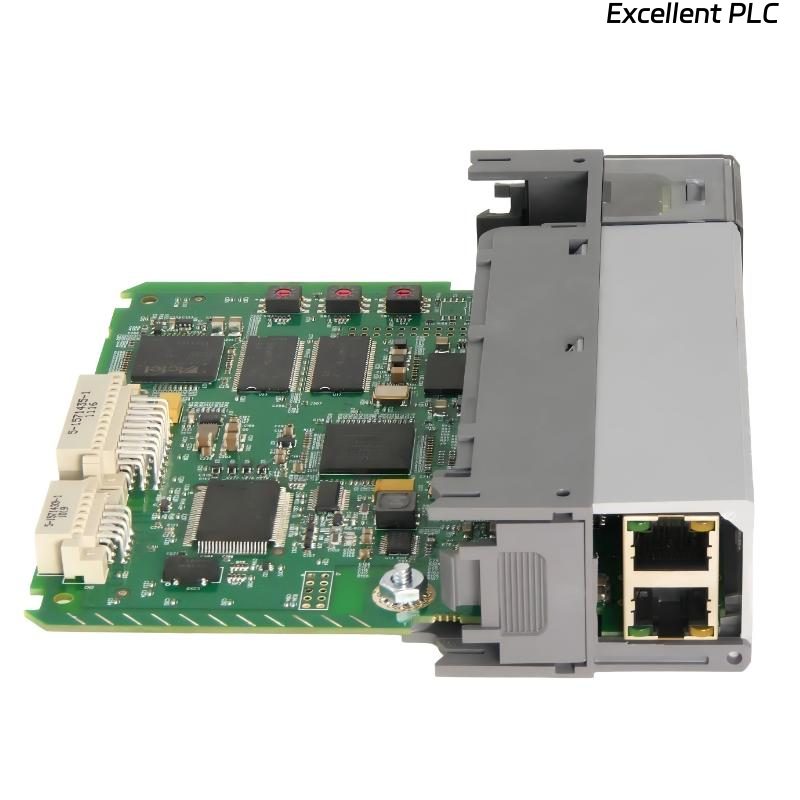

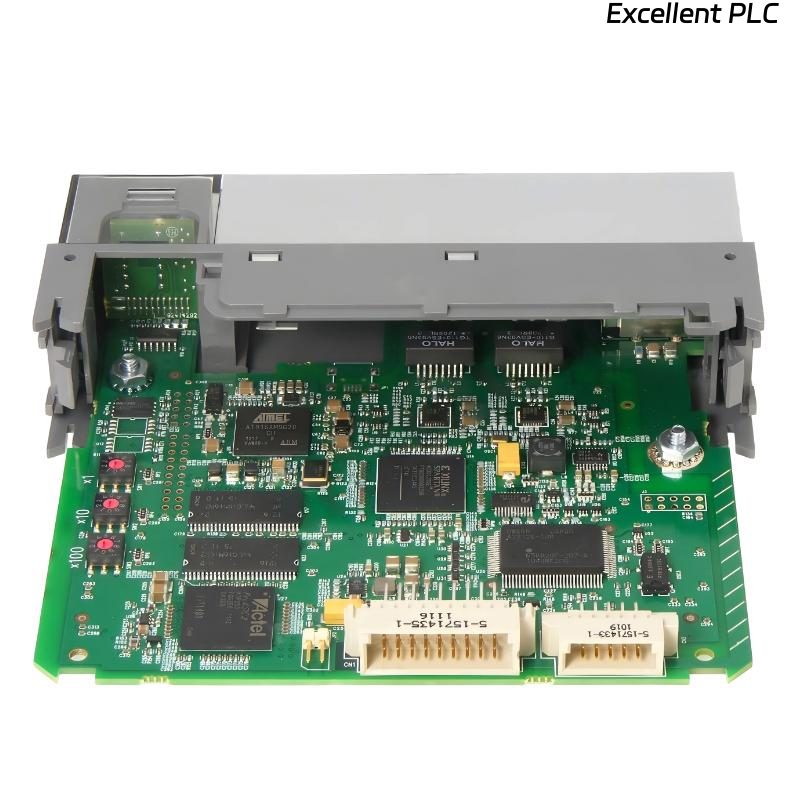

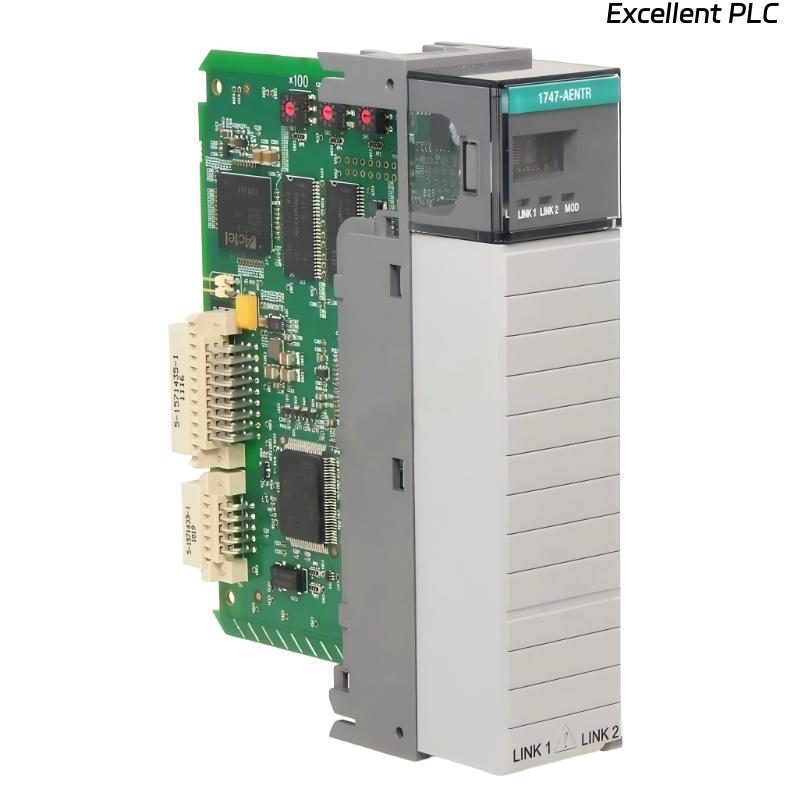

The Allen Bradley 1747-AENTR SLC 500 EtherNet/IP Adapter is a high-performance communication module designed to provide reliable network connectivity for the SLC 500 programmable logic controller series. It enables seamless integration into industrial Ethernet networks, allowing devices to communicate efficiently over EtherNet/IP.
Equipped with dual 10/100 Mbit/s ports, the adapter supports both half- and full-duplex operation, providing flexibility for network topologies. This module ensures rapid and secure data exchange between controllers, I/O modules, and other networked devices, making it ideal for process automation, manufacturing, and distributed control systems. Its compact design and lightweight construction allow easy installation within control cabinets or on DIN rails.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1747-AENTR |
| Product Type | EtherNet/IP Adapter |
| Manufacturer | Allen Bradley |
| Function | Provides network communication for SLC 500 controllers |
| Series | SLC 500 Communication Modules |
| Network Ports | 2 × 10/100 Mbit/s EtherNet Interface (RJ-45) |
| Duplex Support | Half and Full-duplex |
| Operating Environment | Industrial automation, manufacturing, and process control |
| Mounting Type | Panel or DIN rail |
| Signal Role | Enables EtherNet/IP connectivity between devices |
| Communication Protocol | EtherNet/IP |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.28 kg |
Applications
• Industrial Ethernet Networking:
Connects SLC 500 controllers to EtherNet/IP networks for data exchange.
• Manufacturing Automation:
Facilitates real-time communication between controllers, I/O devices, and HMIs.
• Process Control Systems:
Supports distributed control by linking multiple networked devices.
• Data Acquisition and Monitoring:
Transfers operational data efficiently for monitoring and logging.
• Integration with Remote Devices:
Provides network access to remote controllers and modules.
Advantages
• Dual Network Ports:
Allows network redundancy or daisy-chain topologies for increased reliability.
• Flexible Duplex Operation:
Supports half- or full-duplex modes to accommodate various network configurations.
• Compact and Lightweight:
Easily installed within control panels or on DIN rails without occupying excessive space.
• Seamless Integration:
Designed specifically for SLC 500 controllers, ensuring plug-and-play connectivity.
• High-Speed Communication:
Supports 10/100 Mbit/s Ethernet for rapid data transfer.
• Industrial Reliability:
Engineered to perform consistently in demanding industrial environments.
