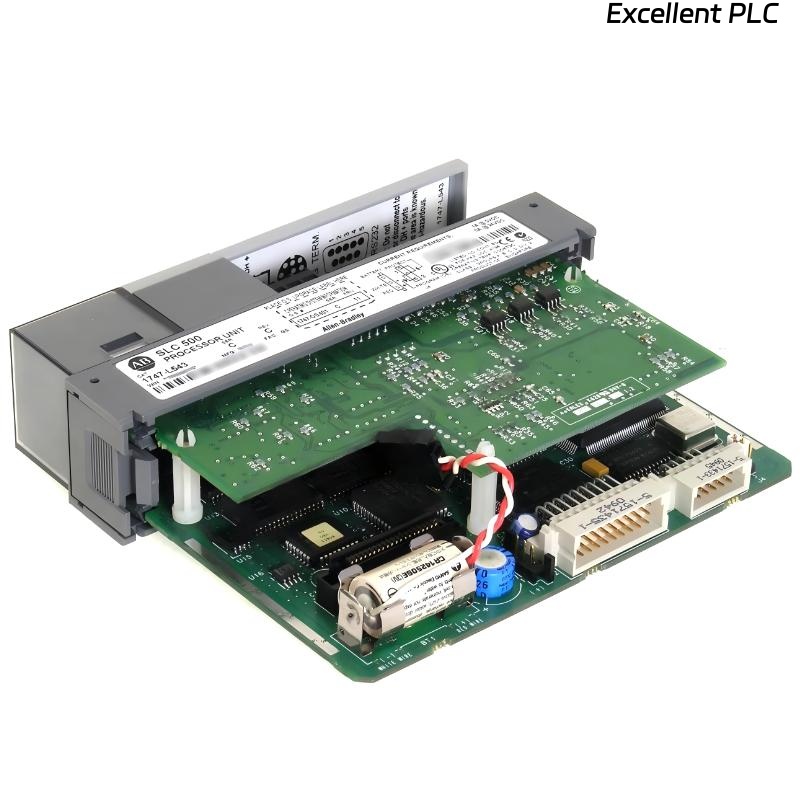

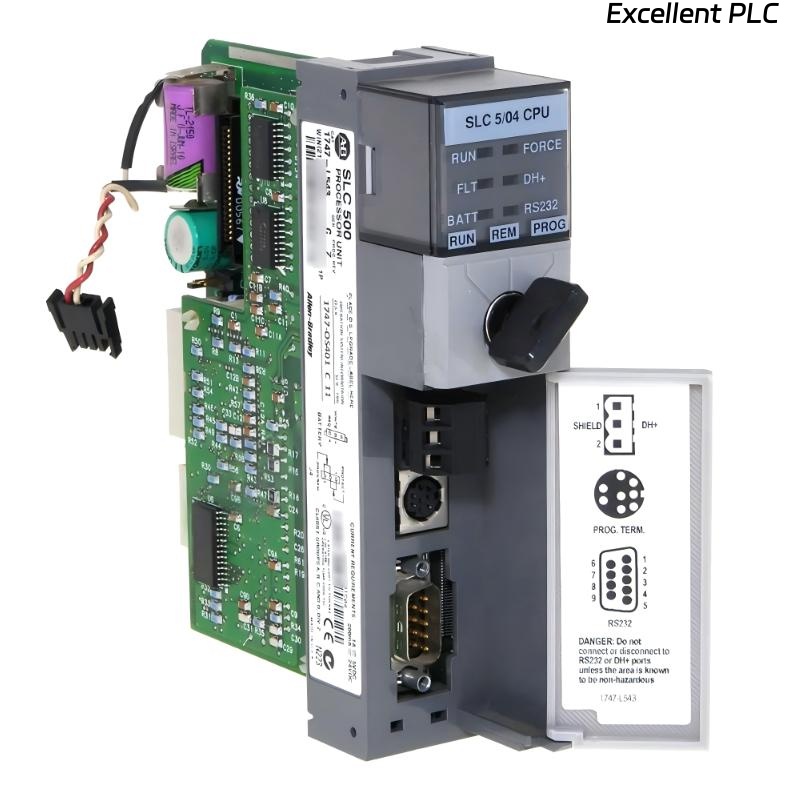

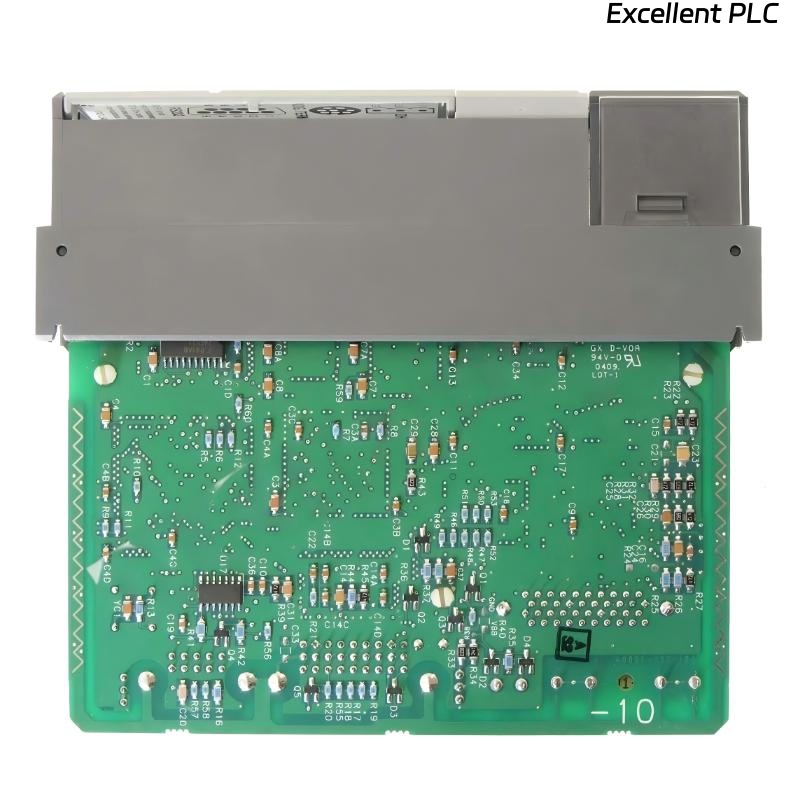

Allen Bradley 1747-L543 CPU Processor Unit Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1747-L543 CPU Processor Unit Module is a high-performance controller designed for the SLC™ 500 automation platform. It serves as the central processing unit of the control system, responsible for executing user logic, managing memory, and coordinating communication between I/O modules and external devices.
Built for industrial environments where reliability, deterministic control, and stable execution are essential, the 1747-L543 provides sufficient processing capacity and memory resources for medium to large-scale control tasks. It supports complex ladder logic programs, structured data handling, and real-time interaction with digital I/O networks.
This processor is widely used in legacy and long-life industrial systems where SLC 500 architecture remains a proven and trusted solution. Its compatibility with RSLogix 500 software makes it straightforward for engineers to configure, troubleshoot, and maintain existing installations.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | CPU Processor Unit |
| Series | SLC 500 |
| User Program Memory | 64 KB |
| Data / Logic Memory | 64K |
| Maximum Digital I/O Capacity | 8192 Digital I/O |
| Programming Software | RSLogix 500 |
| Supply Voltage Range | 5 – 24 VDC |
| Backplane Current Draw | 1000 mA |
| User Supply Current | 200 mA |
| Communication Capability | Backplane-based I/O and module communication |
| Processor Architecture | Dedicated industrial control processor |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.45 kg |
Applications
• Industrial automation control systems where deterministic logic execution and stable cycle times are required
• Manufacturing lines handling discrete processes such as assembly, packaging, and material handling
• Legacy system upgrades that require maintaining compatibility with existing SLC 500 hardware
• Process monitoring systems managing large quantities of digital I/O signals
• Machine control applications where reliable ladder logic execution is critical
• Utility and infrastructure control systems operating continuously with minimal downtime
Advantages
• High I/O handling capability, supporting up to 8192 digital I/O points, suitable for large control architectures
• Stable and proven SLC 500 platform, widely deployed and well understood by automation engineers
• RSLogix 500 compatibility, allowing easy programming, diagnostics, and maintenance
• Robust industrial design, ensuring reliable operation in harsh electrical and environmental conditions
• Efficient memory structure, enabling organized handling of logic, data files, and control routines
• Long service lifecycle, making it ideal for plants that prioritize system continuity and spare part consistency
FAQ
-
What types of control programs can be executed by this CPU?
The processor supports ladder logic programs developed in RSLogix 500, including complex sequencing, interlocking, and conditional logic operations. -
How does the processor manage large digital I/O counts?
The CPU communicates with I/O modules through the SLC 500 backplane, efficiently scanning and updating I/O states within deterministic scan cycles. -
Is the processor suitable for real-time control applications?
Yes, it is designed for deterministic industrial control where predictable scan times and consistent execution are required. -
How is memory allocated within the CPU?
Memory is divided into user program memory and data areas, allowing structured storage of logic instructions, timers, counters, and control registers. -
Can the CPU handle multiple control tasks simultaneously?
The processor executes tasks sequentially within its scan cycle, managing multiple control routines through organized program structures. -
What communication methods are supported internally?
Communication with I/O and special function modules is handled via the SLC 500 backplane architecture. -
Is online program modification supported?
Yes, engineers can monitor and modify logic online using RSLogix 500 while the system is running, subject to application safety considerations. -
How does the CPU handle power interruptions?
Program memory is retained, allowing the controller to resume operation once power is restored, depending on system configuration. -
What diagnostics are available for troubleshooting?
The CPU provides status indicators and software diagnostics through RSLogix 500 for fault detection and system monitoring. -
Can this processor be integrated with existing SLC 500 systems?
Yes, it is fully compatible with other SLC 500 modules and can be used as a direct replacement in existing systems.
Related Models
| Model | Description |
|---|---|
| 1747-L541 | SLC 500 CPU with lower memory capacity |
| 1747-L542 | Mid-range SLC 500 processor |
| 1747-L544 | High-capacity SLC 500 CPU processor |
| 1747-L551 | Advanced SLC 500 processor with enhanced features |
| 1747-L552 | High-performance SLC 500 CPU |
| 1747-L553 | Top-tier SLC 500 processor model |
Popular Models
| Model | Product Type |
|---|---|
| 1746-IB16 | SLC 500 Digital Input Module |
| 1746-OB16 | SLC 500 Digital Output Module |
| 1746-NI4 | SLC 500 Analog Input Module |
| 1746-NO4I | SLC 500 Analog Output Module |
| 1746-P2 | SLC 500 Power Supply Module |
| 1746-A7 | SLC 500 Chassis |
