Product Introduction

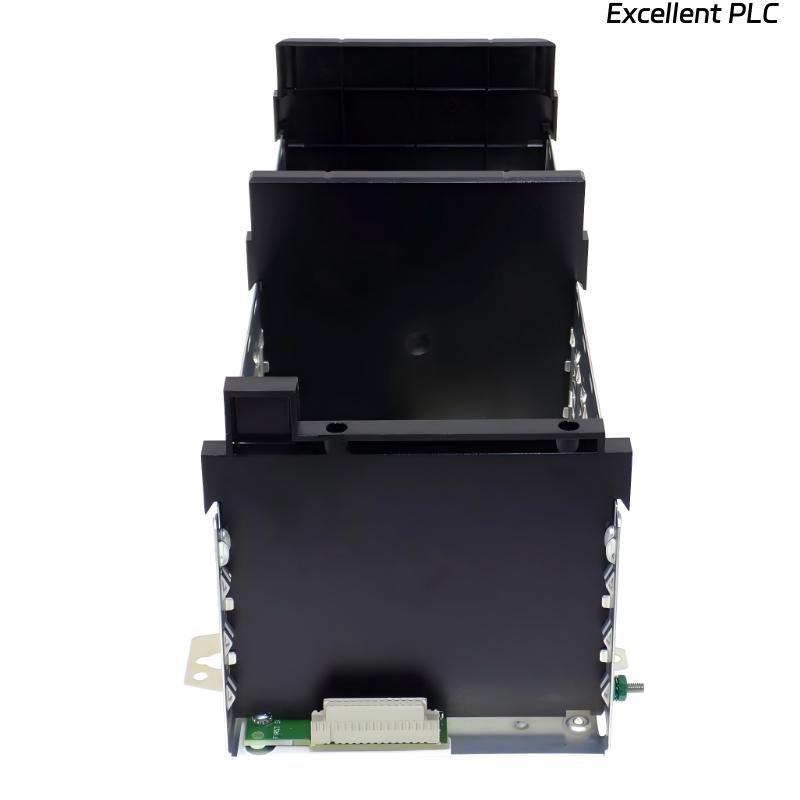

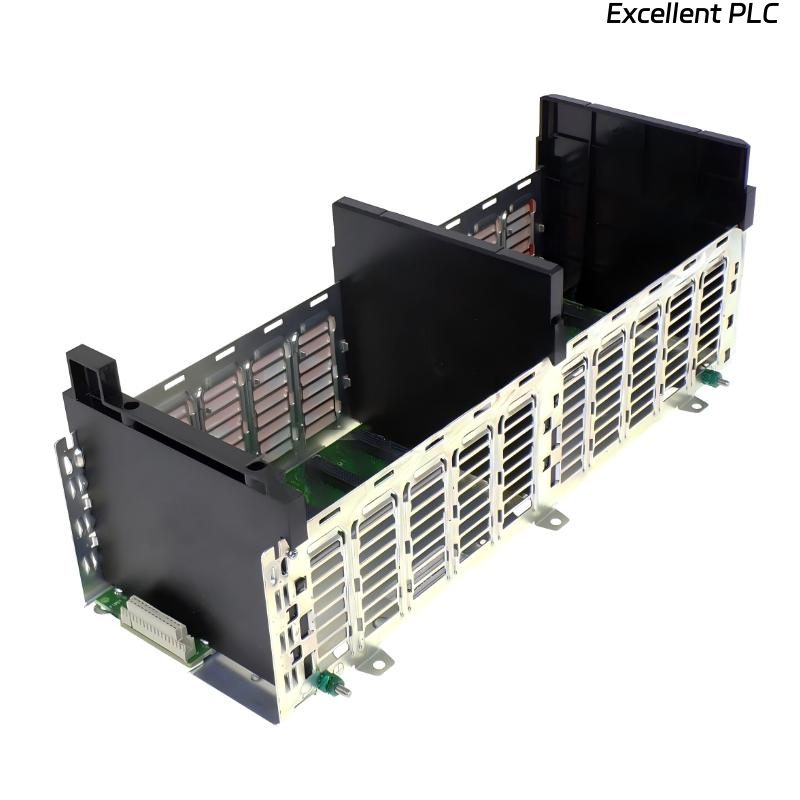

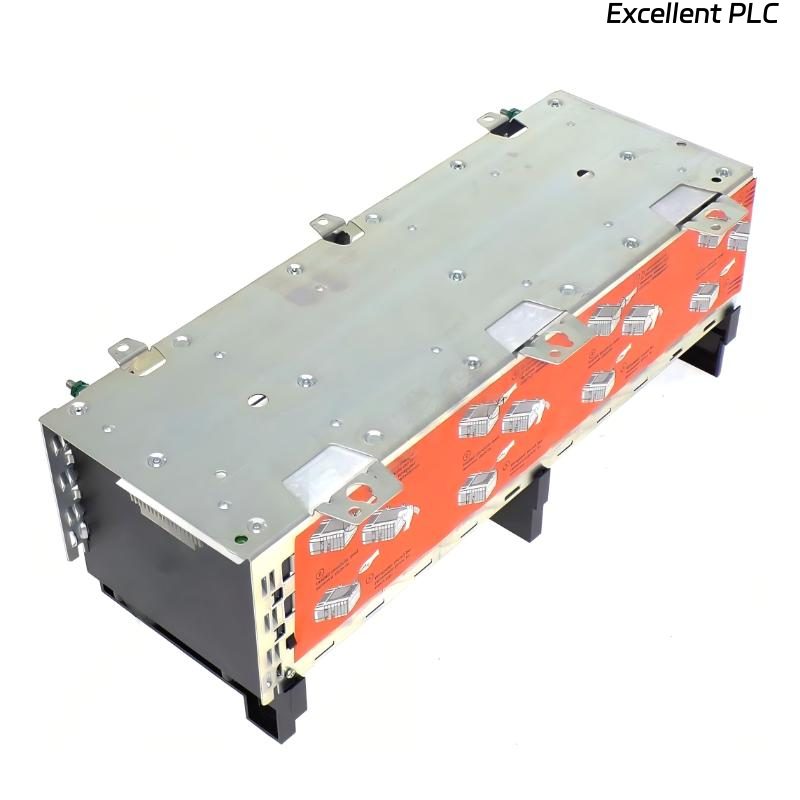

The Allen-Bradley 1756-A10K ControlLogix Chassis is a 10-slot modular chassis designed for ControlLogix automation systems. It serves as the central platform for mounting controllers, communication modules, I/O modules, motion control modules, and other ControlLogix components within a unified architecture.
As part of the ControlLogix family, the 1756-A10K provides a high-performance backplane that enables fast communication between installed modules. Its modular design allows users to build scalable automation solutions that can be easily expanded as application requirements grow.
The chassis is widely used in manufacturing, power generation, water treatment, oil and gas, material handling, and process automation applications where reliability, flexibility, and high-speed data exchange are essential.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1756-A10K |
| Product Type | ControlLogix Chassis |
| Manufacturer | Allen-Bradley |
| Series | ControlLogix |
| Number of Slots | 10 |
| Backplane Current @ 1.2V DC | 1.5 A (Chassis), 1.5 A (Per Slot) |
| Backplane Current @ 3.3V DC | 4 A (Chassis), 4 A (Per Slot) |
| Backplane Current @ 5.1V DC | 15 A (Chassis), 6 A (Per Slot) |
| Backplane Current @ 24V DC | 2.8 A (Chassis), 2.8 A (Per Slot) |
| Power Consumption | 1.8 W |
| Power Dissipation | 6.1 BTU/hr |
| Mounting Type | Panel Mount |
| Application | Industrial Automation Systems |
| Dimensions | 711 × 203 × 508 mm |
| Weight | 1.45 kg |
Applications
• Manufacturing Automation – Hosts controllers, I/O modules, and communication interfaces for production systems.
• Process Control Systems – Supports complex control applications in chemical, petrochemical, and pharmaceutical industries.
• Power Generation Facilities – Provides a reliable platform for plant-wide automation and monitoring.
• Water and Wastewater Treatment – Integrates process control and communication modules.
• Oil & Gas Operations – Supports distributed control and monitoring applications.
• Material Handling Systems – Enables coordination of conveyors, sorters, and automated equipment.
• Packaging Machinery – Provides a scalable platform for machine control systems.
• Mining Operations – Supports rugged industrial automation environments.
• Food & Beverage Processing – Facilitates integrated control and production management.
• Large-Scale Industrial Networks – Serves as the backbone for ControlLogix architectures.
Advantages
• 10-Slot Capacity – Provides ample space for controllers, I/O, and communication modules.
• High-Speed Backplane Communication – Ensures efficient data exchange between installed modules.
• Modular Architecture – Allows easy system expansion and future upgrades.
• Flexible Configuration – Supports a wide range of ControlLogix modules.
• Reliable Industrial Design – Built for demanding industrial environments.
• Reduced System Complexity – Centralizes multiple automation functions within one chassis.
• Easy Maintenance – Simplifies module replacement and system servicing.
• Scalable Platform – Adapts to changing application requirements.
• Seamless Integration – Works with the complete ControlLogix ecosystem.
• Long-Term Operational Stability – Provides dependable performance for critical automation applications.
