Product Introduction

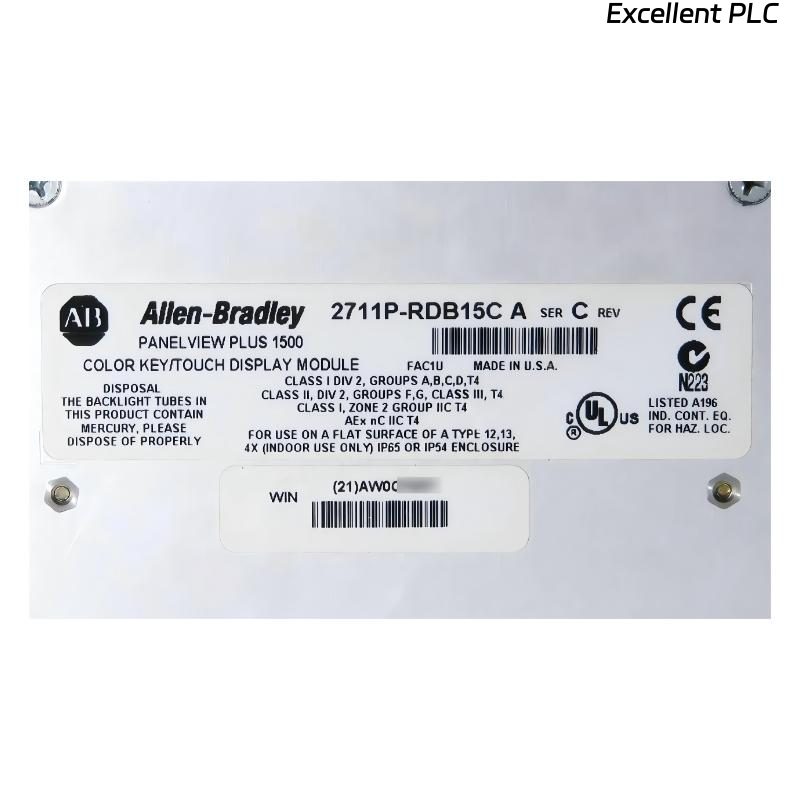

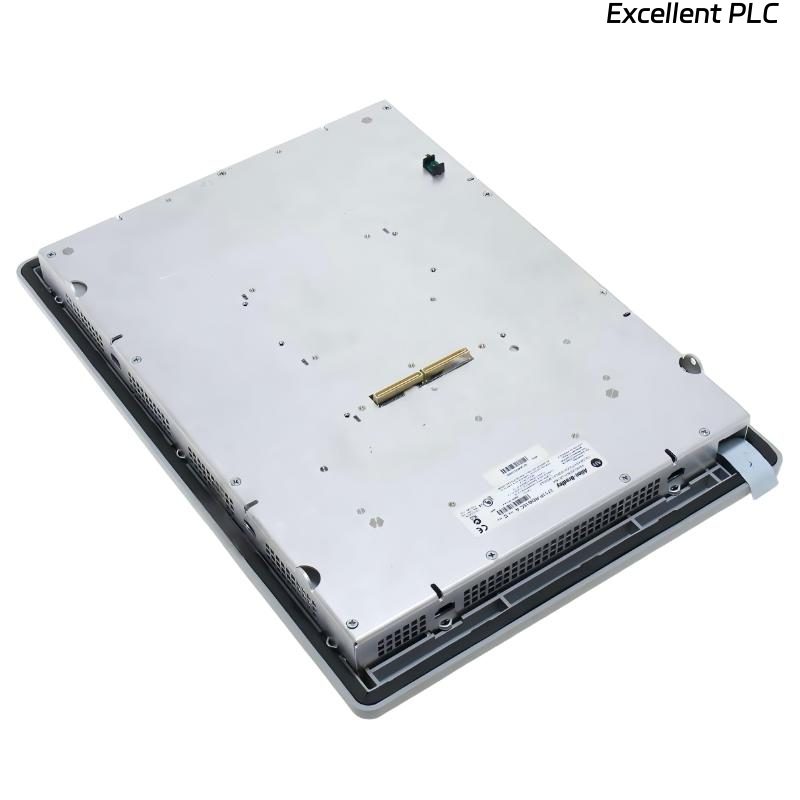

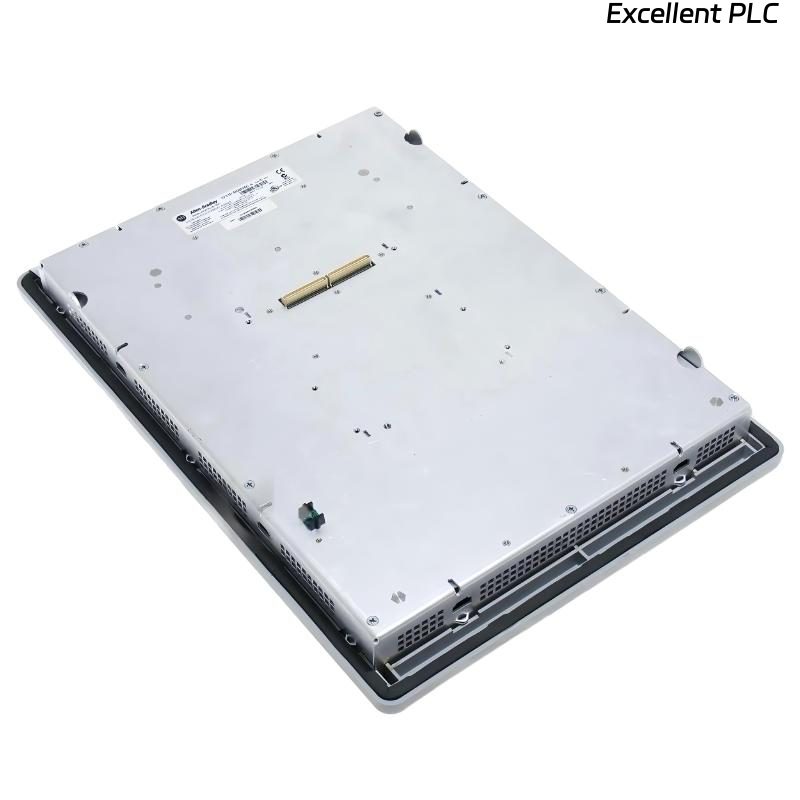

The Allen-Bradley 2711P-RDB15C PanelView Plus 1500 Display Module is a high-performance operator interface designed for use with PanelView Plus 1500 terminals. Featuring a 15-inch color display, touchscreen functionality, and an integrated keypad, this module provides operators with a reliable and intuitive interface for monitoring, controlling, and diagnosing industrial processes.
With a high-resolution display of 1024 × 768 pixels, the 2711P-RDB15C delivers clear visualization of machine status, alarms, trends, and production data. The combination of touchscreen and keypad operation offers flexibility for a wide range of industrial environments and user preferences.
The module is widely used in manufacturing, process control, power generation, water treatment, packaging, and material handling applications where dependable human-machine interaction is critical to efficient operation.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 2711P-RDB15C |
| Product Type | PanelView Plus 1500 Display Module |
| Series | PanelView Plus 1500 |
| Display Size | 15 Inches |
| Display Type | Color TFT Display |
| Resolution | 1024 × 768 Pixels |
| Operator Interface | Touchscreen and Keypad |
| Screen Format | Full-Color Graphic Display |
| Application | Human Machine Interface (HMI) |
| Installation Type | Panel Mount |
| Dimensions | 469 × 65 × 330 mm |
| Weight | 4.6 kg |
Applications
• Manufacturing Automation – Provides operators with real-time machine monitoring and control capabilities.
• Packaging Equipment – Displays production status, alarms, and operating parameters.
• Material Handling Systems – Supports conveyor, sorting, and logistics system visualization.
• Process Control Plants – Enables monitoring and adjustment of critical process variables.
• Water and Wastewater Facilities – Provides operator access to system diagnostics and process information.
• Power Generation Plants – Displays operational data and equipment status information.
• Food & Beverage Processing – Supports production management and machine operation.
• Pharmaceutical Manufacturing – Provides a user-friendly interface for controlled production processes.
• Oil & Gas Facilities – Enables visualization of field equipment and process conditions.
• Industrial Infrastructure Systems – Supports centralized operator interaction and control.
Advantages
• Large 15-Inch Display – Provides excellent visibility for process graphics and operational data.
• High Resolution Graphics – 1024 × 768 resolution delivers clear and detailed visualization.
• Color Display Technology – Improves readability and alarm identification.
• Dual Input Methods – Combines touchscreen operation with a physical keypad for flexibility.
• User-Friendly Interface – Simplifies machine operation and system monitoring.
• Fast Access to Information – Enables quick navigation between screens and functions.
• Improved Operator Efficiency – Enhances productivity through intuitive interaction.
• Industrial-Grade Reliability – Designed for continuous operation in demanding environments.
• Supports Advanced HMI Applications – Handles complex graphical interfaces and process displays.
• Seamless Integration – Compatible with PanelView Plus 1500 systems and Rockwell Automation architectures.
