Product Introduction

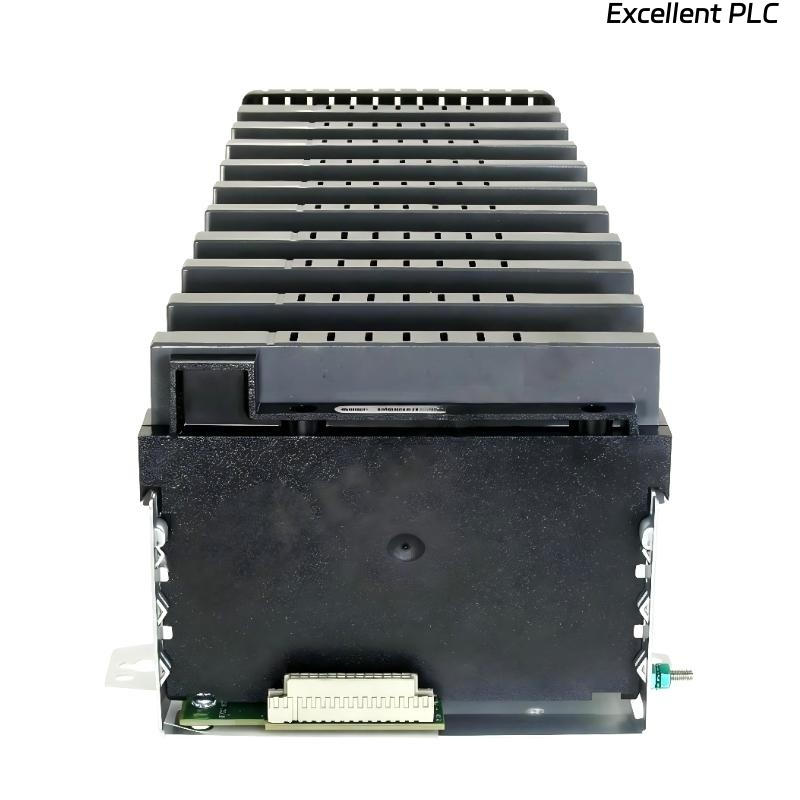

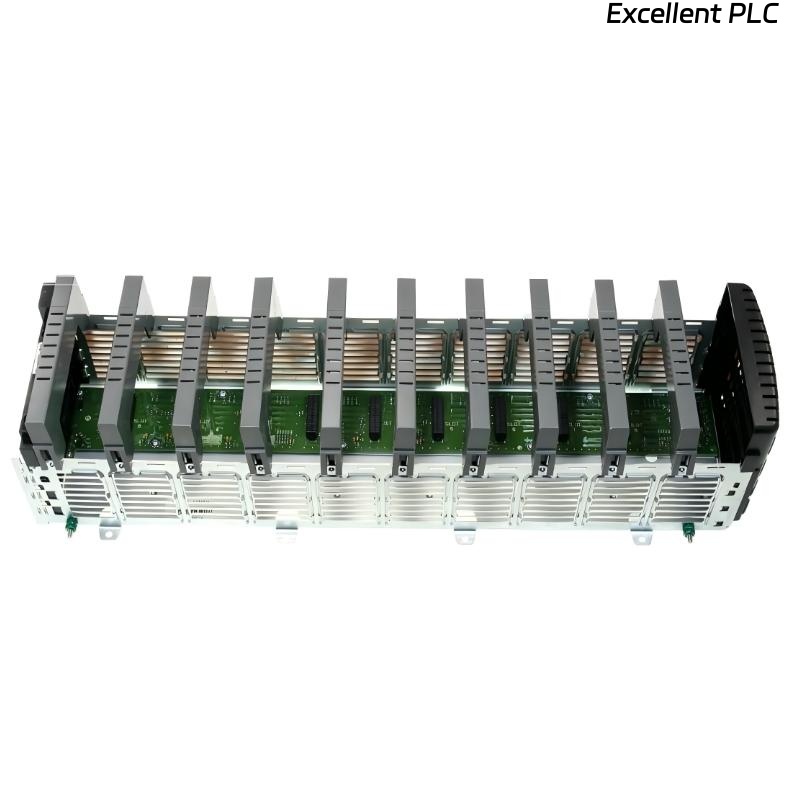

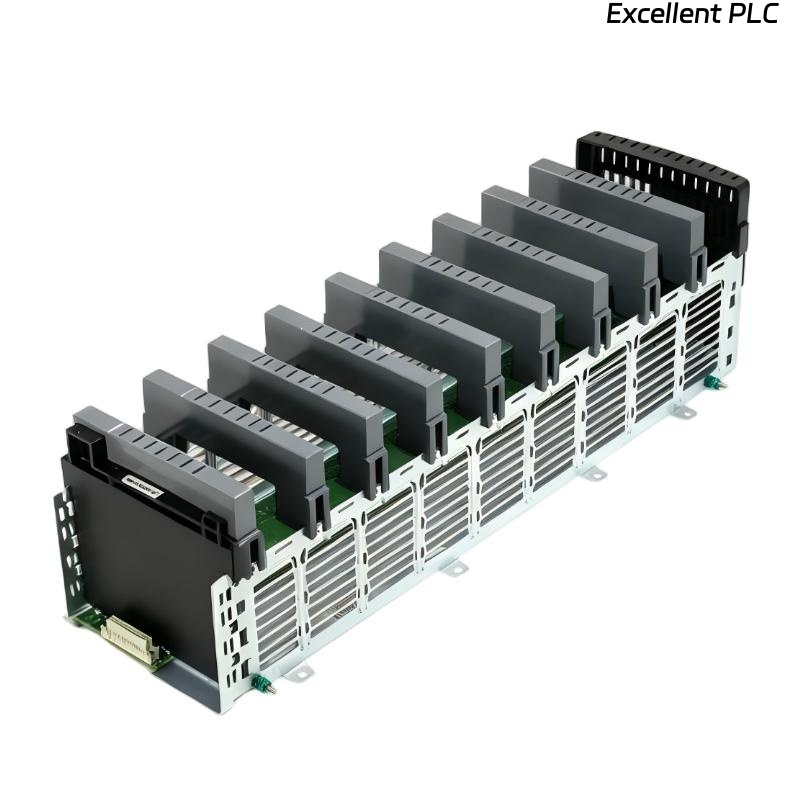

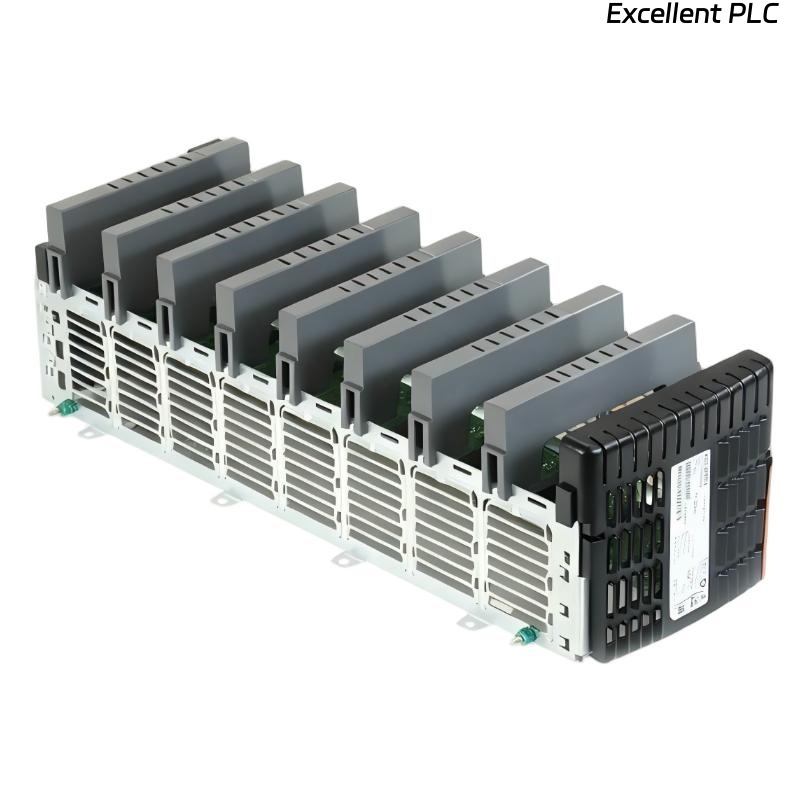

The Allen Bradley 1756-A10XT ControlLogix Chassis is a rugged and high-reliability 10-slot chassis designed for the ControlLogix platform, specifically engineered to operate in extreme environmental conditions. As part of the XT (Extended Temperature) series, this chassis is built to maintain stable system performance in applications where temperature fluctuations and harsh surroundings are a concern.
With support for up to 10 ControlLogix modules, the chassis provides flexible system configuration for complex automation tasks. Its extended operating temperature range from -25°C to 70°C (-13°F to 158°F) makes it suitable for outdoor installations and industrial environments with extreme conditions.
The chassis uses convection cooling, eliminating the need for fans and reducing maintenance requirements while improving reliability. Its robust construction ensures long-term durability and stable operation in demanding applications.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 1756-A10XT |
| Series | ControlLogix XT Chassis |
| Number of Slots | 10 Slots |
| Temperature Range | -25 to 70°C (-13 to 158°F) |
| Cooling Method | Convection Cooling |
| Mounting Type | Rack Mount |
| Design Type | Extended Temperature (XT) |
| Dimensions | 864 × 203 × 508 mm |
| Weight | 1.91 kg |
Applications
● Outdoor Industrial Installations
Extended temperature capability ensures reliable operation in extreme climates.
● Oil and Gas Industry
Rugged design supports harsh and remote environments.
● Mining Operations
Stable performance under extreme conditions enhances system reliability.
● Power Generation Facilities
Wide temperature tolerance ensures continuous operation in critical systems.
● Heavy Manufacturing
Flexible module capacity supports complex automation systems.
Advantages
● Extended Temperature Range
-25°C to 70°C operation allows deployment in harsh environments.
● Fanless Cooling Design
Convection cooling reduces maintenance and increases reliability.
● High Capacity
10-slot configuration supports scalable ControlLogix systems.
● Robust Construction
Designed for long-term durability in industrial conditions.
● Flexible Integration
Compatible with a wide range of ControlLogix modules.
● Low Maintenance Requirements
No moving parts in cooling system minimizes failure points.
