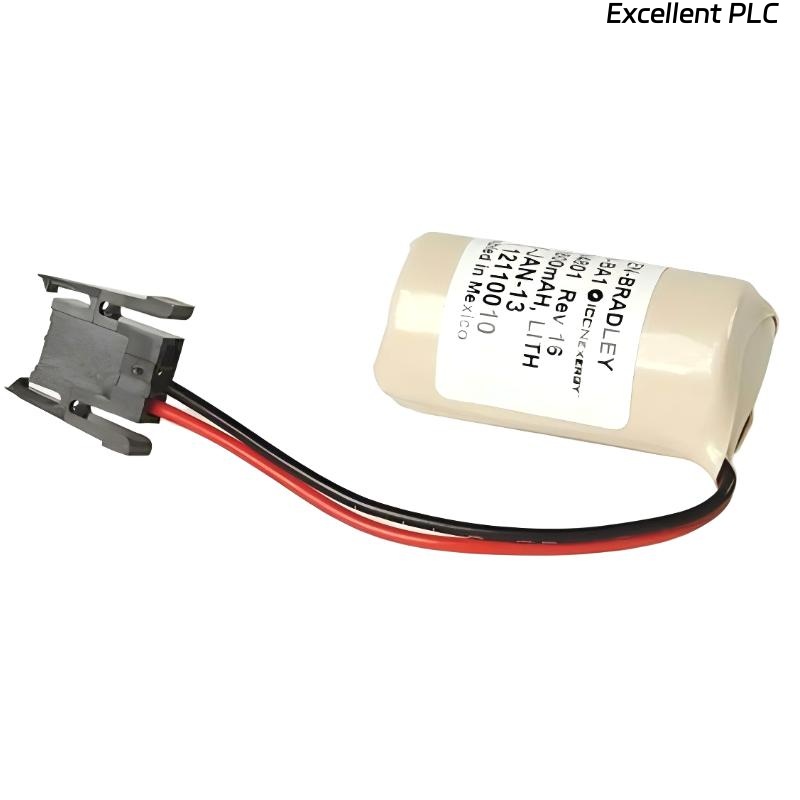

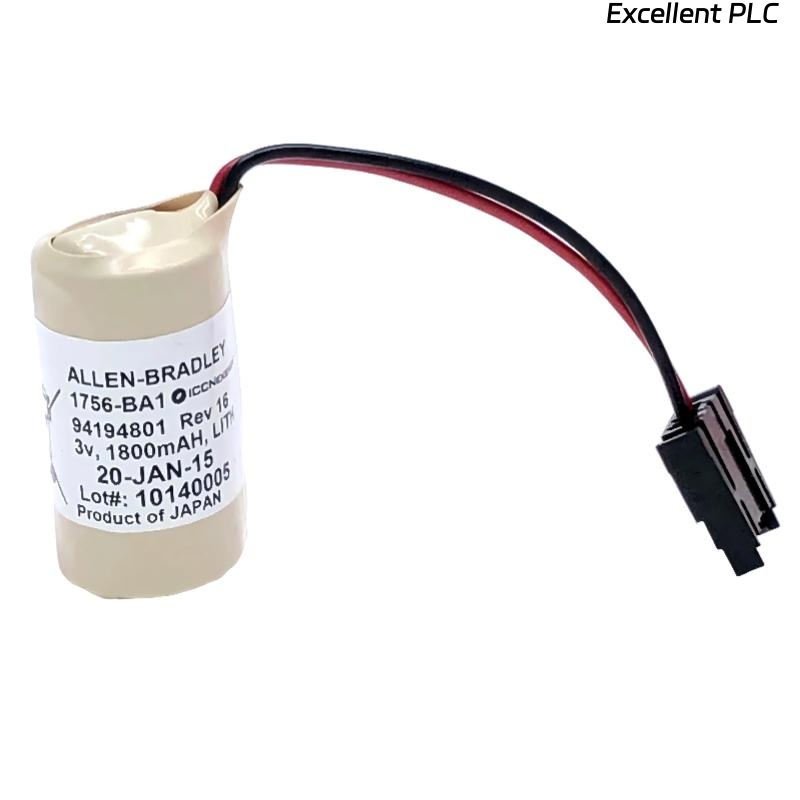

Allen Bradley 1756-BA1 ControlLogix Lithium Battery
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-BA1 is a ControlLogix lithium backup battery designed to maintain critical memory and system data in ControlLogix controllers during power loss or system shutdown. It plays a vital role in ensuring data retention for controller memory, configuration parameters, and runtime information, helping prevent data corruption and unexpected system behavior.
Designed specifically for ControlLogix platforms, the 1756-BA1 battery offers stable voltage output, reliable capacity, and industrial-grade temperature performance, making it suitable for continuous operation in demanding automation environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Lithium Backup Battery |
| Battery Chemistry | Lithium |
| Nominal Voltage | 3 VDC |
| Capacity | 1800 mAh |
| Power Function | Memory and data backup |
| Operating Temperature | 0 to 60 °C |
| Installation Type | Controller-mounted battery |
| Compatibility | ControlLogix controllers |
| Industrial Rating | Designed for industrial automation use |
| Dimensions | 35 × 17 × 10 mm |
| Weight | 0.01 kg |
Applications
• Used for retaining controller memory and configuration data during power outages
• Suitable for ControlLogix PLC systems requiring reliable non-volatile memory support
• Applied in continuous-process and discrete-manufacturing systems where data integrity is critical
• Commonly installed in automation systems with frequent power cycling or backup requirements
• Ideal for mission-critical control applications where unexpected data loss is unacceptable
Advantages
• Stable 3 VDC output ensures reliable memory retention
• 1800 mAh capacity supports extended data backup duration
• Compact and lightweight design simplifies installation and replacement
• Wide industrial operating temperature range supports reliable field operation
• Native compatibility with ControlLogix controllers ensures seamless integration
• Designed for consistent long-term performance in industrial environments
FAQ
-
What is the primary function of the 1756-BA1 battery?
It provides backup power to retain controller memory and configuration data when main power is lost. -
Which ControlLogix devices use this battery?
It is used in compatible ControlLogix controllers that require external lithium battery backup. -
Does the battery power the controller during outages?
No, it only maintains memory and data; it does not power I/O or CPU operation. -
How does nominal voltage affect controller memory?
A stable 3 VDC output ensures memory contents remain intact during power interruptions. -
Can the battery be replaced while the controller is powered?
Yes, replacement can typically be performed while the system is powered to avoid data loss. -
Is the battery rechargeable?
No, it is a non-rechargeable lithium battery designed for long-term backup use. -
Does temperature affect battery performance?
Yes, operating within the specified 0–60 °C range ensures reliable performance and capacity retention. -
What happens if the battery voltage drops too low?
Controller memory retention may be compromised, making timely replacement important. -
Is special configuration required after battery replacement?
No, normal operation resumes automatically if replacement is performed correctly. -
Why is an original ControlLogix battery recommended?
Using a compatible battery ensures correct voltage, capacity, and safe operation within the controller design.
Related Models
| Model | Description |
|---|---|
| 1756-BA2 | ControlLogix lithium backup battery |
| 1769-BA | CompactLogix lithium battery |
| 1756-L61 | ControlLogix controller |
| 1756-L71 | ControlLogix controller |
| 1756-L81E | High-performance ControlLogix controller |
| 1756-L83E | Advanced ControlLogix controller |
Popular Models
| Model | Description |
|---|---|
| 1756-L81E | ControlLogix high-performance controller |
| 1756-L83E | Advanced ControlLogix controller |
| 1756-EN2TR | EtherNet/IP communication module |
| 1756-A7 | 7-slot ControlLogix chassis |
| 1756-PA75 | ControlLogix AC power supply |
| 1756-IF16 | 16-channel analog input module |
