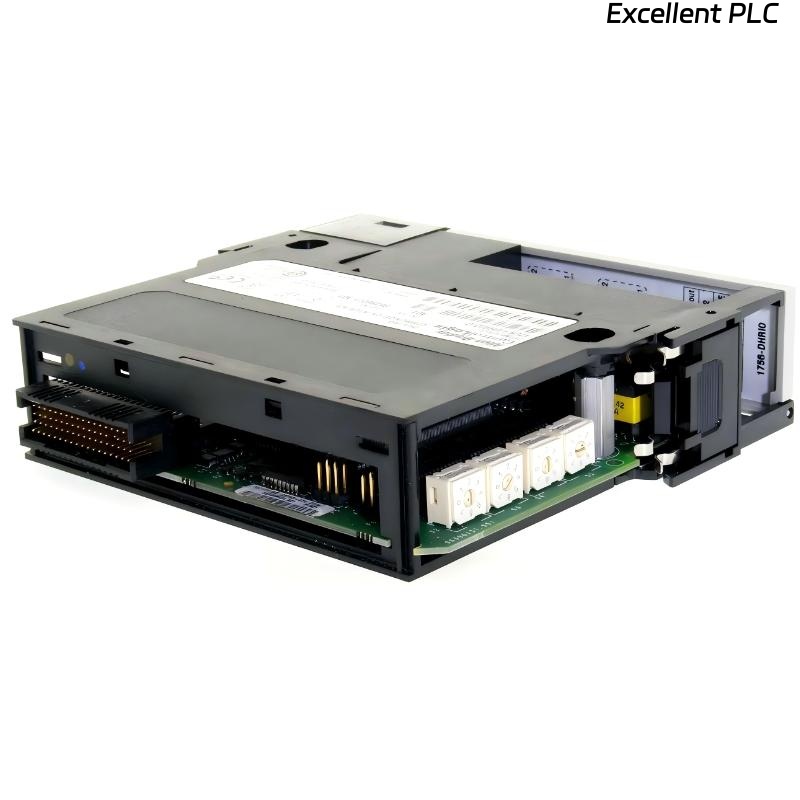

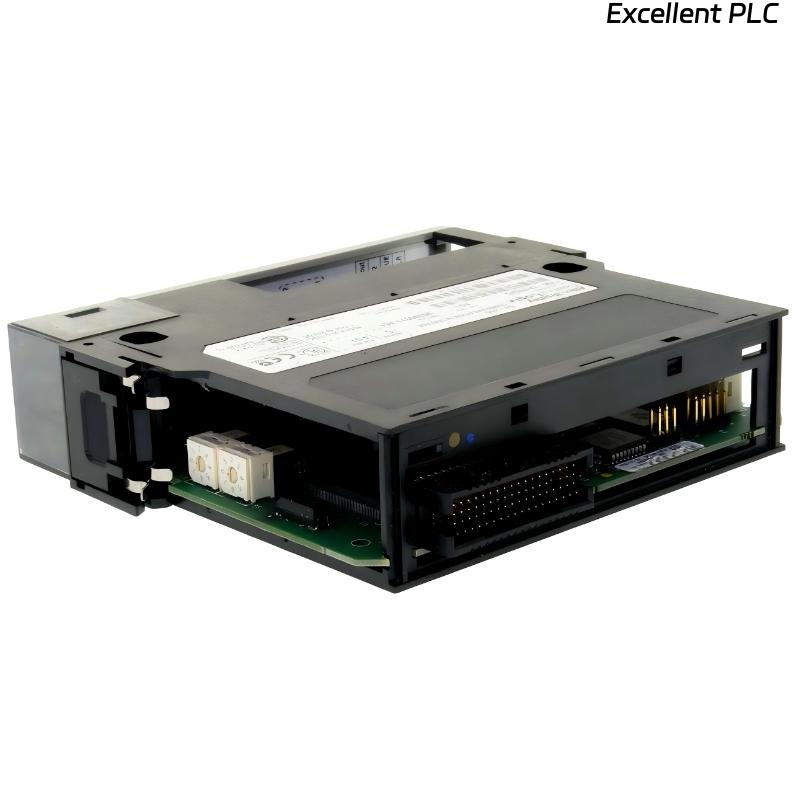

Allen Bradley 1756-DHRIO/C ControlLogix Remote I/O Communication Interface Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-DHRIO/C is a ControlLogix Remote I/O (RIO) communication interface module with dual-channel capability, designed for high-reliability data transfer between a ControlLogix chassis and remote I/O devices. This module provides redundant or parallel communication paths, ensuring deterministic real-time communication for distributed industrial automation systems.
The 1756-DHRIO/C is ideal for mission-critical applications where network uptime, reliability, and fast response are essential, such as in process control, manufacturing automation, and large-scale distributed control systems.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | ControlLogix Remote I/O Communication Interface Module |
| Channels | 2 (supports redundancy or parallel operation) |
| Backplane Current | 850 mA @ 24 VDC |
| Module Function | Dual-channel remote I/O communication |
| System Compatibility | ControlLogix chassis and controllers |
| Industrial Rating | Designed for high-availability industrial networks |
| Power Dissipation (Max) | 4.5 W |
| Thermal Dissipation (Max) | 15.4 BTU/hr |
| Operating Temperature | 0 to 60 °C |
| Enclosure Type Rating | Open-style |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.272 kg |
Applications
• Provides dual-channel Remote I/O communication for ControlLogix systems
• Ensures deterministic, high-speed data transfer between controllers and remote I/O
• Applied in distributed control systems, manufacturing, and process automation
• Supports redundant or parallel communication paths to increase network reliability
• Ideal for mission-critical systems requiring continuous operation and data integrity
Advantages
• Dual-channel design allows redundancy or parallel operation for improved reliability
• High backplane current support (850 mA @ 24 VDC) ensures stable operation of connected I/O modules
• Deterministic communication guarantees timely and accurate data exchange
• Compact module design simplifies installation in ControlLogix chassis
• Open-style mounting supports flexible industrial panel installation
• Designed for robust performance in distributed and critical automation networks
FAQ
-
What is the primary function of the 1756-DHRIO/C module?
It provides dual-channel Remote I/O communication between a ControlLogix chassis and remote I/O devices. -
How does the dual-channel capability improve reliability?
It allows redundancy or parallel communication paths, ensuring continuous operation if one channel fails. -
Can the module handle deterministic communication?
Yes, it ensures real-time, reliable communication for industrial automation networks. -
What types of systems use this module?
It is used in distributed control systems, manufacturing automation, and process control applications. -
Does the module support multiple remote I/O devices?
Yes, it interfaces with multiple remote I/O nodes within a ControlLogix network. -
How is the module powered?
It draws 850 mA from a 24 VDC backplane supply. -
Is it compatible with standard ControlLogix chassis?
Yes, it integrates seamlessly with ControlLogix controllers and chassis. -
Can it be used in open-style industrial panels?
Yes, the module supports open-style mounting. -
Does it generate significant heat?
No, maximum power dissipation is 4.5 W, with thermal dissipation of 15.4 BTU/hr. -
What are the advantages of using a DHRIO/C module?
It provides high-speed, redundant, and deterministic communication for distributed ControlLogix networks.
Related Models
| Model | Description |
|---|---|
| 1756-DHRIO | Dual-channel ControlLogix Remote I/O interface module |
| 1756-DHRIO/E | Enhanced version with improved reliability |
| 1756-DHRIO-R | Redundant ControlLogix Remote I/O module |
| 1756-DHRIO-H | High-speed Remote I/O communication module |
| 1756-DHRIO-L | Low-power Remote I/O module |
| 1756-DHRIO-X | Extended connectivity Remote I/O module |
Popular Models
| Model | Description |
|---|---|
| 1756-L81E | ControlLogix high-performance controller |
| 1756-L83E | Advanced ControlLogix controller |
| 1756-PA75 | ControlLogix AC power supply |
| 1756-A13 | 13-slot ControlLogix chassis |
| 1756-IF16 | 16-channel analog input module |
| 1756-OB16I | 16-channel DC isolated output module |
