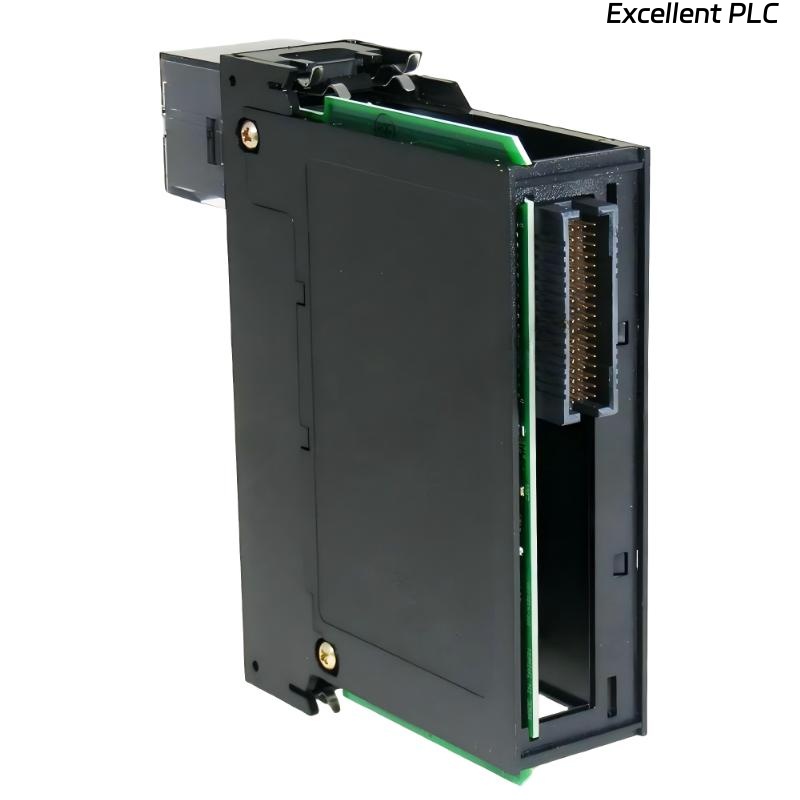

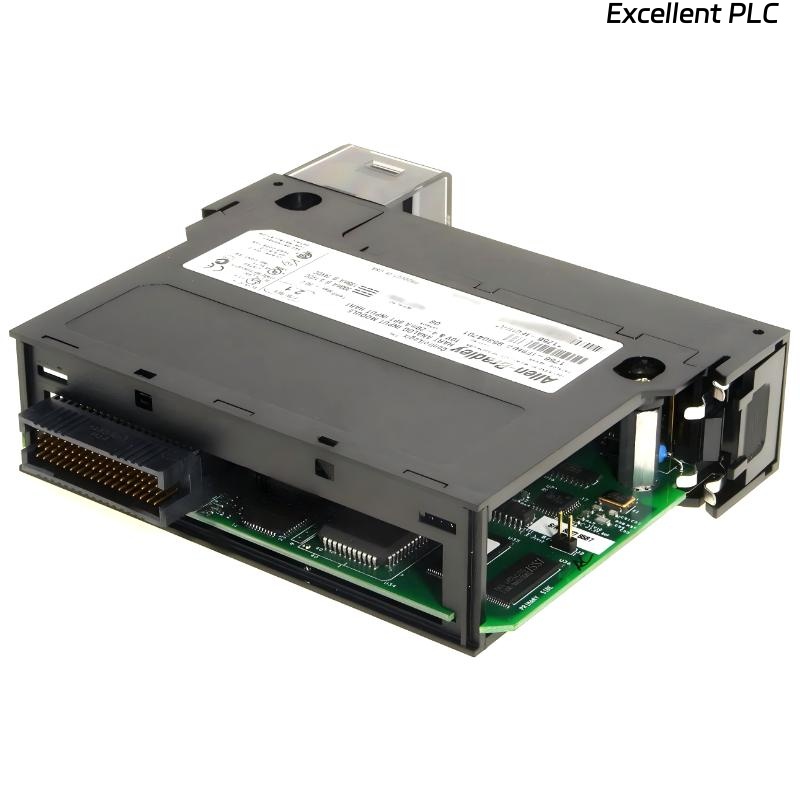

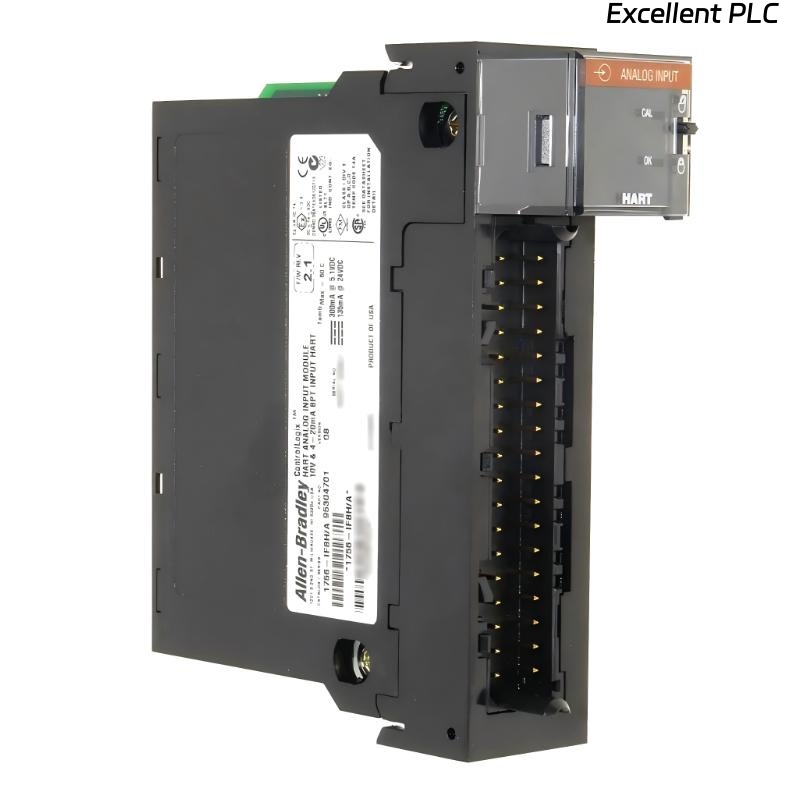

Allen Bradley 1756-IF8H ControlLogix HART Analog Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-IF8H ControlLogix HART Analog Input Module is a high-accuracy analog input module designed for ControlLogix automation platforms that require advanced process measurement combined with HART digital communication. It provides 8 differential analog input channels, enabling reliable acquisition of process signals while supporting smart field device interaction.
With a selectable resolution range of 16 to 21 bits, the module delivers precise and stable analog measurements suitable for demanding industrial environments. The integrated HART protocol support allows users to access device diagnostics, configuration parameters, and status information without interrupting the analog signal path.
The 1756-IF8H is ideal for applications that require high signal integrity, enhanced diagnostics, and efficient asset management, making it a strong choice for modern process automation and control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 1756-IF8H |
| Series | ControlLogix |
| Type | HART Analog Input Module |
| Channels | 8 differential inputs |
| Supported Protocol | HART |
| Resolution | 16–21 bits |
| Backplane Current (5.1 VDC) | 300 mA |
| Backplane Current (24 VDC) | 70–135 mA |
| Power Dissipation (Max) | 3.21–4.01 W |
| Thermal Dissipation | 13.7 BTU/hr |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.14 kg |
Applications
• Process Control Systems: Acquires accurate analog signals from HART-enabled transmitters used in flow, pressure, level, and temperature measurement.
• Smart Instrument Integration: Enables digital communication with field devices for configuration and diagnostics while maintaining continuous analog input.
• Distributed Control Architectures: Integrates seamlessly into ControlLogix-based DCS environments for centralized monitoring and control.
• Asset Management Solutions: Supports remote device status monitoring and parameter access, reducing maintenance time.
• High-Accuracy Measurement Applications: Suitable for processes requiring fine resolution and stable signal acquisition.
Advantages
• HART Communication Capability: Allows simultaneous analog measurement and digital device communication on the same channel.
• High Resolution Performance: Provides 16–21 bit resolution for precise and repeatable process measurements.
• Differential Input Design: Enhances noise immunity and signal stability in electrically noisy environments.
• Optimized Power Usage: Balanced backplane current and power dissipation support reliable system operation.
• Improved Maintenance Efficiency: HART diagnostics enable faster troubleshooting and reduced downtime.
• Native ControlLogix Compatibility: Designed specifically for ControlLogix chassis and backplane systems.
FAQ
-
How many analog input channels does the 1756-IF8H provide?
It provides 8 differential analog input channels, suitable for high-accuracy process measurements. -
Does the module support HART communication?
Yes, it supports the HART protocol, enabling digital communication with compatible field devices. -
What resolution is available on this module?
The resolution is configurable between 16 and 21 bits, depending on application requirements. -
What is the backplane current consumption?
The module draws 300 mA at 5.1 VDC and 70–135 mA at 24 VDC from the ControlLogix backplane. -
Is the module suitable for noisy industrial environments?
Yes, the differential input architecture provides strong resistance to electrical noise and interference. -
Can HART data and analog data be accessed simultaneously?
Yes, analog signal acquisition and HART digital communication operate simultaneously. -
What is the maximum power dissipation?
Maximum power dissipation ranges from 3.21 to 4.01 W, depending on operating conditions. -
Does the module support asset management systems?
Yes, HART functionality enables integration with asset management and diagnostic software tools. -
Is it compatible with standard ControlLogix systems?
Yes, it is fully compatible with ControlLogix chassis, racks, and controllers. -
What applications benefit most from this module?
Applications requiring high accuracy, smart device diagnostics, and reliable process monitoring benefit the most.
Related Models
| Model | Description |
|---|---|
| 1756-IF8 | Standard ControlLogix Analog Input Module |
| 1756-IF8I | ControlLogix Isolated Analog Input Module, 8 channels |
| 1756-IF6I | ControlLogix Isolated Analog Input Module, 6 channels |
| 1756-IF6CIS | Isolated Current Sourcing Analog Input Module |
| 1756-IF16I | ControlLogix Isolated Analog Input Module, 16 channels |
| 1756-IF4 | ControlLogix Analog Input Module, 4 channels |
Popular Models
| Model | Description |
|---|---|
| 1756-IF8H | Current model, 8-channel HART analog input module |
| 1756-IF8 | 8-channel standard analog input module |
| 1756-IF8I | 8-channel isolated analog input module |
| 1756-IF6I | 6-channel isolated analog input module |
| 1756-IF6CIS | 6-channel isolated current input module |
| 1756-IF16I | 16-channel isolated analog input module |
