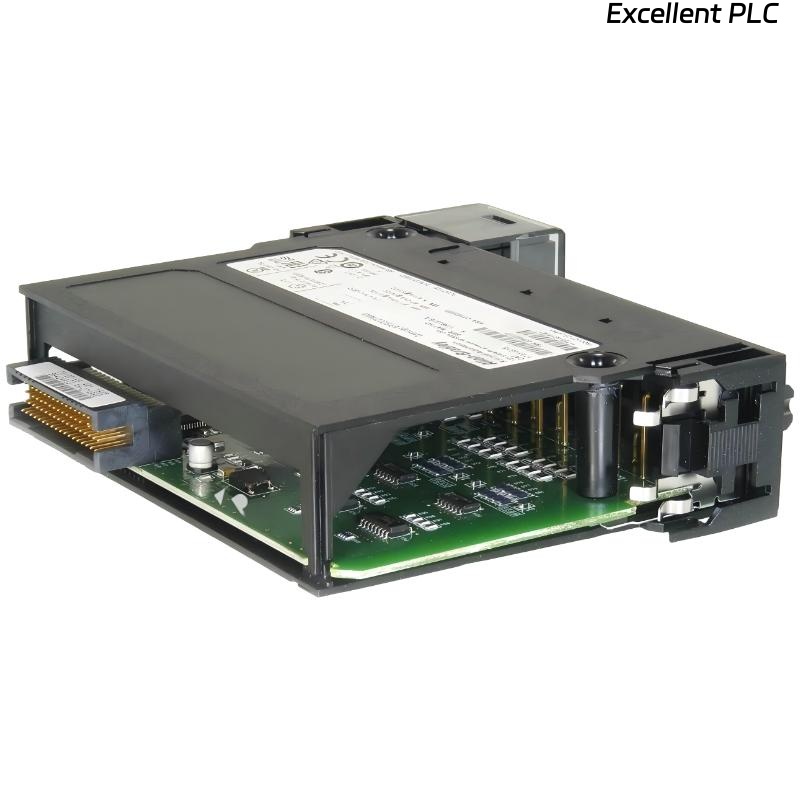

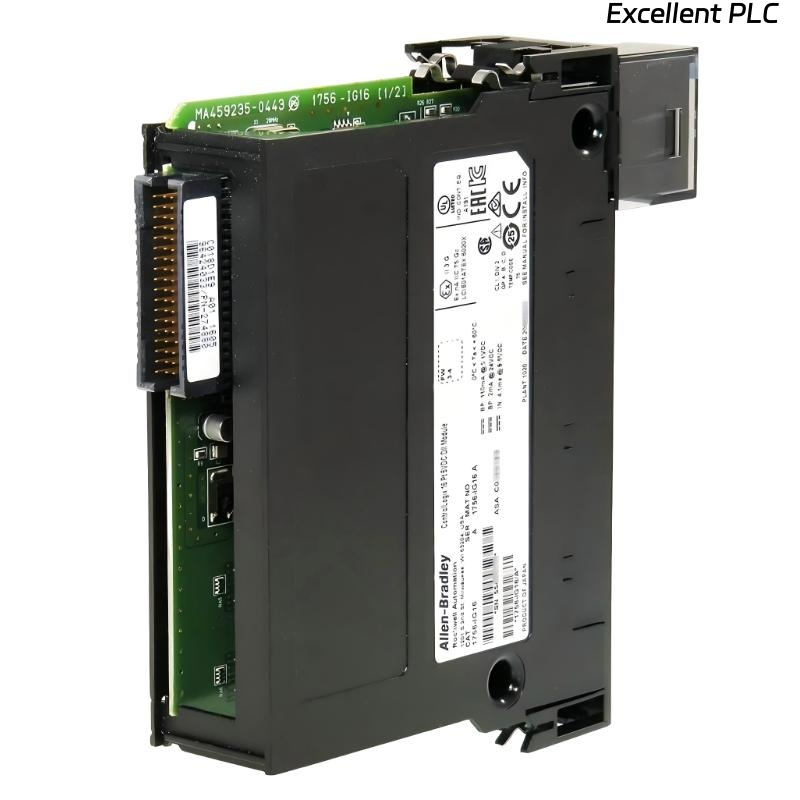

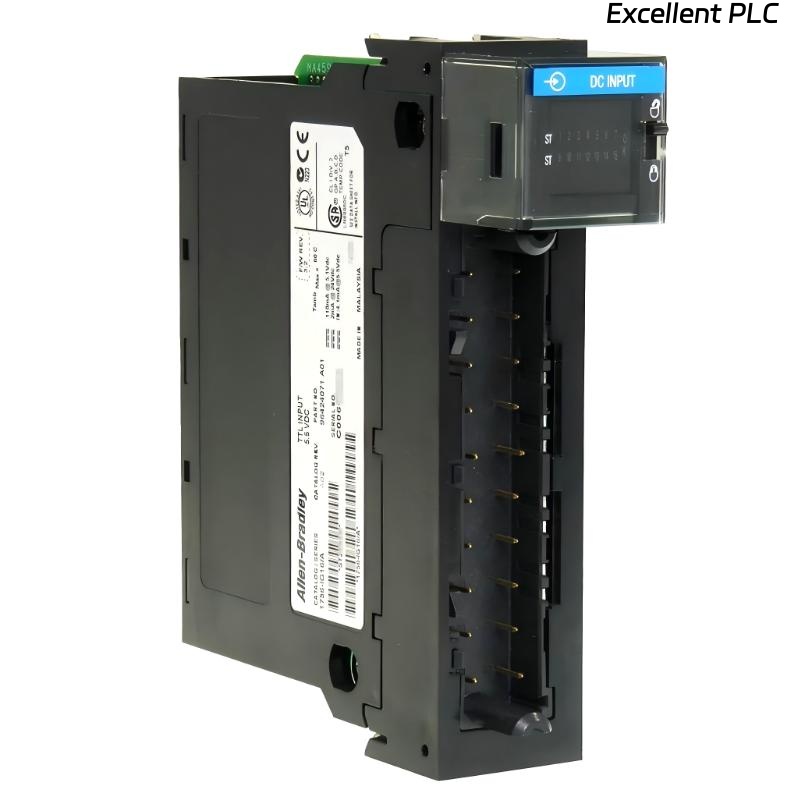

Allen Bradley 1756-IG16 ControlLogix DC Digital Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-IG16 ControlLogix DC Digital Input Module is a high-performance digital input module designed for ControlLogix automation platforms that require reliable monitoring of low-voltage DC signals. The module provides 16 digital input points and is specifically intended for applications using 5 VDC input signals, making it suitable for interfacing with electronic devices and logic-level outputs.
The 1756-IG16 ensures accurate and stable signal acquisition in control systems where precise detection of low-voltage DC inputs is critical. It integrates seamlessly into ControlLogix chassis, allowing efficient expansion of digital input capacity while maintaining consistent system performance.
With its industrial-grade design, the module supports continuous operation in automation environments where dependable digital input processing and system compatibility are essential.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 1756-IG16 |
| Series | ControlLogix |
| Type | DC Digital Input Module |
| Input Points | 16 |
| Input Voltage | 5 VDC |
| Input Type | Digital DC |
| Connector Type | 20-pin |
| Signal Type | Low-voltage DC logic signals |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.295 kg |
Applications
• ControlLogix Automation Systems: Expands digital input capability for low-voltage DC signals.
• Electronic Signal Monitoring: Ideal for reading logic-level outputs from electronic devices.
• Machine Control: Monitors status signals from sensors, switches, and embedded controllers.
• Process Automation: Provides stable digital input acquisition for control and monitoring tasks.
• System Integration: Suitable for applications requiring compact, high-density digital inputs within ControlLogix architectures.
Advantages
• Low-Voltage DC Support: Optimized for 5 VDC digital input signals.
• High Input Density: Provides 16 input points in a single ControlLogix module.
• Accurate Signal Detection: Designed for reliable monitoring of logic-level DC inputs.
• Seamless ControlLogix Integration: Fully compatible with ControlLogix chassis and backplane systems.
• Industrial Reliability: Engineered for stable operation in industrial automation environments.
• Efficient System Expansion: Simplifies digital input expansion without additional interface hardware.
FAQ
-
How many input points does the 1756-IG16 provide?
The module provides 16 DC digital input points. -
What input voltage does the module support?
It is designed to operate with 5 VDC input signals. -
What type of signals can be connected to this module?
It is suitable for low-voltage DC logic signals, such as electronic sensor or controller outputs. -
Is the module compatible with standard ControlLogix systems?
Yes, it integrates directly into ControlLogix chassis and backplane architectures. -
Can it be used for machine status monitoring?
Yes, it is commonly used to monitor digital status signals in machine control systems. -
Is this module suitable for process automation applications?
Yes, it provides stable and reliable digital input processing for process and discrete automation. -
Does the module support high-density I/O configurations?
Yes, the 16-point design supports compact and efficient I/O layouts. -
Is additional signal conditioning required?
In most applications, no additional conditioning is required when using compatible 5 VDC signals.
Related Models
| Model | Description |
|---|---|
| 1756-IG8 | ControlLogix DC Digital Input Module, 8 points |
| 1756-IB16 | ControlLogix DC Input Module, 16 points |
| 1756-IB16I | ControlLogix Isolated DC Input Module, 16 points |
| 1756-IH16I | ControlLogix High-Voltage DC Isolated Input Module |
| 1756-IA16 | ControlLogix AC Input Module |
Popular Models
| Model | Description |
|---|---|
| 1756-IG16 | 16-point low-voltage DC digital input module |
| 1756-IB16 | Standard DC input module |
| 1756-IB32 | High-density DC input module |
| 1756-IH16I | High-voltage DC isolated input module |
| 1756-IA16 | AC digital input module |
