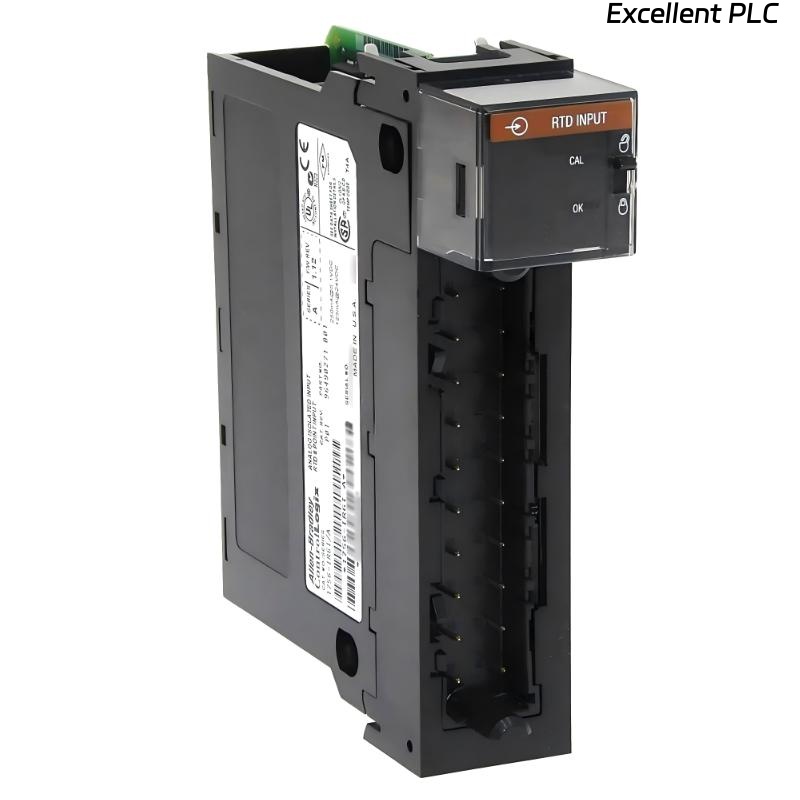

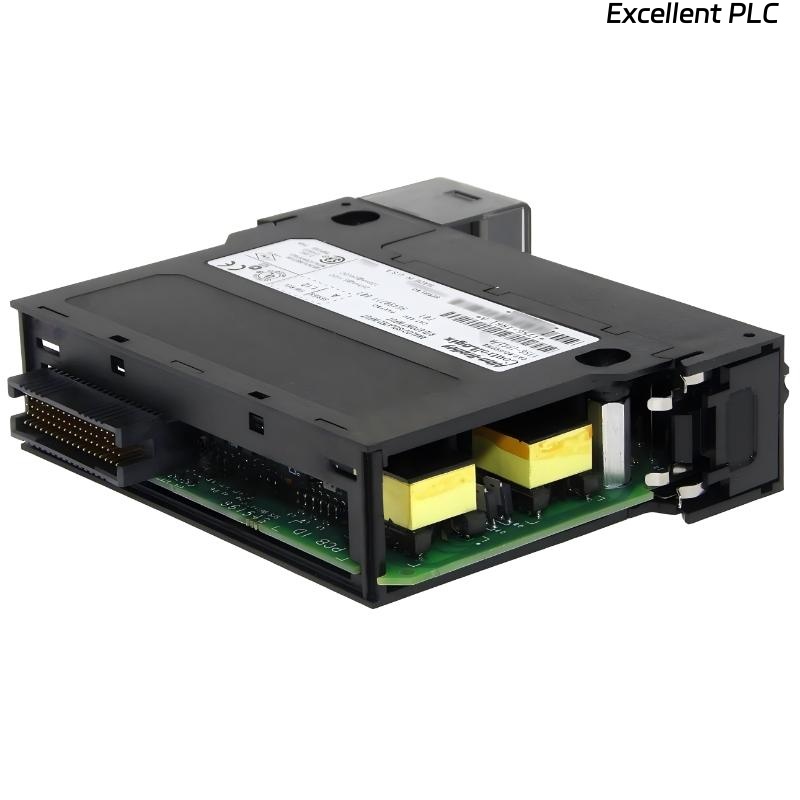

Allen Bradley 1756-IR6I ControlLogix Isolated RTD Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen-Bradley 1756-IR6I ControlLogix Isolated RTD Input Module is an industrial analog input module designed for ControlLogix automation systems that require high-accuracy temperature measurement using RTD (Resistance Temperature Detector) sensors.
The module provides 6 isolated RTD input channels, allowing independent temperature measurement for multiple points while protecting the system from electrical interference. With 16-bit resolution, it ensures precise and reliable temperature data suitable for critical industrial process monitoring and control.
Integrated seamlessly into ControlLogix architectures, the 1756-IR6I delivers stable analog input performance, making it ideal for applications in chemical, petrochemical, and manufacturing environments where accuracy and isolation are essential.
Product Specifications
| Parameter | Details |
|---|---|
| Model | 1756-IR6I |
| Series | ControlLogix |
| Type | Isolated RTD Input Module |
| Number of Inputs | 6 |
| Input Type | Isolated RTD |
| Resolution | 16 bits |
| Connector Type | 20-pin |
| Supported Sensors | PT100, PT1000, and other standard RTDs |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.272 kg |
Applications
• Industrial Process Monitoring: Measures temperatures from RTD sensors in chemical, petrochemical, and manufacturing plants.
• Control Systems: Provides accurate temperature inputs for PID loops or process control systems.
• Multi-Point Temperature Measurement: Supports monitoring of 6 independent temperature points simultaneously.
• High-Accuracy Applications: Suitable for processes requiring stable and repeatable analog temperature readings.
• Industrial Environments: Performs reliably in electrically noisy environments with full channel isolation.
Advantages
• Isolated Inputs: Each RTD input is fully isolated, protecting the backplane and controller from field transients.
• High Resolution: 16-bit resolution ensures accurate and reliable temperature measurement.
• Multi-Channel Module: 6 independent RTD inputs reduce module footprint and wiring complexity.
• Seamless ControlLogix Integration: Directly compatible with ControlLogix racks and backplanes.
• Industrial Reliability: Engineered for continuous operation in harsh industrial environments.
• Flexible Sensor Support: Supports standard RTD sensor types such as PT100 and PT1000.
FAQ
-
How many RTD inputs does the 1756-IR6I provide?
The module provides 6 isolated RTD input channels. -
What is the resolution of the measurements?
It delivers 16-bit resolution, ensuring high-accuracy temperature monitoring. -
Are the input channels isolated?
Yes, all channels are fully electrically isolated from each other and the backplane. -
Which RTD sensors are compatible?
Standard PT100, PT1000, and other compatible RTD sensors can be used. -
Can the module operate in electrically noisy environments?
Yes, the isolation design ensures reliable performance in noisy industrial conditions. -
Is this module compatible with ControlLogix systems?
Yes, it integrates fully with ControlLogix chassis and backplanes. -
How many points can it monitor simultaneously?
It monitors 6 independent RTD temperature points at the same time. -
Is the module suitable for process control loops?
Yes, it provides precise analog input data for temperature-based PID or control loops. -
Does it simplify wiring in control systems?
Yes, combining 6 channels in a single module reduces rack space and wiring effort. -
Which applications benefit most from this module?
Applications requiring multi-point, isolated, and high-accuracy temperature measurement benefit most.
Related Models
| Model | Description |
|---|---|
| 1756-IR6 | Standard RTD Input Module, 6 points |
| 1756-IR10 | RTD Input Module, 10 points |
| 1756-IR16I | Isolated RTD Input Module, 16 points |
| 1756-IF8H | HART Analog Input Module, 8 channels |
| 1756-IF6I | Isolated Analog Input Module, 6 channels |
| 1756-IF8 | Standard Analog Input Module, 8 channels |
Popular Models
| Model | Description |
|---|---|
| 1756-IR6I | 6-point isolated RTD input module |
| 1756-IR16I | 16-point isolated RTD input module |
| 1756-IF8H | HART Analog Input Module |
| 1756-IF6I | 6-channel isolated analog input module |
| 1756-IF8 | 8-channel standard analog input module |
| 1756-IF8K | 8-channel flexible analog input module |
