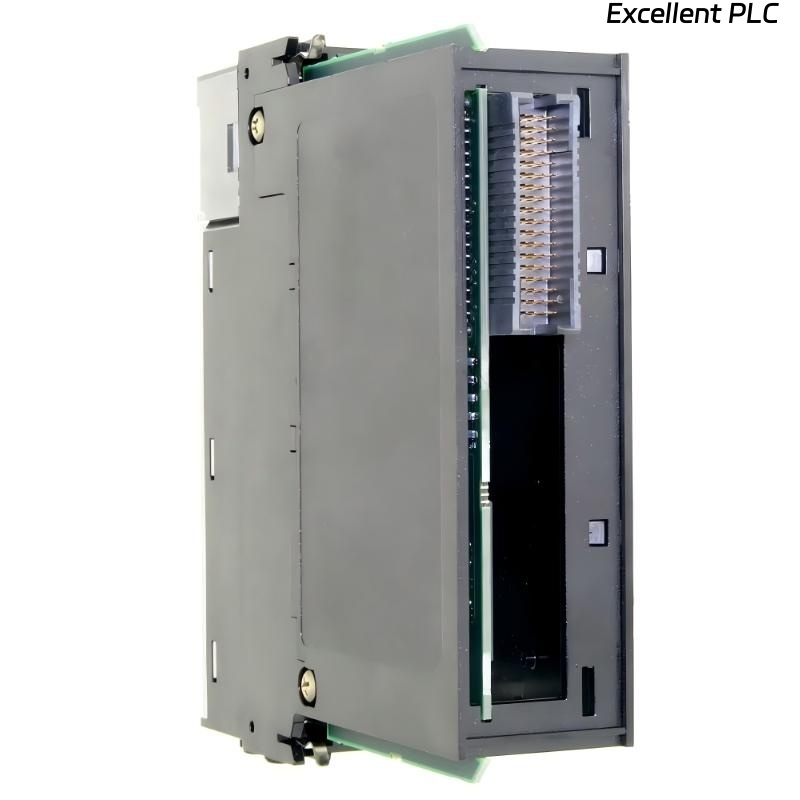

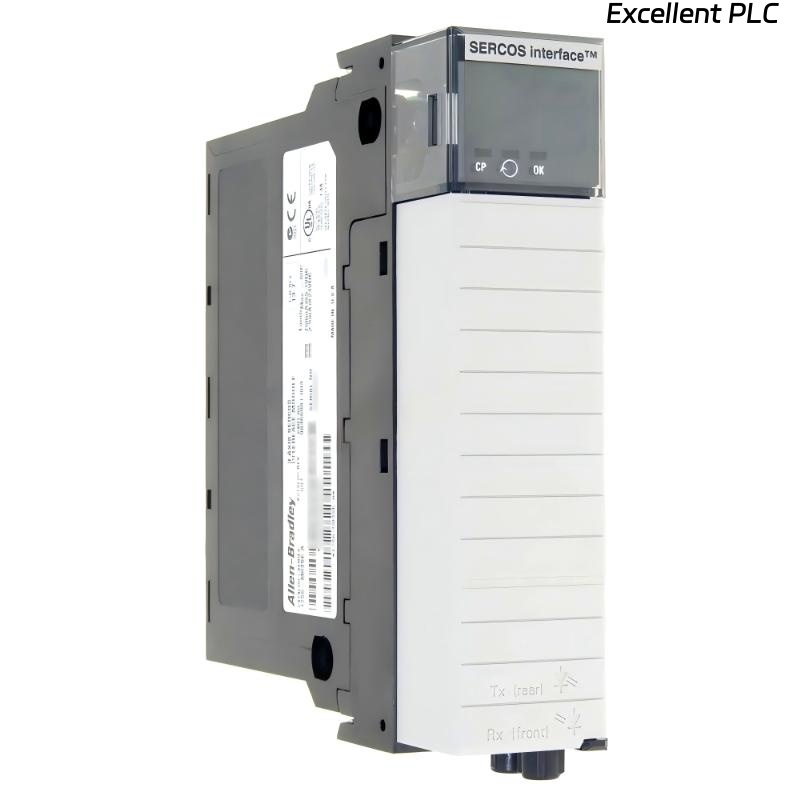

Allen Bradley 1756-M03SE ControlLogix 3 Axis SERCOS Servo Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Allen Bradley 1756-M03SE ControlLogix 3 Axis SERCOS Servo Module is a high-performance motion control module designed for precise multi-axis motion within the ControlLogix automation platform. It supports up to 3 axes or drives using a SERCOS network, enabling coordinated and deterministic motion control for industrial machinery.
With fast communication and reliable timing, the module is ideal for applications such as robotic positioning, packaging, and printing systems. It allows accurate closed-loop control of servo drives, ensuring precise positioning, velocity control, and synchronization across multiple axes.
The 1756-M03SE integrates seamlessly into a standard 1756 ControlLogix chassis and operates reliably within 0 to 60 deg C, making it suitable for standard industrial environments. Motion programming and configuration are performed using Studio 5000 Logix Designer.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 3 Axis SERCOS Servo Module |
| Model | 1756-M03SE |
| Manufacturer | Allen Bradley |
| Series | ControlLogix |
| Number of Axes or Drives | 3 |
| Communication Protocol | SERCOS |
| Backplane Current at 5 V | 760 mA |
| Backplane Current at 24 V | 2.5 mA |
| Current Draw at 5.1 V | 1.2 A |
| Power Dissipation | 5.0 W |
| Thermal Dissipation | 21.2 BTU/hr |
| Isolation Voltage | 50 V continuous |
| Operating Temperature | 0 to 60 deg C |
| Mounting | 1756 ControlLogix Chassis |
| Dimensions | 145.2 x 34.6 x 139.6 mm |
| Weight | 0.26 kg |
Applications
• Controls 3-axis servo systems in industrial machinery
• Used in robotic arms, packaging machines, and printing equipment
• Supports high-speed indexing and precise motion coordination
• Suitable for electronic camming, motion profiling, and synchronized servo applications
• Enables centralized motion control with deterministic timing
• Applied in systems requiring accurate closed-loop feedback and positioning
Advantages
• Controls up to 3 servo axes simultaneously
• Supports SERCOS deterministic communication for precise timing
• High current capacity allows robust servo drive operation
• Reduces system complexity with centralized multi-axis motion control
• Reliable operation under industrial conditions
• Seamless integration into ControlLogix motion control architecture
• Enhances machine efficiency with precision electronic gearing and camming
FAQ
-
How many axes can this module control?
It supports up to three servo axes or drives over a SERCOS network. -
What communication protocol does it use?
The module uses the SERCOS deterministic fiber-optic protocol. -
What is the power requirement for this module?
It draws 760 mA at 5 V on the backplane, 2.5 mA at 24 V, and 1.2 A at 5.1 V for operation. -
Can it synchronize multiple axes precisely?
Yes, it supports coordinated motion for all connected axes with high timing accuracy. -
Does it support electronic camming and motion profiling?
Yes, it allows advanced motion control features like camming and profiling. -
What is the isolation voltage rating?
It has a continuous isolation voltage of 50 V. -
Is it compatible with all ControlLogix processors?
It works with ControlLogix processors that support SERCOS motion functionality. -
Does it handle closed-loop feedback control?
Yes, it manages feedback from servo drives for accurate position and velocity control. -
What is the operating temperature range?
It operates safely from 0 to 60 deg C. -
Can it be used in high-speed industrial applications?
Yes, it is suitable for high-speed, deterministic motion applications requiring precise multi-axis control.
Related Models
| Model | Axes | Protocol | Description |
|---|---|---|---|
| 1756-M08SE | 8 | SERCOS | Multi-Axis Servo Module |
| 1756-M02AE | 2 | Analog Encoder | Dual-Axis Motion Module |
| 1756-M16SE | 16 | SERCOS | High-Capacity Motion Module |
| 1756-HSC | 2 | High-Speed Counter | Encoder Interface Module |
| 1756-L81E | — | EtherNet/IP | Logix5580 Processor |
| 1756-L83E | — | EtherNet/IP | High-Memory Processor |
